Power through shade, weather, and tight installs with the 200W ShadowFlux™ Anti-Shading N‑Type Solar Panel, engineered to deliver consistent energy output, even in partial shading.
Equipped with ShadowFlux™ technology, this panel uses 10x more bypass diodes than conventional models, preventing shaded cells from overheating or draining performance. Designed for real-world conditions, the panel boasts up to 25% efficiency, excellent hot-spot resistance, and a steady 36.5V Voc output, even when partially shaded. Whether you're outfitting a van, RV, marine vessel, or off-grid cabin, its compact frame (7% smaller, 10% lighter) makes installation fast and flexible. Tested to IP67+ standards, it offers long-term protection from water, dust, and physical stress. Built to endure high winds, snow loads, and rugged terrain, it’s the perfect partner for Orion's Flush Solar Panel Brackets and Modular Roof Rack systems.
Key Features

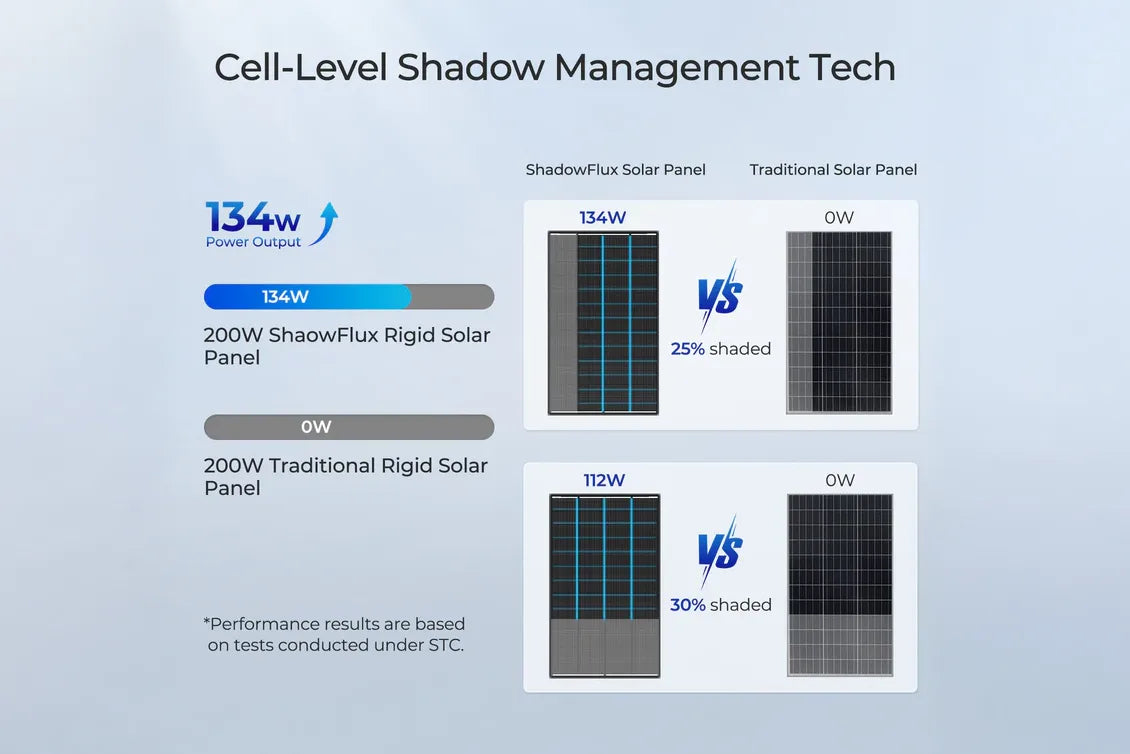

- ShadowFlux™ Anti-Shading Tech: Maintains high output in partial shade; avoids hot-spot formation using an advanced bypass diode matrix.
- Excellent Hot-Spot Resistance: Prevents shaded cells from drawing current, reducing risk of localized overheating or panel failure.
- Consistent Voltage Stability: Holds a steady 36.5V open-circuit output, even when partially obstructed.
- 25% Cell Efficiency: N-Type cells offer cutting-edge thermal resistance and ultra-low degradation over time.
- Compact & Lightweight Build: 7% smaller and 10% lighter than traditional 200W panels, ideal for space-limited setups.

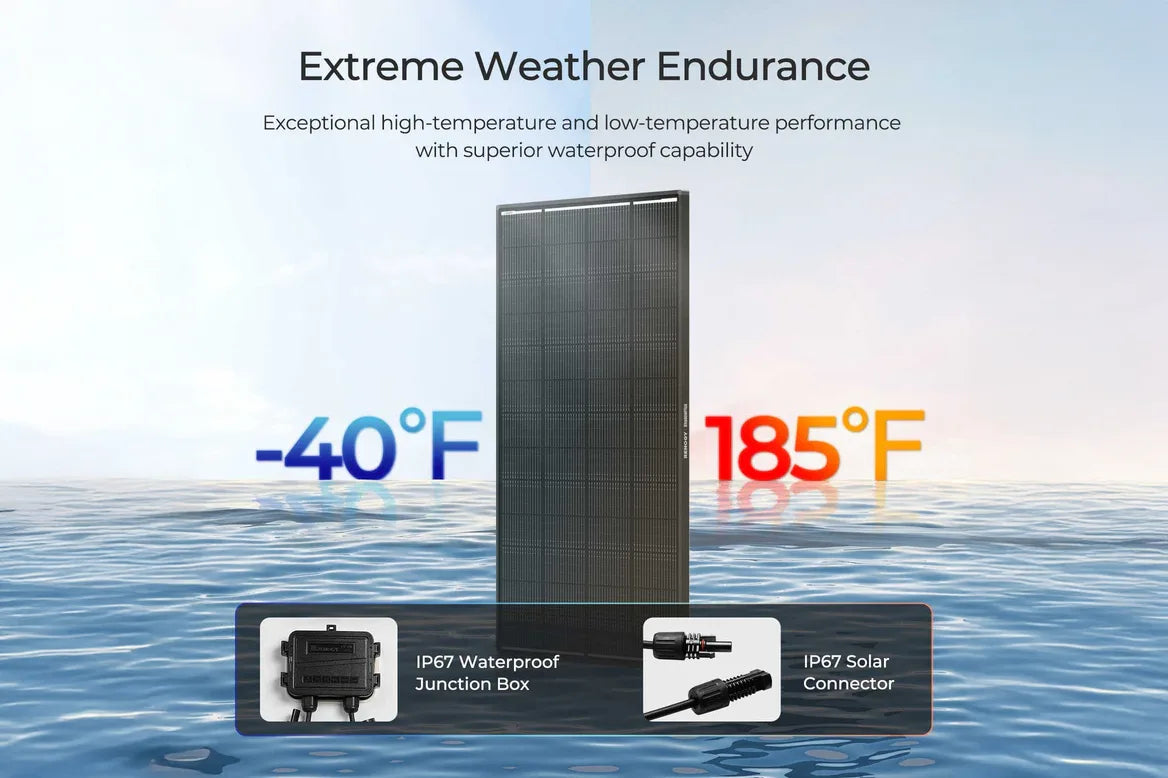

- Durable IP67+ Protection: Withstands harsh environments with waterproof, dust-tight, and impact-resistant construction.

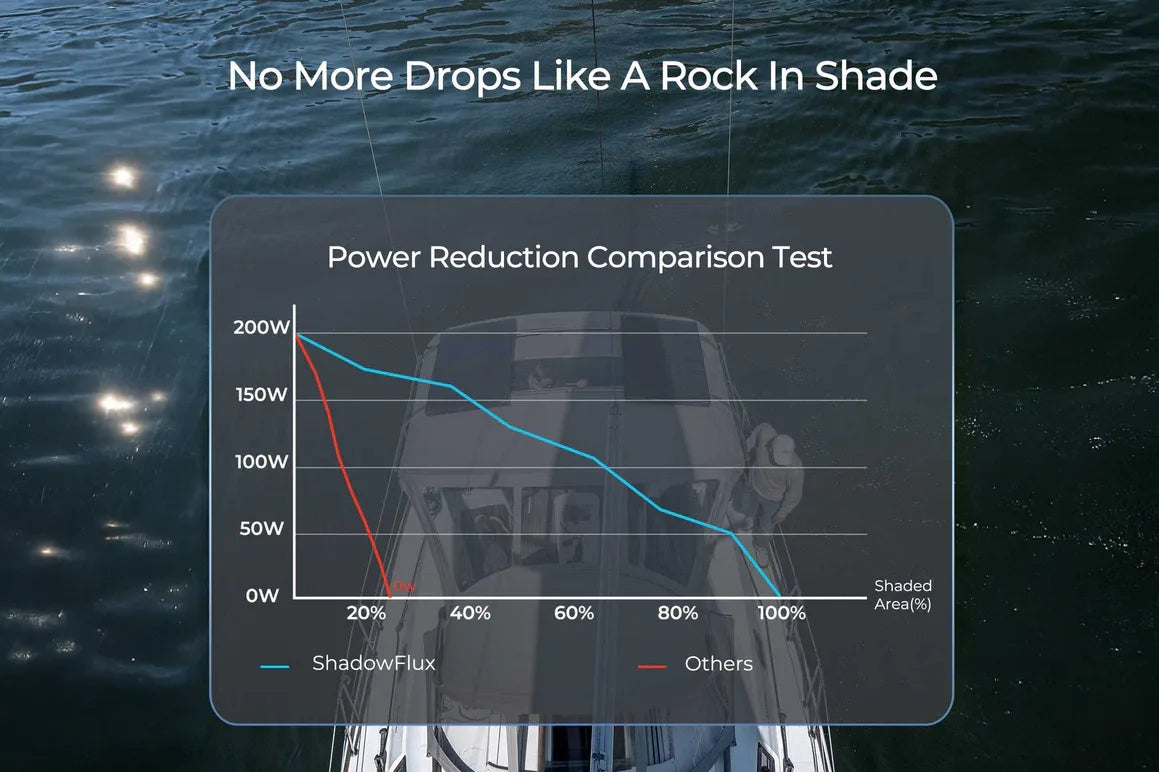

- Linear Power Retention: Outperforms standard panels by avoiding performance collapse during partial shading.
- Long-Term Reliability: Backed by a 25-year performance and 5-year workmanship warranty.
Panel Technical Specifications
| Specification | Details |
|---|---|
| Max Power (STC) | 200 W |
| Open-Circuit Voltage (Voc) | 36.5 V |
| Short-Circuit Current (Isc) | 6.86 A |
| Optimal Power Voltage (Vmp) | 31.3 V |
| Optimal Power Current (Imp) | 6.38 A |
| Module Efficiency | ≈ 20.7 % |
| Operating Temp | −40 ℃ to 85 ℃ (−40 °F to 185 °F) |
| Max System Voltage | 1000 V DC |
| Max Series Fuse | 15 A |
| Dimensions | 49.69″ × 30.08″ × 1.18″ (1262 × 764 × 30 mm) |
| Weight | 10.81 kg (23.8 lb) |
| Frame | 1.1 mm Aluminum Alloy |
| Certifications | CE, ISO 9001, RoHS, CA65 compliant |
| Warranty | 5‑year workmanship; 25‑year 80 % power output |
FAQ (Frequently Asked Questions) click to expand
1.What is ShadowFlux™ anti-shading technology?
ShadowFlux™ uses 10x more bypass diodes and dynamic current distribution to prevent shaded cells from drawing power, reducing hot spots and maintaining high output even in partial shade.
2.How efficient is this panel?
The panel achieves up to 25% cell-level efficiency, outperforming conventional monocrystalline panels and offering excellent temperature and light-induced degradation resistance.
3.What’s the advantage of N-Type cells?
N-Type solar cells degrade more slowly, handle heat better, and maintain efficiency longer than P-Type cells, making them ideal for long-term off-grid and mobile setups.
4.Does it still perform in cloudy or shaded environments?
Yes. Unlike traditional panels, the ShadowFlux 200W maintains a consistent 36.5V open-circuit output even when partially shaded—thanks to its advanced diode matrix and hot-spot resistance.
5.Is this panel weatherproof?
Yes. It’s rated ≥IP67, which means it's fully sealed against dust and water immersion. Perfect for marine, van, and rooftop use in all weather conditions.
6.What’s included in the warranty?
The panel includes a 5-year workmanship warranty and a 25-year linear power output warranty ensuring at least 80% of rated output after 25 years.
