• Nomadic X3 Air Conditioner with Black Shroud 12v/24v/48v
  • Nomadic X3 Air Conditioner

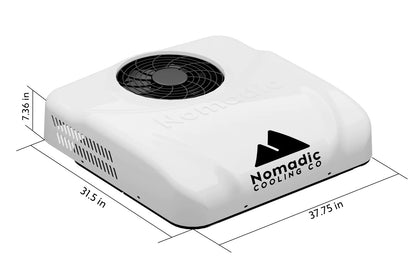

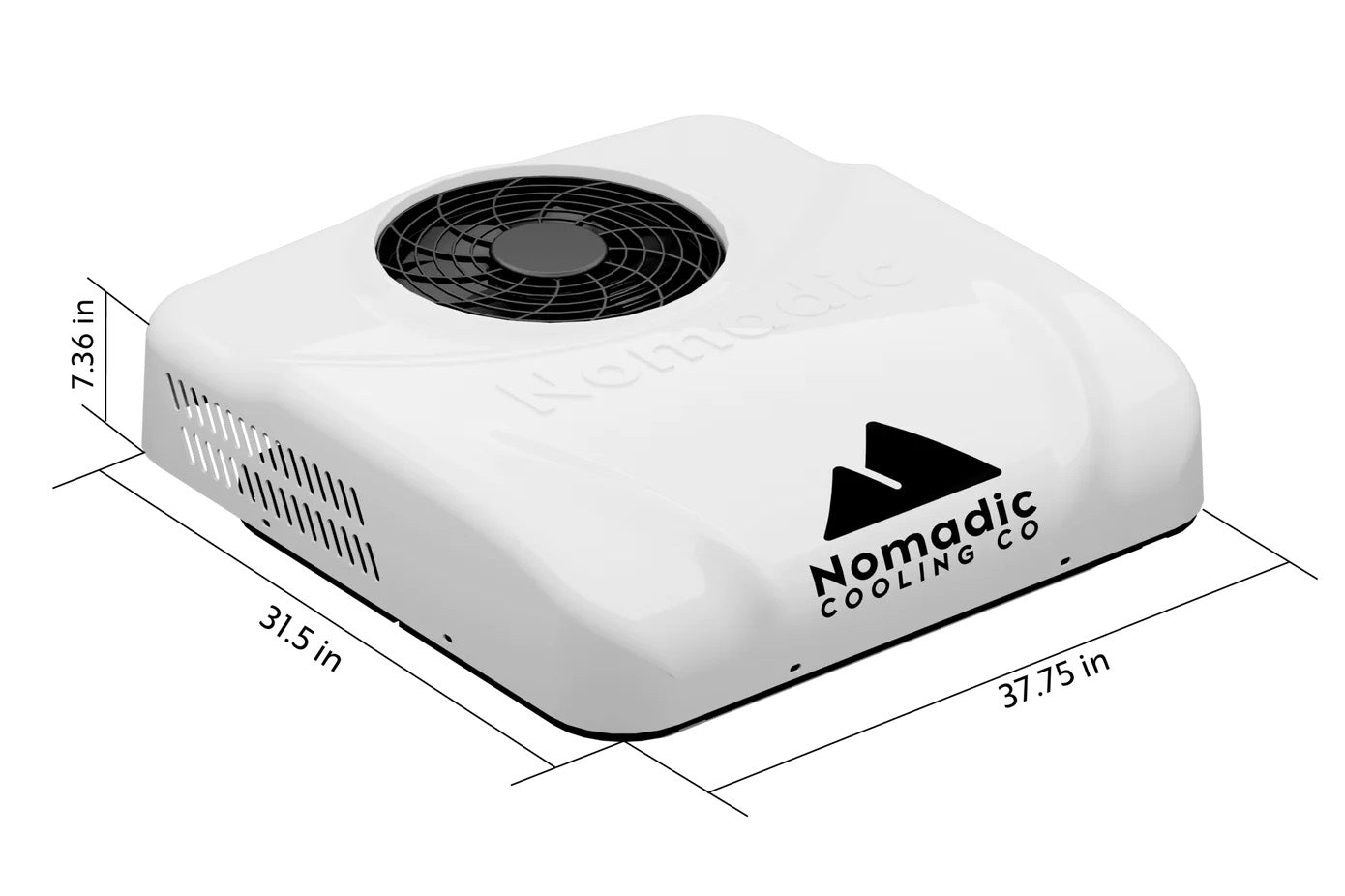

  • Nomadic X3 Air Conditioner Dimensions

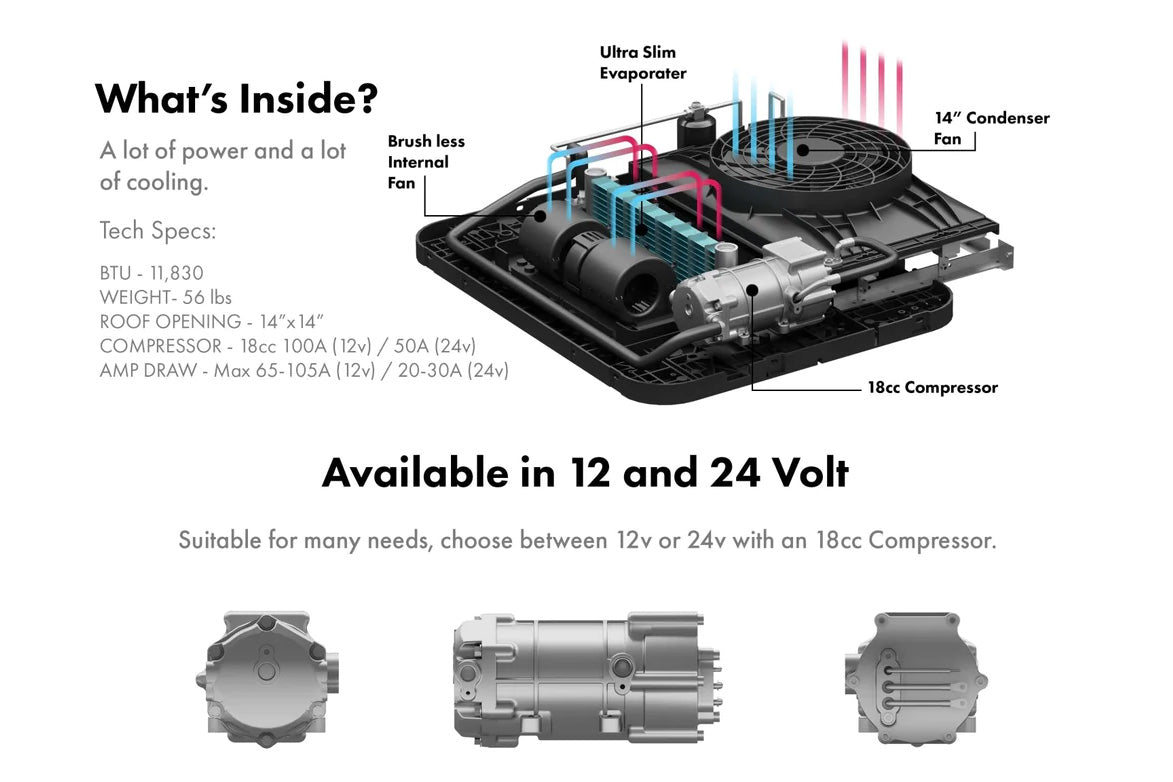

  • Nomadic X3 Air Conditioner Features

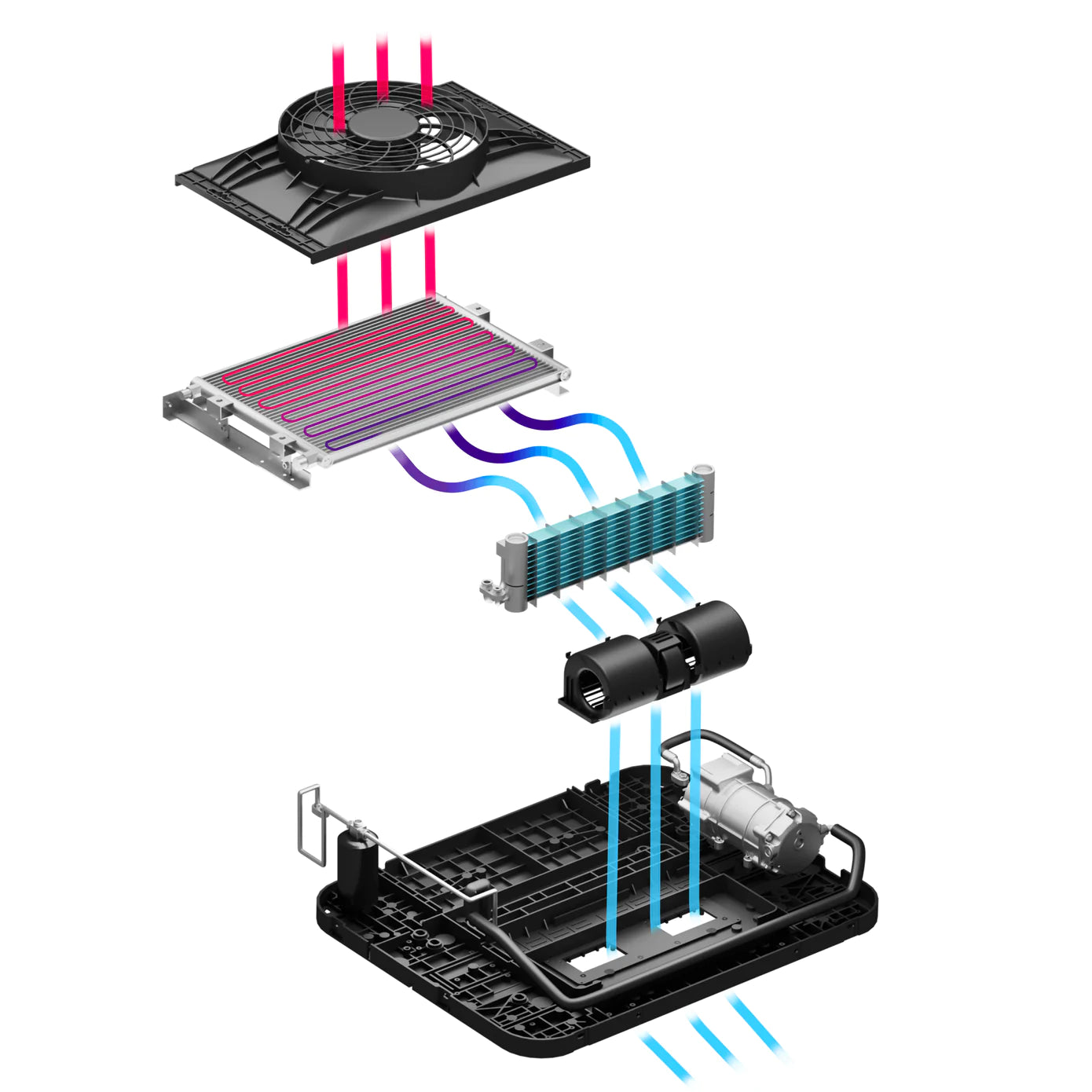

  • Nomadic X3 Air Conditioner Diagram

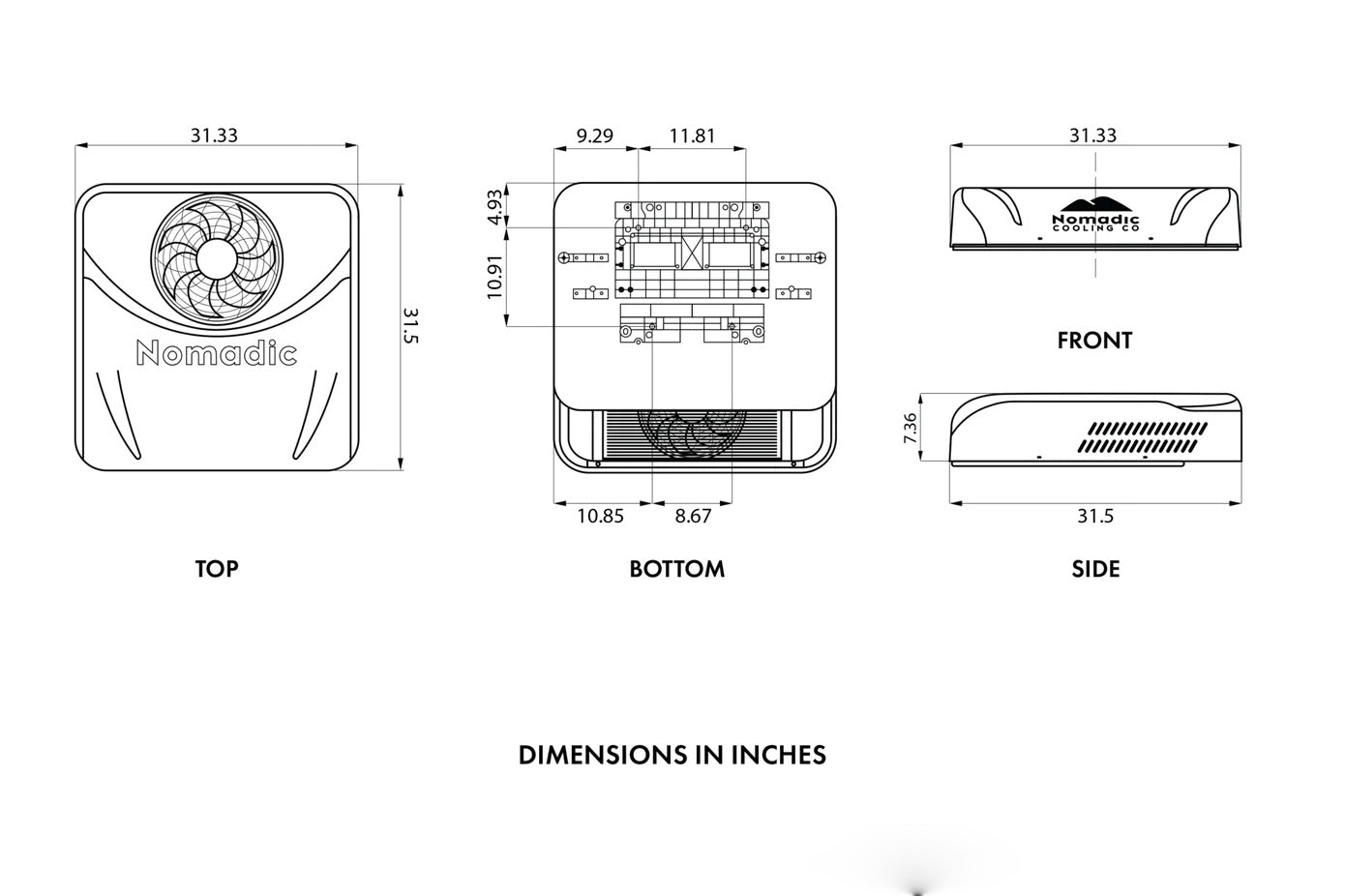

  • Nomadic X3 Air Conditioner Full Dimensions

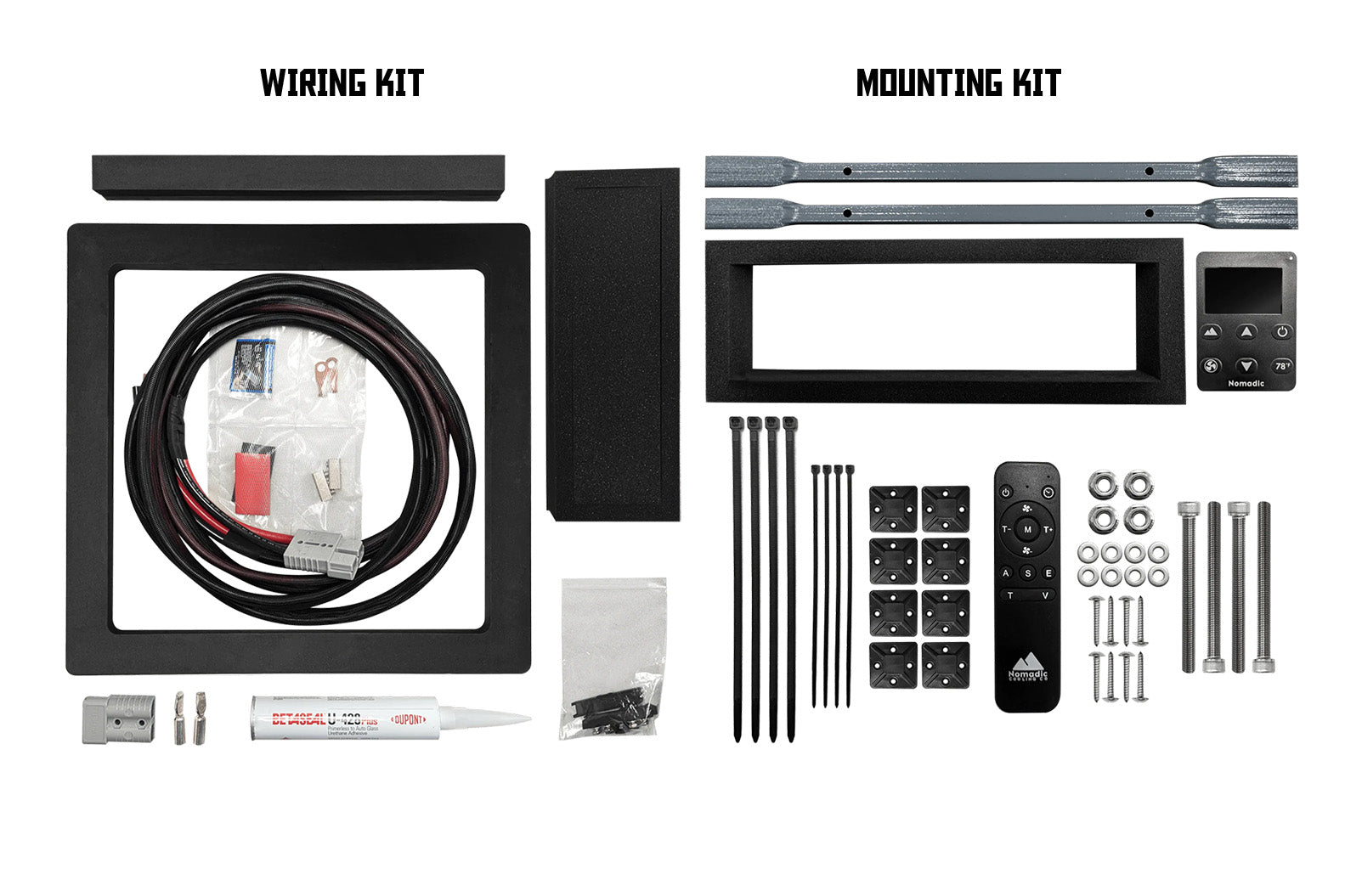

  • the contents of a nomadic x3 DIY kit
  • Nomadic X3 DIY install kit

Nomadic Cooling X3 Air Conditioners

$4,369.00 USD
$4,994.00 USD $4,369.00 USD
SPEICHERN $625.00 SOLD OUT

ALL X3 A/Cs BOUGHT FROM ORION INCLUDE A DIY INSTALL KIT & FREE SHIPPING TO THE LOWER 48

The new Nomadic X3 is a work of art and engineering. This 48V A/C is the go-to for Overlanders, RV'ers, Vancampers, and anyone looking to go further in comfort. The 48v version is directly compatible with Ecoflow Power Kits up to 10 kWh via a 48v cable that connects directly to one of the spare battery ports and allows you to operate the 48v AC directly off of the 48V battery in addition to a normal 12v or 24v distribution panel. And yes, you can still get this AC in 12V and 24V if preferred.

Step 1: Select a Voltage (12v / 24v / 48v)

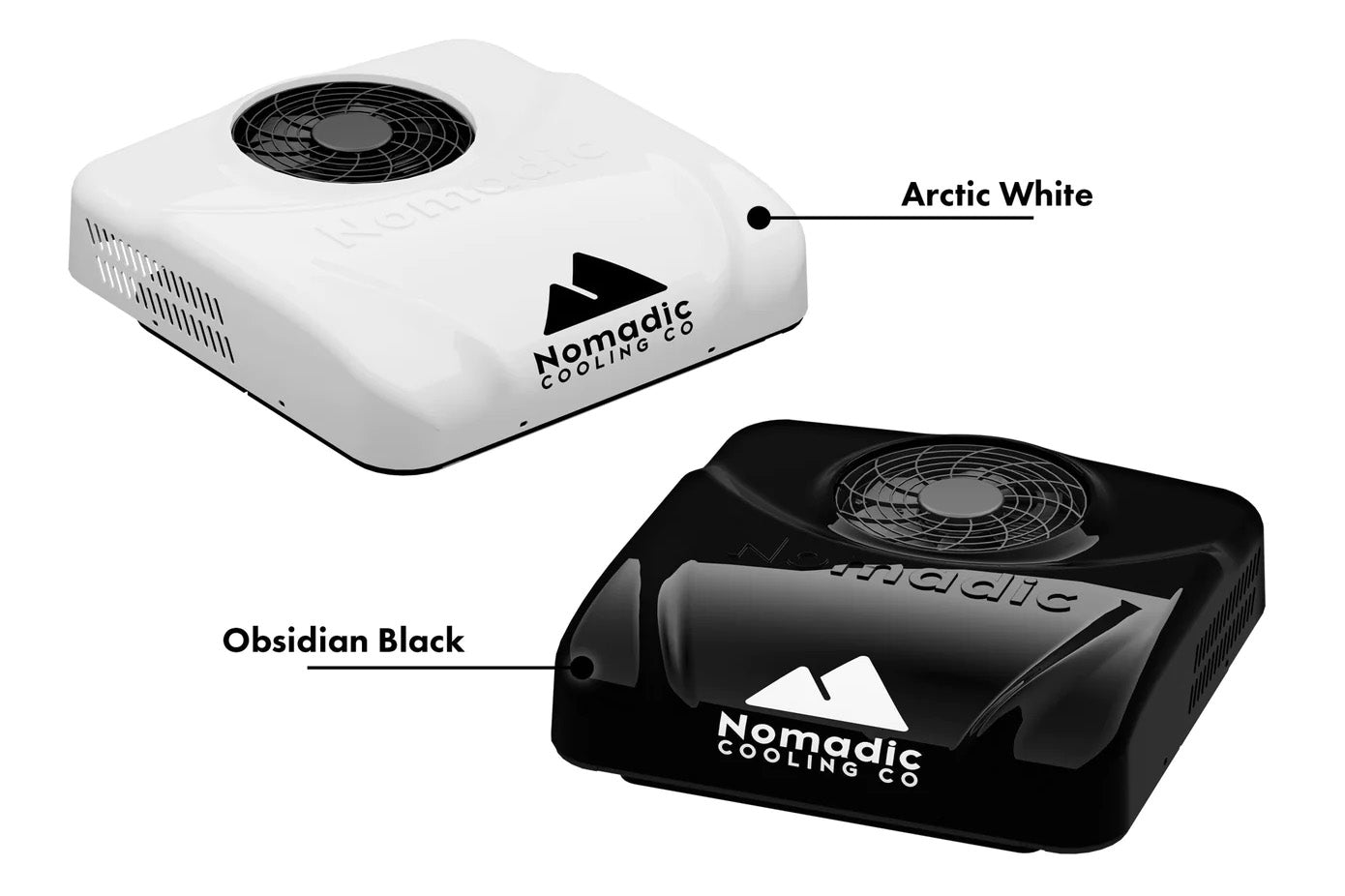

Step 2: Select an External Shroud Color (Black / White)

Like its predecessors, this A/C is a stand-alone air conditioner that does not need to be connected to the engine or shore power to operate, providing the freedom of genuine off-the-grid living.

The original Nomadic A/C was considered one of the smallest A/C systems on the market, but the Nomadic team envisioned an even smaller footprint. So a few prototypes later, the dimensions were significantly reduced and performance increased by using a much quieter and longer-lasting brushless internal fan. The compressor has also been mounted on spring bushings to help with road and operational vibration and longevity. The upgrades do not stop there, as Nomadic focused on the all-new intelligent LCD board. The X3 has an all-new modern crisper panel to ensure better visibility even in direct sunlight. The entire MCB has been revamped with better electrical components, circuitry, and more intelligent operational logic. This translates to the compressor adapting considerably faster to freezing points, better error code detection, and speedier motor over-current, providing less supervision and downtime. The internal faceplates feature sleek black powder-coated aluminum panels.

NOTABLE MENTIONS

  • Fits in industry-standard 14x14 openings
  • Small form factor
  • Brushless internal fans
  • A sight glass for on-the-road troubleshooting
  • Modern LCD panel
  • Stainless steel hardware
  • Spring bushing-mounted compressor
  • Powder-coated interior components
  • Rubber dampening feet

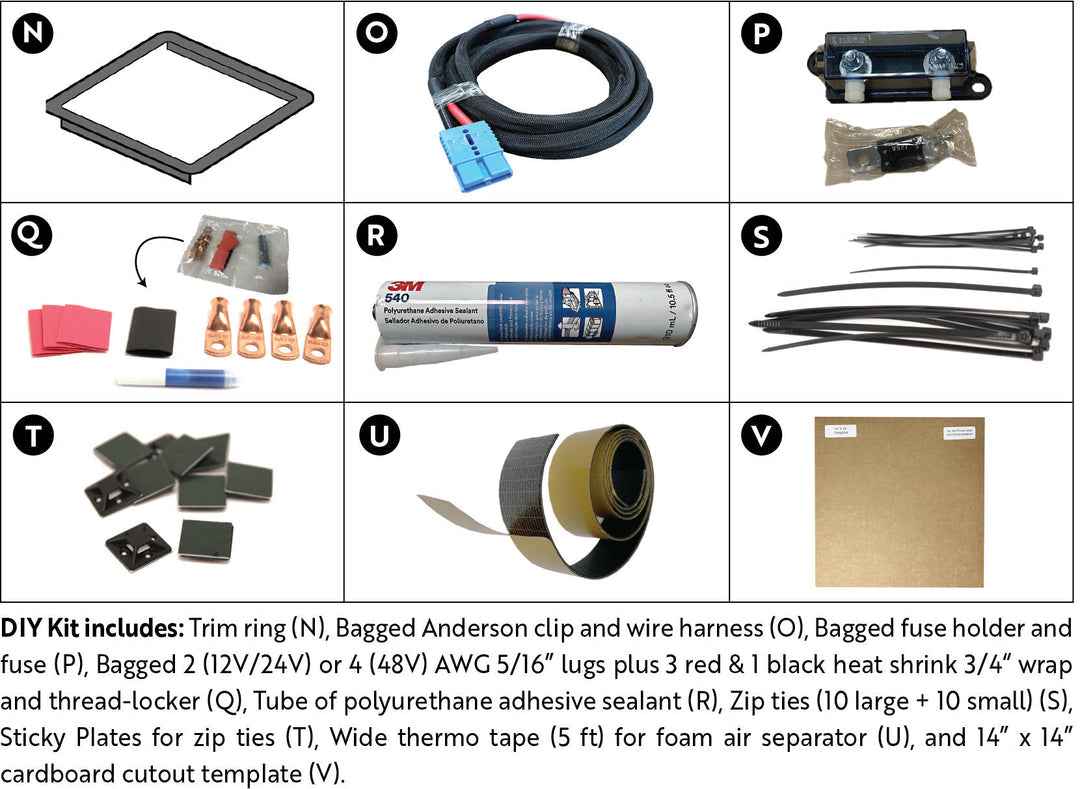

ALL X3 A/Cs BOUGHT FROM ORION INCLUDE A DIY INSTALL KIT:

  • 15FT 2AWG Power Harness
  • Single Layer Foam Gasket
  • Leveling Strip
  • 2 Style of Air Separators
  • Copper Lugs
  • Heat Shrink
  • Betaseal with Application Nozzle
  • MIDI Fuse Holder with Corresponding Fuse
  • Vibra Tite Threadlocker
  • Internal Faceplate
  • Control Panel
  • Control Panel Harness
  • Cross Bars
  • Mounting Hardware
  • Remote
  • Zip ties with mounting
  • Internal Support Trim Ring

      TECHNICAL SPECS

      Nomadic x3 Spec Sheet

      Get a CAD-Verified Roof Layout

      We understand that every van setup is unique. That's why we offer CAD-verified roof layouts for customers who have purchased or plan to purchase an Orion roof rack - so you can maximize space and fit exactly what you need, where you need it. Request a layout here ›
