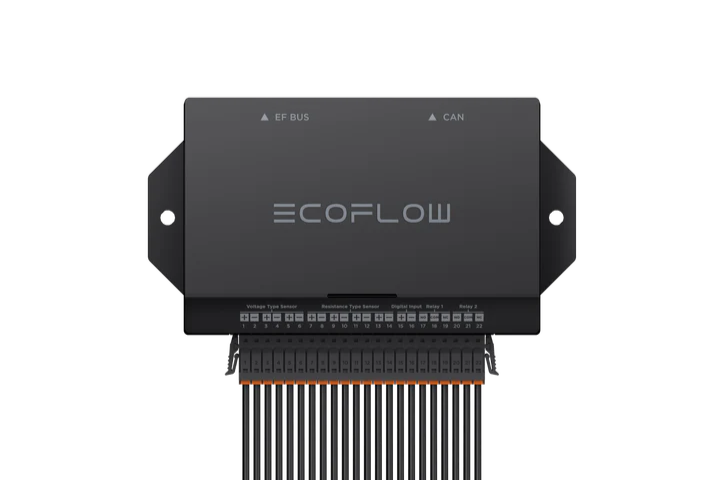

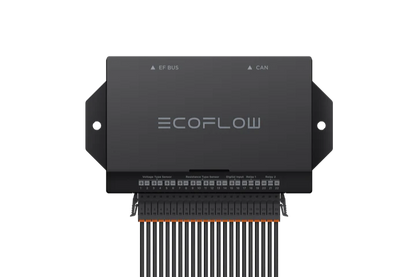

• Front view of EcoFlow Power Link with terminal block and labeled sensor inputs

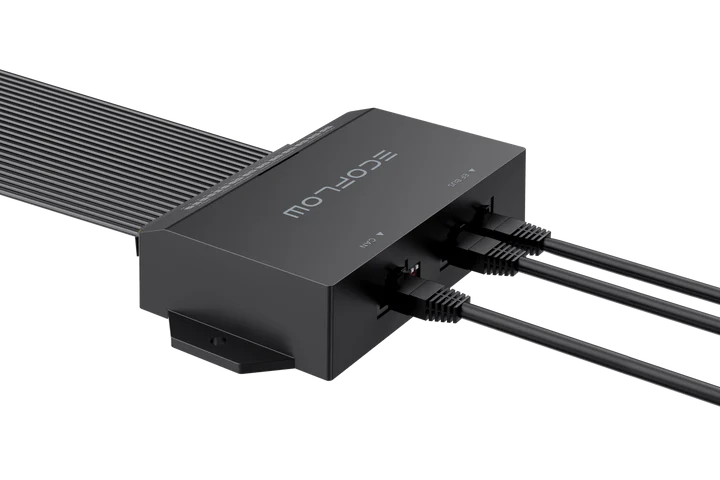

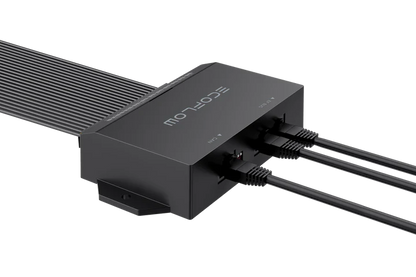

  • Angled side view of EcoFlow Power Link showing CAN and EF BUS cable connections

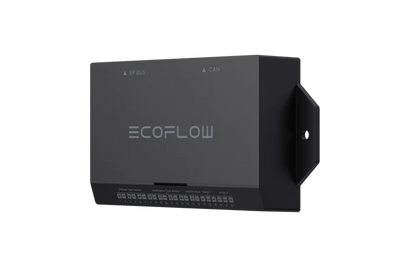

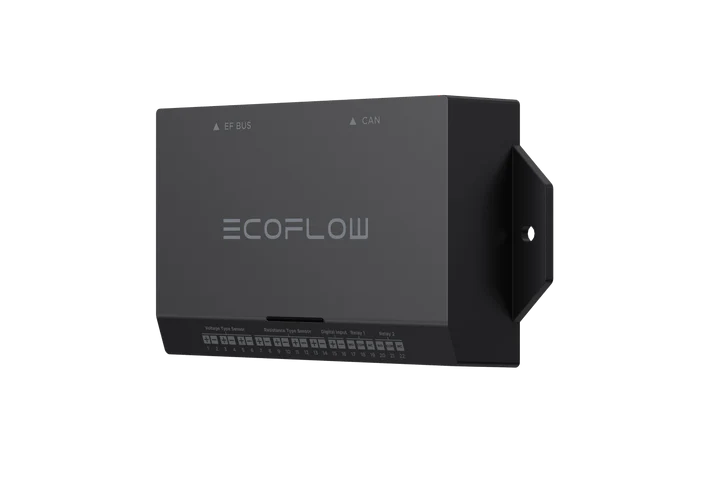

  • Wall-mounted EcoFlow Power Link with visible mounting bracket and labeled ports

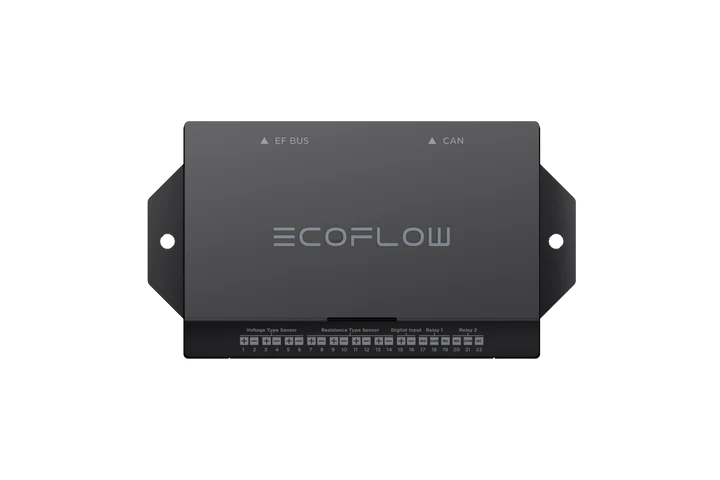

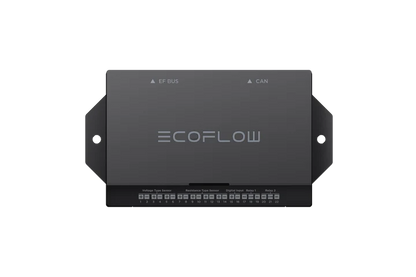

  • Top-down view of EcoFlow Power Link for RV, campervan, and marine battery systems

Ecoflow Power Link

$399.00 USD
$399.00 USD
SOLD OUT


EcoFlow Power Link for Power Kits

The EcoFlow Power Link is the essential interface for monitoring and managing your off-grid energy system. Designed to work seamlessly with the EcoFlow Power Hub, Smart Distribution Panels, and sensors in your van, RV, or marine setup, this compact unit sends real-time data directly to the EcoFlow Power Kit Console, PowerInsight monitor, or the EcoFlow app.

With plug-and-play functionality, the Power Link makes it easy to monitor key system data like battery voltage, tank levels, and sensor readings without needing complex wiring or calibration. You can even connect up to two Power Links to a single Power Hub for expanded sensor coverage throughout your system.

Whether you’re building a campervan electrical system or upgrading your marine setup, the Power Link ensures everything stays connected, organized, and easy to manage.

Key Features

  • Compatible with EcoFlow 5kVA and 3.6kVA Power Hubs (GEN 1 & GEN 2)
  • Connects to EcoFlow PowerInsight, Console, and App for system monitoring
  • Supports voltage, resistance, and RTD level sensors - Recommended Sensors
  • Streamlined calibration for quick installation
  • Discreet design with hideaway terminal block
  • Allows two Power Links per Power Hub

What's in the Box

  • EcoFlow Power Link
  • Terminal block (×1)
  • Screws ST4.2x19 mm (×4)
  • Manual

EcoFlow Power Link – Specifications

Specification Details
Dimensions 137 × 31 × 74 mm (5.4 × 1.2 × 2.9 in)
Weight 120 g (0.26 lb)
EF BUS Input 12V 1.5A Max
EF BUS Output 12V 1.33A Max
Operating Temperature –25°C to 50°C (–13°F to 122°F)
Storage Temperature –25°C to 70°C (–13°F to 158°F)
Operating Humidity 0% to 95% RH (non-condensing)
Altitude ≤ 3,000 m (9,842 ft)
IP Rating IP20
Warranty 5 Years

EcoFlow Power Link – Sensor Inputs

Sensor Type Inputs Range
Voltage Sensor 3 0–35V
Resistance Sensor 4 10Ω–100kΩ
Digital Input 1 —
Relay Channels 2 Max 42.4V / 1.75A

FAQ (Frequently Asked Questions) click to expand

1.What does the EcoFlow Power Link do?

The Power Link connects your sensors and relays to the EcoFlow Power Hub, enabling system-wide monitoring through the EcoFlow Console, PowerInsight, or app.

2.Which sensors are compatible with the Power Link?

It supports voltage-type sensors, resistance-type sensors, and 4-wire RTD level sensors throughout your RV, van, or boat. See a chart here.

3.How many Power Links can I connect to one Power Hub?

You can connect up to two EcoFlow Power Links to a single Power Hub.

4.Do I need any special software to use the Power Link?

No. Once plugged in, it works automatically with EcoFlow’s app, PowerInsight, and Console. No calibration tools or advanced setup required.

5.Is the Power Link compatible with both Gen 1 and Gen 2 Power Hubs?

Yes. The Power Link supports both 3.6kVA (Gen 1) and 5kVA (Gen 2) EcoFlow Power Hubs.

6.How do I install the Power Link?

It features a hideaway terminal block for clean, simple installation using plug-and-play EF BUS connections.

7.Can I use it to control relays or switches?

Yes. The Power Link includes two relay inputs for connecting and controlling 12V or 48V DC circuits.

8.Where should I mount the Power Link in my system?

It should be mounted near the Power Hub or distribution panel in a dry, protected area. It is IP20 rated (indoor use only).

9.What sensors come with the Power Link?

No sensors are included. It’s a hub for connecting your existing voltage, resistance, or RTD sensors.

10.What’s the warranty on the Power Link?

The EcoFlow Power Link includes a 5-year manufacturer warranty for peace of mind
