The new gold standard in off-grid, van, and RV electrical systems.

Note: The 30/50A Smart AC/DC Distribution Panels are currently backordered nationwide with estimated availability around the week of the 15th. All other components, including the 30A Panels are in stock and ready to ship.

This is the latest version of EcoFlow's Power Kit, released in late 2024 and purpose-built for van & RV owners who want serious power without the hassle. The 5kVA Gen 2 Power Kit is the most advanced, compact, and easiest-to-install DIY power system on the market.

Designed to Be Simple.

Forget hours of crimping cables, sourcing breakers, and figuring out lug sizes. This is a fully integrated, plug-and-play system designed specifically for vans, with everything labeled and ready to go out of the box. Designed with small spaces in mind, the Gen 2 Power Kits use half the space and weigh 50 pounds less than comparative solutions. It's a convenient, plug-and-play system that leaves more time for off-grid adventures.

No DIY engineering or custom wiring required
No programming or configuration headaches
Over-the-air updates: Keep your system current without rewiring
Simple DIY install: Save hundreds of hours vs. building a Victron system
5-year comprehensive warranty: Worry-free service

Powerful. Smart. Dead Simple.

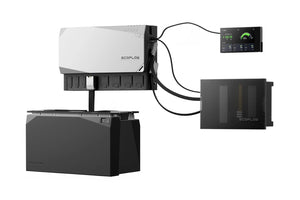

The EcoFlow Power Kit system is a fully integrated power solution engineered for vans, RVs, and marine environments. At its core is the Power Hub 5kVA, delivering up to 5000VA of power. The Power Hub combines an inverter/charger, a DC-DC battery charger with MPPT, a DC-DC step-down converter, and two MPPT solar charge controllers, eliminating the need for complex wiring or piecing together multiple components.

✔️ 5kVA Output (4000W continuous / 8000W surge): Run rooftop A/Cs, induction cooktops, or heaters. Can handle 2×13500 BTU A/Cs at same time with no soft starter.
✔️ 4 Charging Methods: Shore power, solar, alternator, and generator
✔️ Quiet 48 dB Operation: Quieter than a typical office
✔️ Charge 11kWh in 1 hour: Combined inputs
• Charge a 5kWh battery in ~1 hour via solar**
• Charge a 5kWh battery in ~1.5 hours via shore power**
✔️ Up to 4800W Solar Input: Mix panel types with dual MPPT inputs
✔️ Dedicated 48V Output Port: Ideal for 48V A/C power
✔️ Battery Expandability: 5kWh to 45kWh capacity (mix & match sizes)

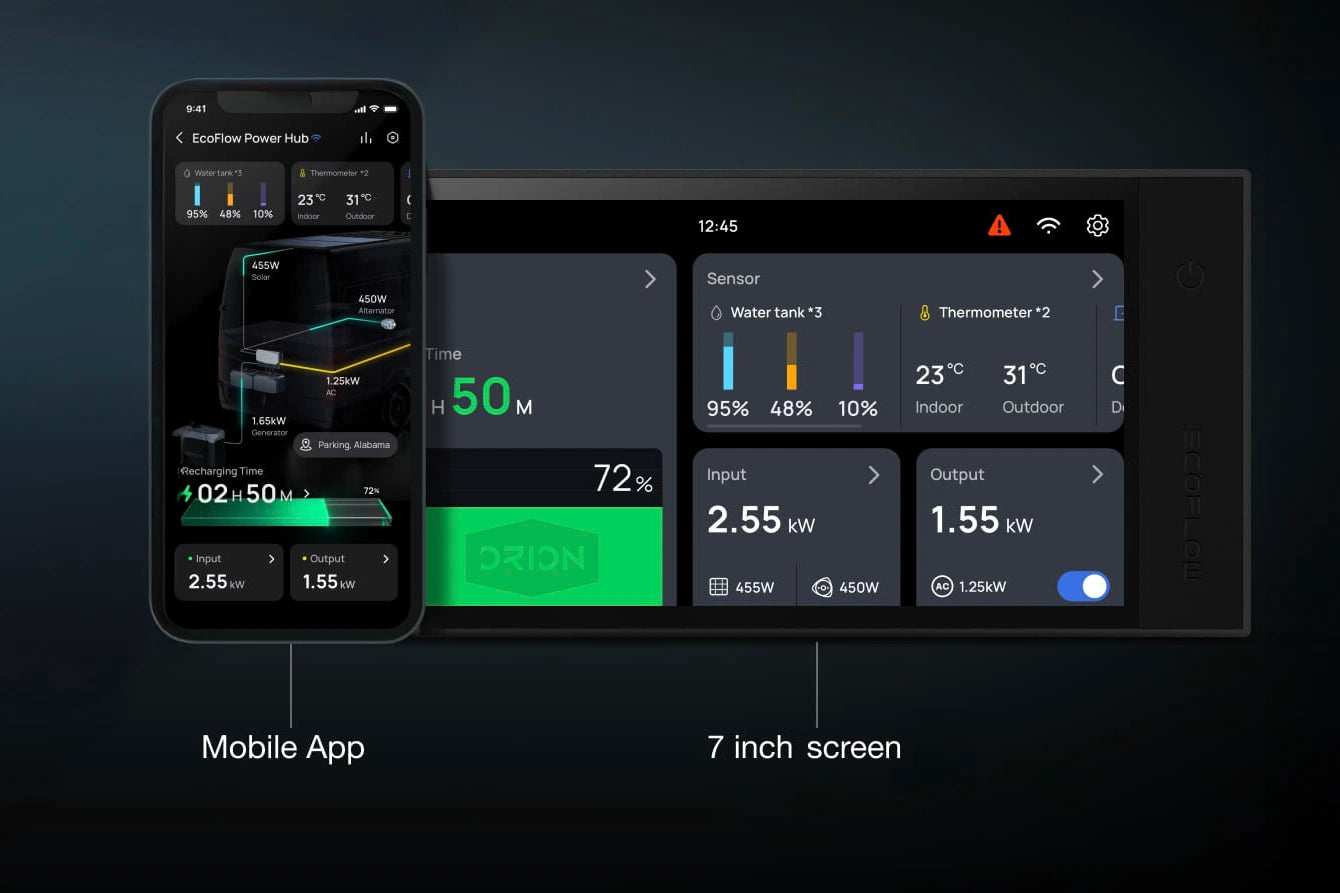

✔️ Smart Control: Manage everything from the EcoFlow app or 7" monitor

Choose Your Kit & Customize

Other sites make it difficult to understand what you actually need. We've simplified the process to help you get the right system without the confusion. The components included depend on your selections, but all kits from Orion come standard with a 7" Power Console, Cable Pack, and Battery Mounting Straps. The Cable Pack includes all essential input and output cables for AC, DC, solar, and alternator charging connections. Each cable is designed for plug-and-play setup with the Power Hub, ensuring secure, high-efficiency operation for your van or RV power system.

👉 STEP 1: Choose Total Battery Configuration/Capacity (5kWh to 45kWh),

👉 STEP 2: Select an AC/DC Distribution Panel (30A or 30/50A): When using the Gen 2 Power Hub, you can choose between the 30A Smart AC/DC Distribution Panel and the larger 30/50A Panel. The 30A panel supports up to 12 DC circuits (6 controllable) and 6 AC circuits, with a maximum DC output of 20A per circuit. The 30/50A panel expands capacity to 16 fully controllable DC circuits and 12 AC branch circuits, offering 30A output on F1–F13 and 50A on F14–F16. Both options operate at 120V/30A under battery power, while the 30/50A panel can provide 240V/50A when connected to 50A shore power. The 30A version uses proprietary EcoFlow breakers (included), whereas the 30/50A model uses standard household breakers (readily available but not included). Many builders prefer the 30A panel for its compact size and simpler wiring, while the 30/50A panel offers greater expansion and higher circuit capacity for complex builds. See specs table below for a detailed comparison.

👉 STEP 3: Choose Optional Accessories:
48V A/C Cable

Allows direct 48V connection between the Power Hub and compatible 48V A/C units for higher efficiency
Frees up circuits on the AC/DC panel and reduces conversion losses

Power Link

Adds sensor/relay functions (water tanks, propane, heaters, etc.)
Enables RV-C integration & PowerInsight monitoring
Recommended sensors here

Power Dock

Expands capacity from 15kWh → 45kWh
Mix 2kWh & 5kWh batteries
Adds compatibility with Delta Pro & Delta 2 Max
Requires cable to connect to Power Hub

Please review your choices carefully, and if you're unsure what you need, contact us. We are happy to help make sure your package is perfect fit for your build.

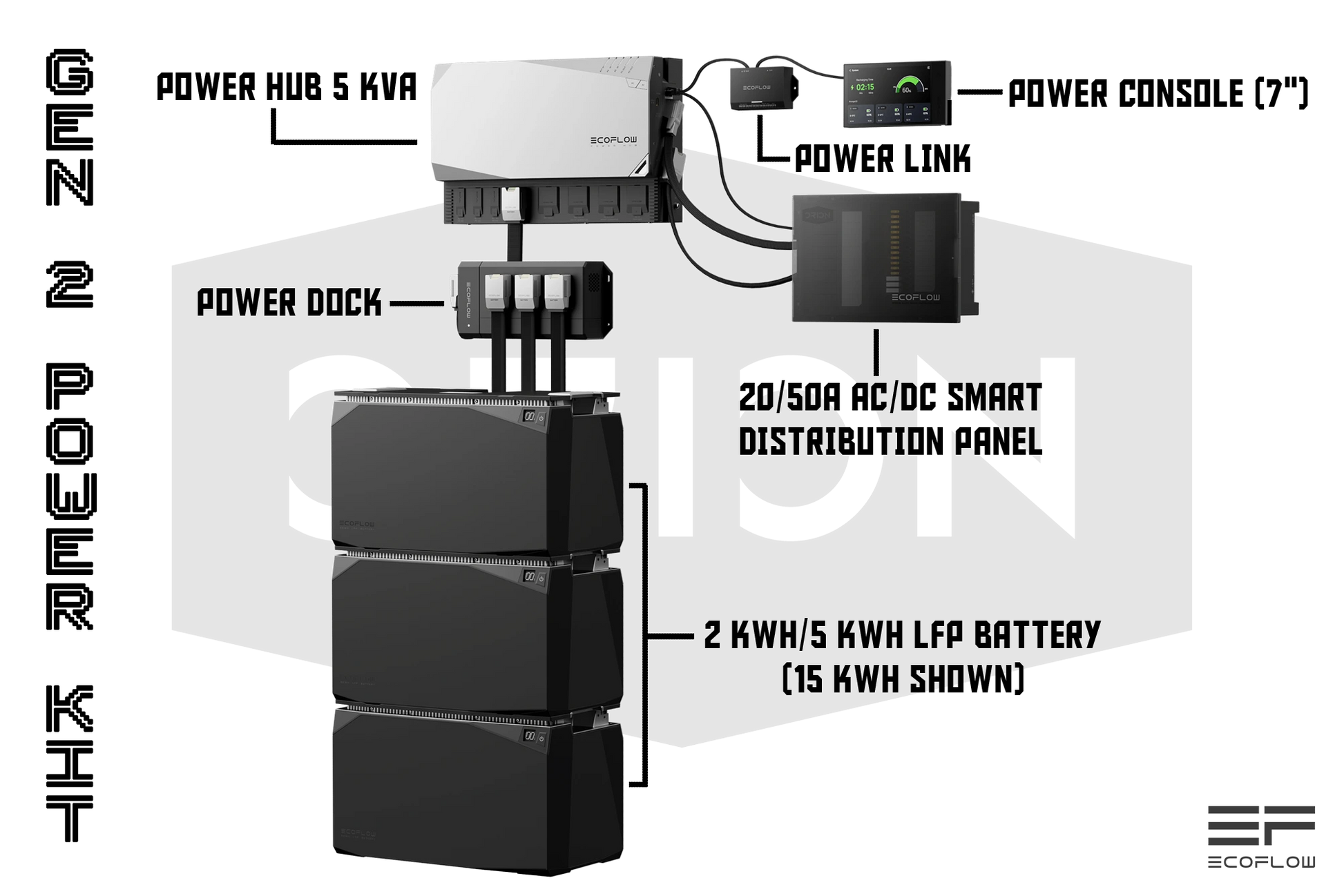

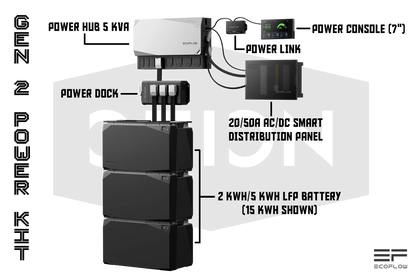

🚐 Van Builder's Choice (15kWh)

3x 5kWh batteries, 48V A/C cable, Power Link, Cable Pack, Battery Straps

🔥 Most Popular Setup (10kWh)

2x 5kWh batteries, 48V A/C cable, Cable Pack, Battery Straps

💡 Smart Starter / Weekend Warrior (5kWh)

Simple, affordable, and expandable later.

🔋 Max Power (45kWh)

9x 5kWh with 3 Power Docks and all add-ons — for full off-grid capability.

What’s New in Gen 2?

The Gen 2 Power Kit (5kVA) introduces major upgrades over Gen 1, including higher output, greater expandability, 240V AC compatibility, and enhanced control. Below, you’ll find detailed comparison tables and specs for each component.

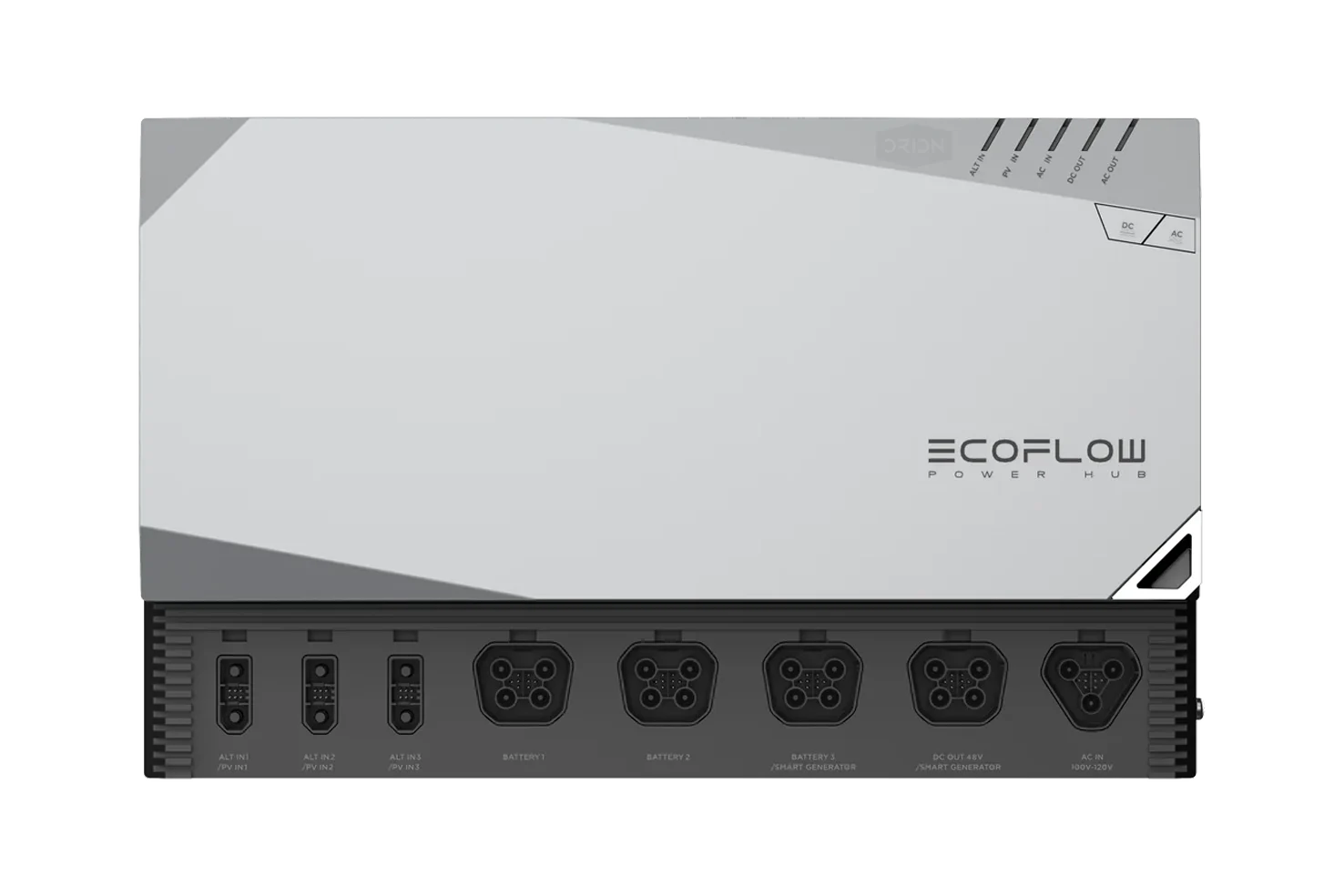

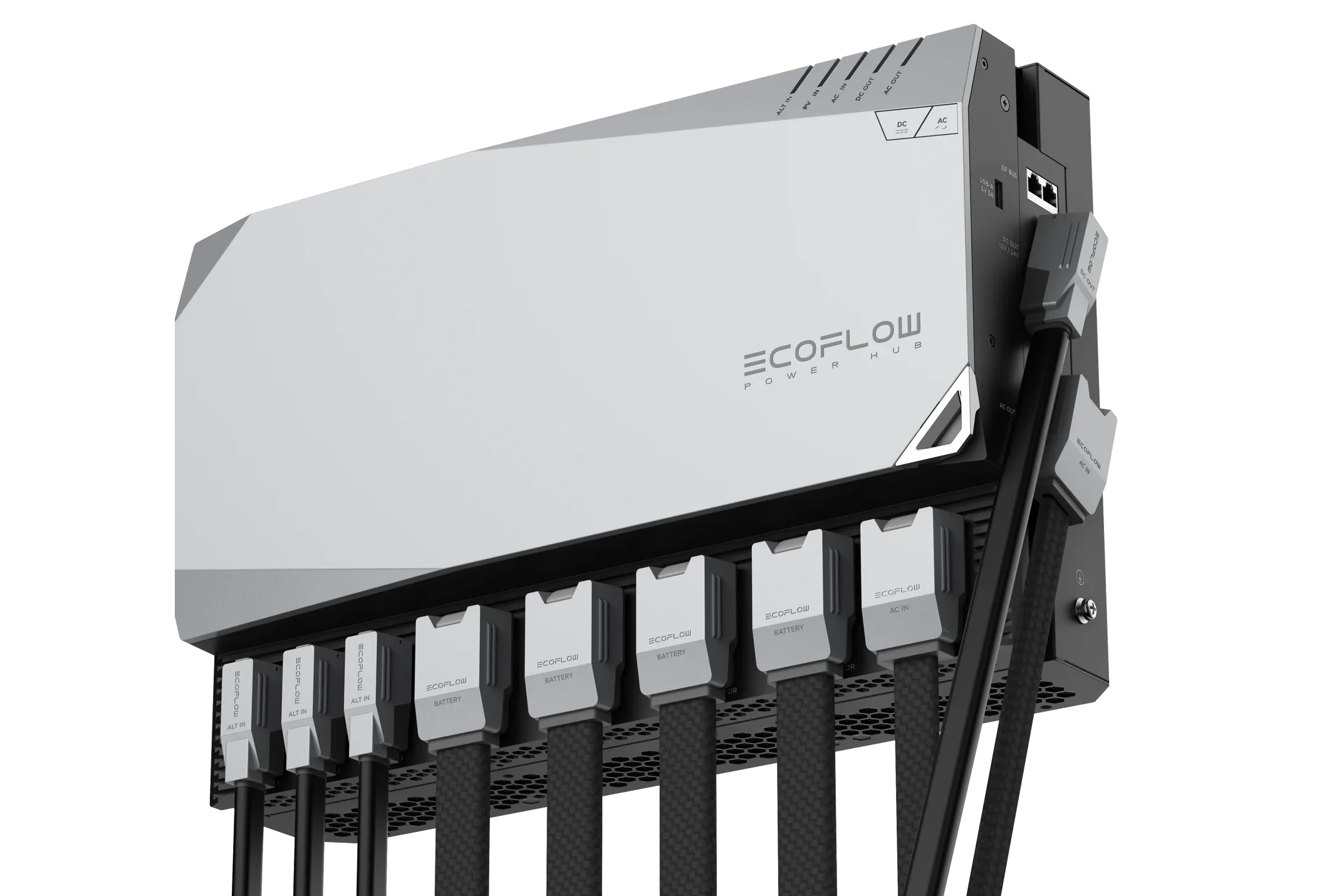

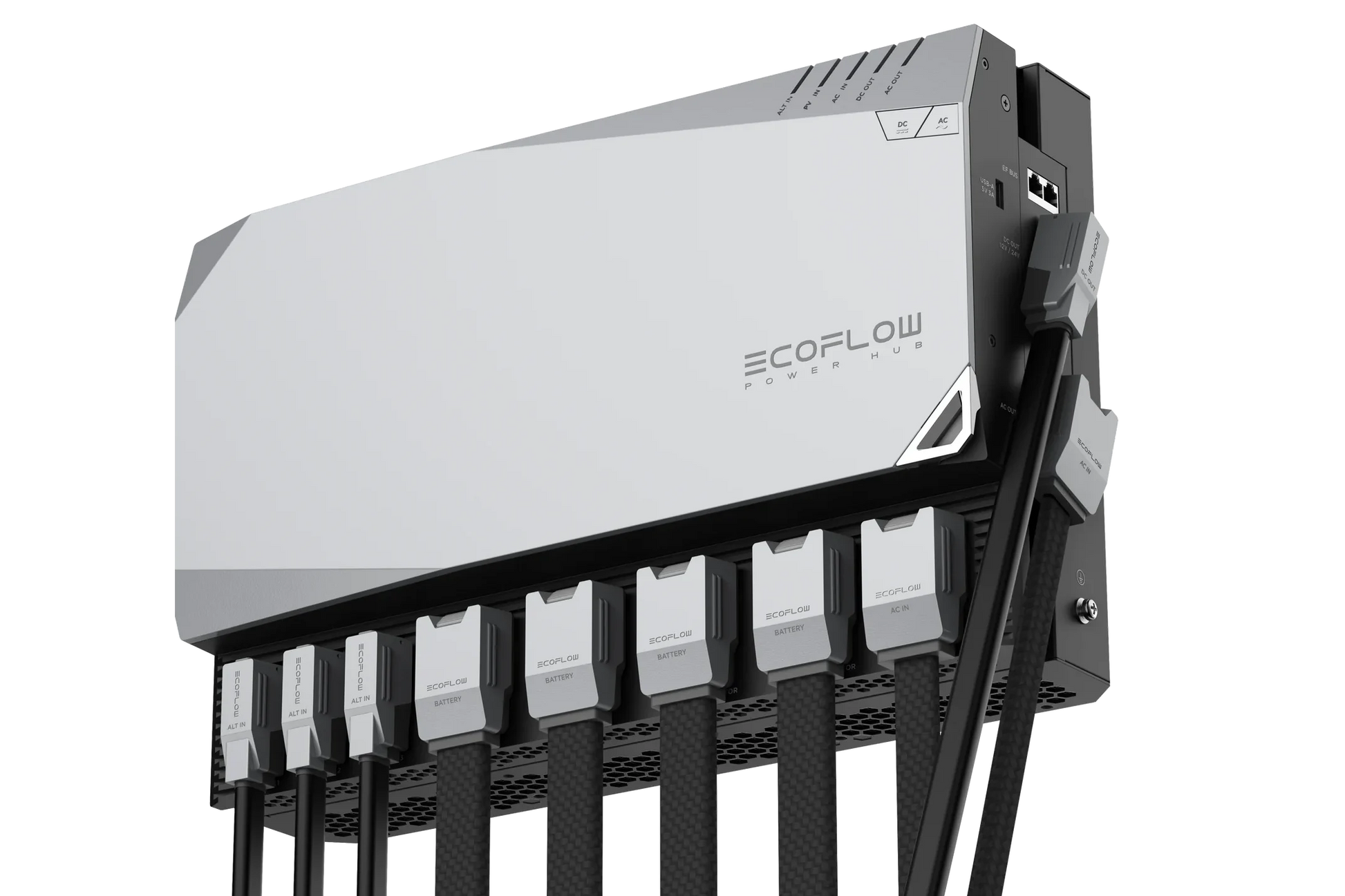

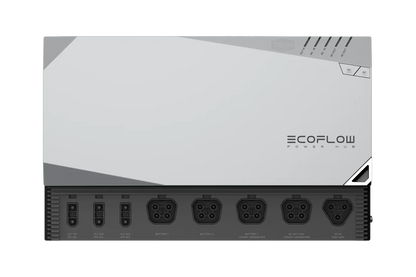

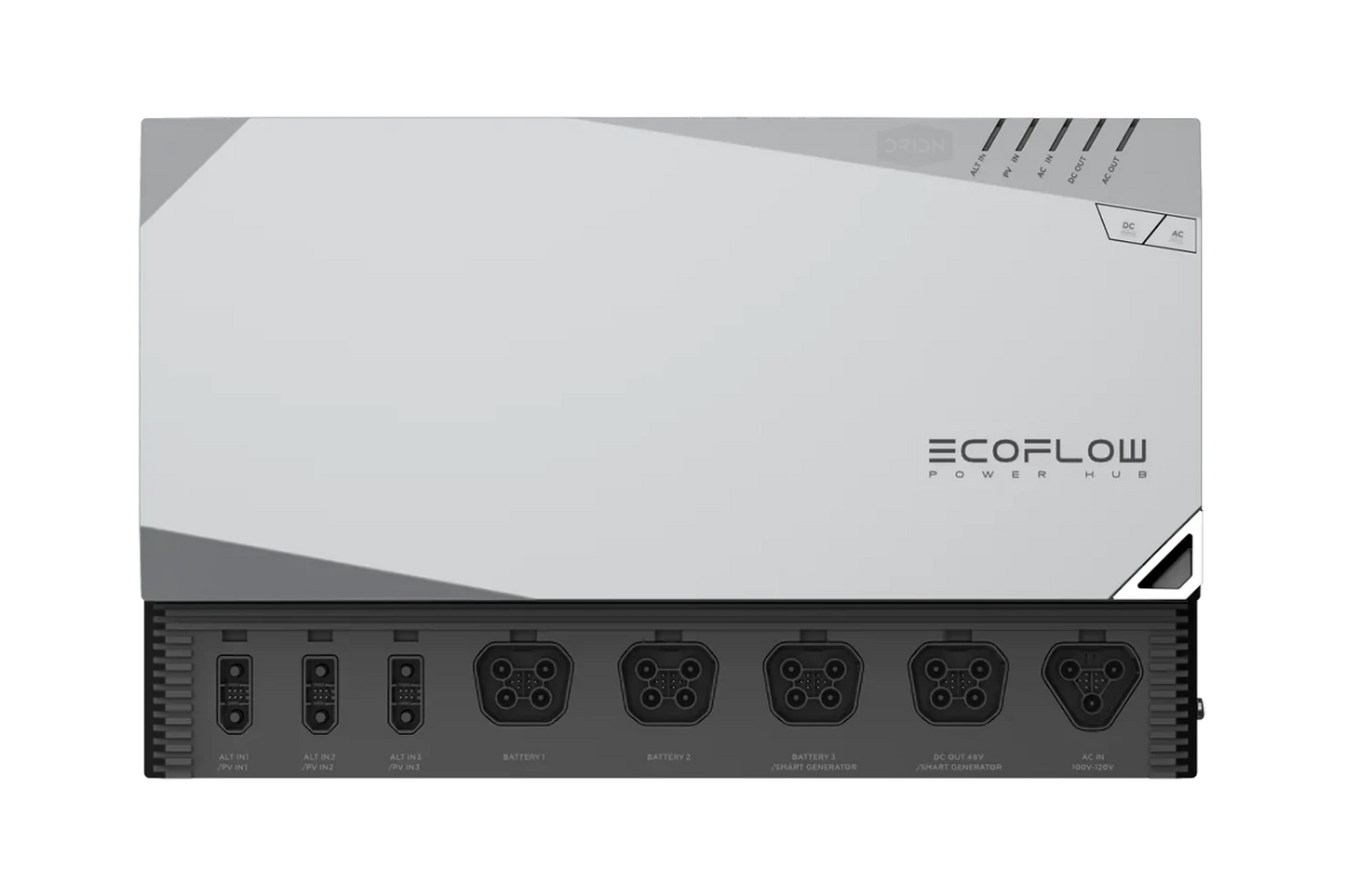

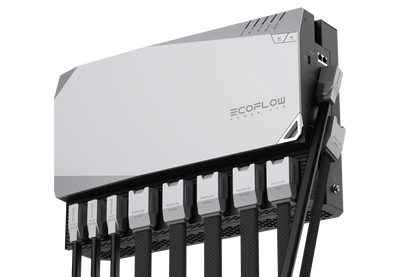

Power Hub (Gen 1 vs Gen 2)

Feature	Gen 1 - 3.6kVa	Gen 2 - 5kVa
Dimensions	18.9" × 5.5" × 11.8"	Same as Gen 1
AC Output	3600W / 7200W surge (100ms), 120V	4000W (5000VA) / 8000W surge (100ms), 120V
AC Input	30A, 120V	50A, 120/240V split-phase
Solar Inputs	All Ports: 50–150V⎓30A, 1600W Max (4800W total)	Port 1: 13–60V⎓100A, 4000W Max Port 2/3: 13–60V⎓30A, 1600W Max (5600W total)
Alternator Input	Port 1: 13–60V⎓60A, 1600W Max (6AWG 20-foot cable)	Port 1: 13–60V⎓100A, 4000W Max Port 2/3: 13–60V⎓30A, 1600W Max (3AWG 20-foot cable)
DC Output	13.6V⎓70A / 1000W, 26.4V⎓60A / 1600W	13.6V⎓100A / 1300W, 26.4V⎓60A / 1600W
Battery Mixing	Not supported	Mix 2kWh & 5kWh
48V Output	Not available	Dedicated 48V port
Alternator Support	Limited	Arco Zeus + 100A supported (see notes)
Wi-Fi	2.4G	2.4G / 5G
Bluetooth	4.0	5.0
Charge Temp	-13°F to 140°F (–25°C to 60°C)	Same as Gen 1
Weight	31 lbs	34 lbs
Certifications	CE, UL, FCC	CE, UL, FCC

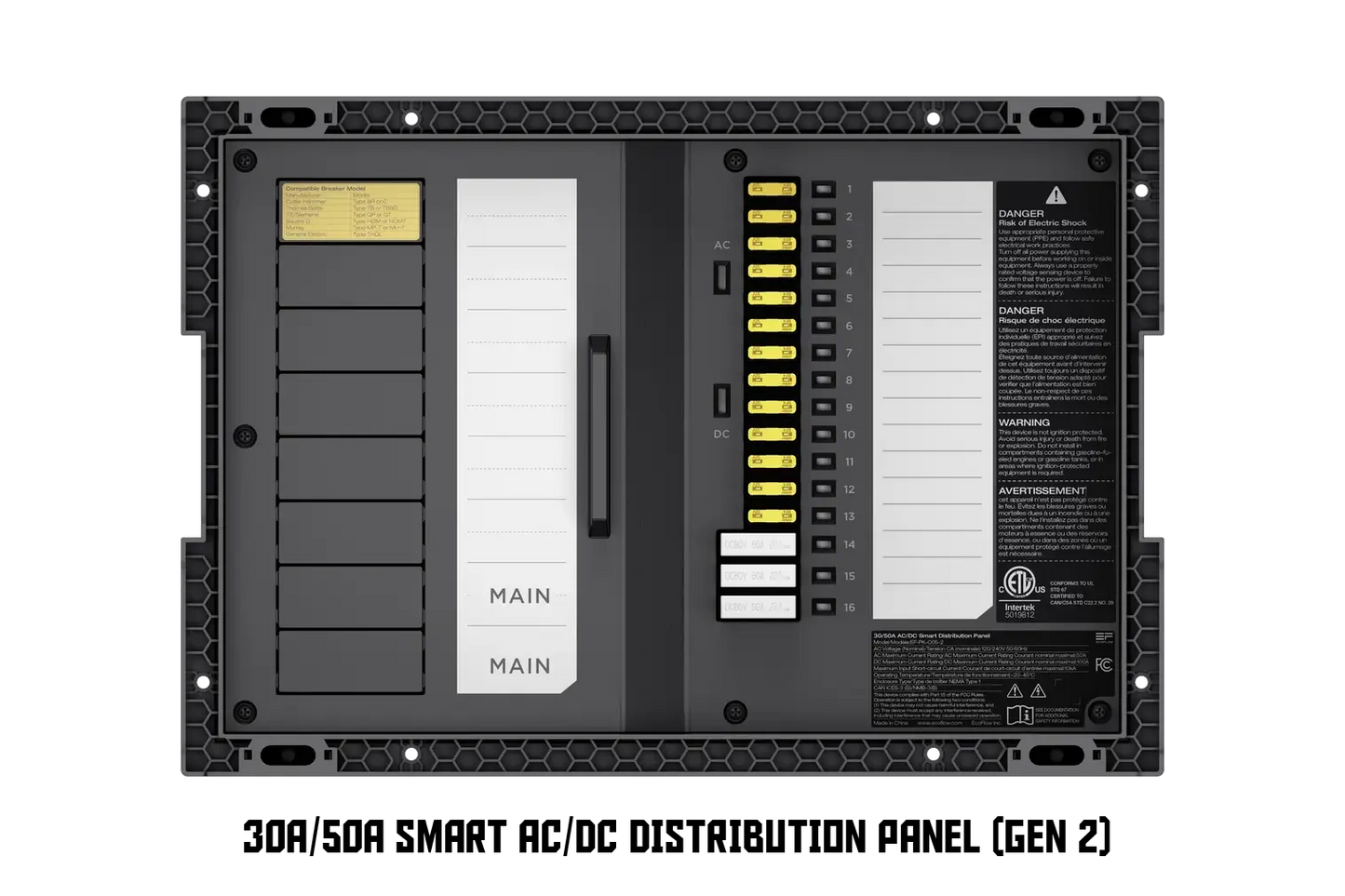

Smart AC/DC Panel (30A vs 30/50A)

Feature	30A Panel	30/50A Panel
Dimensions	14” × 8.3” × 3.9”	15.3” × 10.6” × 5.3”
DC Circuits	12 (6 controllable)	16 (all controllable)
DC Output	20A max per circuit	30A max (F1–F13), 50A max (F14–F16)
AC Circuits	6 max	12 max branch circuits
AC Input	Max 30A, 120V, 60Hz	Max 50A, 120/240V, 60Hz
AC Output	30A max (1/2), 20A max (3–6)	30A max per branch
Compliance	Unknown	UL67, FCC Class A
Breakers	Proprietary ($40/per) Included	Household ($5/per) *Not included
Weight	5.8 lbs	8.8 lbs

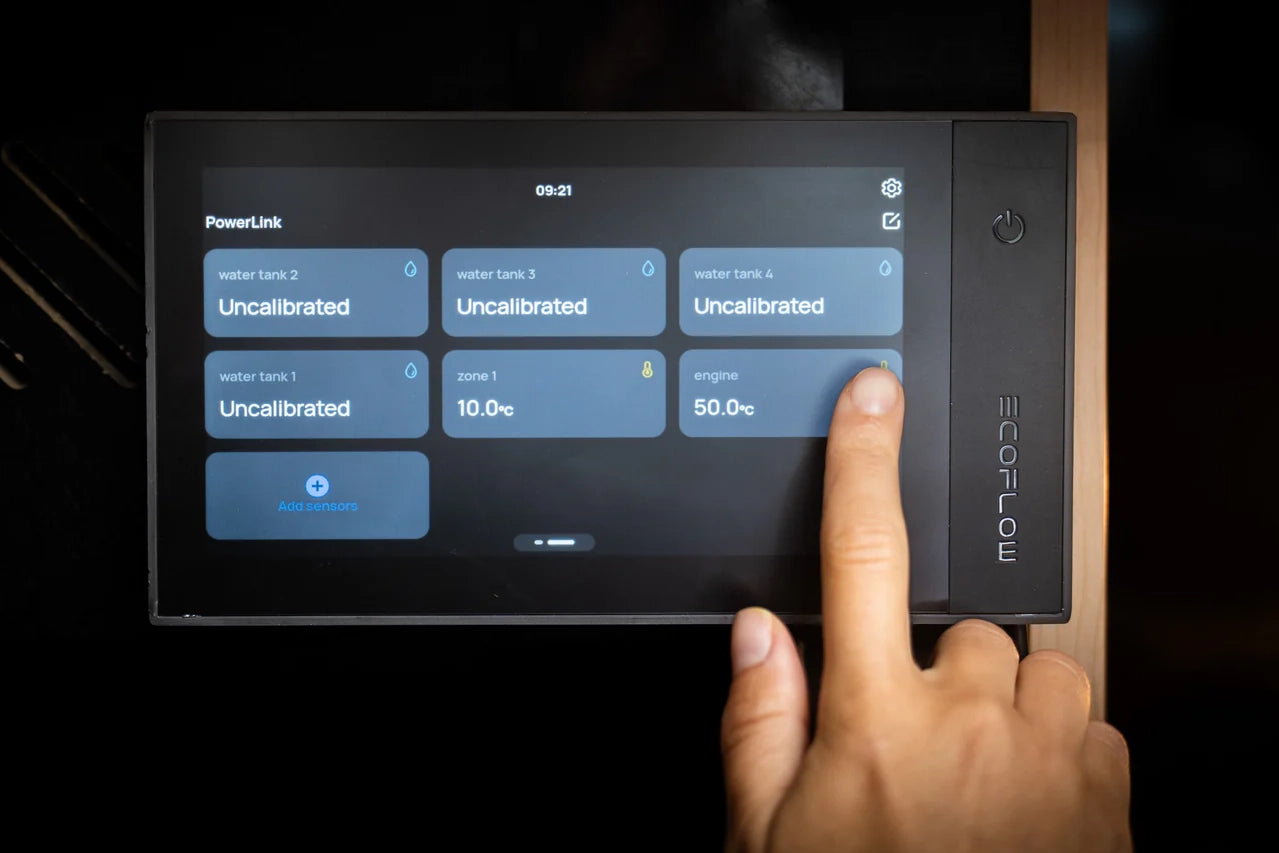

Power Kit Console (7" Monitor)

Feature	Gen 1 Display	Gen 2 Display
Dimensions	8" × 4.5" × 0.9"	Same as Gen 1
Screen Size	7" Diagonal (6" x 3.4")	Same as Gen 1
Resolution	1024 (H) × 600 (V)	Same as Gen 1
DC Input	RJ45: 12V / 1A, USB-C: 5V / 2A	Same as Gen 1
DC Output	USB-A: 5V / 1A	Same as Gen 1
Operating Temp	-4°F to 122°F (-20°C to 50°C)	Same as Gen 1
Weight	1 lb	Same as Gen 1

Battery Specs (Both Gens)

Feature	5kWh LFP Battery	2kWh LFP Battery
Dimensions	19.7" × 10.2" × 11.8"	13.7" × 7.8" × 11.2"
Capacity	5120Wh (51.2V, 100Ah) ~427Ah at 12V	2048Wh (51.2V, 40Ah) ~171Ah at 12V
Configuration	16S1P	16S2P
Cycle Life	3500 cycles to 80% capacity	3000 cycles to 80% capacity
Max Charging Current	80A	32A
Chemistry	LiFePO4	Same as 5kWh
Temp Ranges	-4°F to 122°F (-20°C to 50°C)	Same as 5kWh
Weight	Approx 89 lbs	Approx 37 lbs
IP Rating	IP54	Same as 5kWh
Certifications	UL, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE	Same as 5kWh

Cable Pack (Included Cables)

Cable Type	Description
AC Charge Cable (4.5m)	Connects Power Hub to shore power for AC input charging.
Alternator Charge Cable (6m)	Connects Power Hub to vehicle alternator/starter battery for DC-DC charging.
AC Main Out Cable (4.5m)	Delivers AC power output from Power Hub to the distribution panel.
DC Main Out Cable (4.5m)	Supplies DC power output from Power Hub to the DC distribution panel.
Solar Charge Cable (6m)	Connects Power Hub to solar array va MC4.

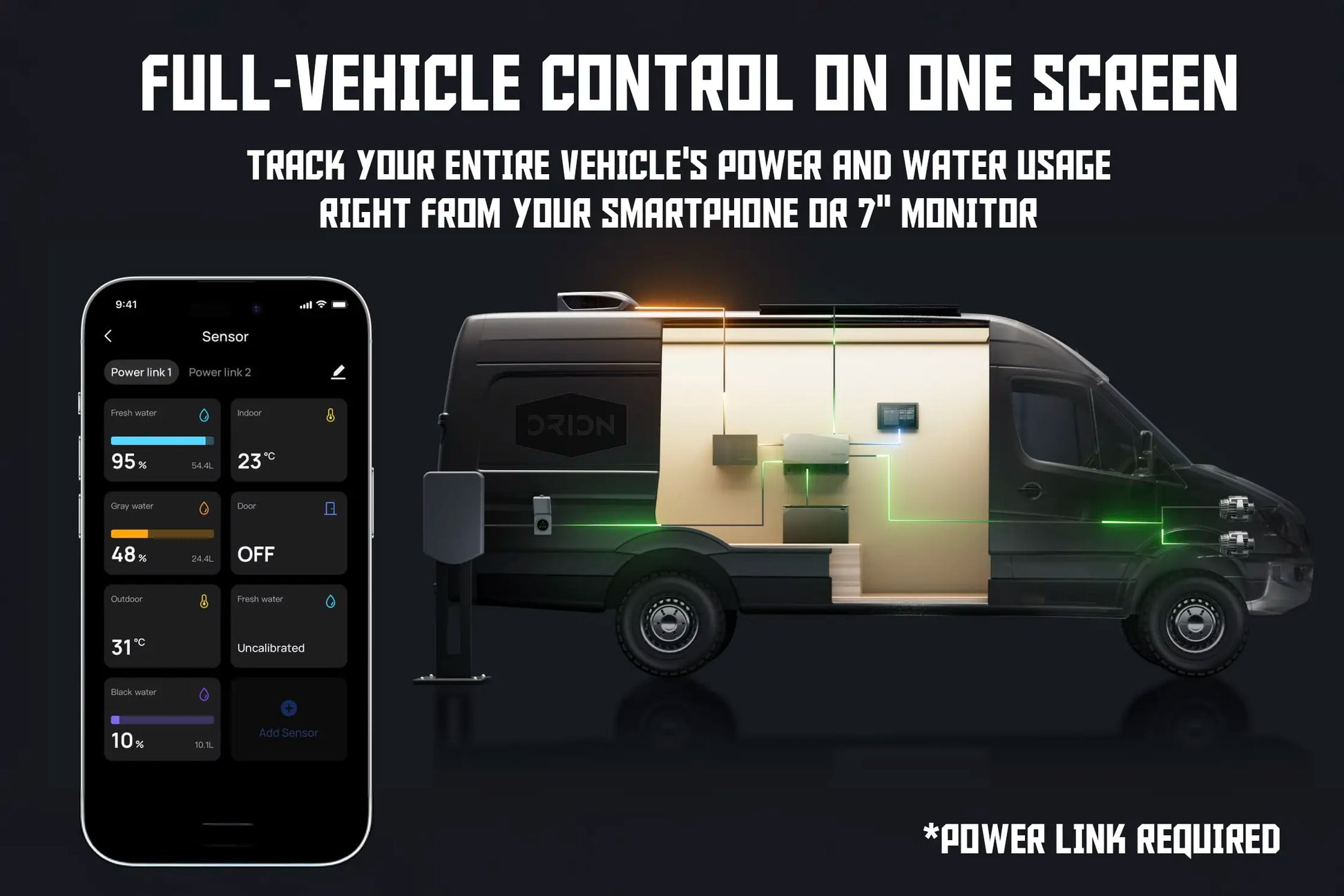

Power Link Smart Control and Remote Monitoring

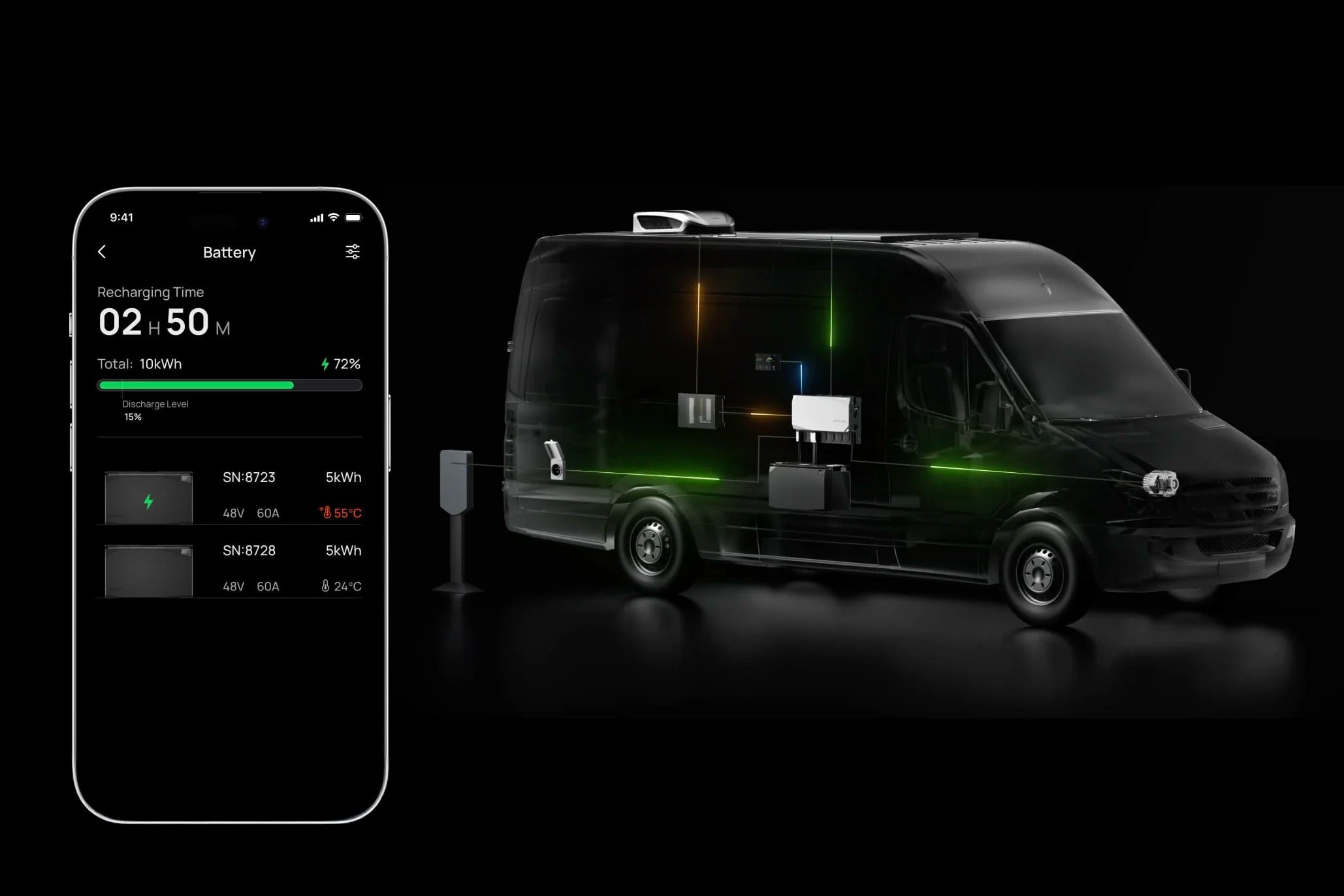

Monitor every detail from your phone or on-screen:

Input/output power
Water tank levels & temps (with Power Link)
Generator auto-start
Circuit-level control
Vehicle charging automation

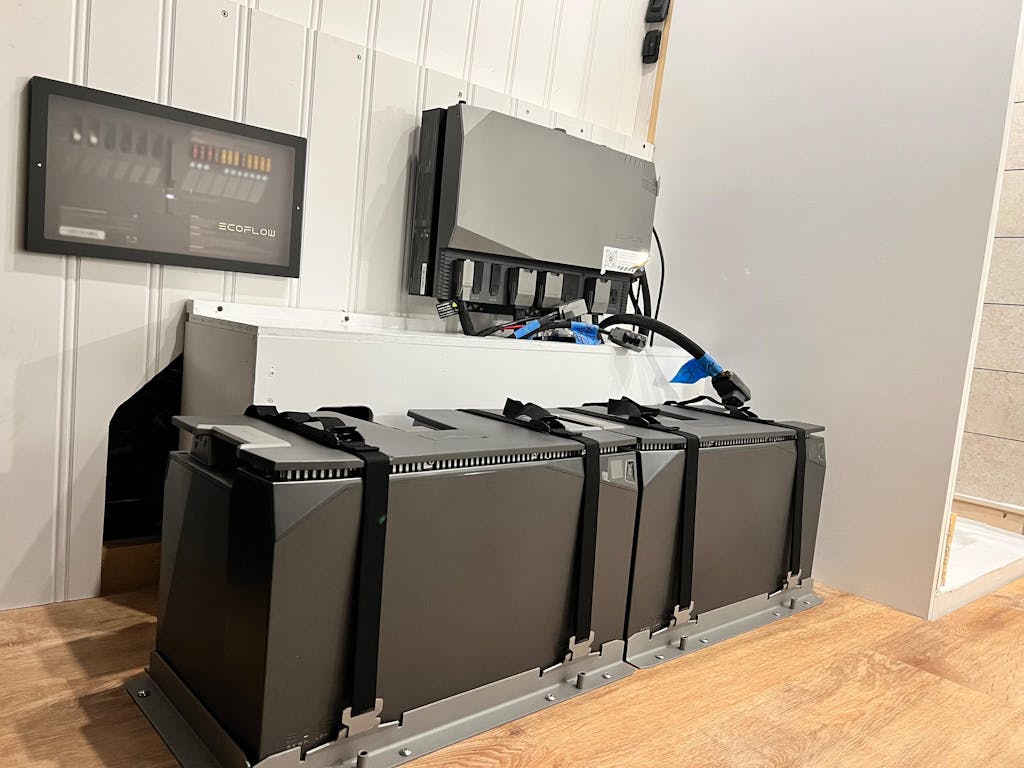

Built for Van Builders & Overlanders

Compact footprint saves space & weight
Safety Certified: UL1973-certified 48V LFP batteries, UL458-certified Power Hub and UL67-certified distribution panel

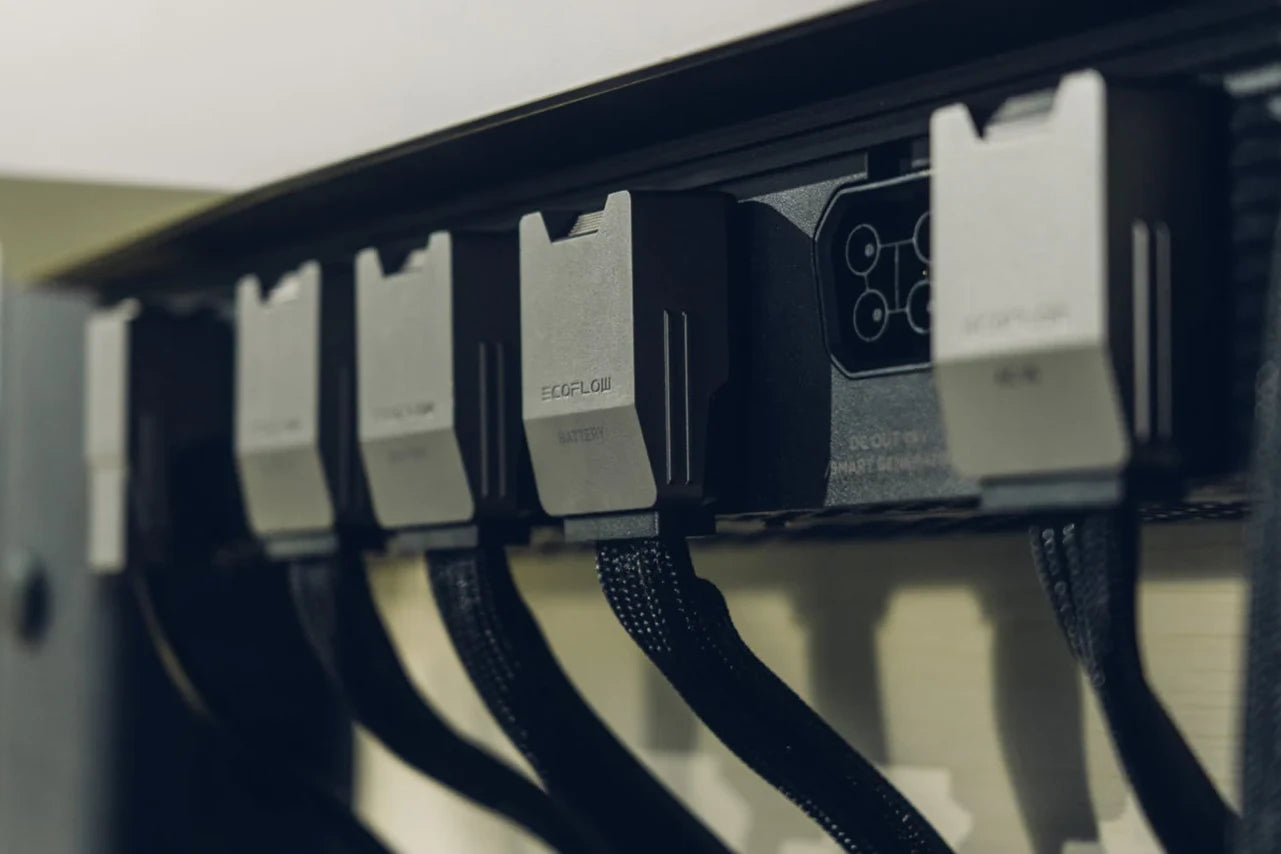

Modules are plug-and-play with labeled ports
Compatible with custom Orion Van Gear roof configurations an max solar
Built-in diagnostics, BMS, and thermal control

Eco-Friendly, Maintenance-Free Power

Zero emissions, zero fuel, zero maintenance
Compatible with solar, shore, alternator, and generator input
Reduce carbon footprint by 12,500 lbs/year

Why Buy from Orion Van Gear?

Dedicated USA-based support
Fast & free shipping
Get a CAD-verified layout to maximize your solar
Fully vetted by real van owners - Trusted with hundreds of EcoFlow Power Kit sales

No Wires. No Guesswork. No Stress.

The EcoFlow 5kVA Power Kit is the first system to offer Victron-level power with zero DIY complexity. It’s perfect for DIYers and van builders who want reliability, performance, and simplicity without building a power system from scratch. If you have any questions, please reach out.

Resources/User Manuals

Power Hub 5kVa - Manual
30A AC/DC Smart Distribution Panel - Manual
30/50A AC/DC Smart Distribution Panel - Manual
Power Kit Console - Manual
LFP Battery (5kWh & 2kWh) - Manual
Power Link - Manual
Power Dock - Manual

*Requires max simultaneous input across all charging ports
**All times assume max input and ideal conditions

FAQ (Frequently Asked Questions) click to expand

1.Why choose EcoFlow over traditional DIY systems like Victron?

EcoFlow Power Kits are the easiest plug-and-play RV and van power systems available. No complex wiring, custom cables, or deep electrical knowledge required. Save hundreds of hours. EcoFlow installs in days, not weeks.

2.How long does installation usually take?

Most users install the system in 1–3 days, compared to 2+ weeks for custom DIY builds. All cables are labeled and plug directly into the modules.

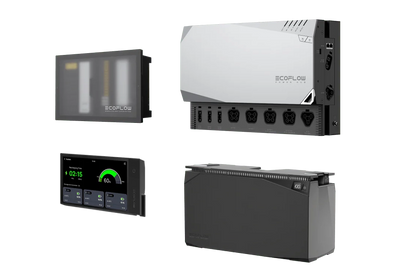

3.What is included with an EcoFlow Power Kit?

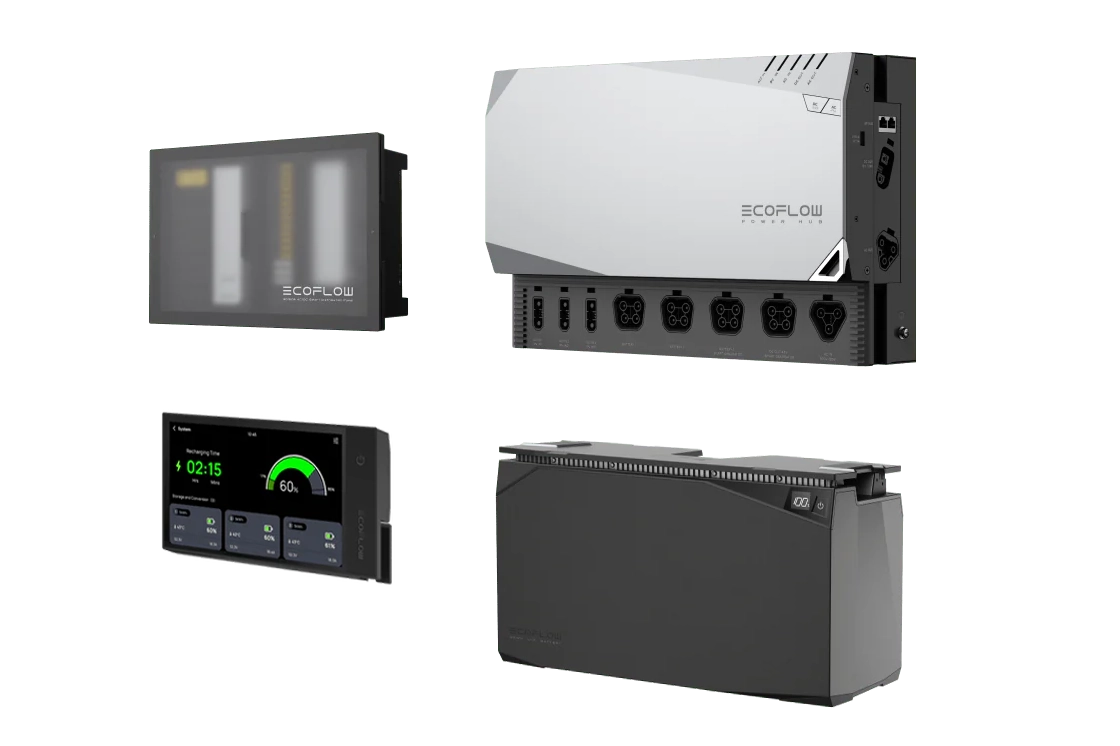

Each kit includes the Power Hub, Distribution Panel (choose 30A or 30/50A), 7" Console, Cable Pack, battery straps and depending on your selections, batteries and accessories. Contact us if unsure before purchasing.

4.Is the EcoFlow Power Kit expandable?

Yes. Systems can expand up to 45kWh of storage by adding Power Docks and batteries. You can also mix 2kWh and 5kWh batteries in one system.

5.How does EcoFlow handle solar charging?

The system includes multiple MPPT solar charge controllers, allowing you to mix panel types and wattages without loss of efficiency.

6.Can I charge while driving?

Yes. EcoFlow supports high-capacity alternator charging while the vehicle is running. Gen 2 kit includes a 3AWG 20-foot alternator cable. See this alternator tips sheet for more info.

7.How quiet is the EcoFlow Power Kit system?

The system operates at just 48 dB under normal load, quieter than a typical residential refrigerator.

8.Can the system automatically start my generator?

Yes. EcoFlow’s Power Link enables auto-generator start based on battery levels, controlled via the app or screen.

9.Is the EcoFlow system safe for RVs and vans?

Yes. All major components are UL-certified and the system includes advanced BMS protections for overcharging, short circuits, and overheating.

10.How does EcoFlow protect my vehicle battery?

The Power Hub automatically monitors alternator output and only charges when it detects the vehicle is running, protecting the starter battery.

11.Does EcoFlow have over-the-air updates?

Yes. Your system will automatically update via Wi-Fi, keeping it optimized with the latest features and improvements.

12.What happens if shore power is unstable?

EcoFlow’s X-Fusion technology maintains clean, stable output power even if shore input is inconsistent or weak.

13.Can the system work in extreme temperatures?

Yes. EcoFlow Power Kits are rated for -25°C to 60°C (-13°F to 140°F) and include cold-weather battery heating.

14.Is this the same as a UPS?

Not exactly. EcoFlow Power Kits have a 30ms transfer time, which is ideal for RV appliances, but not for zero-interruption UPS needs.
