Explore Durable and Efficient Walkable Marine Solar Panels
Introducing our robust and efficient 100W walkable monocrystalline solar panel, tailored particularly for Sprinter, Promaster, and Transit vans. Featuring high-efficiency SunPower cells, this panel guarantees exceptional performance even in partial sunlight conditions. Its compact design allows it to fit on the sides of most fans when mounted to our Roof Deck Panels.
These are NOT your typical solar panels! For the most efficient use of space on your van roof and better overall function, Orion's modular deck panels combined with these walkable solar panels offer an optimal solution. See the image on the left for our ultimate 144-roof configuration that includes 400 watts of walkable solar mounted to our deck panels, Maxxfan in Bay 1 or 2, Starlink, and a rear AC.
Key Features:

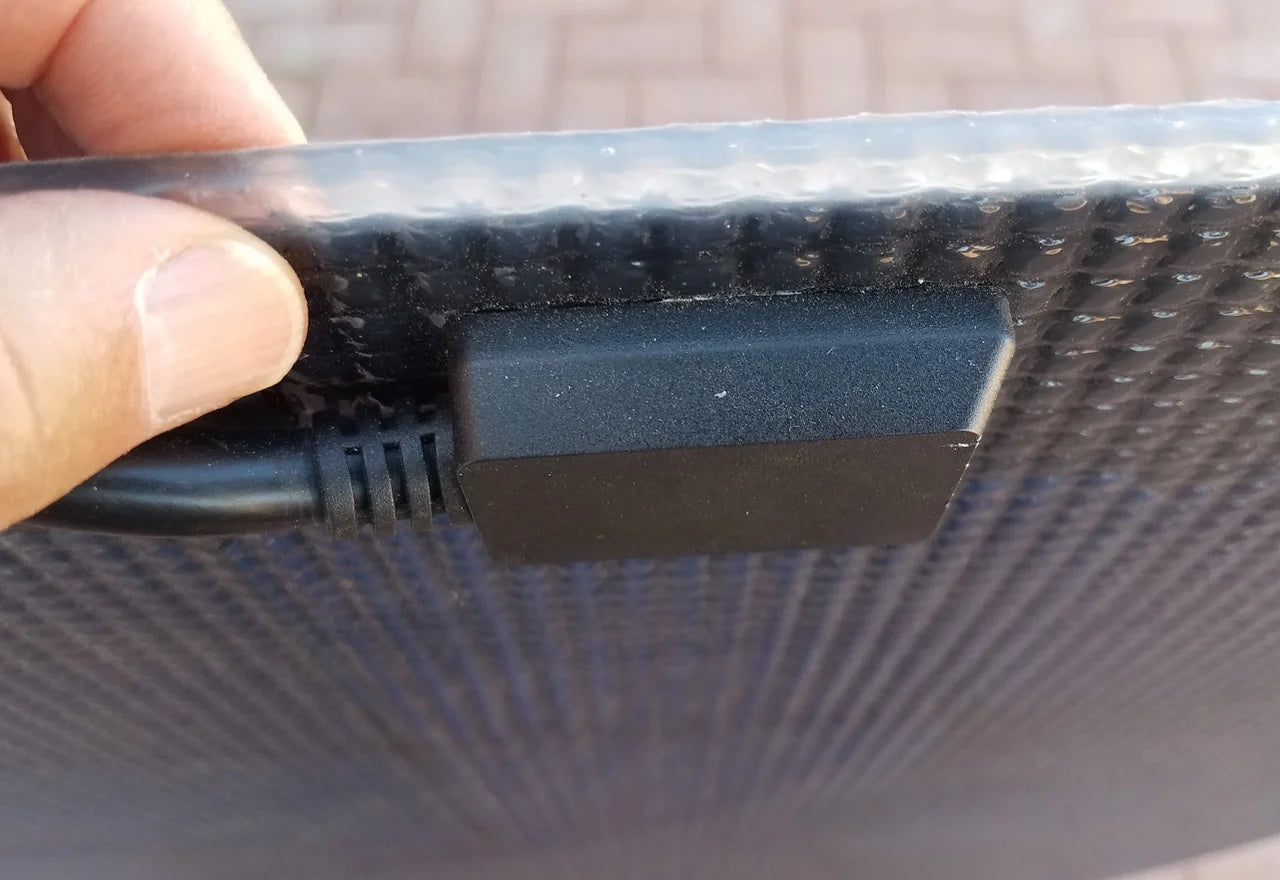

- Durable Construction: These panels are walk-on certified and feature a carbon fiber backing and ETFE laminate non-skid surface, ensuring they can be walked on without damaging the solar cells.
- Premium SunPower Solar Cells: Harness the power of SunPower cells for maximum efficiency and durability.
- Designed for Harsh Environments: Built to withstand the rigors of marine environments, making them ideal for mounting on a van or RV roof.

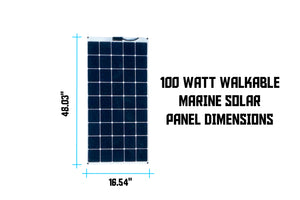

- Dimensions: 16.54" x 48" x 0.16"
- Lightweight: Weighing only 5 pounds, they are easy to handle and install.
- Hardware not included: Please refer to our install recommendations below for mounting hardware.
- Free Shipping: Available for orders shipped to the lower 48 states.
If you have any questions, feel free to contact us. Check out our full collection of Walkable Marine Solar Panels.
- 65 Watt Walkable Marine Solar Panel
- 160 Watt Walkable Marine Solar Panel
- 165 Watt Walkable Marine Solar Panel
- 175 Watt Walkable Marine Solar Panel
- 200 Watt Walkable Marine Solar Panel
Specifications:
- Panel Type: Premium Maxeon Sunpower Cells
- Rated Power: 100 Watts
- Manufacturer's Warranty: 1 Year @ 80% + 4 Years Prorated
- Dimensions: 16.54" X 48.03" X 0.16"
- Weight: 5.07 pounds
- Output Connections: 6-foot Duplex Cable 3/8" OD
- Peak Power Voltage (Vmpp): 16.52 Volts
- Peak Power Amps (Impp): 6.06 Amps
- Open Circuit Voltage (Voc): 19.5 Volts
- Short Circuit Current (Isc): 6.42 Amps
- Cell Conversion Efficiency: 24.4%
- Maximum System Voltage: 1000v
Installation:
For Sprinter Stealth+ Roof Rack or Transit Stealth+ Roof Rack with Deck Panels: We recommend rivnuts or plusnuts (must be able to span .136" material thickness) with our walkable solar corner washers on all 4 corners (*drilling may be required) in addition to 'J' channels and 'H' channels on every edge of each panel.
Contact us if you have any questions or need assistance with your installation.
*Some panels may come without predrilled holes in the corners.
FAQs for Walkable Marine Solar Panels
The 100W walkable marine solar panel features durable construction with a carbon fiber backing and ETFE laminate non-skid surface. They use high-efficiency SunPower cells, designed to perform well even in partial sunlight. It is lightweight, easy to install, and built to withstand harsh marine environments.
Yes, these panels are designed to be walked on when properly installed and have a non-skid surface.
The available sizes include:
- 65 Watt Walkable Marine Solar Panel
- 100 Watt Walkable Marine Solar Panel
- 160 Watt Walkable Marine Solar Panel
- 165 Watt Walkable Marine Solar Panel
- 175 Watt Walkable Marine Solar Panel
- 200 Watt Walkable Marine Solar Panel
The 100W solar panel measures 16.54" x 48" x 0.16" and weighs ~5.07 pounds.
Yes, these panels are specifically designed to withstand the rigors of marine environments, making them ideal for use on van or RV roofs.
The panels use SunPower cells, known for their high efficiency and durability.
The cell conversion efficiency of the solar cells is 24.4%.
The manufacturer provides a 1-year warranty @ 80% + 4 Years Prorated.
For Sprinter Stealth+ Roof Rack or Transit Stealth+ Roof Rack with Deck Panels: We recommend 1/4-20" Rivnuts (must be able to span .136" material thickness) with our walkable solar washers on all 4 corners. Apply medium threadlocker. We highly recommend 'J' and 'H' shaped aluminum extrusions to hold down the edges. These can be purchased separately.
No, hardware is not included. Recommendations for mounting hardware are provided in the product description.
Yes, free shipping is available for orders shipped to the lower 48 states.
You can contact us through our website for any questions or assistance with installation.
Please visit our walkable solar collection page to explore the full range of walkable solar panels.
