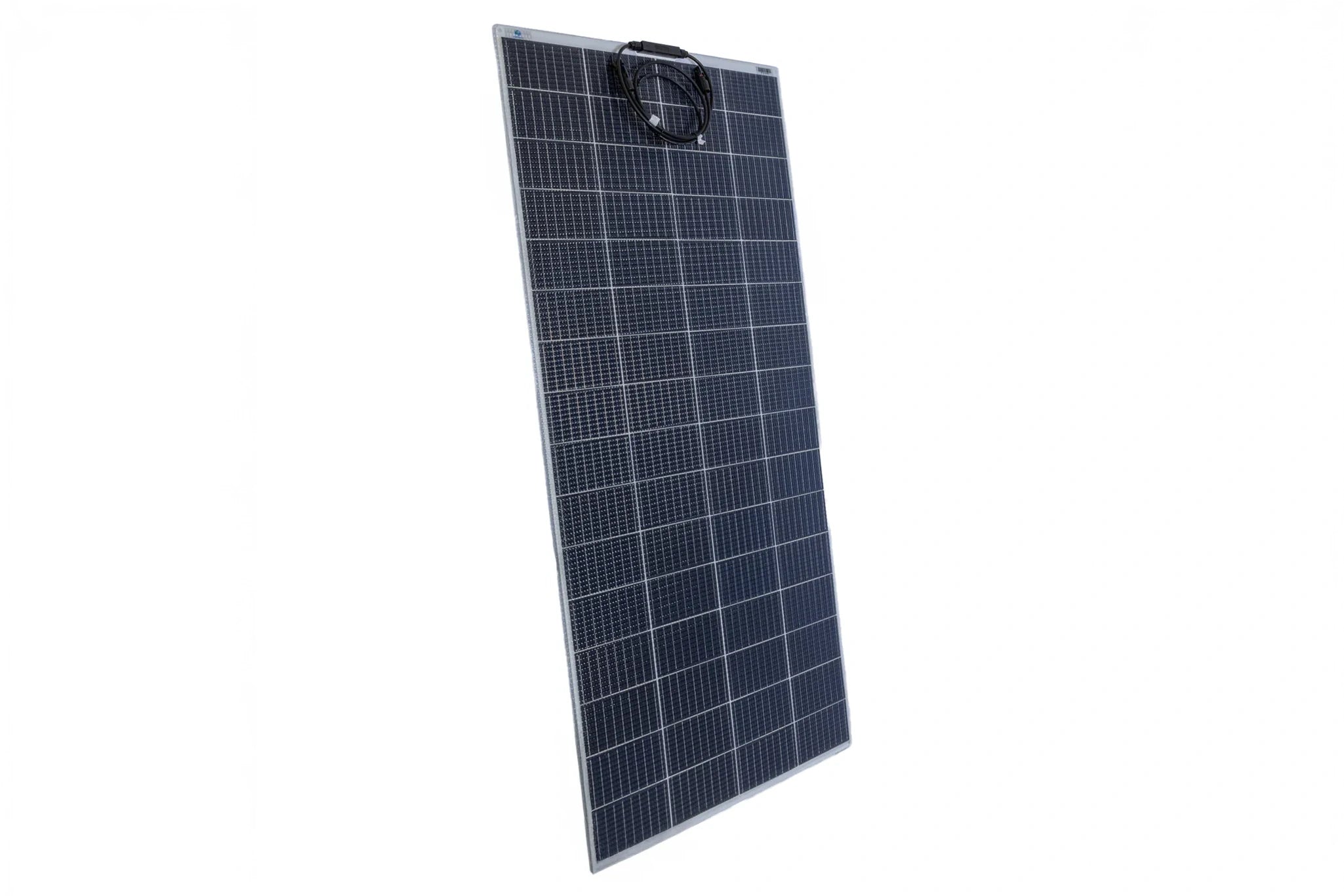

165 Watt Walkable Marine Solar Panel
Free Shipping to the lower 48 states

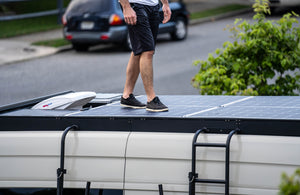

This semi-rigid 165-watt walkable Marine Solar Panel features SunPower Maxeon solar cells, capable of impressive performance even in partial sun. These are NOT your typical flexible solar panels! With aluminum backing and ETFE laminate non-skid surface, these panels can be walked on without fear of damaging the solar cells. They are ideal for mounting on a van or RV roof and are a perfect match for mounting directly to Orion's Modular Roof Deck Panels. For the most efficient use of space on your van roof and better overall function, Orion's modular deck panels combined with these walkable solar panels offer an optimal solution.
- Extremely Durable
- Premium Maxeon Solar Cells
- Designed to Withstand Harsh Environments
- Dimensions: 26" X 48"
- Lightweight at 12.8 Pounds
- White or Black Backing Options
- *Hardware not included - See below
- Ships Free across the lower 48 states

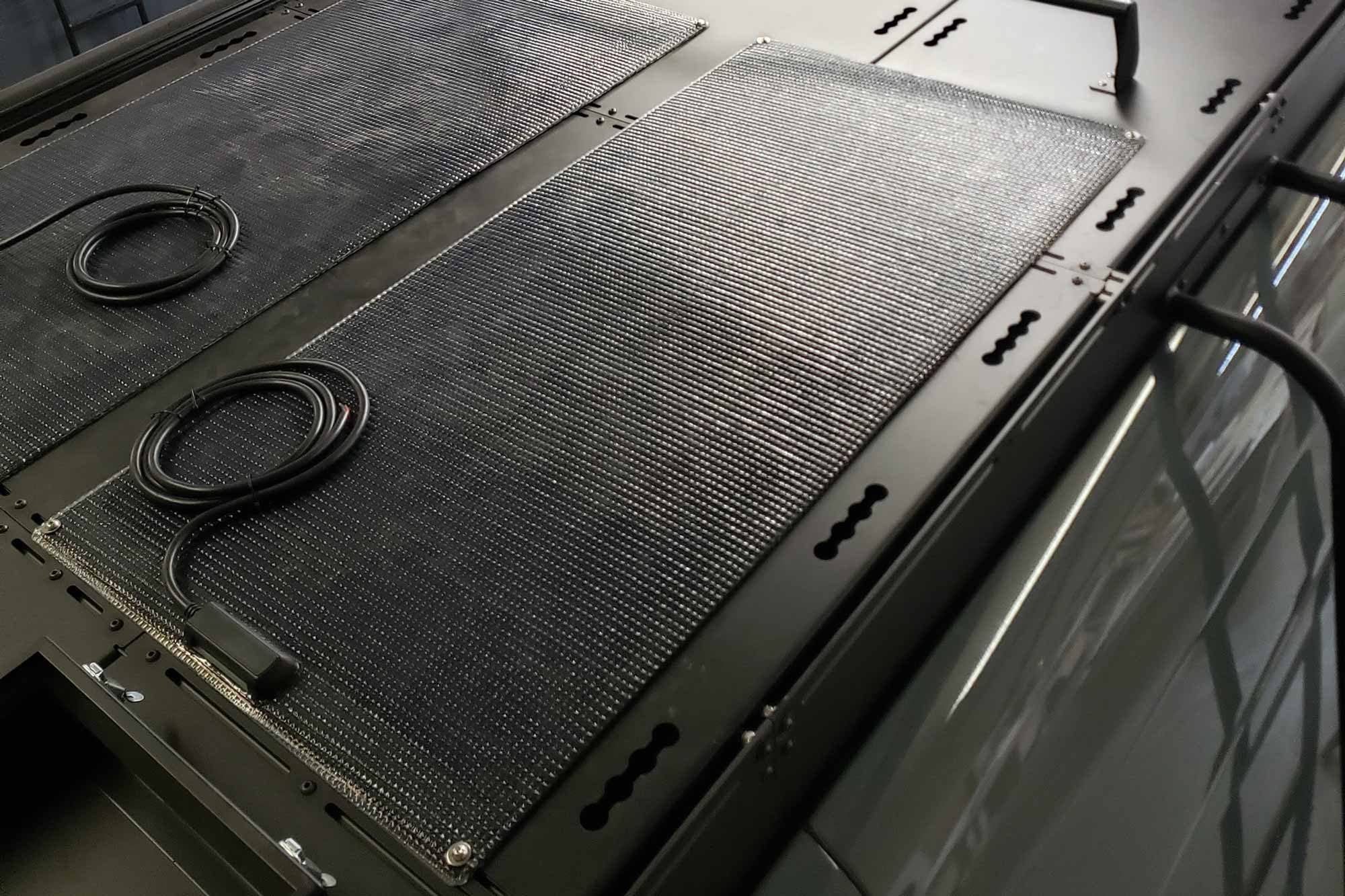

The panels are considerably lighter than rigid panels but heavier and stiffer than typical flexible panels. They can be bent slightly to match the underlying surface, about 5%. The expected life is 10+ years if used in a harsh marine environment. They are available with a white or black backing. The white backing is better at dissipating heat and is recommended for hot climates and the black backing looks exceptional and is recommended for colder climates. We also offer other walkable solar panels in 65, 100, 155, and 175-watt power outputs. See the chart below for full specifications. If you have any questions please get in touch with us.
Specifications:
| Solar Cells: |
SunPower Maxeon
|
| Rated Power: | 165 Watts |
| Manufacturer's Warranty: |
1 Year @ 80% + 4 Years Prorated
|
| Dimensions: |
26" X 48"
|
| Weight: | 12.78 pounds |
| Output Connections: |
6-foot Duplex Cable 3/8" OD
|
| Peak Power Voltage (Vmpp): | 27.6 Volts |
| Peak Power Amps (Impp): | 5.98 Amps |
| Open Circuit Voltage (Voc): | 31.74 Volts |
| Short Circuit Current (Isc): | 6.33 Amps |
| Cell Conversion Efficiency: | 24.4% |
Installation:

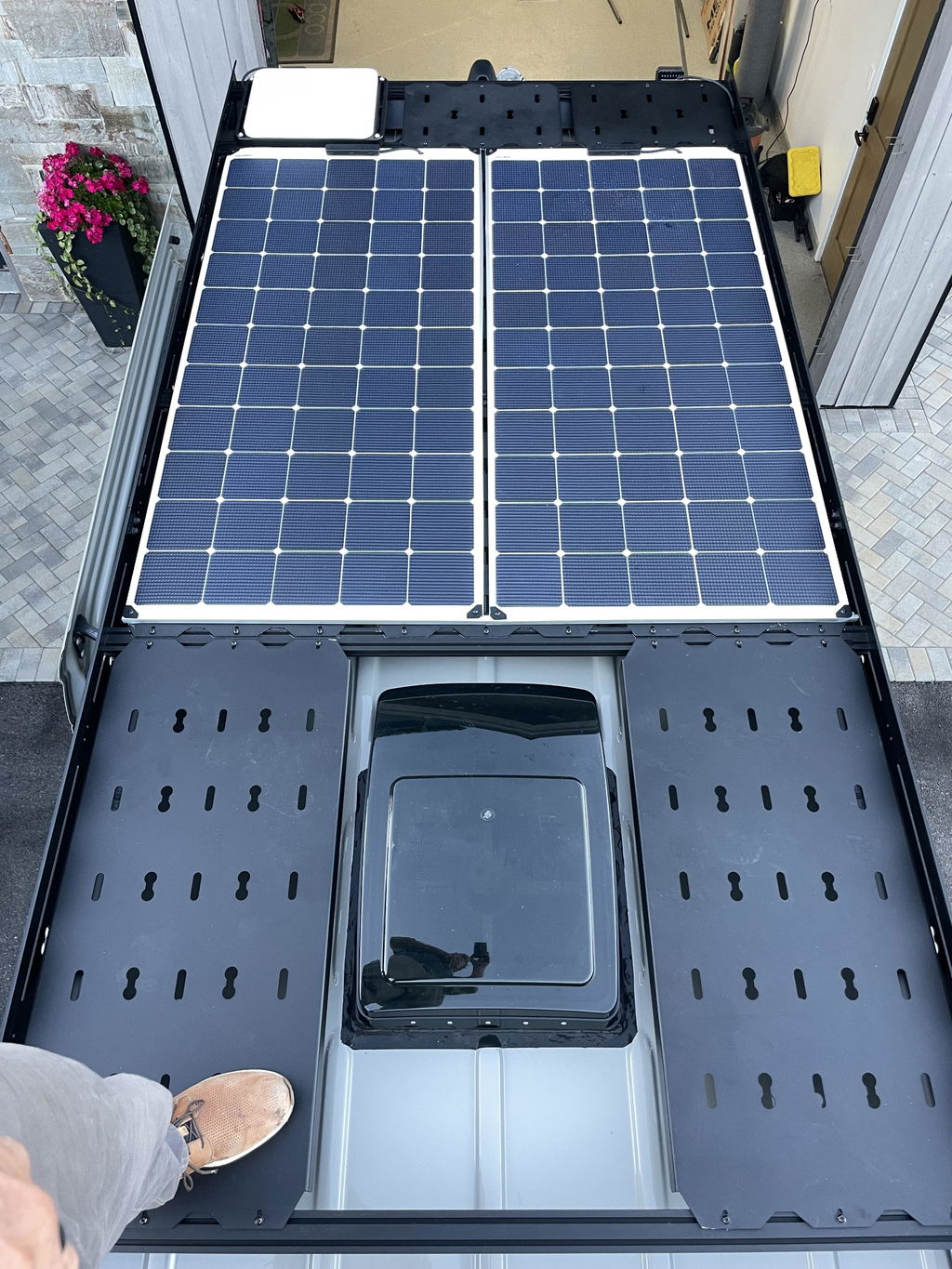

- For Sprinter Stealth+ Roof Rack or Transit Stealth+ Roof Rack with Orion Deck Panels: We recommend 5/16-18" Rivnuts (must be able to span .136" material thickness) with oversized washers on all 4 corners. Apply medium threadlocker.
-
Direct Deck Mounting: Screw/bolt the panel down directly to the deck surface on all 4 corners using stainless bolts with oversized washers and nylock nuts.
Note: If placing a panel at the very front of a rack use a 'J' shaped aluminum extrusion. The extrusion is mounted on the long side of the panel (front edge) in addition to the corner hardware.
Contact us if you have any questions or need assistance with your installation.
Explore our full range of walkable marine solar panels and accessories at Orion Van Gear.
