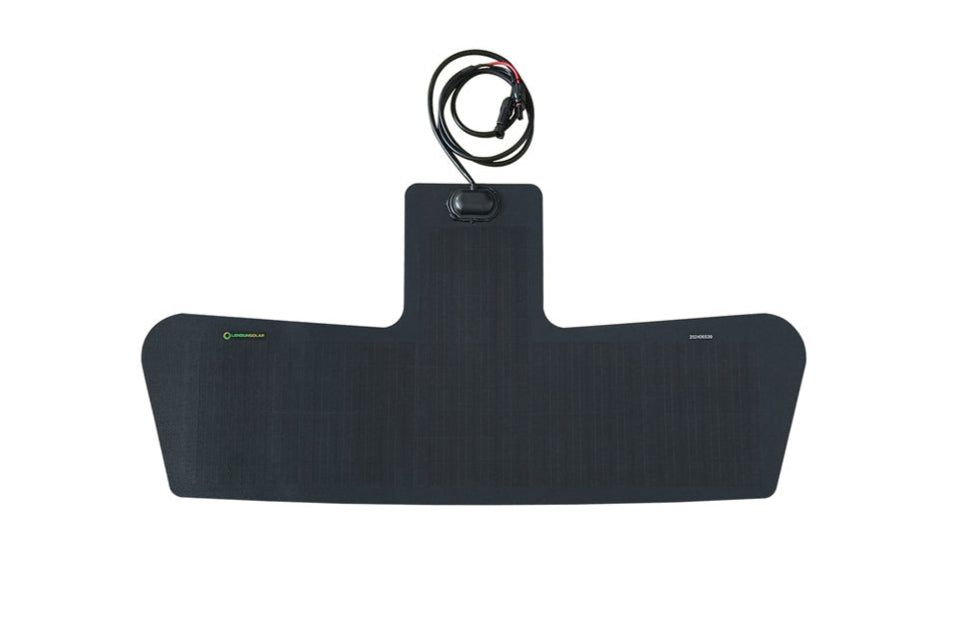

40W 12V Hood Flexible Solar Panel for Ford Transit Cargo Van (2015–Present)

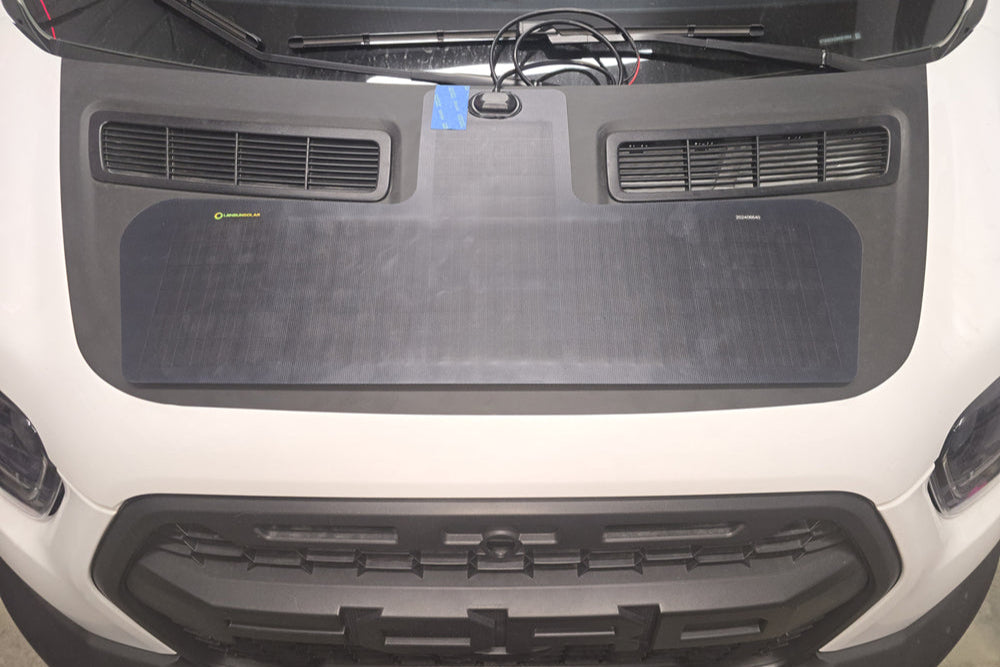

Keep your battery topped up without needing to plug in. The Lensun 40W Hood Flexible Solar Panel is custom-shaped for the Ford Transit Cargo Van (2015–present) and mounts directly to the hood. It keeps your starter battery, leisure battery, or portable power station (Jackery, Goal Zero, EcoFlow, etc.) charged using clean solar energy, all while you drive or camp off-grid.
Perfect for overlanders, campers, and vanlifers who want hassle-free power without sacrificing roof space or cargo room. No roof rack or portable panel setup required—just stick, plug, and go.
Built for durability and all-season performance, this panel uses Grade A monocrystalline solar cells and a premium ETFE surface film to handle tough environments including snow, hail, dust, and road debris. An optional MPPT controller provides smart charging with Bluetooth monitoring. An optional vinyl decal adds paint protection and a clean install.
Benefits:
- Charge your Transit battery or power station using free solar power; perfect for powering your fridge, dash cam, lights, and more.
- Works with most portable power stations like Jackery, EcoFlow, Goal Zero (adapters sold separately).
- Reduces hood glare with a non-reflective ETFE surface that improves driving visibility.
- Protects and extends battery life by keeping it charged even when parked for weeks.
- Saves space - mounts to hood, no bulky roof racks or portable panel kits required.
- Protect your paint - optional custom vinyl decal adds a buffer between panel and hood.

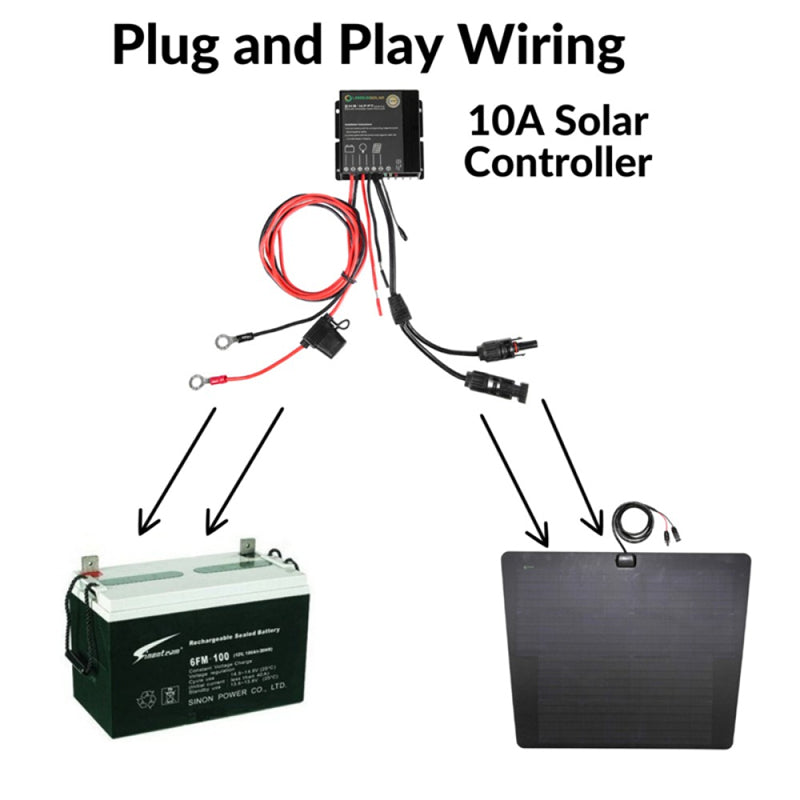

- Plug-and-play wiring - optional 10A MPPT controller offers smart, safe charging for all common battery types.
Technical Features:
-
Solar Cells: Grade A PERC Monocrystalline - high-efficiency and long-lasting
-
Surface Film: Premium ETFE - UV, corrosion, and scratch resistant
-
Durability: Built for off-road abuse - snow, mud, rocks, hail, and more
-
Design: Lightweight and ultra-thin - only 3mm (0.12") thick
40W Hood Solar Panel – Technical Specifications
| Feature | Details |
|---|---|
| Peak Power | 40W |
| Solar Cell Type | Grade A PERC Monocrystalline |
| Solar Cell Efficiency | 23.5% |
| Max Power Voltage (Vmp) | 16V |
| Max Power Current (Imp) | 2.5A |
| Open Circuit Voltage (Voc) | 18.8V |
| Short Circuit Current (Isc) | 2.8A |
| Power Tolerance | ±3% |
| Surface Material | ETFE Film (UV, weather, and scratch resistant) |
| Panel Thickness | 3mm (0.12 in) |
| Weight | 1.5 kg (3.3 lbs) |
| Junction Box | IP68 rated, 1.5m (5 ft) cable |

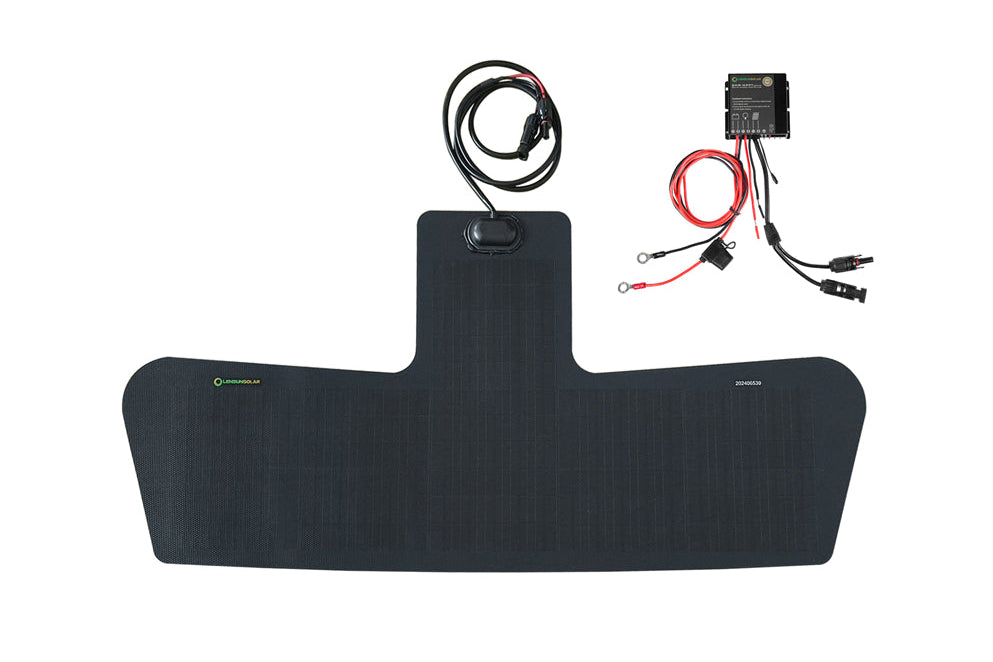

Optional MPPT Controller Specifications
| Feature | Details |
|---|---|
| Battery Compatibility | AGM, Gel, Flooded, Lithium |
| System Voltage | 12V |
| Max Input Power | 130W |
| Max Charging Current | 10A |
| Max PV Input Voltage | 45V |
| Max Charging Voltage | 25V |
| Conversion Efficiency | 96.5% |
| Tracking Efficiency | 99.9% |
| Bluetooth Monitoring | Yes |
| Dimensions | 3.4 x 3.2 x 0.9 in (86 x 81 x 23 mm) |
| Weight | 0.8 lbs (350g) |
What's Included:
- 1 × 40W Lensun Hood Flexible Solar Panel
- Optional: Custom-fitted vinyl decal
- Optional: 10A Waterproof MPPT Solar Controller
Looking to keep your Transit powered and adventure-ready? The Lensun 40W hood-mounted solar panel is your no-compromise solution.
Frequently Asked Questions:
1.Will this fit my Ford Transit Cargo Van?
Yes. This panel is shaped specifically for the 2015–present Ford Transit Cargo hood.
2.Do I need to drill holes for installation?
No drilling required. You can use the included adhesive or add an optional vinyl decal for paint-safe mounting.
3.Can it charge both starter and auxiliary batteries?
Yes. The panel can be connected to either system using the proper wiring setup or optional MPPT controller.
4.Does the panel reduce hood glare?
Yes. The ETFE surface greatly reduces glare, improving driving comfort and safety.
5.Is the MPPT controller necessary?
If you're charging a battery (not just a power station), the MPPT controller ensures safer, more efficient charging and battery longevity.
6.Can I install it myself?
Yes. It's designed to be a DIY-friendly, plug-and-play system with minimal tools required.
