Le Mans Low Profile 12v Fan

Name: Le Mans Low Profile 12v Fan
Brand: G&C Systems
SKU: LEMANS-FAN-KIT1
Price: 299.0 USD
Availability: InStock
Rating: 1.0 (1 reviews)

$299.00 USD

~~$320.00 USD~~ $299.00 USD

SAVE 6% SOLD OUT

Quantity

Overview

The Le Mans Low Profile 12V Fan is a reversible roof ventilator for vehicle builds that need controlled intake and exhaust made in the Netherlands. Its standout benefit is how low profile it is; the exterior cowl sits only 2.52 inches above the roof, helping you preserve roof space for racks, solar, or decking (compared to 9.3" inches with a Maxxair Deluxe and 3.93" inches with a Maxxair Dome) The Lemans fan is designed for both supply and exhaust airflow. Direction is controlled by wiring polarity (via an included 3-way switch), and airflow intensity is controlled with a variable speed dial (included).

Important Info

This is not a plug and play kit. It ships as components and requires basic assembly and wiring by the installer. Please review the installation instructions before purchasing. Wiring harness and roof adapter are not included. A roof adapter is required for ProMaster installs, or any roof that is not flat at the cutout area.

Key Features

Low profile: Only 2.52 inches above roof VS 9.3" Maxxair fan when open
Fits ANYWHERE under a Sprinter Stealth+ Roof Rack (including deck panels, crossbars, solar)
Reversible airflow for intake or exhaust
Variable speed control via potentiometer dial
12V operation
Designed for vehicle roof installations with a 230mm cutout (9.125" ID)
Ships Free to the Lower 48

Low Profile Exterior

Exterior height above the roof is 2.52 inches, designed to help maximize usable roof space.

Intake or Exhaust

Reversible airflow supports both bringing fresh air in and exhausting air out, depending on wiring direction. Interior closure can be either manually or electrically closed. White vents are included in this kit. These vents are different from typical RV vents in that the air closure is on the inside. The unique design of the cowl keeps moisture out. A black exterior cowl is included in this kit.

Variable Speed Control

Use the speed controller dial to set airflow intensity for your comfort and noise preference.

Technical Specs

Electrical and Performance

Spec	Details
Voltage	12V
Power	80W
Current draw	~7A on MAX speed
Max speed	2600 rpm
Airflow	850 m3/h (approximately 500 CFM)
Noise level	52 dB(A)

Dimensions and Fitment

Spec	Details
Height above roof	2.52 inches
Roof cutout	230 mm opening required (approximately 9.125 inches)
Flange outside diameter	12.28 inches
Overall length (cowl)	15.16 inches
Weight	4.7 lbs

Materials

Spec	Details
Roof ring or flange	ABS
Exterior cover or cowl	PA6 nylon

What Is Included and Not Included

Spec	Details

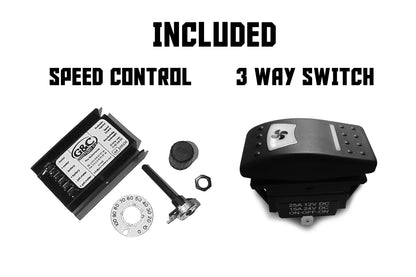

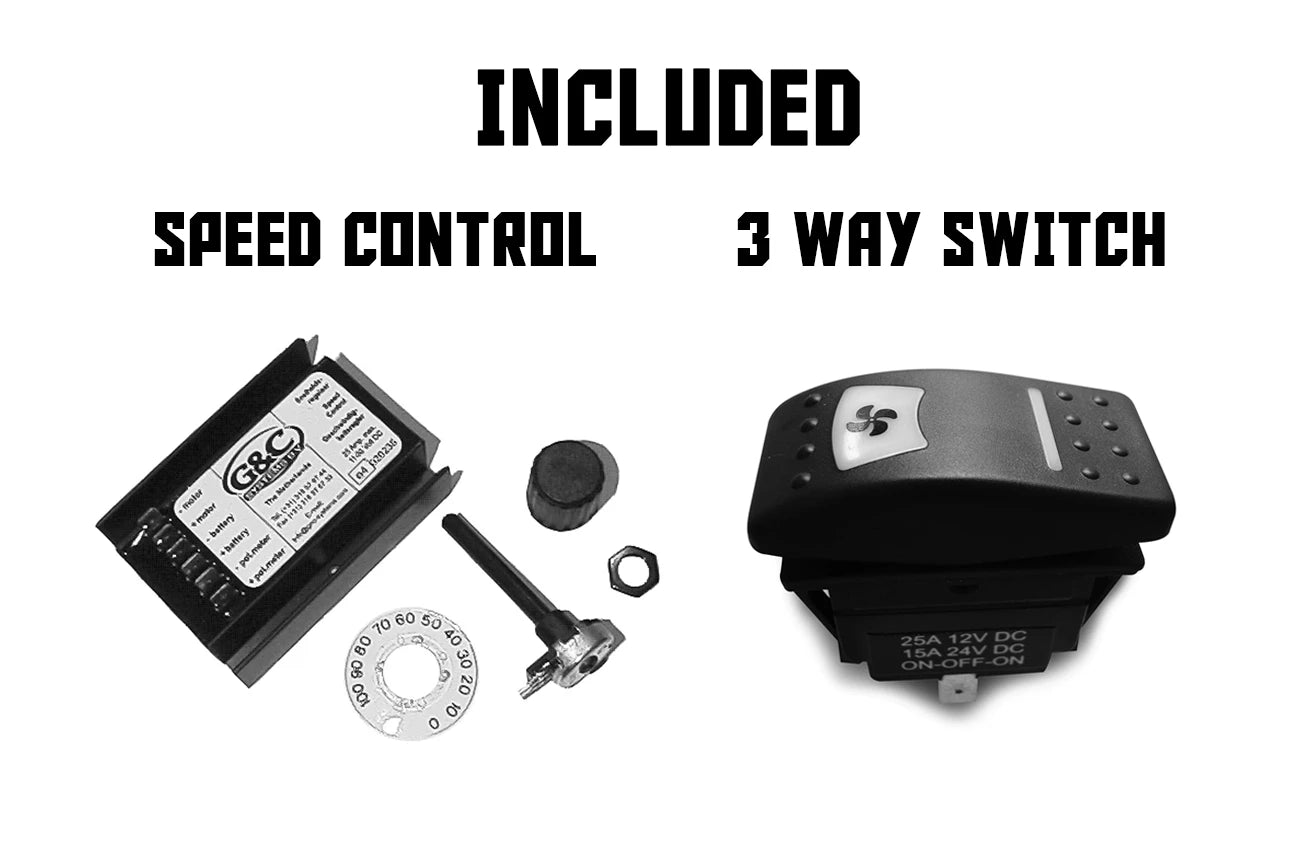

Included (kit components)	Fan (black), powered interior louver (white), speed controller with potentiometer dial, 3-way switch, snow filter
Not included	Wiring harness, roof adapter, mounting screws
Promaster and non-flat roofs	Roof adapter recommended
Ceiling gap bridge	No plenum included, use an appropriate seal or spacer solution for your build like AC foam seal

Resources and Downloads

Frequently Asked Questions (click to expand)

1. Is this a plug and play roof fan kit?

No. It ships as components and requires basic assembly and wiring by the installer. Review the installation instructions before purchasing.

2. Can this fan run as intake and exhaust?

Yes. The fan is reversible. Airflow direction is controlled by wiring polarity, commonly using a 3-way switch.

3. How tall is it above the roof?

The exterior height above the roof is 2.52 inches.

4. What size hole do I need to cut in the roof?

The installation instructions specify a 230 mm roof opening (approximately 9.125 inches).

5. Do I need a roof adapter?

A roof adapter is required for ProMaster installs or any roof that is not flat at the cutout area.

6. Is a wiring harness included?

No. Wiring harness is not included.

7. Are mounting screws included?

Mounting screws are not included. Refer to the installation instructions for recommended hardware and sealing steps.

8. What if I have a finished ceiling and need to bridge the gap to the roof skin?

This system does not include a plenum to bridge the gap between the roof and an interior ceiling panel. Use an appropriate foam seal or spacer solution for your build.

* Roof adaptor required if mounting on a Promaster or non flat roof
** Does not come with a wiring or roof adaptor

Get a CAD-Verified Roof Layout

We understand that every van setup is unique. That's why we offer CAD-verified roof layouts for customers who have purchased or plan to purchase an Orion roof rack - so you can maximize space and fit exactly what you need, where you need it. Request a layout here ›

Shipping & Returns

We offer free shipping to the lower 48 states on all products. Orders shipping to Alaska, Hawaii, Canada, or international destinations may have additional shipping charges calculated at checkout or quoted separately. Local pickup is also available at our McMinnville, Oregon warehouse by appointment.

Most purchases can be returned within 30 days of purchase if they are in new, resalable condition with original packaging. A 20% restocking fee applies; return shipping is the customer’s responsibility, and some items are final sale or not eligible for return. For full details, please see our Shipping Policy and Return Policy.

View full details
