Scanstrut DS-HD10-BLK Double Cable Seal

The Scanstrut DS-HD10-BLK double horizontal cable seal is designed to eliminate time-consuming and sub-standard routing of cables for rooftop lights and electronics.

The seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time. Perfect for routing two cables externally to internally on the roof of vans, RVs, and boats. Its low-profile design provides the best water ingress protection in class. This is great for most solar cables*, Starlink cables*, LED lights*, and our rear scene light upgrade for our roof racks. If you are looking for a single cable entry check out the DS-H10-BLK.

FEATURES

• IP68 Watertight Seal

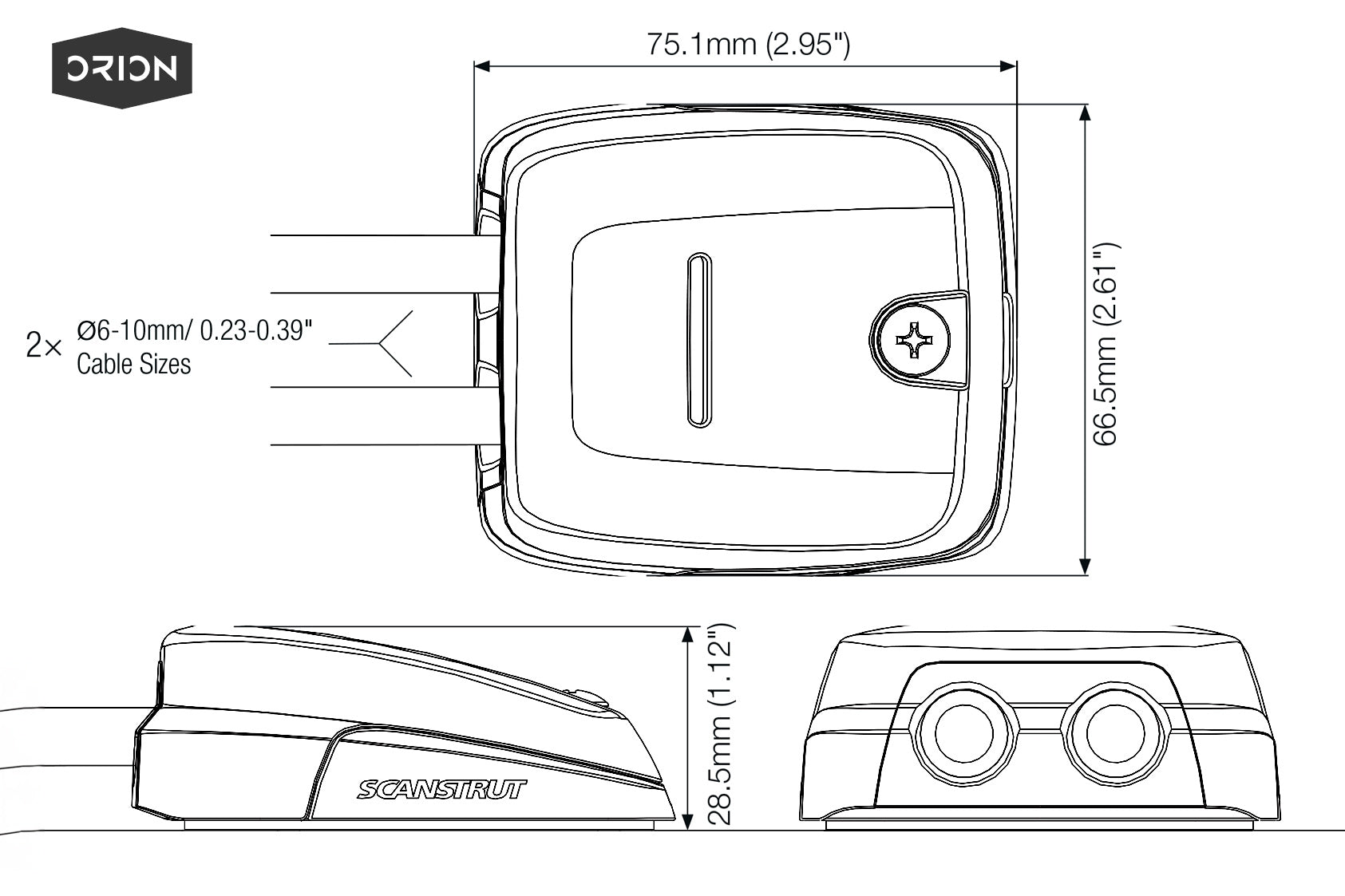

• Compact Footprint - just 2.61” W x 2.95” L x 1.12” H
• Easy-fit cable routing that cuts down your installation time
• Black impact-resistant plastic
• Includes 316 stainless steel fixings and a waterproof 3M gasket

• UV-stable and hard-wearing materials
• No messy sealant on bungs
• Designed for two cables (6mm to 10mm)

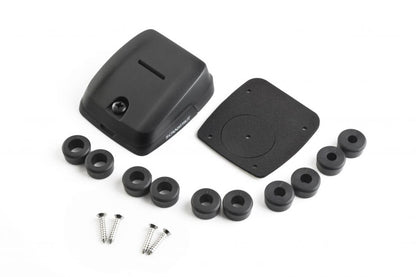

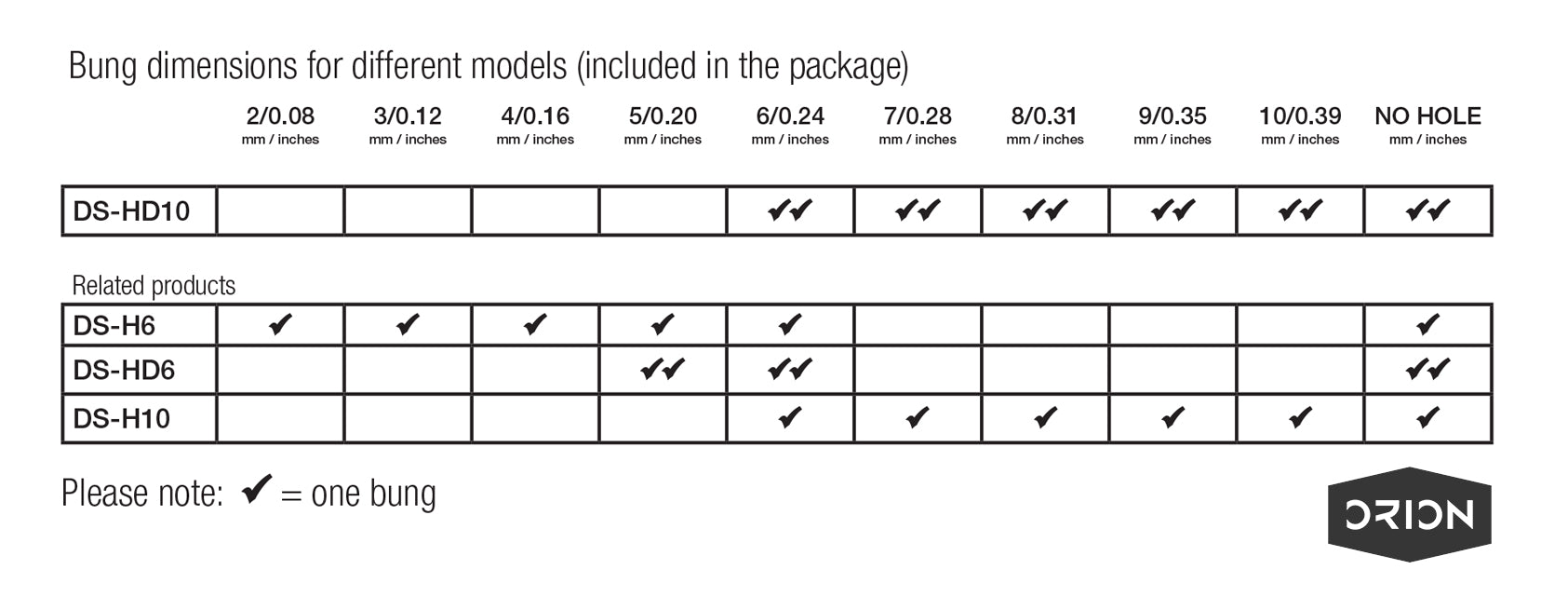

• Included Bungs:
  • 6mm x 2
  • 7mm x 2
  • 8mm x 2
  • 9mm x 2
  • 10mm x 2
  • Blank x 2

VIDEO

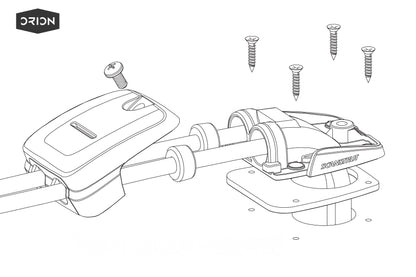

*If your cables/wiring includes connectors such as MC4, proprietary connectors like Starlink, or larger plug styles, they may need to be removed, cut or spliced to fit through the waterproof cable entry. Please refer to the drawings for detailed guidance.
