Pre-Wired Victron 12V Power System for Mercedes Sprinter

Name: Pre-Wired Victron 12V Power System for Mercedes Sprinter
Brand: Artek
SKU: ART-12VBX144SPR40DS-ART
Price: 14700.0 USD
Availability: InStock

$14,700.00 USD

SOLD OUT

Wheelbase: 144 144 170 170 EXT

Battery Bank Size: 400Ah 400Ah 600Ah 800Ah 1000Ah

Box Location: Driver Side Rear Wheel Well Driver Side Rear Wheel Well Passenger Side Rear Wheel Well

Quantity

Overview

Skip the complexity of engineering a van electrical system from scratch. This pre-wired Victron power system is built to give Sprinter owners a cleaner, faster path to a professionally assembled off-grid setup, without sourcing, wiring, programming, and troubleshooting every major component individually. Built in Oregon by Artek’s Victron power system experts, this made-to-order rear wheel well enclosure is programmed, tested, and available in 400Ah to 1000Ah battery bank configurations. If you are comparing integrated power kits, this system is the 12V alternative for customers considering all-in-one setups like the 48v EcoFlow Power Kit, but built around a full Victron ecosystem with more traditional serviceability and expansion paths.

Important Info

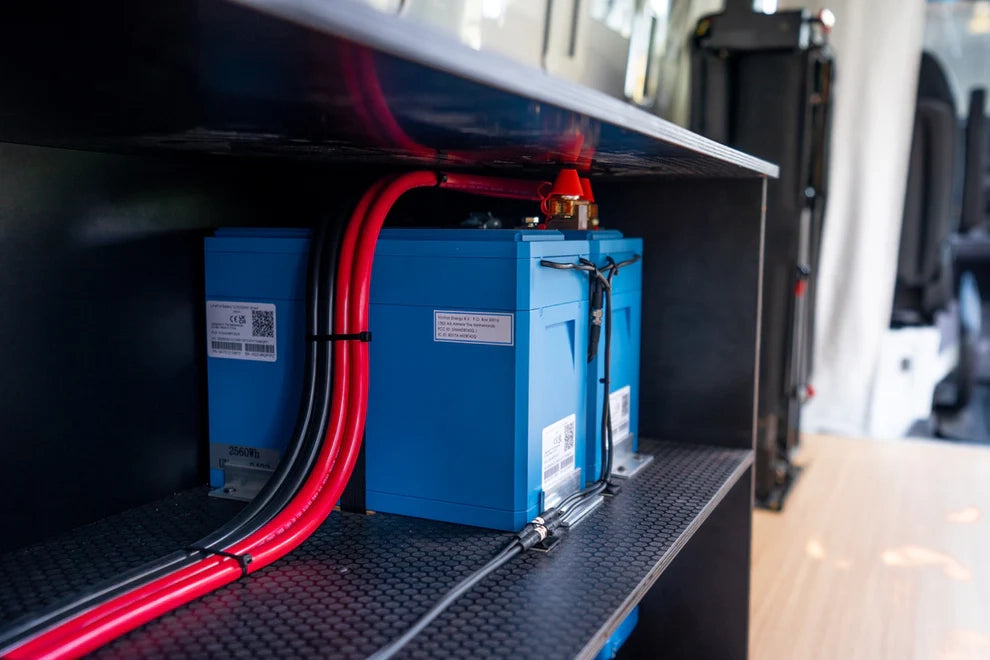

Shipped systems do not arrive with the batteries fully wired in place. Batteries ship in hazmat boxes, and the final battery hookup is required by the customer, but the cables and battery fuses are already prepared in advance.

Key Features

Professionally assembled, programmed, and tested by Victron Experts
Full Victron ecosystem, including batteries - communication, charging, battery management, and monitoring in one pre-wired package.
Pre-wired, programmed, and tested by Artek
Battery bank options from 400Ah to 1000Ah
Victron MultiPlus 12/3000/120-50 inverter/charger
Victron Orion XS 50A DC-DC charging
Victron SmartSolar MPPT 100/50
Victron Cerbo monitoring with Touch 50

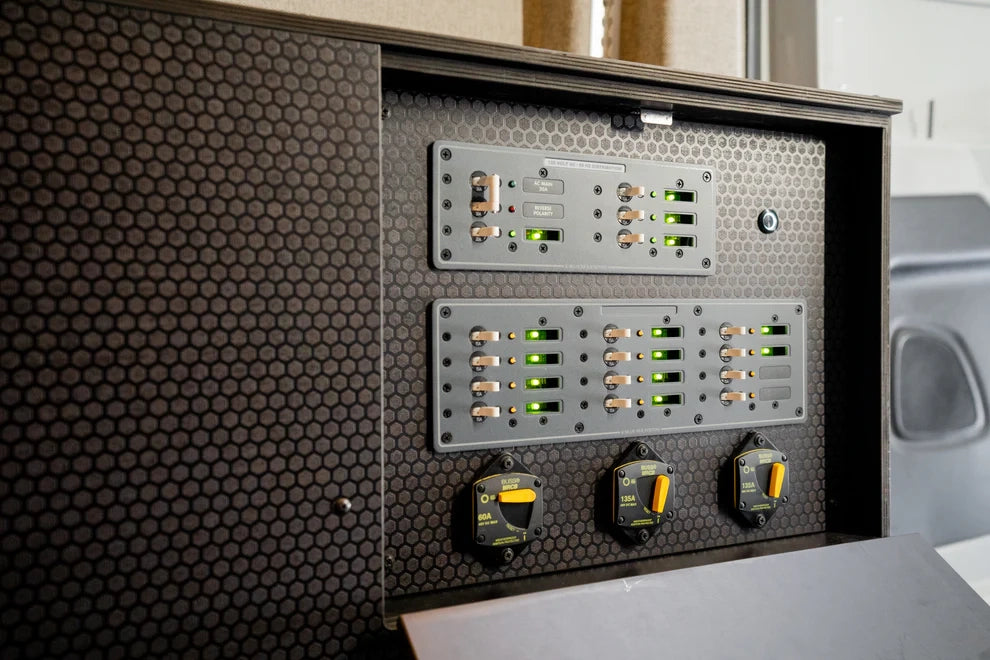

Blue Sea AC and DC distribution panels
Wago assemblies for organized connection points
Rear wheel well enclosure for Mercedes Sprinter
Driver side or passenger side box location options
Free mainland U.S. shipping
Built in Oregon, made to order (2-4 weeks)

Technical Specs

Spec	Details
Vehicle Fitment	Mercedes Sprinter 144, 170, 170 EXT

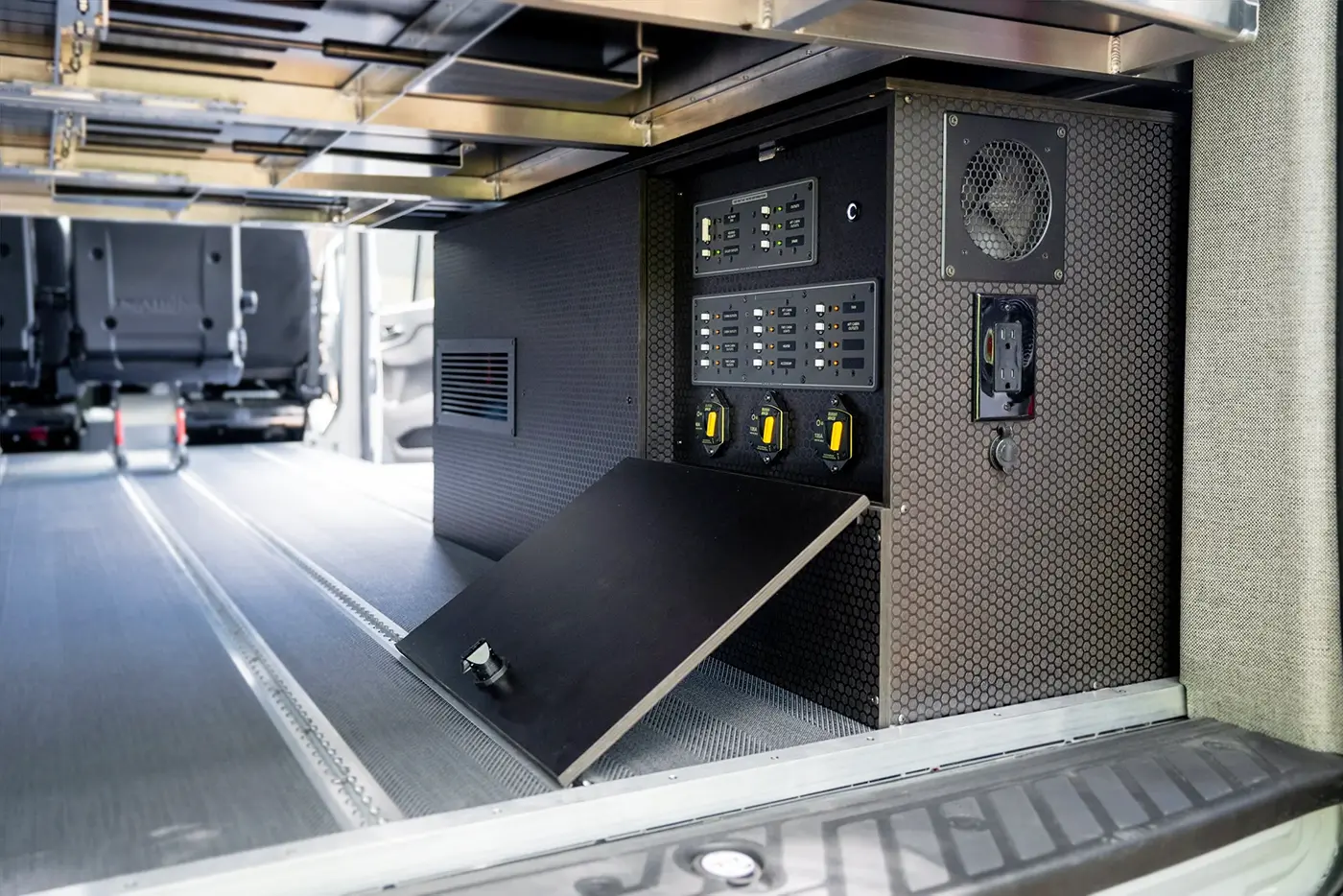

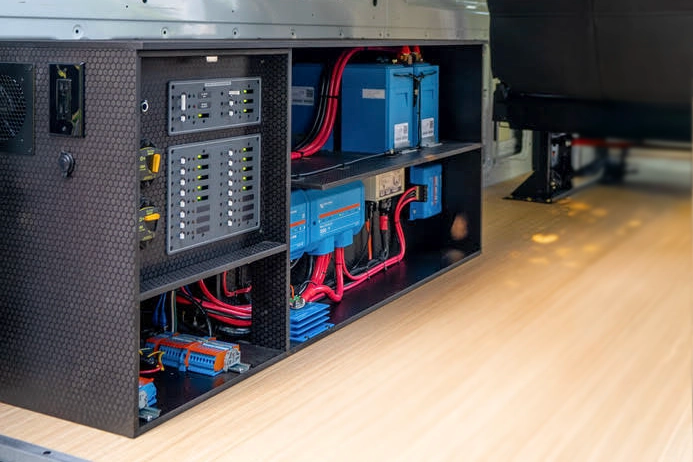

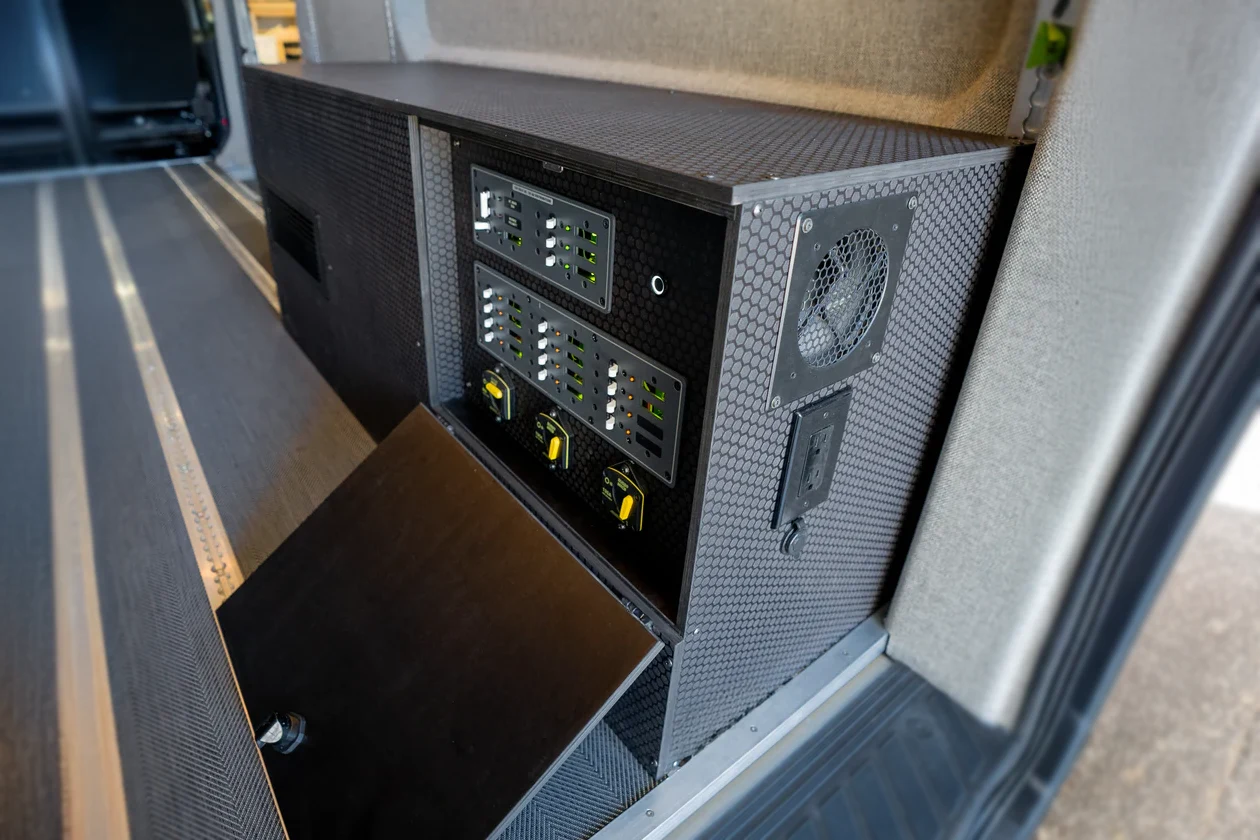

Box Location Options	Driver side rear wheel well, Passenger side rear wheel well
System Voltage	12V
Battery Options	400Ah, 600Ah, 800Ah, 1000Ah
Inverter / Charger	Victron MultiPlus 12/3000/120-50 120V UL
Continuous Inverter Output	2400W
Standard DC-DC Charging	50A via Victron Orion XS
Standard Solar Charging	Victron SmartSolar MPPT 100/50
Monitoring	Victron Cerbo MKII and Touch 50
Battery Management	Victron Lynx BMS NG
Distribution	Blue Sea AC Main + 4, Blue Sea DC 16 Position
Quick Connection Assemblies	Wago assemblies
Main Enclosure Material	Black HexPly

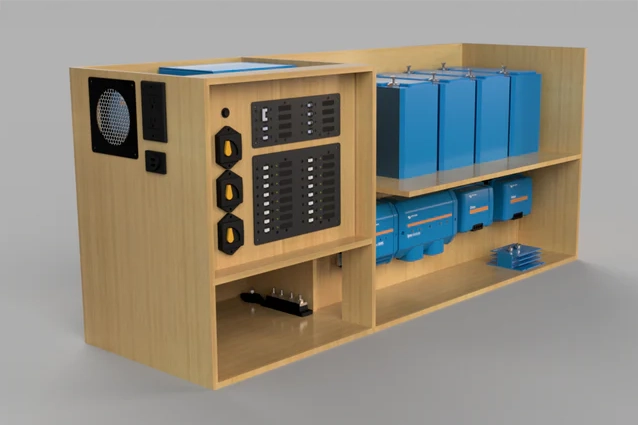

Enclosure Dimensions	56 in L x 25 in H x 18 in D
Approximate System Weight, 400Ah	250 lb
Approximate System Weight, 600Ah	300 lb
Approximate System Weight, 800Ah	350 lb
Approximate System Weight, 1000Ah	400 lb

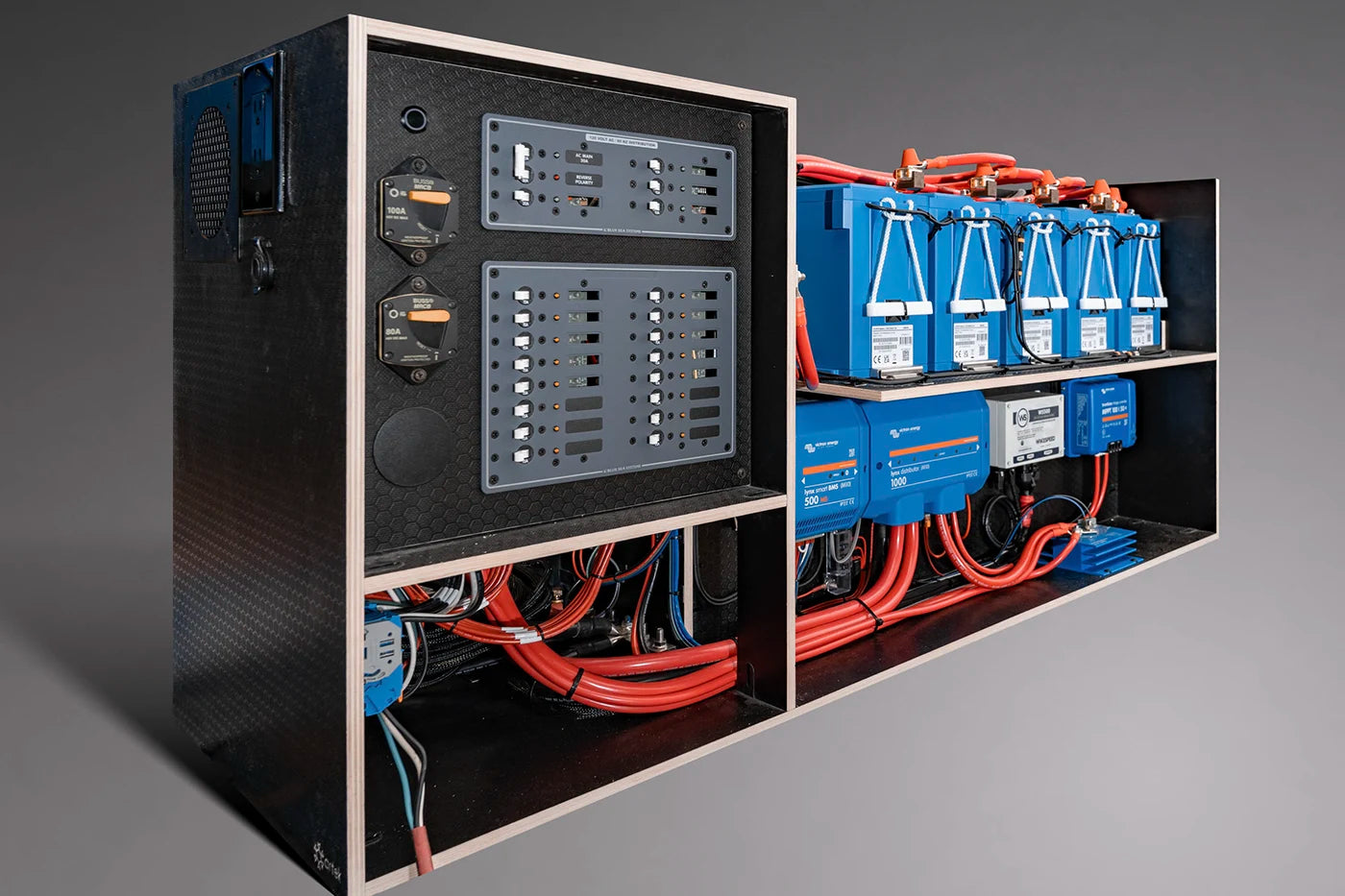

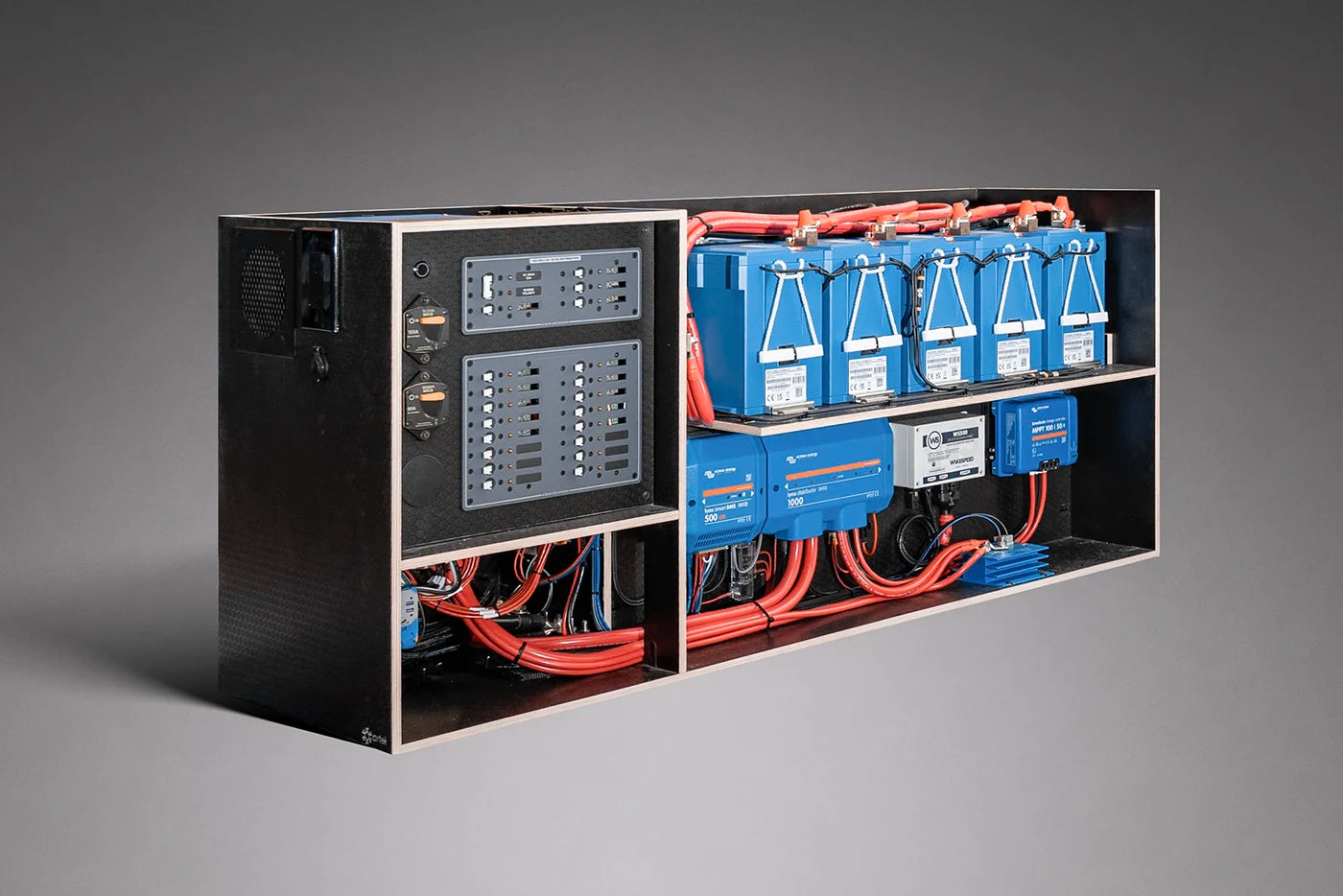

What Is Included, Base 400Ah System

Item	Included
2 x Victron LiFePO4 Battery 12.8V / 200Ah NG	Yes
Victron Lynx BMS NG	Yes
Victron Lynx Distributor	Yes
Victron Orion XS 50A	Yes
Victron MultiPlus 12/3000/120-50 120V UL	Yes
Victron SmartSolar MPPT 100/50	Yes
Victron Cerbo MKII	Yes
Victron Touch 50	Yes
Blue Sea AC Main + 4 panel	Yes
Blue Sea DC 16 Position panel	Yes
Cabinet	Yes
Wago assemblies	Yes
Wiring and connectors	Yes
Programmed and tested	Yes

Warranty

Coverage	Details
Enclosure and installation workmanship	1 year
Included products except batteries	5 years
Batteries	3 years
Warranty Basis	Follows manufacturer warranties

Customization and Upgrade Options

Need something beyond the standard box? Custom configurations are available for customers who need higher DC-DC charging, expanded solar capability, a secondary dedicated lithium alternator, shore power additions, enclosure material & finish, or other system modifications. Reach out before ordering if you want to discuss changes to the standard configuration and get a custom quote for your build.

Additional DC-DC Charging

Add up to 2 additional Orion XS 50A units for increased DC-DC charging capacity.

Expanded Solar Capability

Add an additional solar charge controller for larger, deployable, or more complex solar arrays.

Secondary Alternator Upgrade

Upgrade to a dedicated lithium alternator system that replaces the standard Orion XS charging setup.

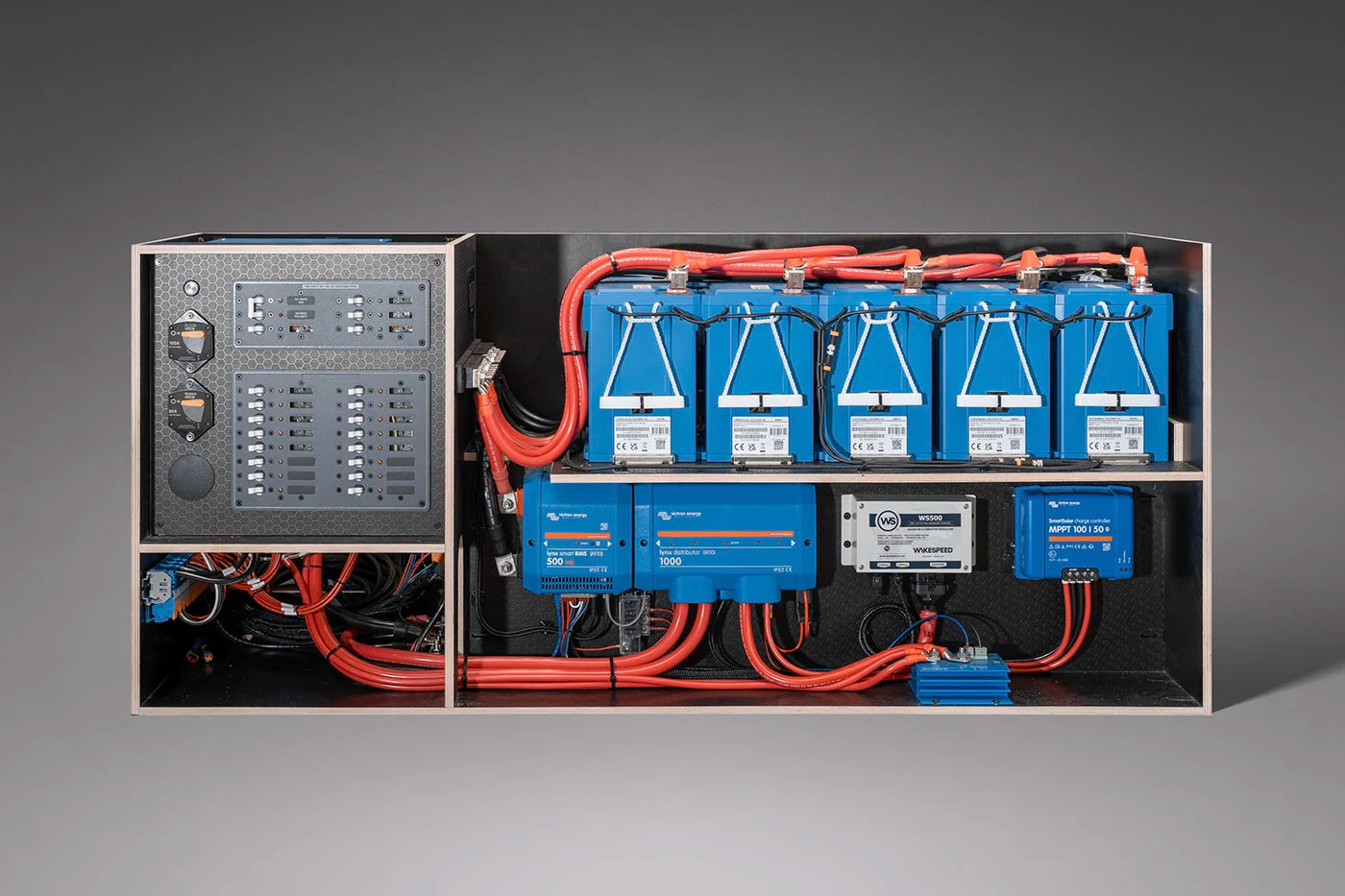

Secondary Dedicated Lithium Alternator Upgrade

Included Item	Details
Nations 12V alternator and bracket	Included with secondary alternator upgrade
Wakespeed regulator	Included with secondary alternator upgrade
Positive van harness	Included with secondary alternator upgrade
Temperature sensor	Included with secondary alternator upgrade
Wakespeed crossover cable	Included with secondary alternator upgrade
Wakespeed RJ45 terminator kit	Included with secondary alternator upgrade
Shipping Note	Cannot ship wired, must be in hazmat box

Installation Options

DIY Install: Even though the enclosure is pre-wired, programmed, and tested, you still need to complete the vehicle-side connections. That includes running and connecting the AC loads, DC loads, solar input, alternator charging, shore power, and communication wiring to the designated connection points on the box. For shipped systems, the batteries also arrive in hazmat boxes and final battery hookup is completed by customer.
Professional installation is available in Portland, Oregon: Standard installation starts at $2,500 and is designed for customers who want the pre-wired box mounted and tied into a prepared van electrical layout. It includes installation of the box in the vehicle and connection of labeled AC and DC wires to the Wago distribution assemblies when customer prep is complete. Secondary dedicated lithium alternator installation is also available, with pricing from $3,000 to $4,000 depending on vehicle chassis. Custom system modifications and installation planning are available by quote, contact us.

Customer Prep Required before Artek Installation: Customers should have the floor installed, the lower wall panel in place at the mounting location, and AC and DC wiring already run and labeled near the box location. At least 18 inches of wire should be available at the rear wheel well pass-through point. Standard installation does not include full vehicle pre-wiring.

Requirement	Details
Floor	Must be installed before box installation
Lower wall panel	Must be installed at the box mounting location
AC and DC wiring	Should be run through the vehicle and labeled at the box end
Wire length at rear wheel well	At least 18 in of wire should be available at the pass-through point

Shipping and Pickup

Free shipping to the lower 48 states. Units are made to order and take 2-4 weeks.
$500 Oregon pickup discount is available (requires appt)
For shipped systems, batteries ship unwired in hazmat packaging and final hookup is required by the customer

Frequently Asked Questions (click to expand)

1. What is included in the base 400Ah system?

The base 400Ah system includes 2 Victron 12.8V 200Ah NG batteries, a Victron MultiPlus 12/3000 inverter charger, Orion XS 50A, SmartSolar MPPT 100/50, Cerbo MKII, Touch 50, Lynx BMS NG, Lynx Distributor, Blue Sea AC and DC distribution, Artek cabinet, Wago assemblies, wiring, and programming.

2. What changes between 400Ah, 600Ah, 800Ah, and 1000Ah?

The primary change is battery capacity. The 400Ah system includes 2 batteries, 600Ah adds 1 battery, 800Ah adds 2 batteries, and 1000Ah adds 3 batteries.

3. Does this system fit Sprinter 144, 170, and 170 EXT?

Yes. This product is designed for Mercedes Sprinter 144, 170, and 170 EXT applications.

4. Can I choose driver side or passenger side installation?

Yes. You can choose either the driver side rear wheel well or the passenger side rear wheel well location.

5. Is this a plug-and-play system?

The enclosure is pre-wired, programmed, and tested, but installers still need to run and connect the vehicle-side cabling for AC loads, DC loads, solar, alternator, shore power, and communication lines.

6. Can I add more DC-DC charging?

Yes. Up to 2 additional Orion XS 50A units can be added for increased DC-DC charging capacity.

7. Can I upgrade to a secondary dedicated lithium alternator?

Yes. A secondary dedicated lithium alternator upgrade is available and replaces the standard Orion XS charging setup.

8. Is shipping included, and what happens if I pick it up in Oregon?

Retail pricing includes free mainland U.S. shipping. If you pick up the system in Oregon, you can receive a $500 pickup discount.

9. Can you install the system?

Yes. Professional installation is available at Artek in Portland, Oregon, and custom installation planning is available by quote.

10. Can this system be customized for my build?

Yes. Additional charging, solar, alternator, shore power, and layout options are available. Contact us for a custom quote.
