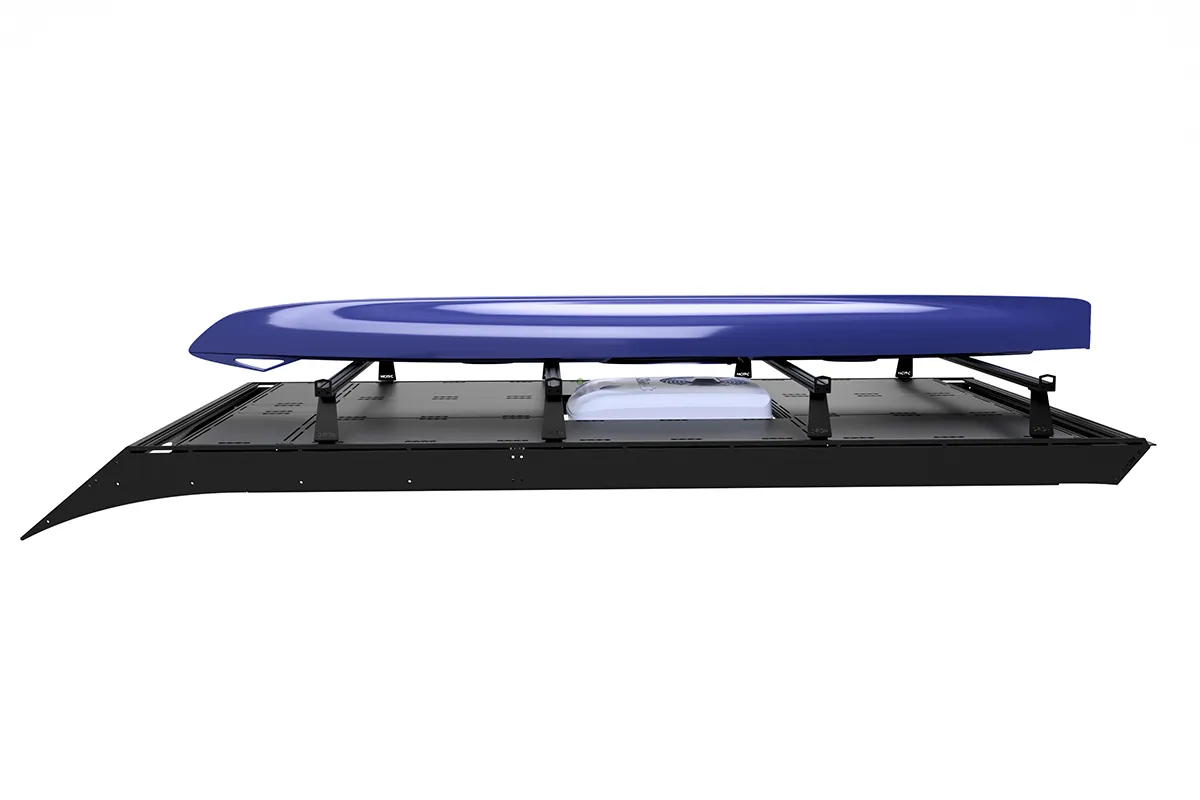

• Orion Van Gear Riser Bar Kit holding a kayak above an air conditioner on transit van

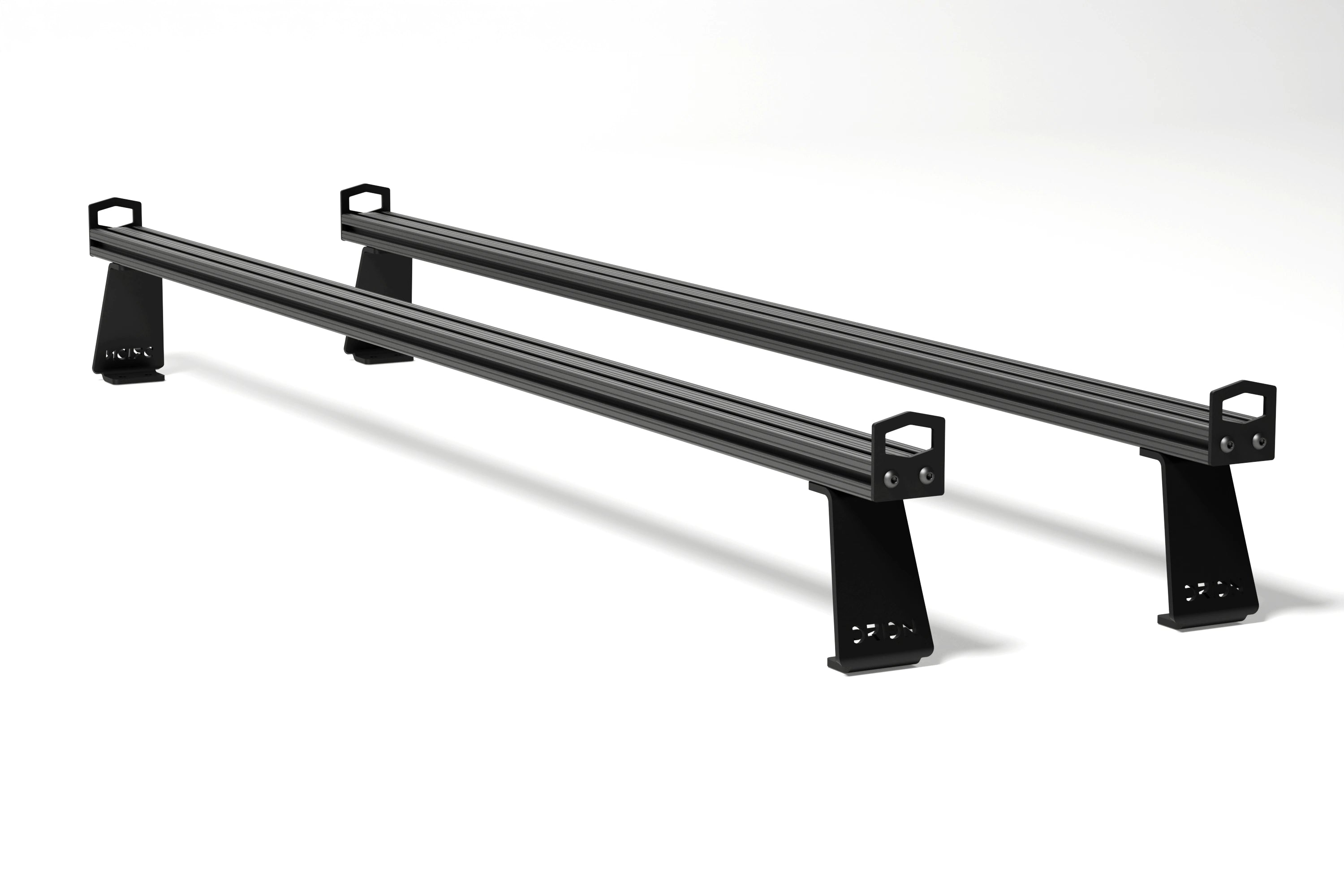

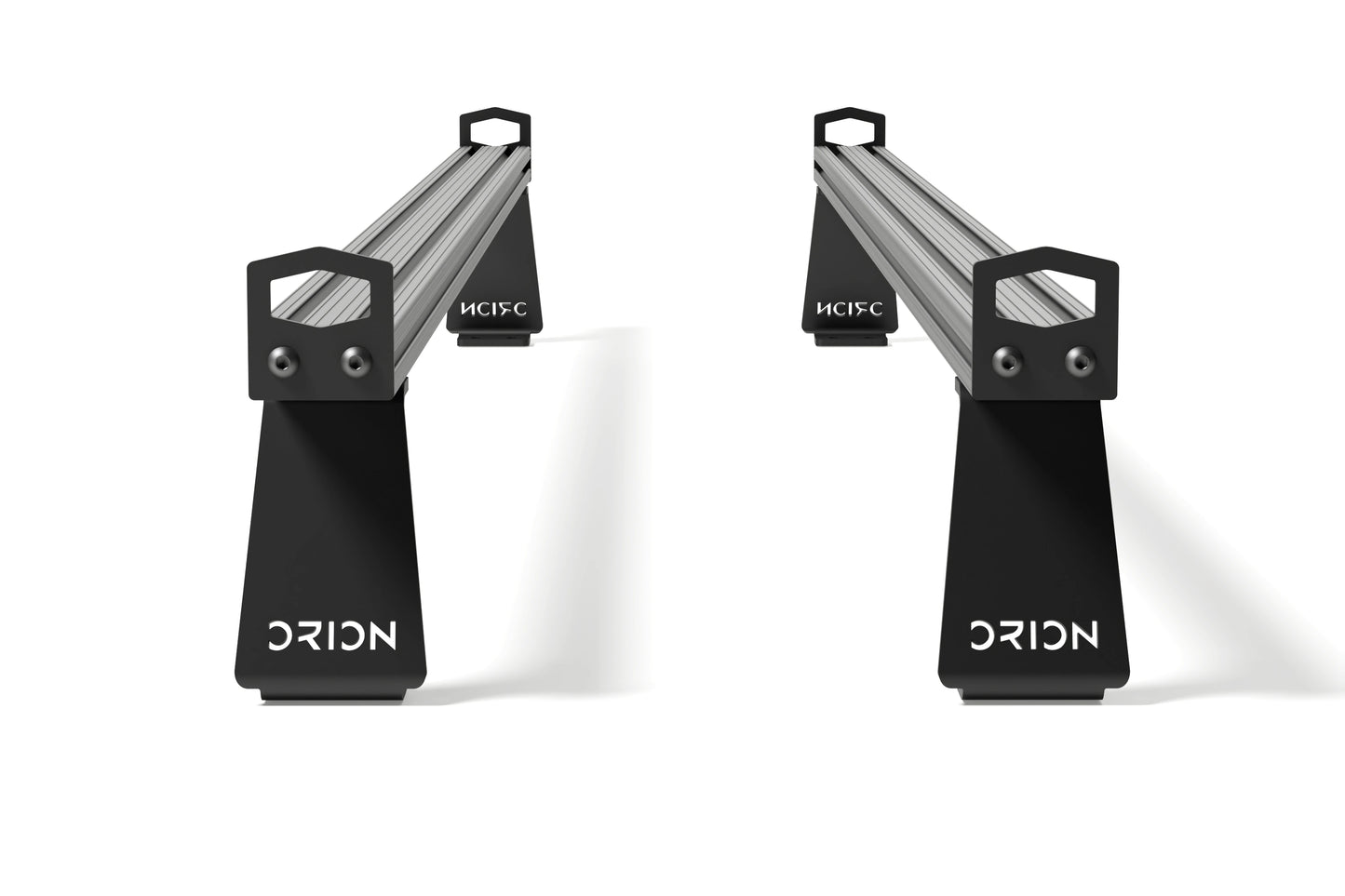

  • Orion Van Gear Riser Bar Kit – standard crossbar risers for Sprinter and Transit roof racks, CNC aluminum brackets with black powder coat finish.
  • Roof rack with riser bar crossbars with solar panel over air conditioner on a van

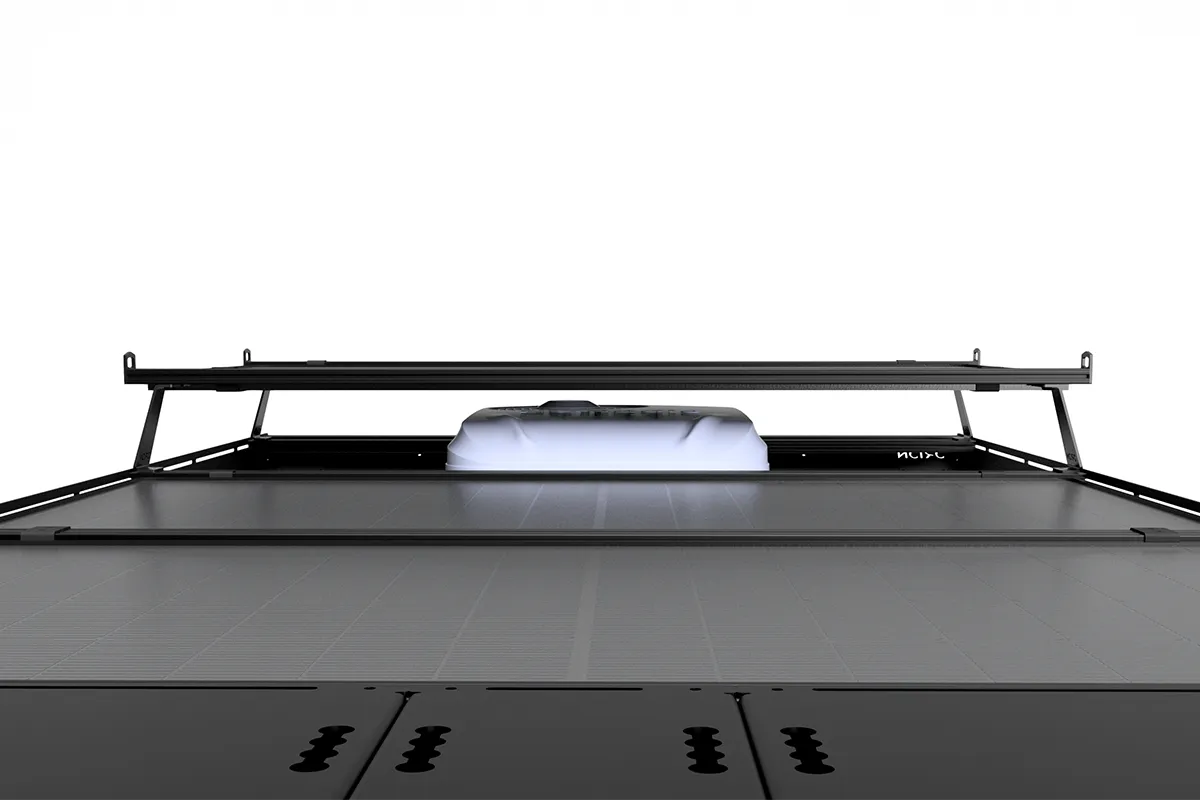

  • Orion Van Gear Riser Bar Kit solar above air conditioner

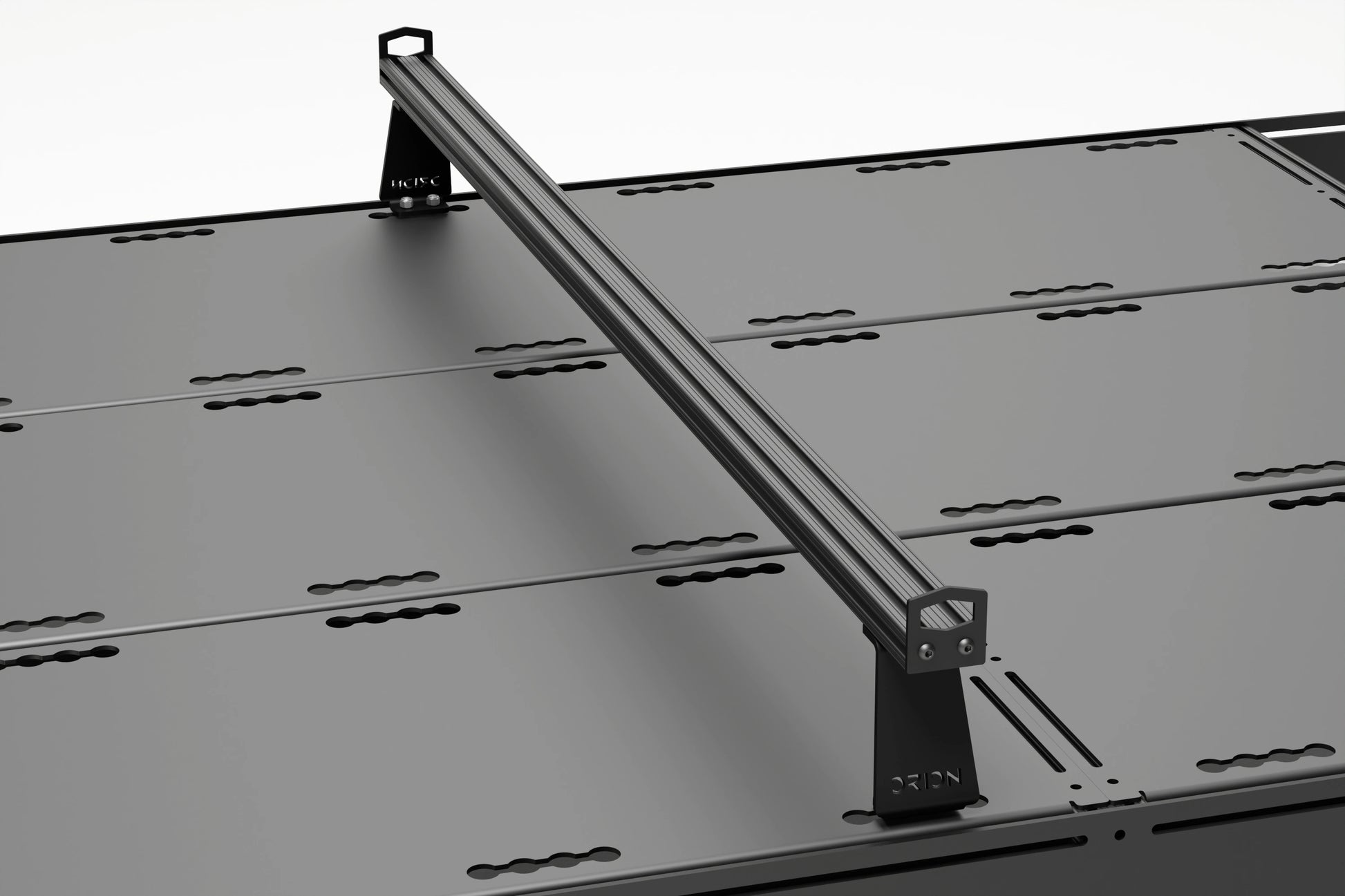

  • Orion Riser Bars mounted directly to deck panels – increases total rack height for fans, air conditioners, or tall roof accessories.

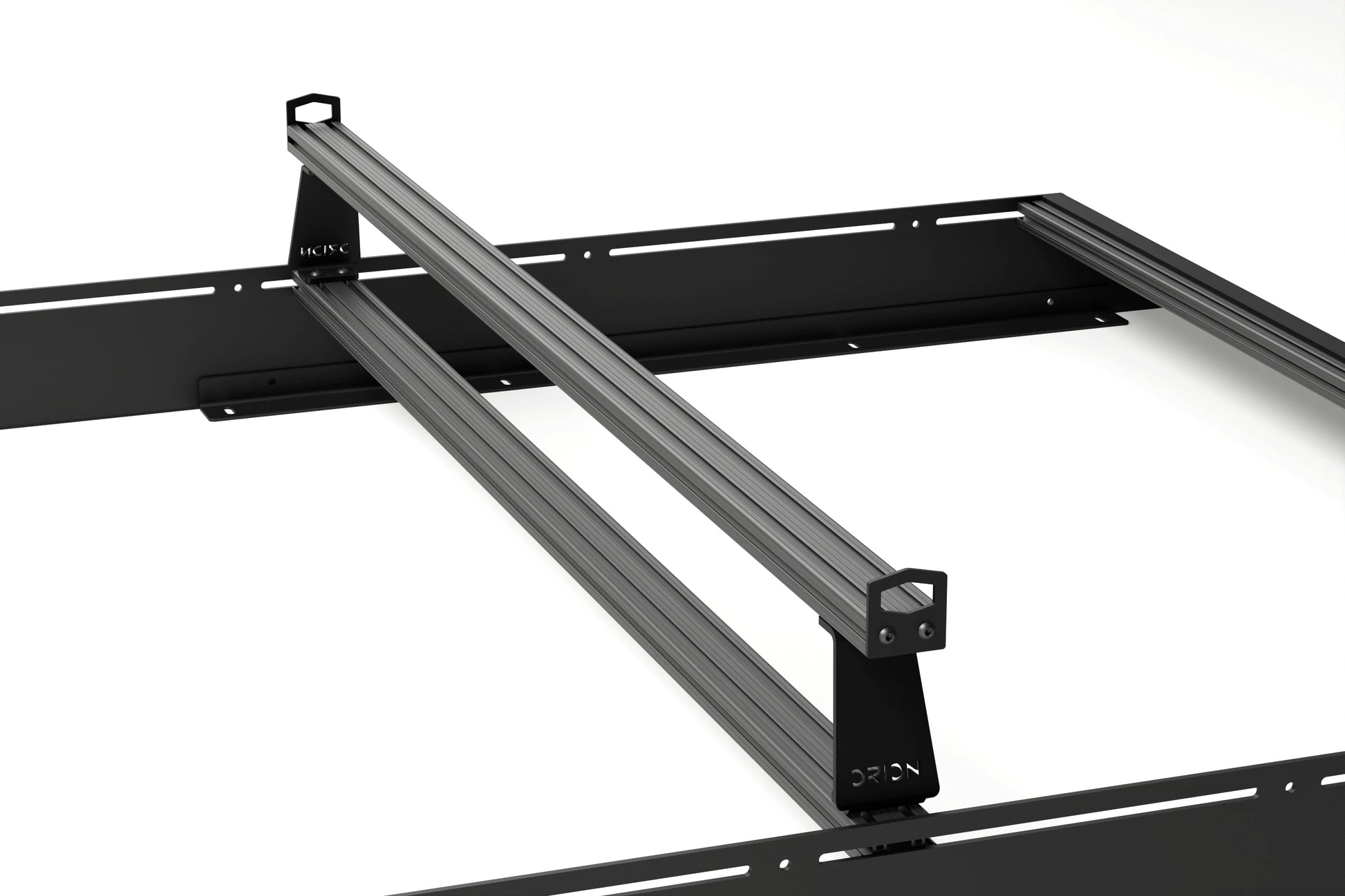

  • Orion Riser Bars top-down view – precision-cut brackets and extruded crossbars designed for modular van roof rack systems.

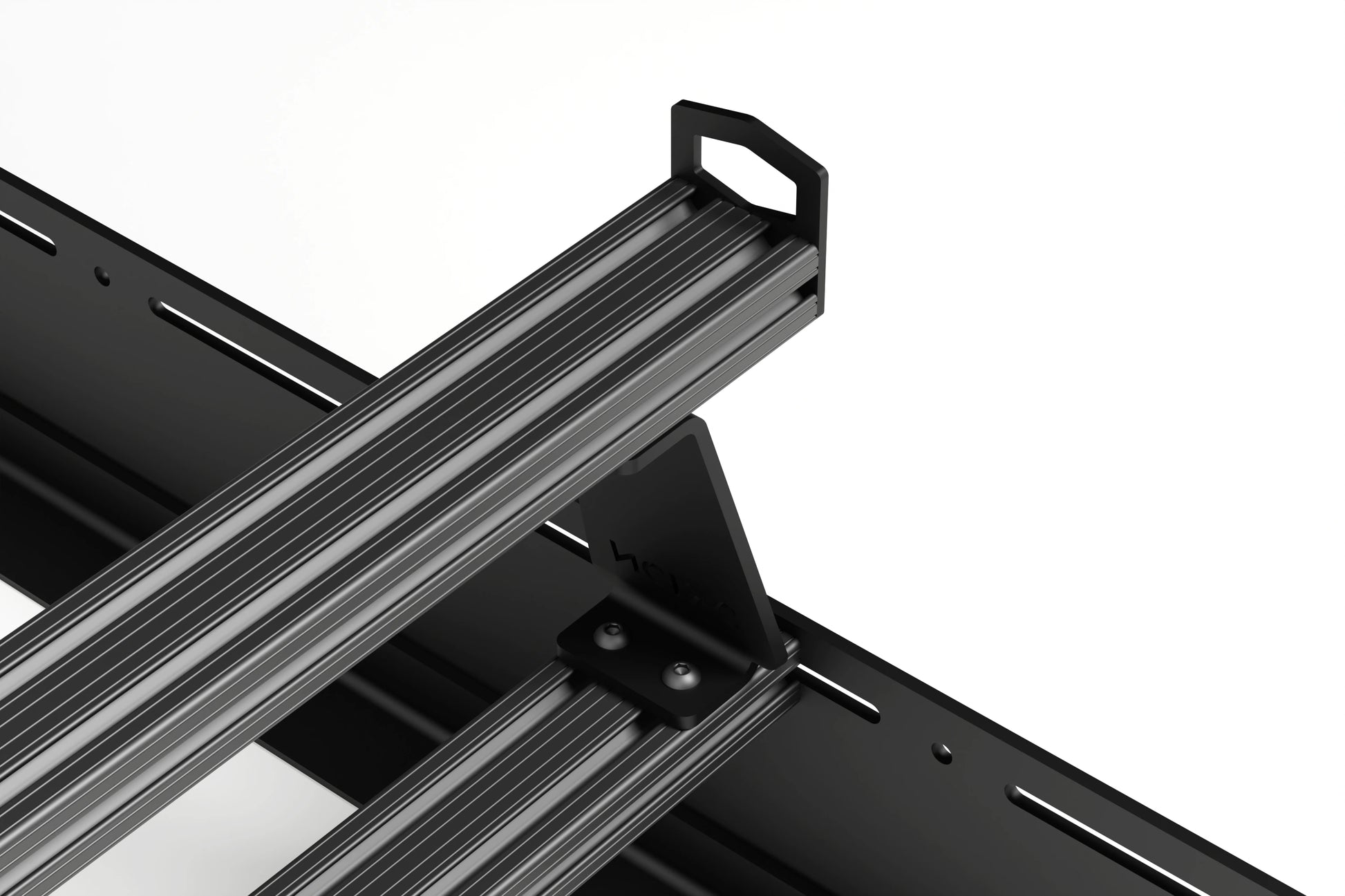

  • Orion Riser Bar mounted on crossbar sprinter rack with end cap tie down for extra clearance

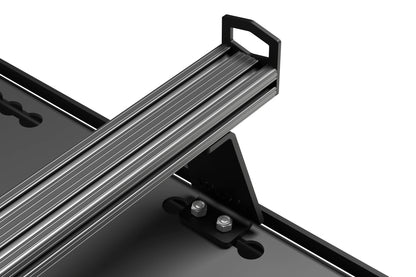

  • Orion Riser Bar Kit mounted on deck panels – adds clearance above AC for storing kayak, surf boards, RTTS

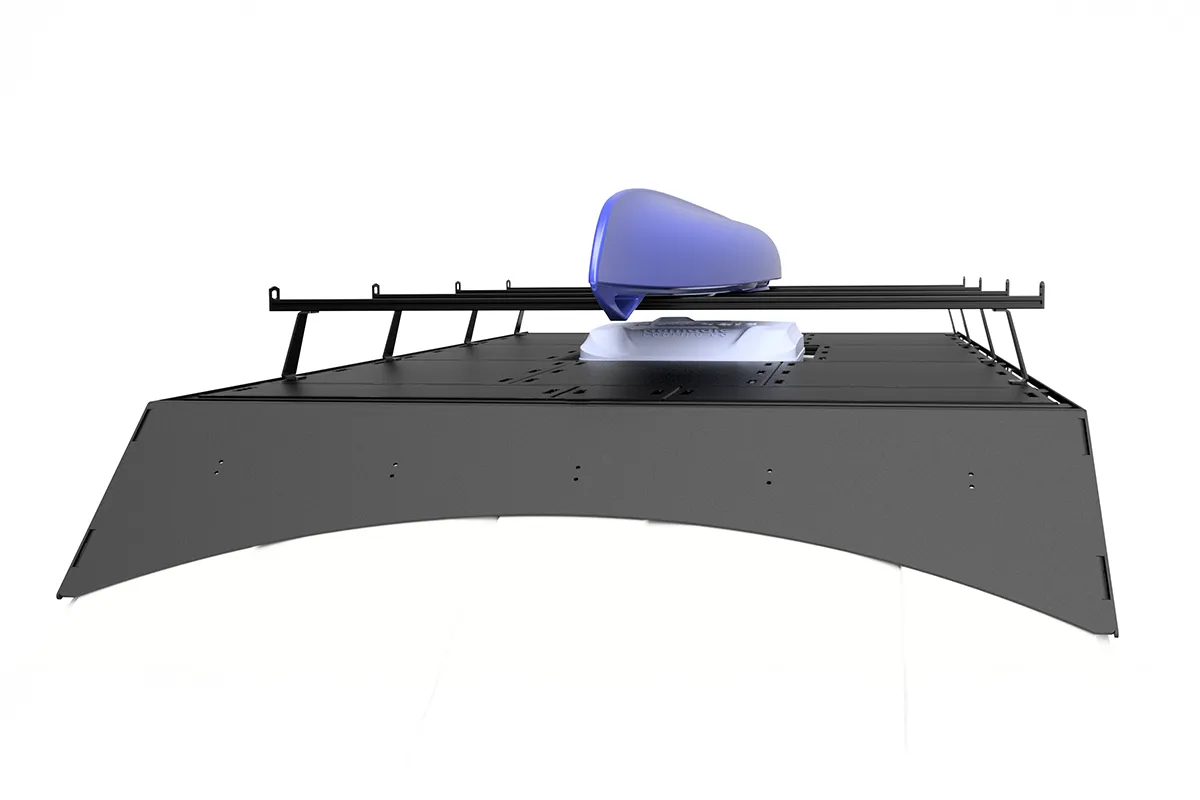

  • Orion Van Gear Riser Bar Kit holding a kayak above an air conditioner on transit van with full walkable deck platform

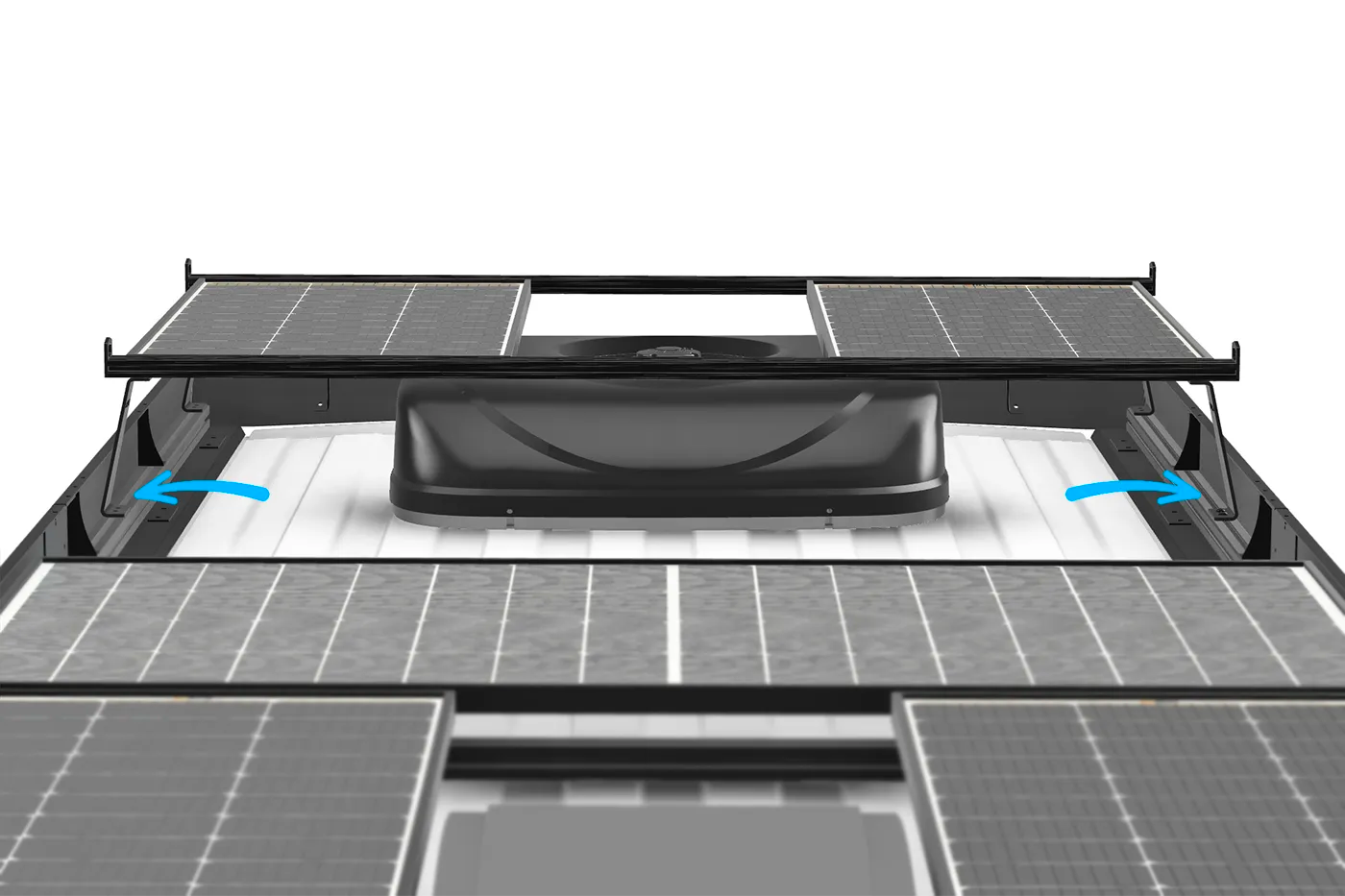

  • Solar panel system on orion promaster roof rack with riser bar kit over AC

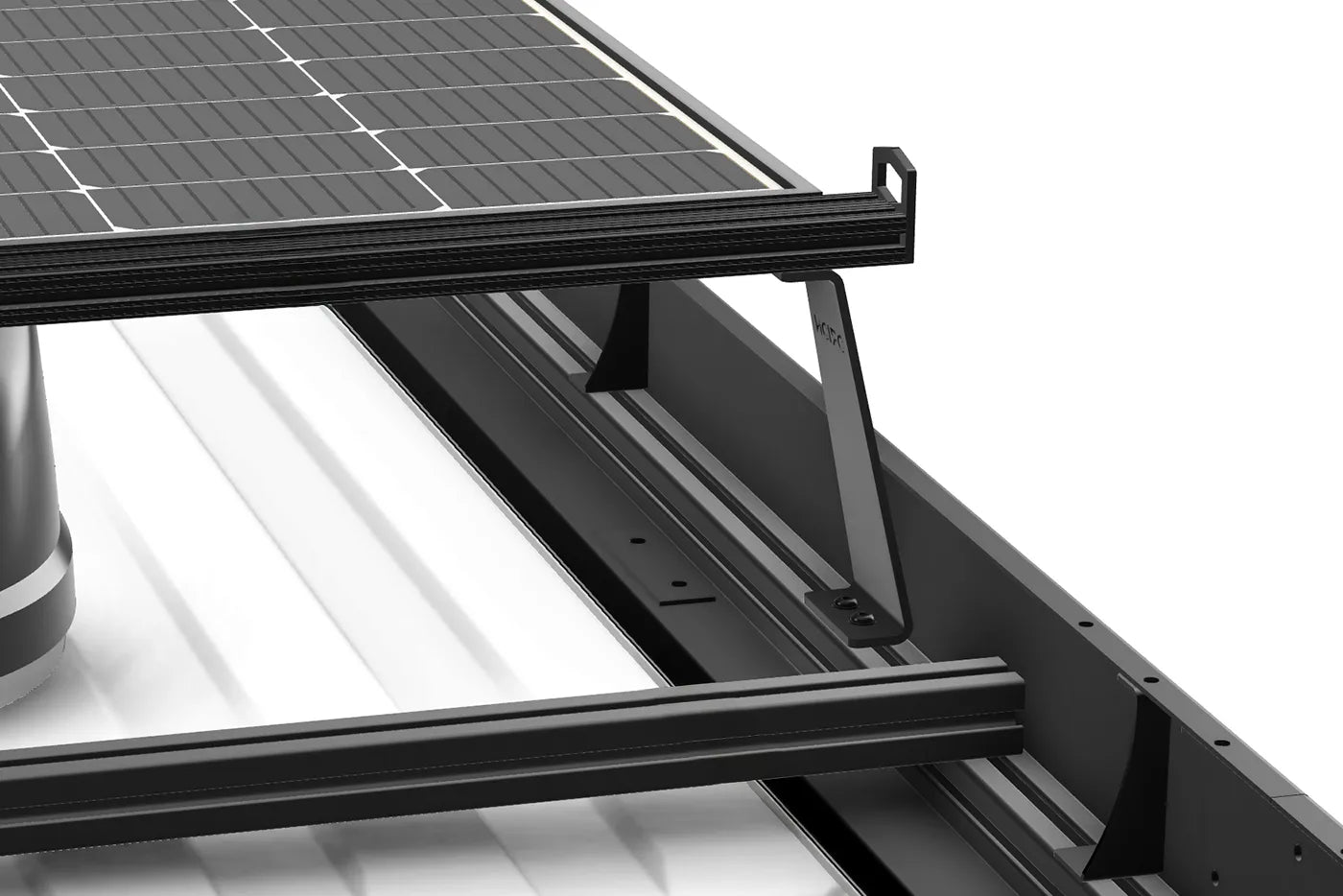

  • Inside shot of orion promaster roof rack and riser bar brackets
  • Orion Van Gear Riser Bar Kit – standard crossbar risers for Sprinter and Transit roof racks, 3/16 aluminum brackets with black powder coat finish.

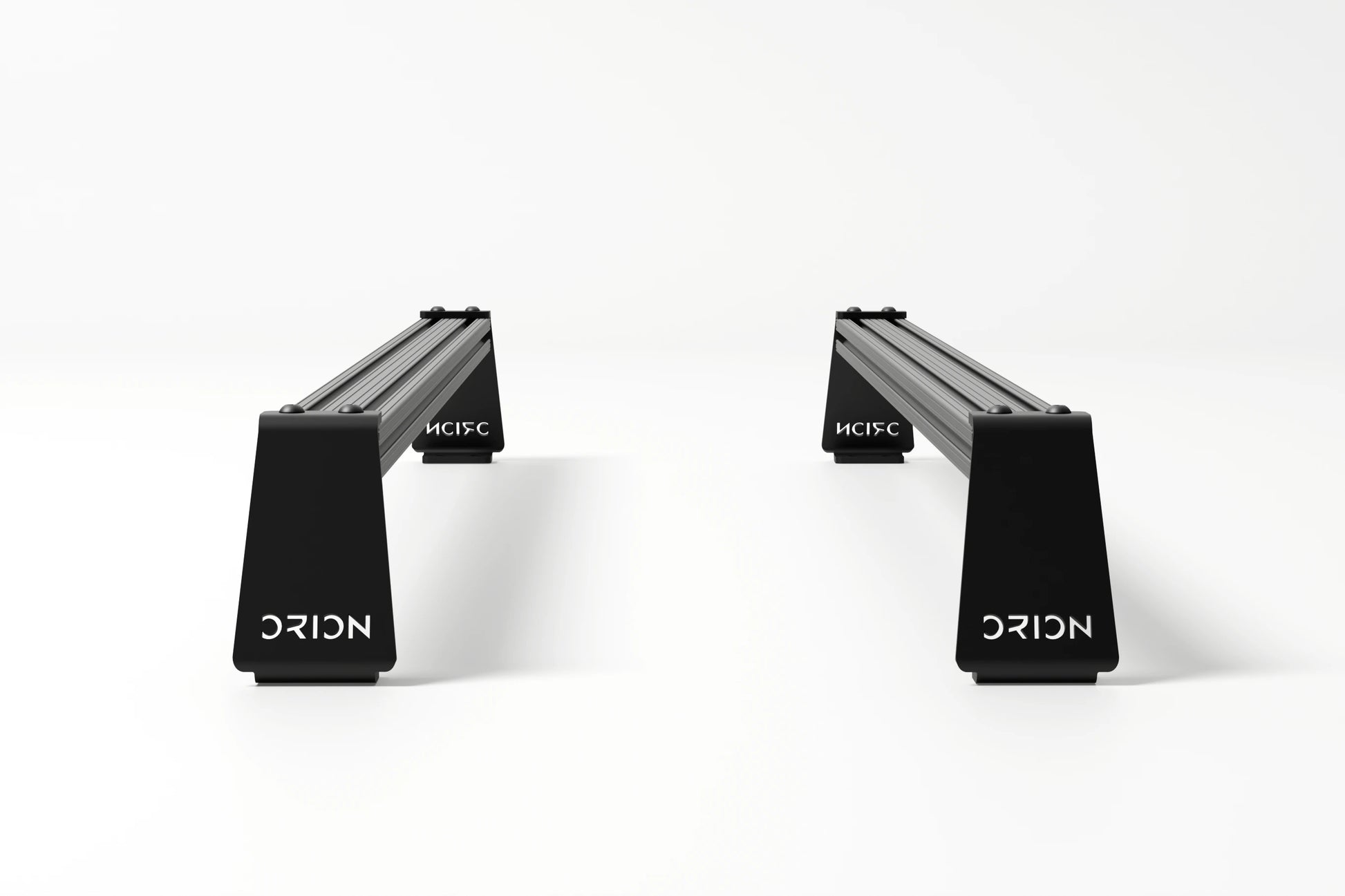

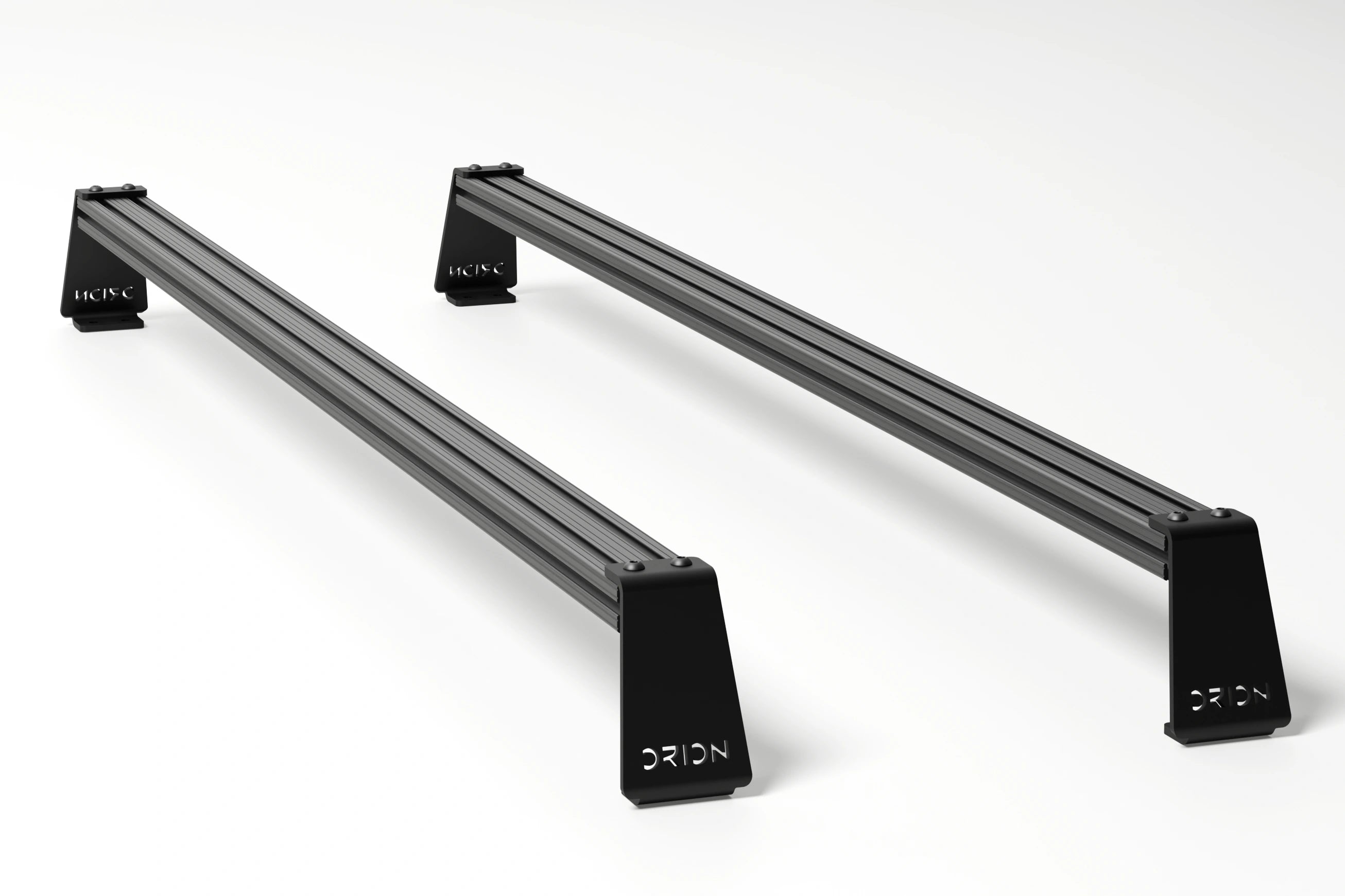

  • Orion Riser Bar Kit undermount configuration – crossbars installed below riser brackets for lower profile fit on Stealth+ roof racks.

Roof Rack Riser Bar Kits

$369.00 USD
$369.00 USD
SOLD OUT
Orion Rack Type: Sprinter
Crossbar Length: Standard
Support Level: Standard

Unlock vertical freedom with our Roof Rack Riser Bar Kits

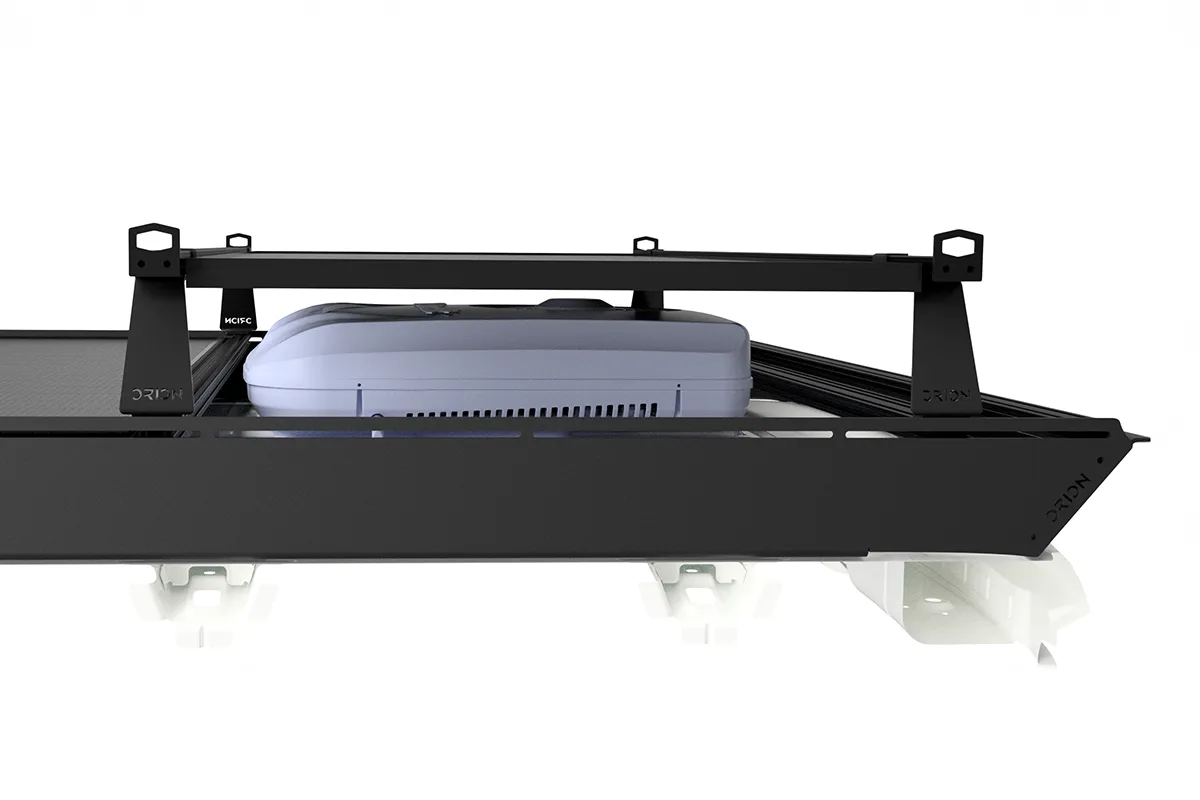

A great solution for adding solar panels and deck platforms above fans, AC units, or stacking gear like kayaks above these components, with no interference. Whether you're mounting a rooftop tent, kayak, storage box, or building a multi-layered solar deck system, these bars give you the strength, clearance, and configurability your build demands. Designed for dynamic builds:

  • Choose from Standard crossbar length (rack width) or Extended length (~5" overhang each side). Both can be cut for a custom fit.

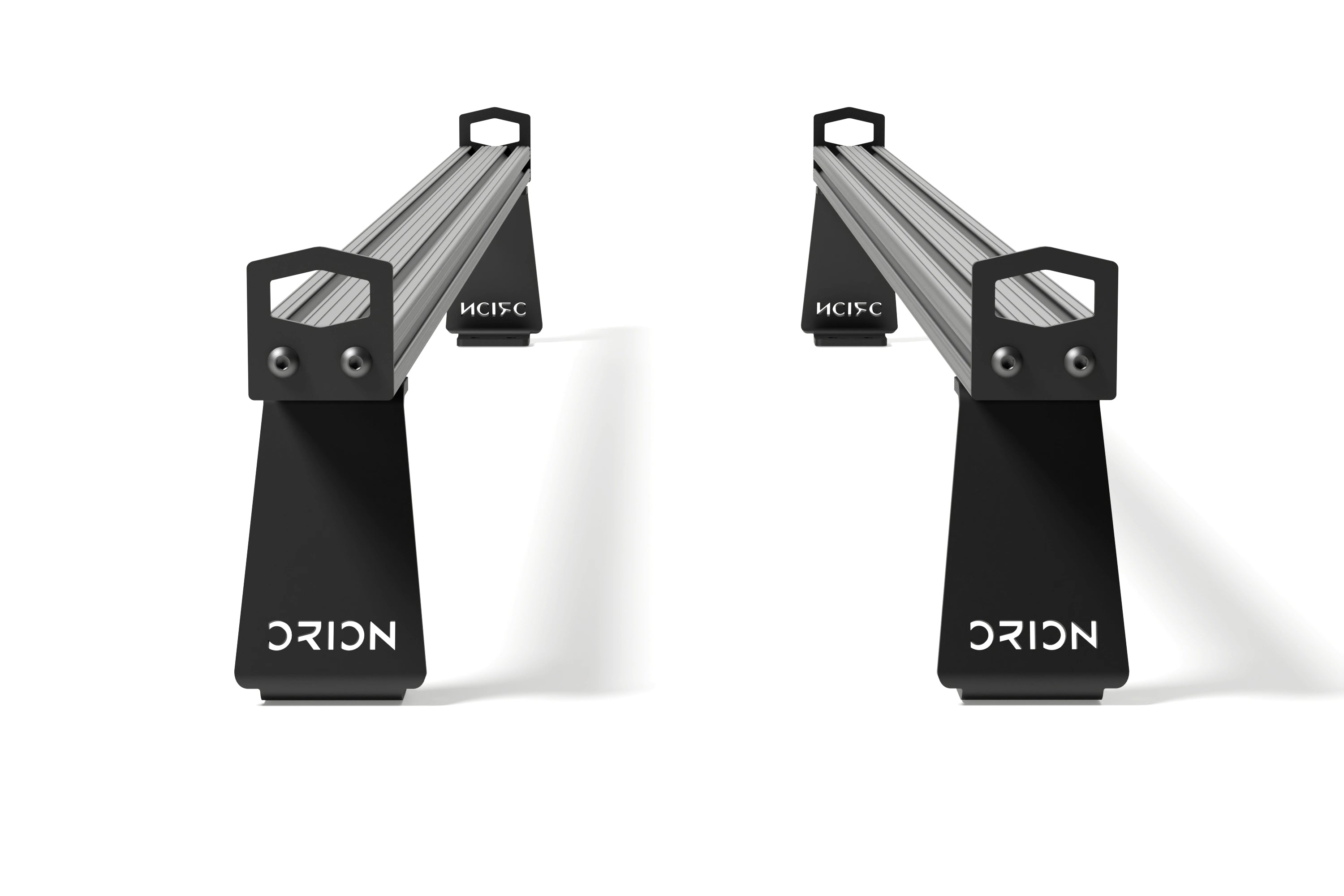

  • Includes Flip‑style End Caps with Integrated Tie‑downs
  • Made from 3/16″ Aluminum
  • Flexible Mounting Options:
      • Brackets can mount on top of existing roof rack crossbars or to L‑Track slots in our deck panels.
      • Riser crossbars can be installed on top of the riser brackets or trimmed to fit below them, giving you about 1 3/16" of vertical adjustment to fine-tune your setup's roof clearance based on your needs.
  • Choose from Standard Support or Heavy Duty Kits:
      • Standard: Maximum dynamic load is 150 lbs per kit. Ideal for solar panels, deck platforms, or general roof gear.
      • Heavy-Duty: Includes 2 extra brackets per crossbar for rooftop tents, or when extra support is needed. Maximum dynamic load is 250 lbs (while driving), 500 lbs while parked (static).

Roof Clearance:

Riser Bars provide approximately 2.7" to 6.2" of additional height above an existing Orion rack system*. All kits offer around 8.75" of total clearance from the center of the van’s roof to the bottom of a crossbar (when top-mounted) and 7.5" of clearance to the bottom of a crossbar (when bottom-mounted), giving enough space to clear centered roof appliances like fans or air conditioners. When mounted on deck panels, it adds +0.129" (deck panel thickness) to either configuration.

Ford Transit

  • Total bracket height: 5.7"
  • Top-mounted: adds ~5.7" of clearance above racks crossbars (~6.7" to the top of the crossbar)
  • Under-mounted: adds ~4.5" of clearance above racks crossbars

Mercedes Sprinter

  • Total bracket height: 3.9"
  • Top-mounted: adds ~3.9" of clearance above racks crossbars (~4.9" to the top of the crossbar)
  • Under-mounted: adds  ~2.7" of clearance above racks crossbars

Ram Promaster

  • Total bracket height: 7.7"
  • Top-mounted: adds ~6.2" of clearance above racks crossbars (~7.2" to the top of the crossbar)
  • Under-mounted: adds  ~5" of clearance above racks crossbars

While our brackets and bars are built to handle serious weight, always follow your vehicle and rack manufacturer’s published limits to avoid structural risk. This system lets you keep permanent gear like solar panels mounted low, while adding usable crossbars for load‑outs above, a true multi‑layer rack solution for adventure vans and work rigs alike.

Compatibility:

Sprinter and Transit Racks

  • Designed for use on Sprinter and Transit Orion Roof Racks
  • Compatible with any 1020 / 10-Series (2" x 1") slotted aluminum extrusion crossbar with a standard 1" center-to-center slot spacing.

ProMaster Racks

  • The ProMaster version is compatible only with 15-Series (1.5" x 1.5") slotted aluminum extrusion crossbars. It will not fit 1020 / 10-Series crossbars.

Notes: If not using our roof rack, clearance heights will differ. Depending on the width of the rack and your desired width, you may need to cut the crossbars.

Roof Rack Riser Bars

Specification Details
Crossbar Lengths

Sprinter Standard: 53.875", Extended: 63.875"
Transit/Promaster Standard: 62", Extended: 72"
Bracket Material 3/16” Thick Aluminum, powder-coated
Crossbars 1020 Aluminum Extrusion; cuttable; mounts on or between brackets
End Caps Flip-style anodized caps with built-in tie-down loops
Mounting Compatibility Crossbars and/or L-Track deck panel slots
Height Added Approximately 2.7" - 5.8" above roof rack crossbars (varies by van model and mounting method)
Max Suggested Load 150 lbs per standard kit / 500 lbs per heavy-duty kit
Heavy-Duty Use Use 4 brackets per crossbar for RTTs, large decks, etc.
Included Hardware Stainless steel spring drop-in T-nuts (10-series) & 316 flanged bolts

FAQ (Frequently Asked Questions) click to expand

1.How much height do these riser bars add?

Our roof rack riser bar kit adds about 2.7" - 6.2" of height above your existing crossbars, depending on the model of riser chosen, van model, and mounting method. That's roughly 7.7" - 8.75" of clerance between roof and bottom of crossbars; enough to clear most AC units, some fans, or mount gear layers like solar panels or decks above other equipment.

2.Can I mount rooftop tents (RTTs) or heavy gear?

Yes. For rooftop tents or high-weight builds, we recommend the heavy-duty variant. This doubles the support and safely boosts static and dynamic load limits. Always follow your rack and vehicle’s specs.

3.What are the stacking benefits of this kit?

This system lets you stack gear vertically, for example, mount solar panels or a deck platform over an existing fan, air conditioner, or other rooftop fixture. Or secure a kayak above solar/fans/AC. It maximizes space without removal or repositioning of existing installs.

4.How do the flip end caps work?

Each end cap includes built-in tie-down loops and can be flipped vertically to stand upright or lay flush, depending on how you want to secure your gear and how you mount your crossbars to the brackets.

5.What's the difference between “extended” and “standard” crossbar options?

Standard Length matches your roof rack’s crossbar length. Extended Length adds ~5" overhang per side for more mounting width, ideal for larger items or wider tie-down points. Both options are cuttable to size.

Get a CAD-Verified Roof Layout

We understand that every van setup is unique. That's why we offer CAD-verified roof layouts for customers who have purchased or plan to purchase an Orion roof rack - so you can maximize space and fit exactly what you need, where you need it. Request a layout here ›
