Velit V3 DC Rooftop Air Conditioner with Built-In Exhaust Fan - 12V/48V

Name: Velit V3 DC Rooftop Air Conditioner with Built-In Exhaust Fan - 12V/48V
Brand: velitcamping
SKU: V3G12V
Price: 2399.0 USD
Availability: InStock

$2,399.00 USD

SOLD OUT

Voltage: 12V 12V 48V

Quantity

Overview

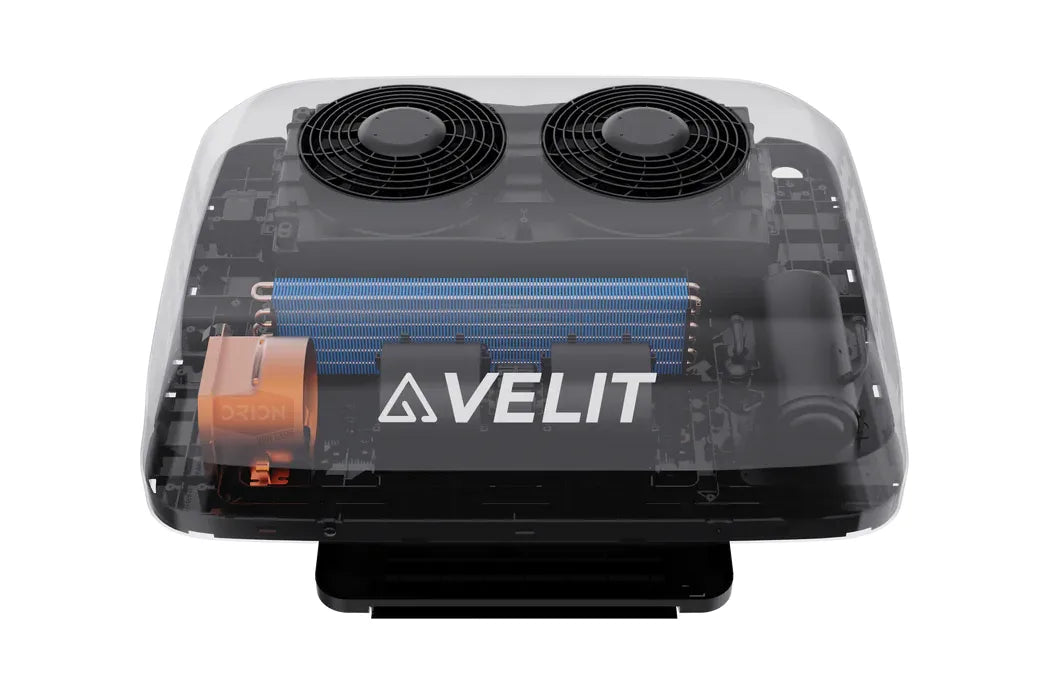

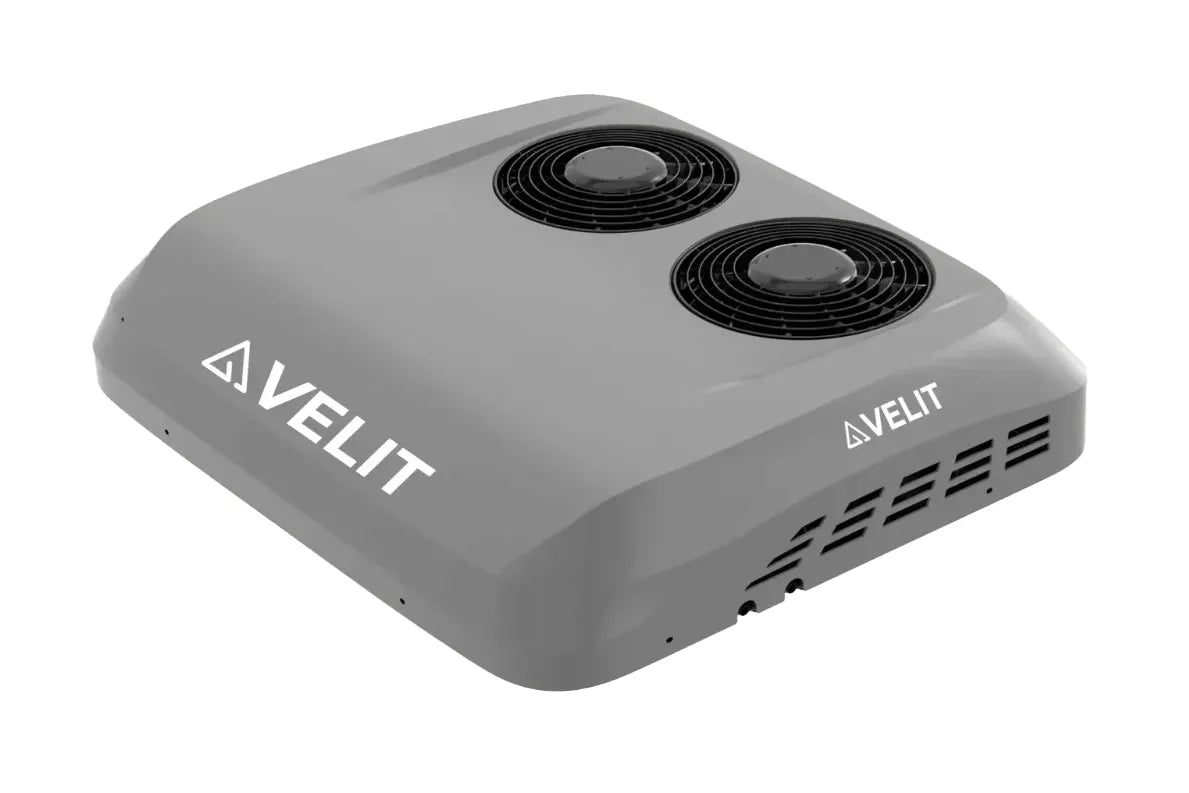

The Velit V3 with Ventilation is the updated replacement for the Velit 3000R, built for van and RV owners who want rooftop DC air conditioning with added fresh air movement in a smaller package. It keeps comparable cooling power while upgrading the platform with a smaller footprint, dual fans, and a built-in exhaust fan.

Traditional rooftop AC systems only recirculate cabin air. The Velit V3 is designed differently by combining powerful rooftop air conditioning with integrated fresh-air exhaust ventilation. This helps move stale cabin air out while the AC cools the cabin, giving you one system, one roof opening, and more room for solar or other roof-mounted gear.

With up to 350 CFM of airflow, the built-in exhaust fan can help reduce heat buildup, stale air, odors, and humidity. The 12V model is 10,000 BTU, and the 48V model is 12,000 BTU. Both versions use R32 refrigerant and are designed around a standard 14 in x 14 in roof opening.

Important Info

The built-in exhaust fan is a compact supplemental fan. It is not a replacement for a larger bi-directional roof fan such as a MaxxFan, Airplus, or Probreeze. It works best alongside a larger roof fan, floor vent, or other ventilation setup.

Key Features

One system for cooling and supplemental ventilation = one cutout

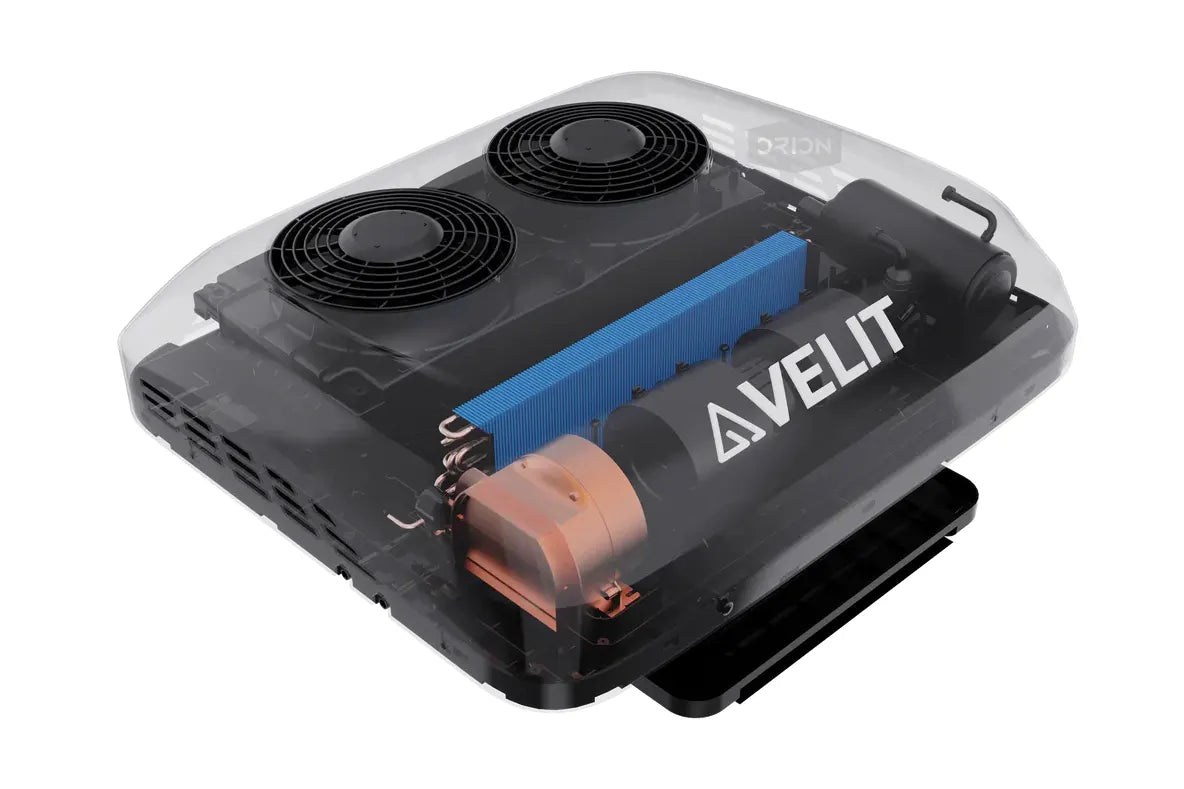

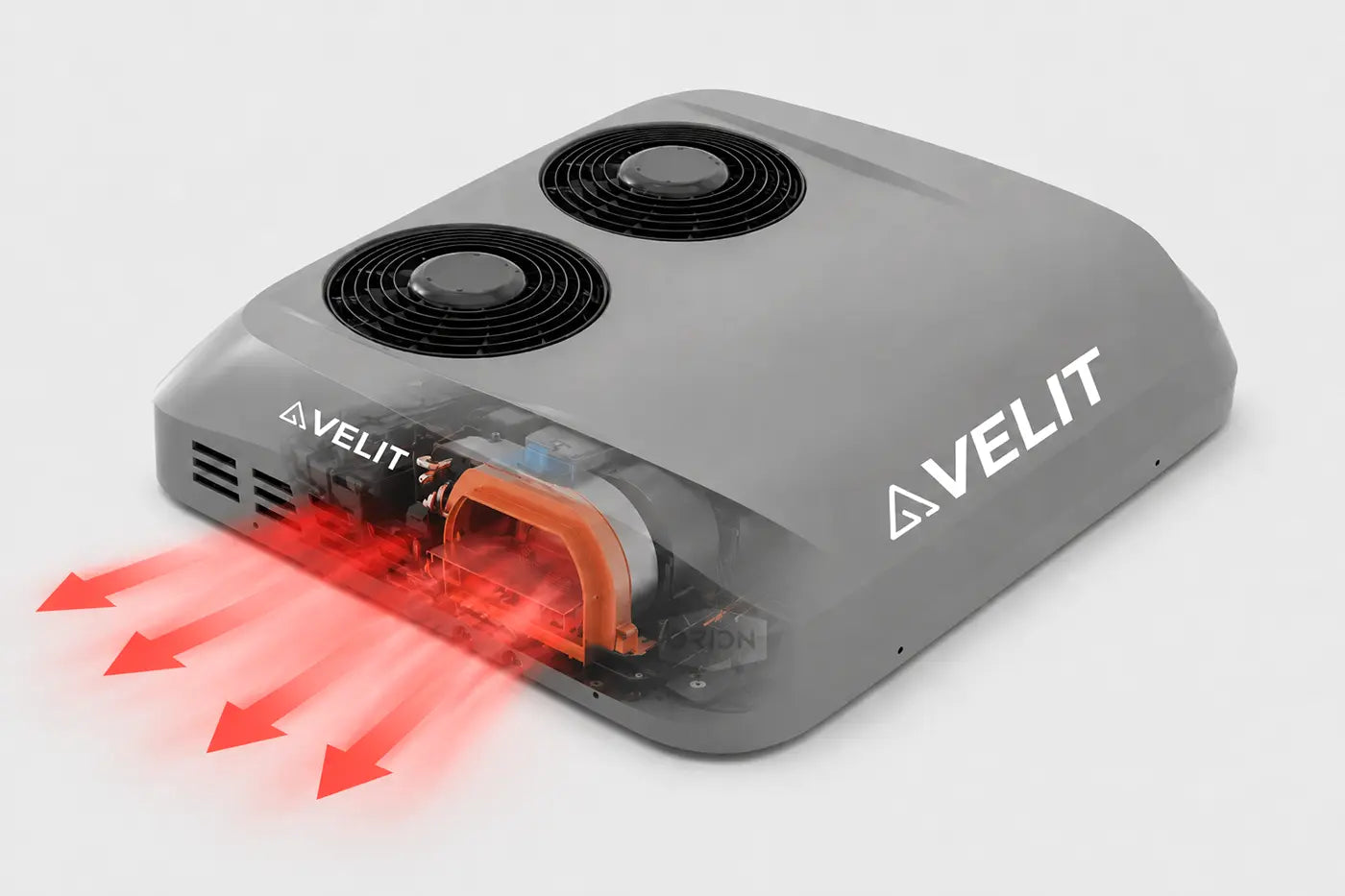

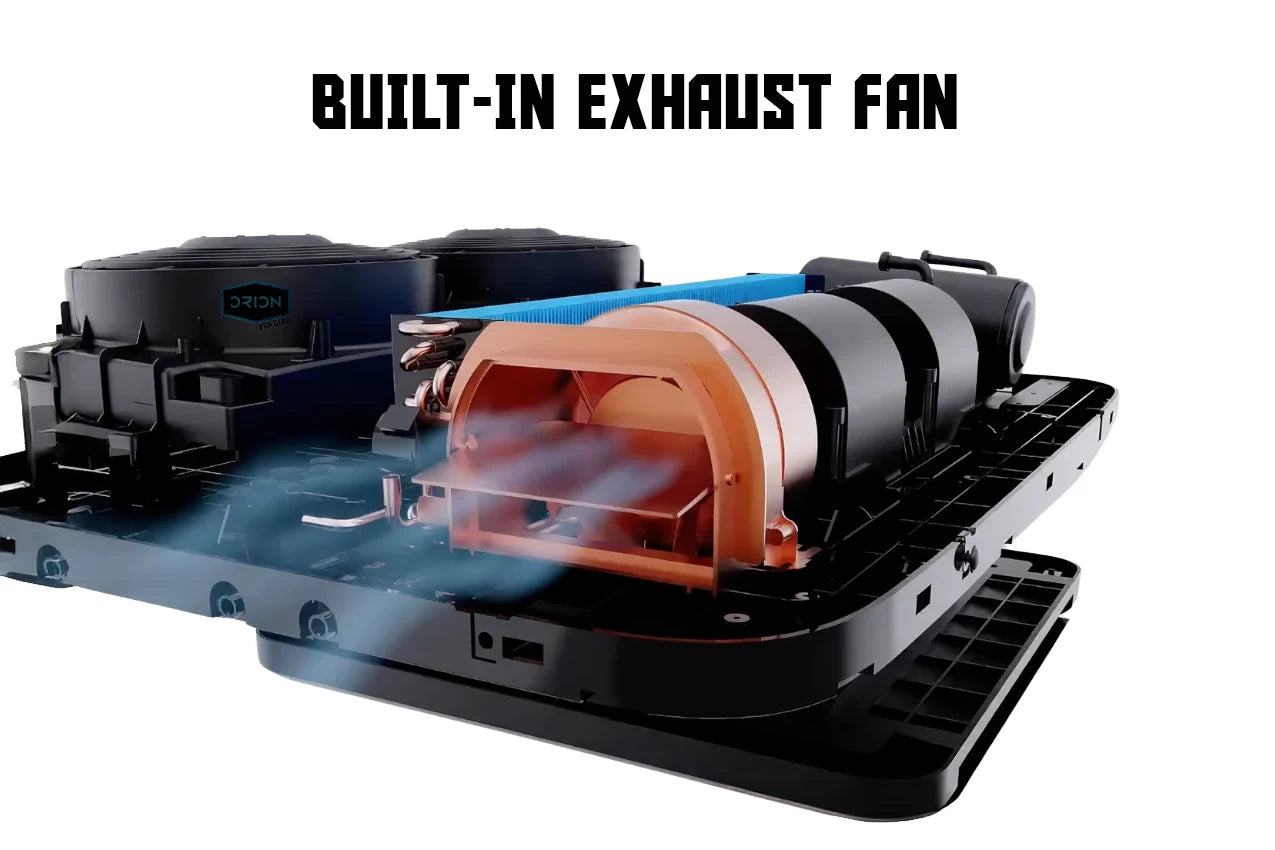

Built-in exhaust fan: up to 350 CFM fresh airflow to help reduce heat buildup, stale air, odors, and humidity
Helps preserve roof space for solar or other roof-mounted gear. See Cad-Verified Roof Layouts
A standard 14 in x 14 in roof opening
10,000 BTU cooling capacity for the 12V model
12,000 BTU cooling capacity for the 48V model
12V and 48V model options
Remote, display panel, 15 ft wiring harness with in-line fuse included
Designed for vans up to 22 ft
1-year limited Warranty

Supplemental Ventilation

The built-in fan adds useful fresh air movement, but it should be treated as a compact supplementary fan rather than a full-size roof fan replacement.

Technical Specs

Model Comparison

Spec	12V Model	48V Model
Input Voltage	DC 12V	DC 48V
Cooling Capacity	10,000 BTU	12,000 BTU
Operating Current	25A/48A/63A	12A/18A/25A
Rated Power	300 to 760W	576 to 1200W
Recommended Supply Current	75A+	30A+

Shared Technical Specs

Spec	Details
Model	Velit V3 with Ventilation
Ventilation Airflow	Up to 350 CFM
Recommended Roof Opening	14 in x 14 in, plus or minus 1/2 in tolerance
Refrigerant	R32/460g
Operating Temperature	38 to 125 degrees F
Noise Level	ECO mode 55 dB, Boost mode 65 dB

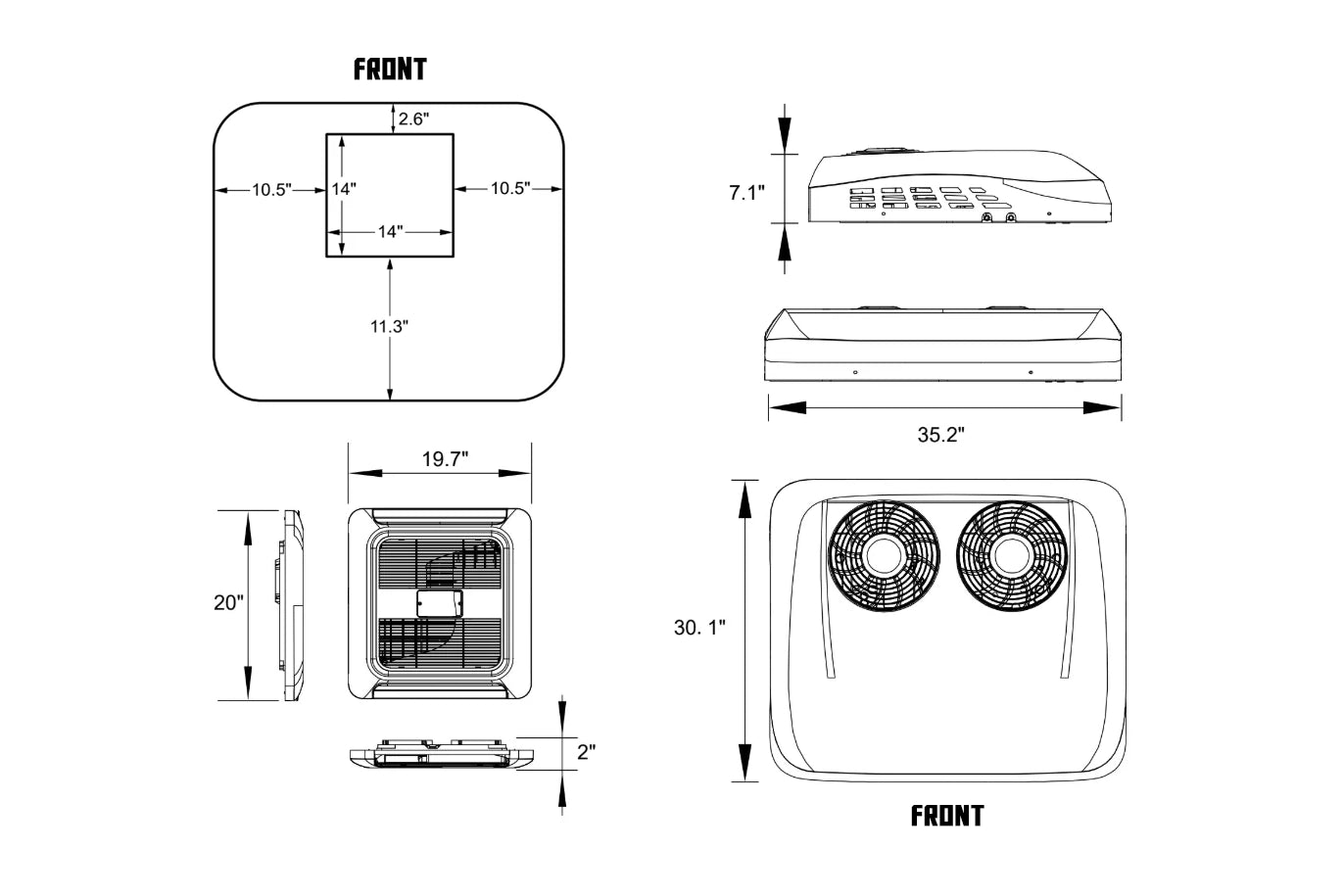

Exterior Unit Dimensions	W31.1 in x L35.2 in x H7.1 in
Weight	65 lb, 29 kg

Included Items

Item	Details
Air Conditioner	V3 air conditioner unit (Grey exterior shroud)

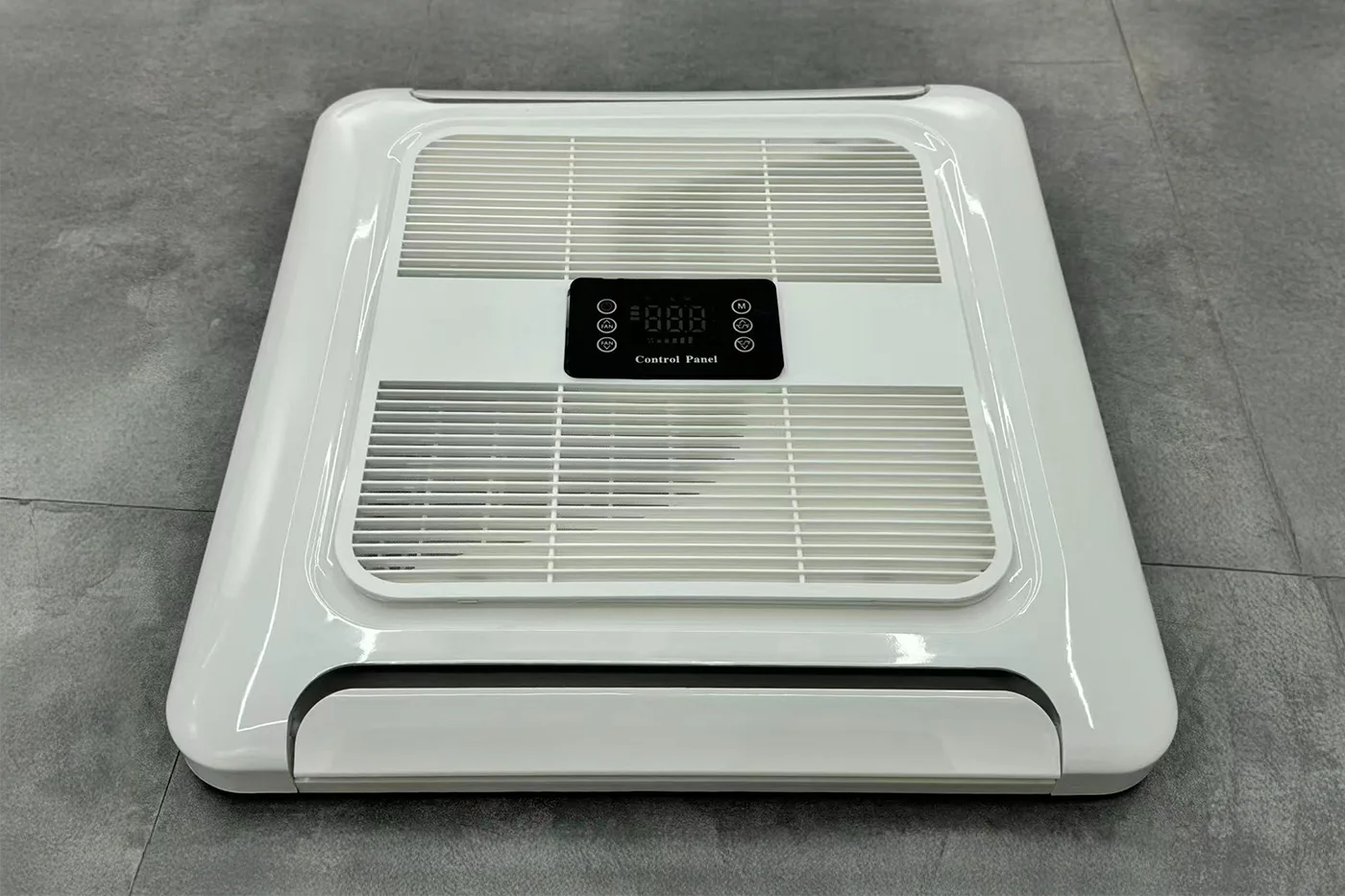

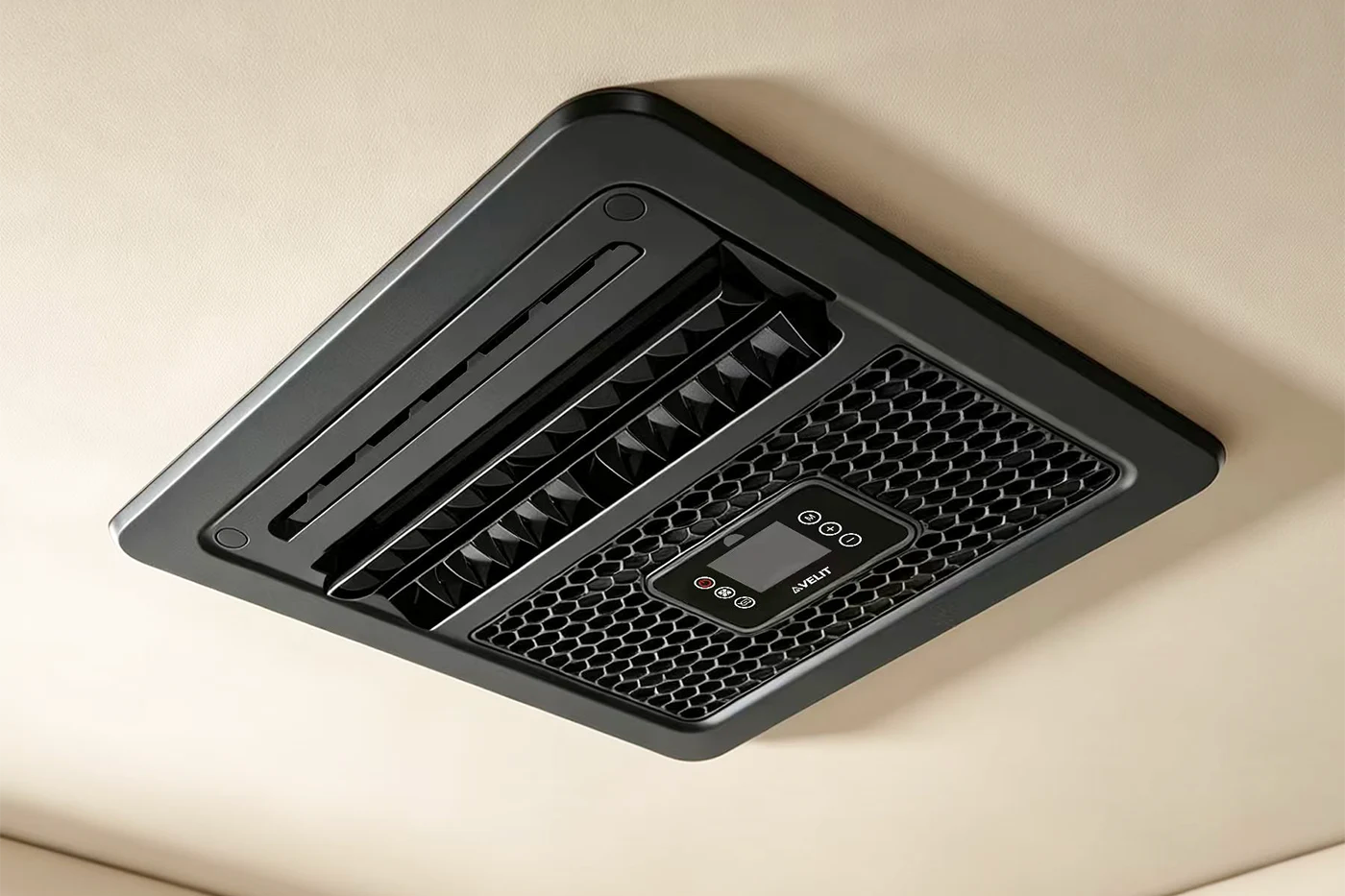

Interior Components	White interior shroud, return air filter, display panel, remote
Mounting Components	Mounting bracket, sealing gasket, leveling blocks, hardware kit
Ducting and Wiring	Outside duct, inside duct, 15 ft wiring harness with in-line fuse
Accessories and Documentation	Zip ties, cable tie mounts, user manual, cutting template

Resources and Downloads

Frequently Asked Questions (click to expand)

1. Does the Velit V3 replace the Velit 3000R?

Yes. The Velit V3 with Ventilation replaces the Velit 3000R with comparable cooling power, a smaller footprint, dual fans, and built-in supplemental ventilation.

2. What voltage options are available?

12V and 48V variants. Choose the version that matches your electrical system.

3. What is the cooling capacity?

The 12V model is listed at 10,000 BTU, and the 48V model is listed at 12,000 BTU.

4. Is the built-in fan a replacement for a MaxxFan, Airplus, or Probreeze fan?

No. The built-in fan is a compact supplemental ventilation fan. It is useful for added airflow, but it is not a direct replacement for a larger 9 in or larger roof fan.

5. Is the ventilation fan loud?

It can be noticeable above 50 percent speed. Lower fan speeds are recommended when quieter operation is more important than maximum airflow.

6. What roof opening does it use?

The V3 is designed around a standard 14 in x 14 in roof opening with plus or minus 1/2 in tolerance.

7. Is sealant included?

Sealant is not listed as an included item. For van installs or other uneven roof surfaces, sealant should be purchased separately. Flat RV roof installations may not require additional sealant depending on the install surface.

8. What is included in the box?

The manual lists the V3 air conditioner, air distribution box assembly, mounting bracket, sealing gasket, return air filter, leveling blocks, ducts, wiring harness, remote, display panel, user manual, cutting template, hardware kit, zip ties, and cable tie mounts.

9. What electrical supply is recommended?

The manual recommends 75A+ supply current for the 12V model and 30A+ supply current for the 48V model.
