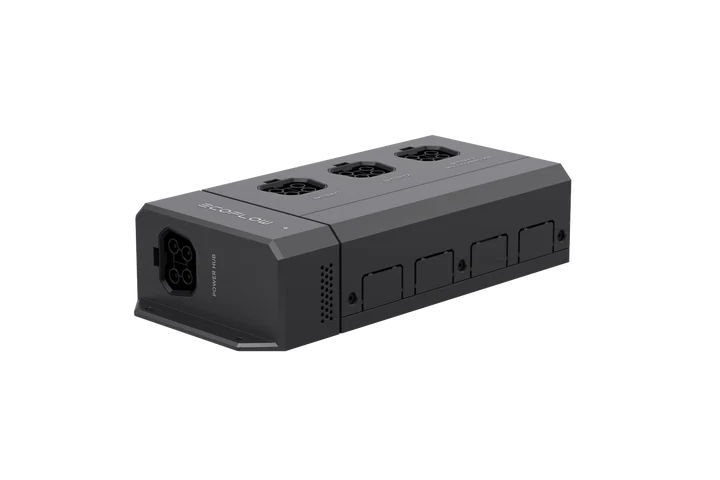

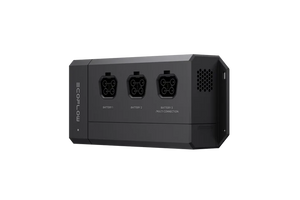

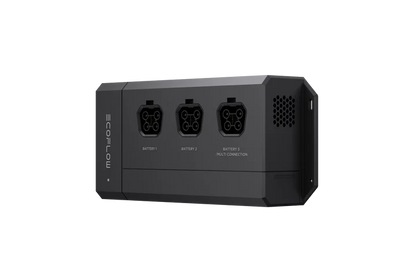

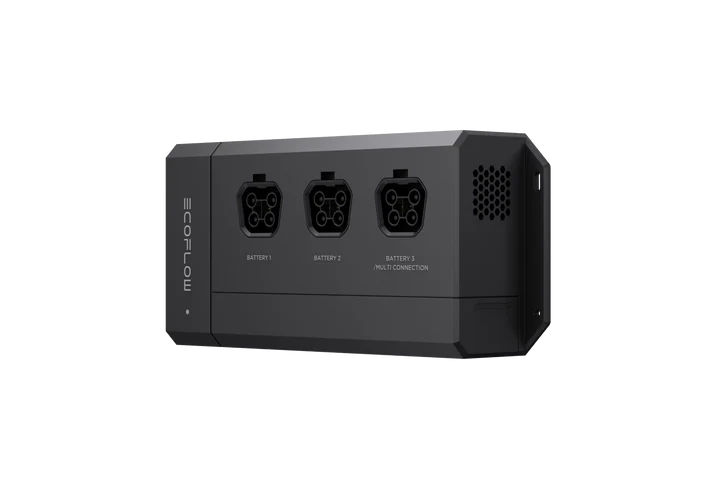

The EcoFlow Power Dock is the ultimate expansion module for your Power Kit setup, enabling you to connect up to 9 EcoFlow LFP batteries to a single EcoFlow Power Hub. This allows for up to 45kWh of battery capacity—ideal for large RVs, vans, cabins, or marine energy systems where space is available.
It also supports direct 48V DC outputs for powering high-voltage appliances like refrigerators or inverters. With EcoFlow’s signature plug-and-play design, the Power Dock installs easily and integrates directly with your system. Compatible with both Gen 1 (3.6kVA) and Gen 2 (5kVA) Power Hubs, the Power Dock gives you more capacity, more control, and faster deployment.
Key Features
- Compatible with EcoFlow 5kVA (Gen 2) and 3.6kVA (Gen 1) Power Hubs
- Expand battery storage up to 45kWh using up to 9 EcoFlow LFP batteries
- Connects directly to EcoFlow PowerInsight, Console, or App for monitoring
- Supports direct output to 48V DC appliances

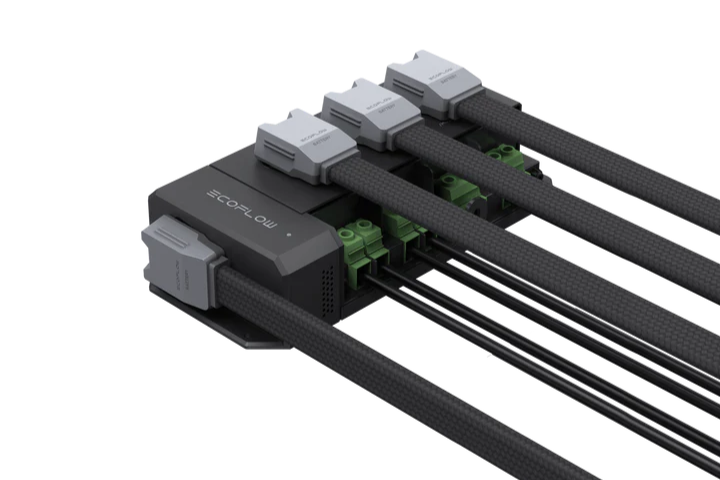

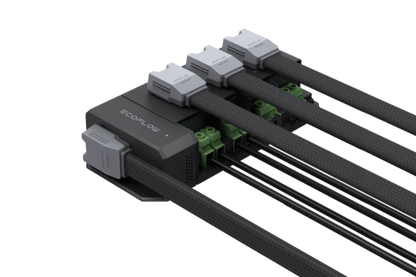

- Simple plug-and-play installation with secure EcoFlow connectors
- Works with EcoFlow 2kWh / 5kWh batteries, Delta 2, Delta 2 Max, and Delta Pro Smart Extra Batteries
What's in the Box
- EcoFlow Power Dock
- Screws ST4.2x19 mm (×4)
- Manual
Sold Separately (optional)

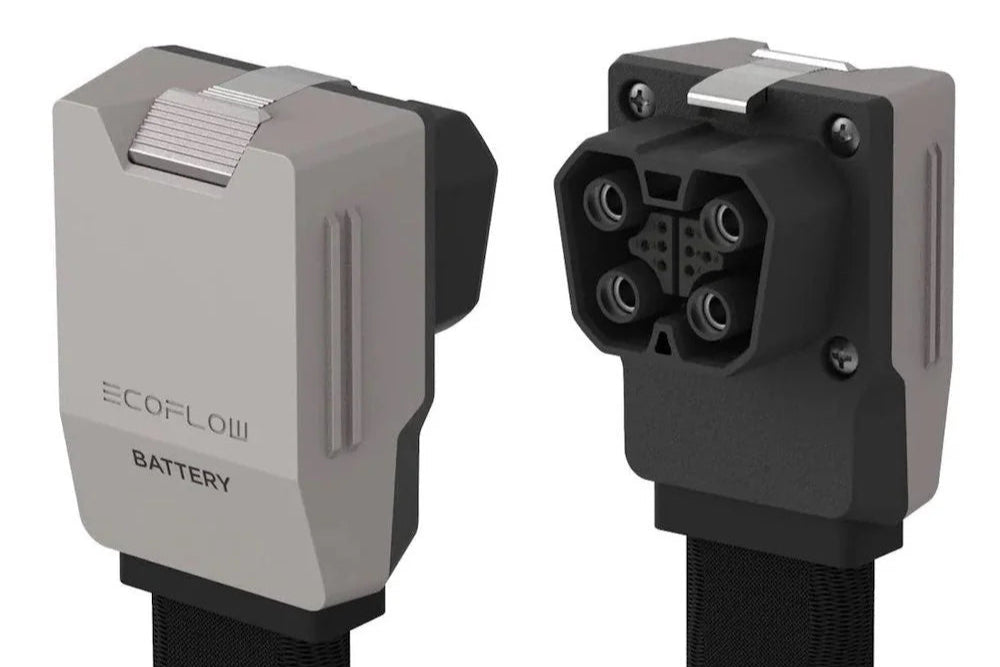

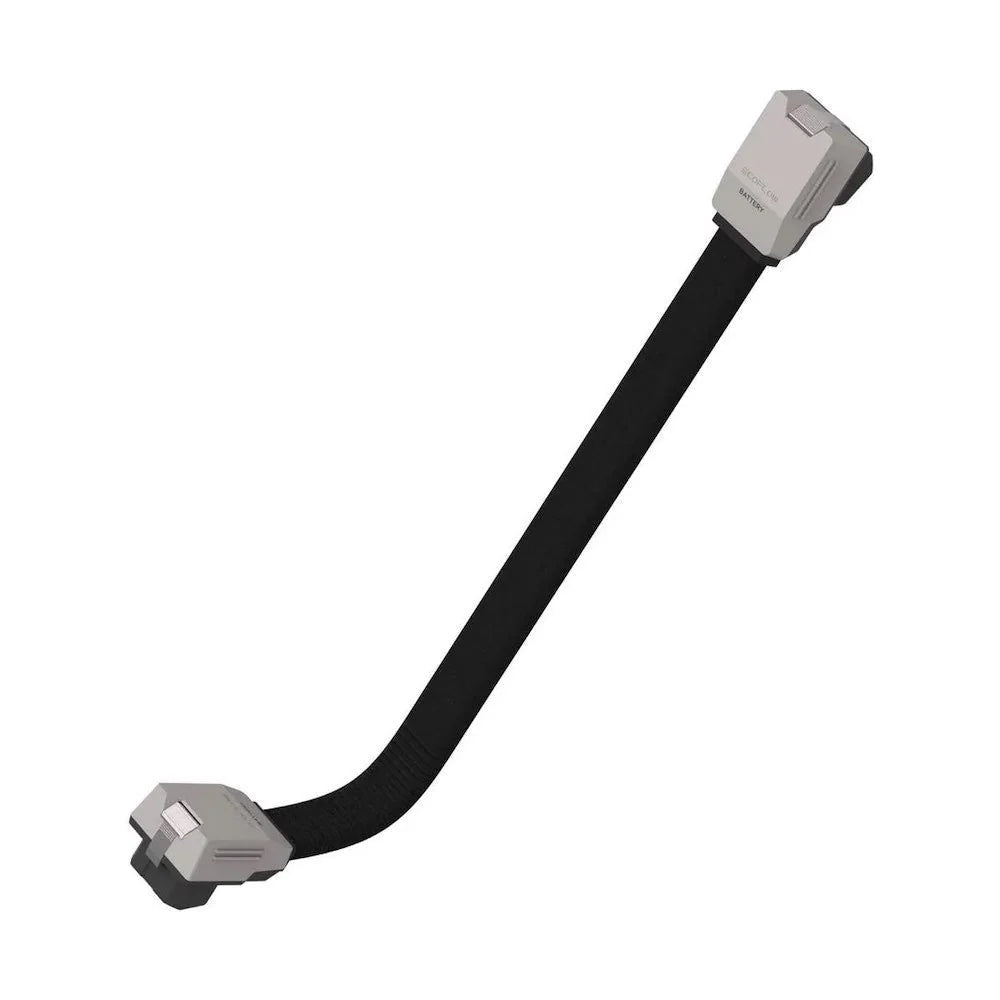

- EcoFlow Battery Cable 1.5m (recommended)
- EcoFlow Battery Cable 2m
- EcoFlow Battery Cable 2.5m
EcoFlow Power Dock – Specifications
Specification | Details |
---|---|
Dimensions | 316 × 70 × 143 mm (12.4 × 2.8 × 5.6 in) |
Weight | 1.8 kg (4 lb) |
Operating Temperature | –25°C to 45°C (–13°F to 113°F) |
Storage Temperature | –25°C to 70°C (–13°F to 158°F) |
Operating Humidity | 0% to 95% RH (non-condensing) |
Altitude | ≤ 3,000 m (9,842 ft) |
IP Rating | IP20 |
Warranty | 5 Years |
Power & Port Specifications
Port | Input/Output |
---|---|
Power Hub Port | 40–60V⎓ 100A Max |
Battery Port 1/2 | 40–60V⎓ 100A Max |
Battery Port 3 / Multi Connection | 40–60V⎓ 100A Max |
48V DC Output 1/2 | 40–60V⎓ 55A Max |
External Switch | Rated current >140A, Breaking capacity >140A |
FAQ (Frequently Asked Questions) click to expand
1.What is the EcoFlow Power Dock used for?
The Power Dock allows you to connect up to 9 EcoFlow LFP batteries to your Power Kit system and provides direct 48V DC power for appliances.
2.How much battery capacity can I add with the Power Dock?
You can expand your system up to 45kWh by connecting nine 5kWh EcoFlow batteries using the Power Dock.
3.Is the Power Dock compatible with Gen 1 and Gen 2 Power Hubs?
Yes. It works with both the 3.6kVA (Gen 1) and 5kVA (Gen 2) EcoFlow Power Hubs.
4.Can I power 48V DC appliances with the Power Dock?
Yes. It has two 48V DC outputs that support up to 55A each—ideal for appliances like fridges, air conditioners, or 48V inverters.
5.Which batteries work with the Power Dock?
The Power Dock supports EcoFlow 2kWh and 5kWh LFP batteries, as well as Smart Extra Batteries for DELTA 2, DELTA 2 Max, and DELTA Pro.
6.Do I need a battery cable to use the dock?
Yes. The EcoFlow Battery Cable. It comes in 3 lengths - 1.5, 2, 2.5 meters.
