3M™ Thinsulate™ Van Insulation Kit for Ram ProMaster (Pre-Cut)

Name: 3M™ Thinsulate™ Van Insulation Kit for Ram ProMaster (Pre-Cut)
Brand: Campervan HQ
SKU: P-136-RAM-THINAU6002-5-KIT
Price: 512.0 USD
Availability: InStock

$512.00 USD

SOLD OUT

Promaster Size: High Roof 136" WB High Roof 136" WB High Roof 159" WB High Roof 159" EXT WB

Menge

Meet the proven way to quiet and stabilize temps in your ProMaster build.

Free shipping to the lower 48 US states. Please allow 1-2 weeks before shipping.

This pre-cut 3M™ Thinsulate™ AU6002 kit is CNC-cut to the main wall, ceiling, and door cavities of 2014+ Ram Promaster High Roof vans, so you can install cleanly without hours of templating. The hydrophobic non-woven blends polyester and ultra-fine polypropylene fibers to deliver excellent acoustic absorption and reliable thermal performance: lightweight, compressible, and conformable for a professional finish behind panels.

Why builders choose this kit

Drop-in, pre-cut pieces for major cavities save serious build time and mess
Acoustic control you can feel: AU6002 is engineered for vehicle noise reduction
Hydrophobic fibers resist moisture, mold, and mildew; no extra vapor barrier needed in typical use
Meets FMVSS 302 flammability requirements for automotive interiors

What’s included

Pre-cut AU6002 panels for cargo-area walls, ceiling, and doors

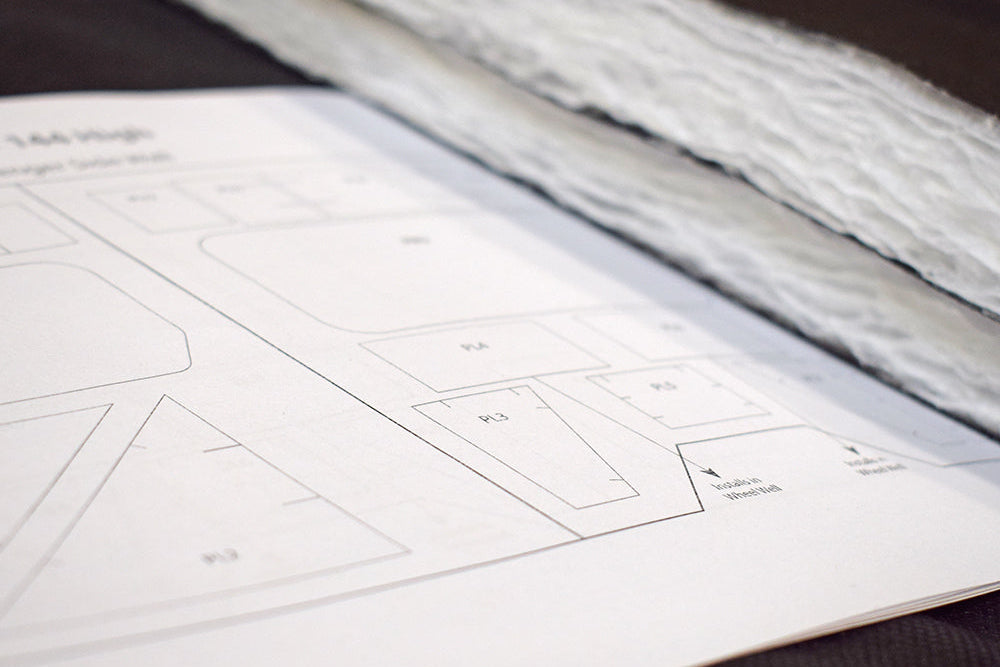

Placement diagram for piece locations
Coverage is designed for open cavities

What’s not included

The floor and cab area
Pieces to stuff between closed beams/cavities. These are intentionally excluded to focus on the main large open cavities for a clean, repeatable install.

Fitment

RAM ProMaster High Roof: 136" WB, 159" WB, and 159" EXT (2014+)
Low Roof ProMaster 136"/159" compatible with trimming (user cuts required).

Video: 3M™ Thinsulate™ Insulation Kit for Ram ProMaster Vans

3M™ Thinsulate™ AU6002 — Key Specs

Attribute	Spec	Notes
Material	3M™ Thinsulate™ Acoustic Insulation AU6002	Double black scrim; automotive grade
Roll Width	60 in (1524 mm)	Standard AU6002 roll width
Thickness	~44 mm	Nominal, uncompressed
Density	~16.1 kg/m³	Typical for AU6002
Thermal Resistance	Approx. R-5.45 per inch (RSI 0.96)	As commonly published by van upfitters
Acoustic Behavior	High absorption, mid–high frequencies	Engineered for vehicle sound control
Fire Resistance	Meets FMVSS 302	Automotive flammability standard
Moisture Behavior	Hydrophobic fibers	Resists moisture, mold, mildew
Install Method	Adhere panels inside cavities	Pre-cut per cavity; diagram included
Coverage	Walls, ceiling, doors (cargo)	Cab and floor not included

FAQ (Frequently Asked Questions) click to expand

1.Will this fit my 2014–current ProMaster High Roof?

Yes. The kit is cut for 2014+ RAM ProMaster High Roof vans in 136", 159", and 159" EXT wheelbases. Select your wheelbase in the dropdown.

2.Does it include the cab or the floor?

No. Coverage is for cargo-area walls, ceiling, and doors only. Cab and floor are not included.

3.Can I use it in a Low Roof ProMaster?

Yes, but you will need to trim pieces to fit. The pre-cut layout targets High Roof cavities.

4.Is a vapor barrier required?

3M™ Thinsulate™ fibers are hydrophobic and resist moisture, mold, and mildew in typical van applications. Most builders do not add a separate barrier behind panels. Follow your build philosophy and local codes.

5.How does AU6002 help with road noise?

AU6002 is an automotive acoustic insulator with high absorption, especially in mid-to-high frequencies common to road and wind noise.

6.What about fire safety?

AU6002 meets the FMVSS 302 interior flammability standard commonly used for vehicle components.

Get a CAD-Verified Roof Layout

We understand that every van setup is unique. That's why we offer CAD-verified roof layouts for customers who have purchased or plan to purchase an Orion roof rack - so you can maximize space and fit exactly what you need, where you need it. Request a layout here ›
