Explore Durable and Efficient Walkable Marine Solar Panels
Introducing our robust and efficient 100W walkable monocrystalline solar panel, tailored particularly for Sprinter, Promaster, and Transit vans. Featuring high-efficiency SunPower cells, this panel guarantees exceptional performance even in partial sunlight conditions. Its compact design allows it to fit on the sides of most fans when mounted to our Roof Deck Panels.

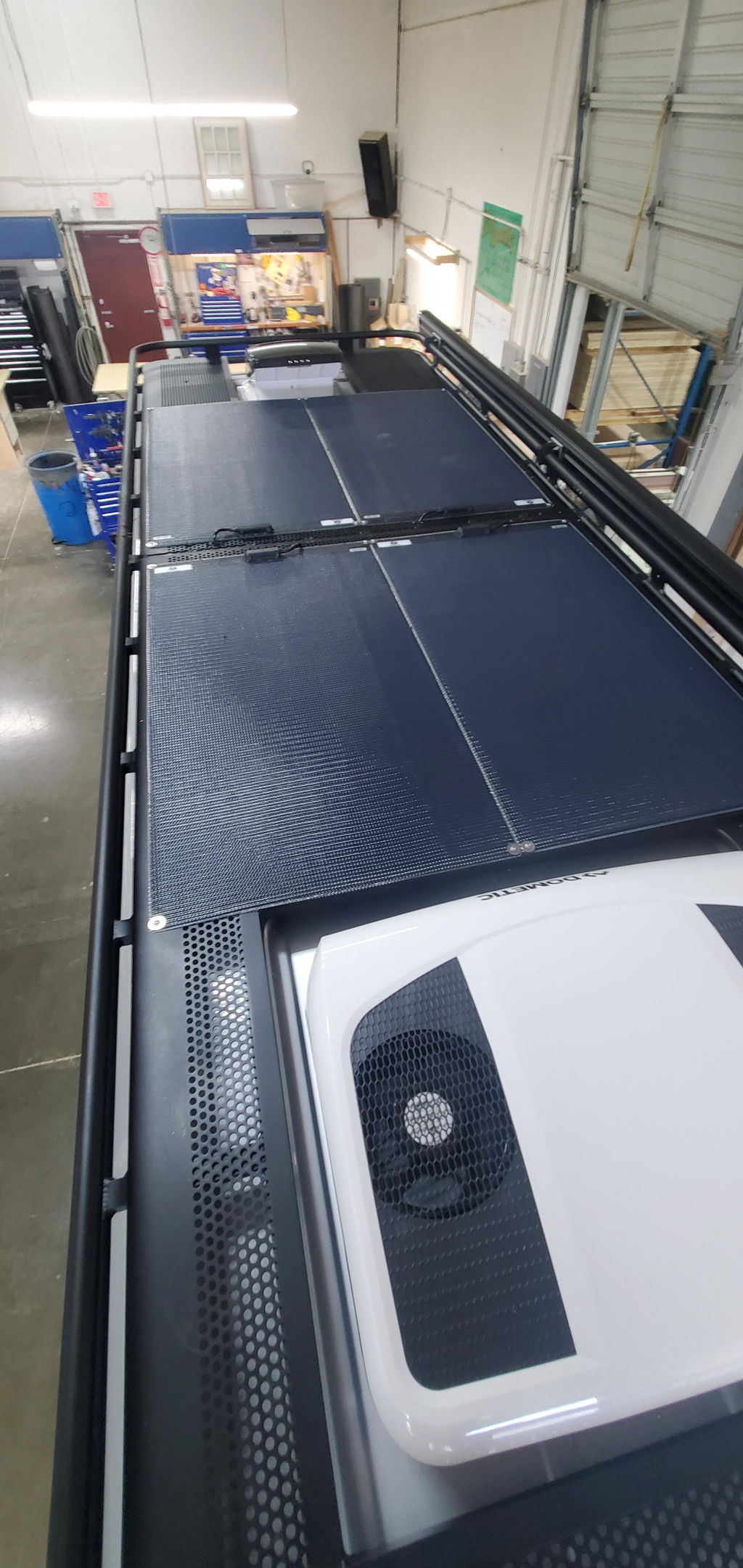

These are NOT your typical solar panels! For the most efficient use of space on your van roof and better overall function, Orion's modular deck panels combined with these walkable solar panels offer an optimal solution. See the image on the left for our ultimate 144-roof configuration that includes 400 watts of walkable solar mounted to our deck panels, Maxxfan in Bay 1 or 2, Starlink, and a rear AC.
Key Features:
-
Durable Construction: These panels are walk-on certified and feature a carbon fiber backing and ETFE laminate non-skid surface, ensuring they can be walked on without damaging the solar cells.
-
Premium SunPower Solar Cells: Harness the power of SunPower cells for maximum efficiency and durability.
-
Designed for Harsh Environments: Built to withstand the rigors of marine environments, making them ideal for mounting on a van or RV roof.
-
Dimensions: 16.54" x 48" x 0.16"
-
Lightweight: Weighing only 5 pounds, these panels are easy to handle and install.
-
Hardware not included: Please refer to our recommendations below for mounting hardware.
-
Free Shipping: Available for orders shipped to the lower 48 states.
If you have any questions, feel free to contact us. Check out our full collection of Walkable Marine Solar Panels.
Specifications:
-
Panel Type: Premium Maxeon Sunpower Cells
-
Rated Power: 100 Watts
-
Manufacturer's Warranty: 1 Year @ 80% + 4 Years Prorated
-
Dimensions: 16.54" X 48.03" X 0.16"
-
Weight: 5.07 pounds
-
Output Connections: 6-foot Duplex Cable 3/8" OD
-
Peak Power Voltage (Vmpp): 16.52 Volts
-
Peak Power Amps (Impp): 6.06 Amps
-
Open Circuit Voltage (Voc): 19.5 Volts
-
Short Circuit Current (Isc): 6.42 Amps
-
Cell Conversion Efficiency: 24.4%
-
Maximum System Voltage: 1000v
Installation:
- For Sprinter Stealth+ Roof Rack or Transit Stealth+ Roof Rack with Deck Panels: We recommend 5/16-18" Rivnuts (must be able to span .136" material thickness) with oversized washers on all 4 corners. Apply medium threadlocker. Note: We highly recommend 'J' shaped aluminum extrusion to hold down the edges of each panel. The extrusion is mounted on the long side of the panel (front edge) in addition to the corner hardware to secure it to our rack. We also have 'H' channel if you have multiple panels next to each other.
-
Direct Deck Mounting: Screw/bolt the panel down directly to the deck surface on all 4 corners using stainless bolts with oversized washers and nylock nuts.
Contact us if you have any questions or need assistance with your installation.
FAQs for Walkable Marine Solar Panels
1. What are the key features of the 100W walkable marine solar panel?
The 100W walkable marine solar panel features durable construction with a carbon fiber backing and ETFE laminate non-skid surface. They use high-efficiency SunPower cells, designed to perform well even in partial sunlight. It is lightweight, easy to install, and built to withstand harsh marine environments.
2. Can the solar panels be walked on?
Yes, these panels are designed to be walked on when properly installed and have a non-skid surface.
3. What sizes are available for the walkable marine solar panels?
The available sizes include:
- 65 Watt Walkable Marine Solar Panel
- 100 Watt Walkable Marine Solar Panel
- 155 Watt Walkable Marine Solar Panel
- 165 Watt Walkable Marine Solar Panel
- 175 Watt Walkable Marine Solar Panel
- 200 Watt Walkable Marine Solar Panel
4. What are the dimensions and weight of the 100W solar panel?
The 100W solar panel measures 16.54" x 48" x 0.16" and weighs ~5.07 pounds.
5. Are the panels suitable for use in harsh environments?
Yes, these panels are specifically designed to withstand the rigors of marine environments, making them ideal for use on van or RV roofs.
6. What type of solar cells are used in these panels?
The panels use SunPower cells, known for their high efficiency and durability.
7. What is the efficiency of the solar cells?
The cell conversion efficiency of the solar cells is 24.4%.
8. What is the warranty on the 100W walkable marine solar panel?
The manufacturer provides a 1-year warranty @ 80% + 4 Years Prorated.
9. How should the panels be installed on a Sprinter or Transit van?
For Sprinter Stealth+ Roof Rack or Transit Stealth+ Roof Rack with Deck Panels: We recommend 5/16-18" Rivnuts (must be able to span .136" material thickness) with oversized washers on all 4 corners. Apply medium threadlocker. We highly recommend 'J' and 'H' shaped aluminum extrusions to hold down the edges. These can be purchased separately.
Direct Deck Mounting: Screw/bolt the panel down directly to the deck surface on all 4 corners using stainless bolts with oversized washers and nylock nuts.
10. Is hardware included with the solar panels?
No, hardware is not included. Recommendations for mounting hardware are provided in the product description. We are working on a custom hardware kit specifically for our roof racks.
11. Do you offer free shipping?
Yes, free shipping is available for orders shipped to the lower 48 states.
12. How can I contact you for further assistance or questions?
You can contact us through our website for any questions or assistance with installation.
13. Where can I explore more sizes and options for walkable marine solar panels?
Please visit our website to explore the full range of walkable solar panels.
