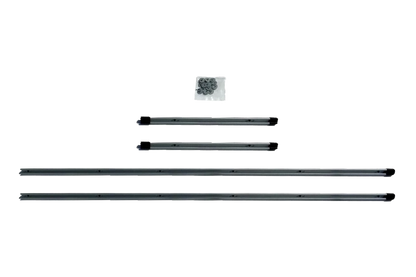

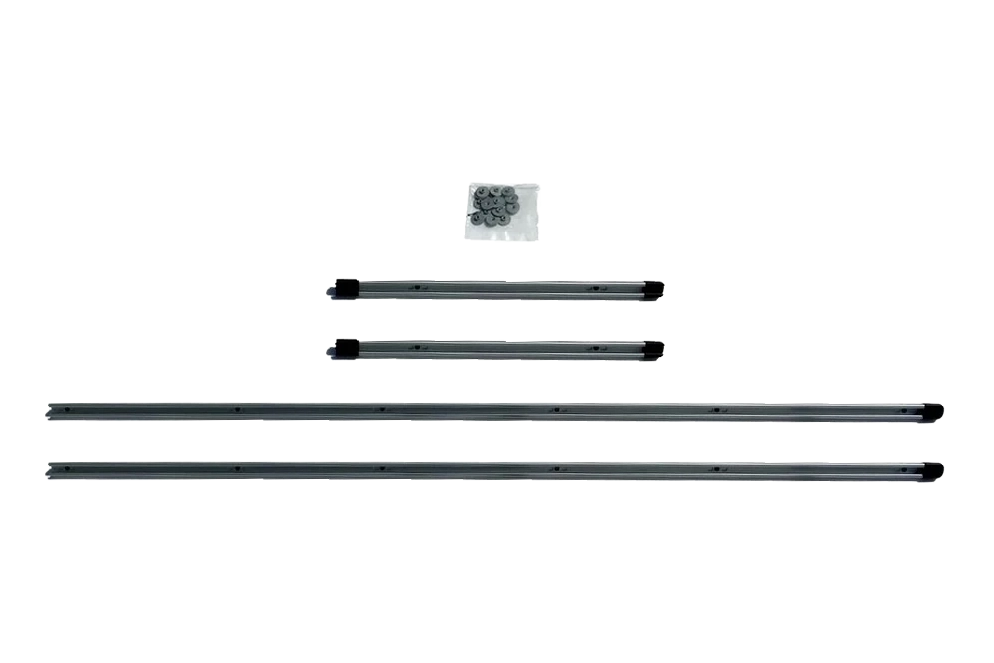

• Uninstalled OEM Sprinter roof rail kit with hardware and end caps

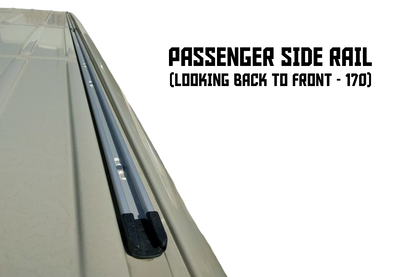

  • Sprinter 170 EXT roof with OEM silver roof rail kit mounted

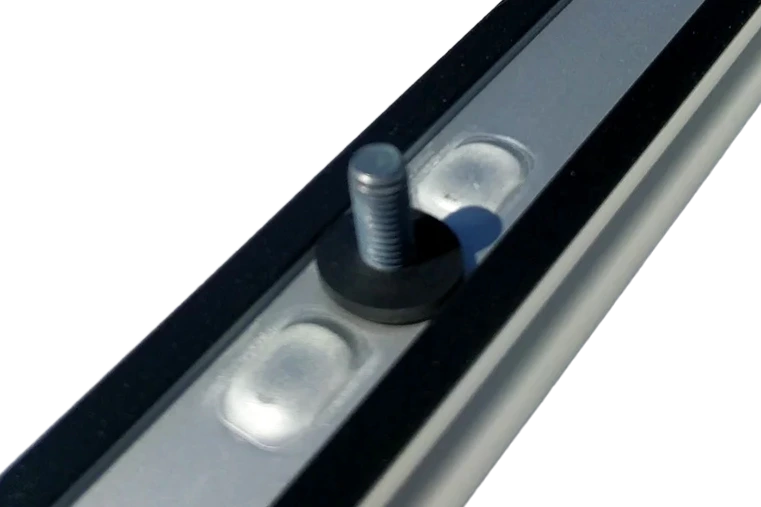

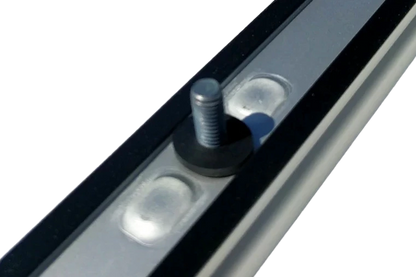

  • Underside view of OEM Sprinter roof rail showing stud, rubber washer, and factory sealing for watertight installation

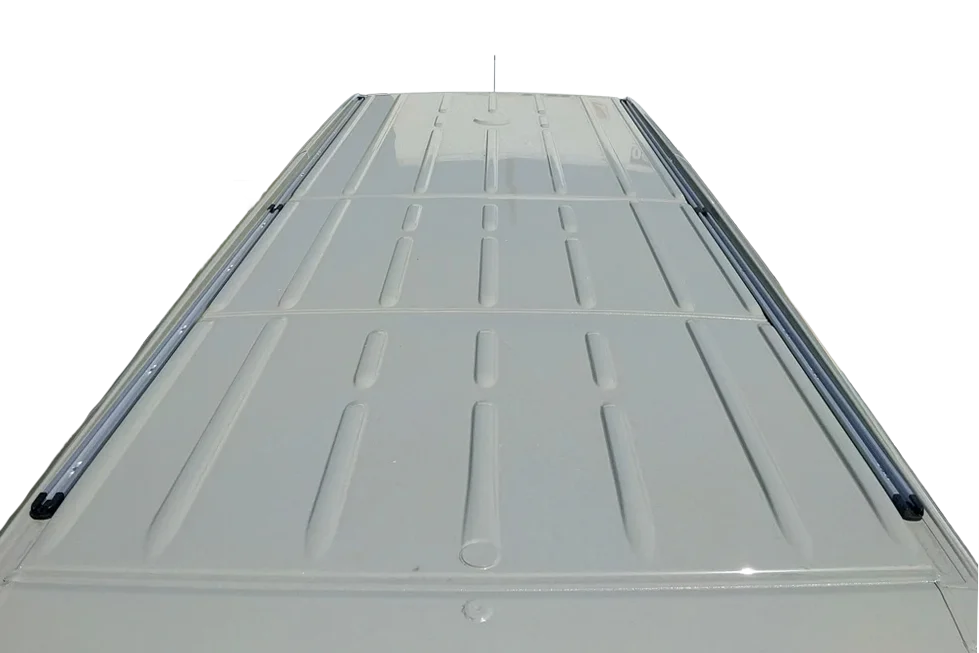

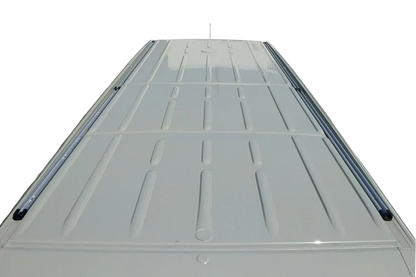

  • OEM Mercedes Sprinter roof rails installed on 170 wheelbase van

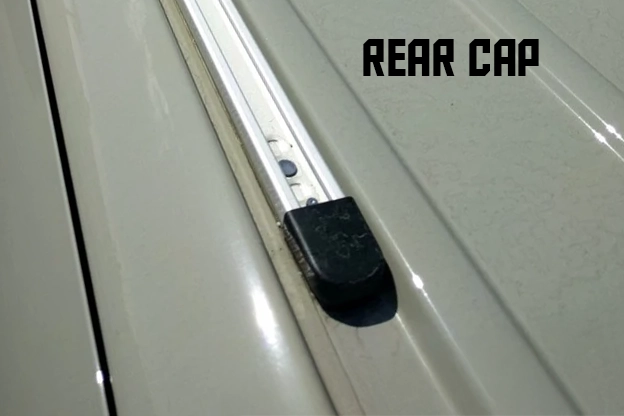

  • Close-up of Mercedes Sprinter roof rail rear end cap

OEM Mercedes-Benz Roof Rails for Sprinter Vans

$499.00 USD
$899.00 USD $499.00 USD
SAVE $400.00 SOLD OUT
Wheelbase: 144

OEM Mercedes-Benz factory roof rails designed for 2019+ Sprinter vans (W907/W910 chassis).

If your sprinter van has option D13, factory roof rail prep, then these roof rails bolt right on, no drilling, no guesswork. The ideal foundation for roof racks, solar panels, deck panels, and cargo systems. Stronger, cleaner, and more durable than aftermarket options, with a factory-direct fit and finish you can trust.

Fits: Sprinter 144", 170", and 170 EXT (select correct variant)

Important Compatibility Info:

These rails can work on older W906 chassis vans (2006–2018) or 2019+ vans without the factory D13 option, but installation may require drilling (without D13, there are no roof provisions for the studs to pass through). To check for drill-less compatibility: Look for option code D13 on your build sheet or data card, or check inside the roof for plastic plugs that indicate rail-ready mount points

What’s Included:

  • OEM aluminum roof rails (left + right) - length determined by wheelbase
  • Preassembled hardware with rubber seals and mounts
  • Stainless steel fasteners
  • End caps

Why Choose OEM Rails?

  • Factory-direct fit and finish
  • No drilling required (on D13-equipped vans)
  • Designed to work with Orion Van Gear's Sprinter roof rack
  • Stronger, cleaner, and more durable than aftermarket options
  • Backed by Mercedes-Benz quality
  • Free shipping to the lower 48 states

FAQ (Frequently Asked Questions) click to expand

1.Will these fit my 2006–2018 Sprinter (W906)?

 The older W906 chassis should work, but you may need to drill holes where the bolts come into the van similar to what you would have to do with any aftermarket roof rail.

2.What is option code D13?

D13 is a Mercedes-Benz factory option that includes the internal mounting points necessary to install OEM roof rails without drilling. Vans without this code cannot accept factory rails without modification.

3.How do I know if my van has option D13?

You can check your build sheet or look inside the roof cavity for plastic plugs that align with the roof channel. These plugs mark where the studs for the rails will go through the roof.

4.Do I need to drill to install these?

No drilling is needed if your van has option D13 and is 2019+. The rails use factory provisions and are secured with included hardware and sealed rubber mounts.

5.Are these rails black or silver?

All OEM rails we sell are silver aluminum finish. Mercedes-Benz does not offer a factory black version.

6.Are these compatible with Orion Van Gear roof racks?

Yes. These OEM rails are exactly what our Orion roof racks are designed to mount to, ensuring the best possible fit and finish.

7.Where do you ship?

We offer free shipping to the lower 48 U.S. states. Contact us for shipping quotes to Alaska, Hawaii, or internationally.

Get a CAD-Verified Roof Layout

We understand that every van setup is unique. That's why we offer CAD-verified roof layouts for customers who have purchased or plan to purchase an Orion roof rack - so you can maximize space and fit exactly what you need, where you need it. Request a layout here ›
