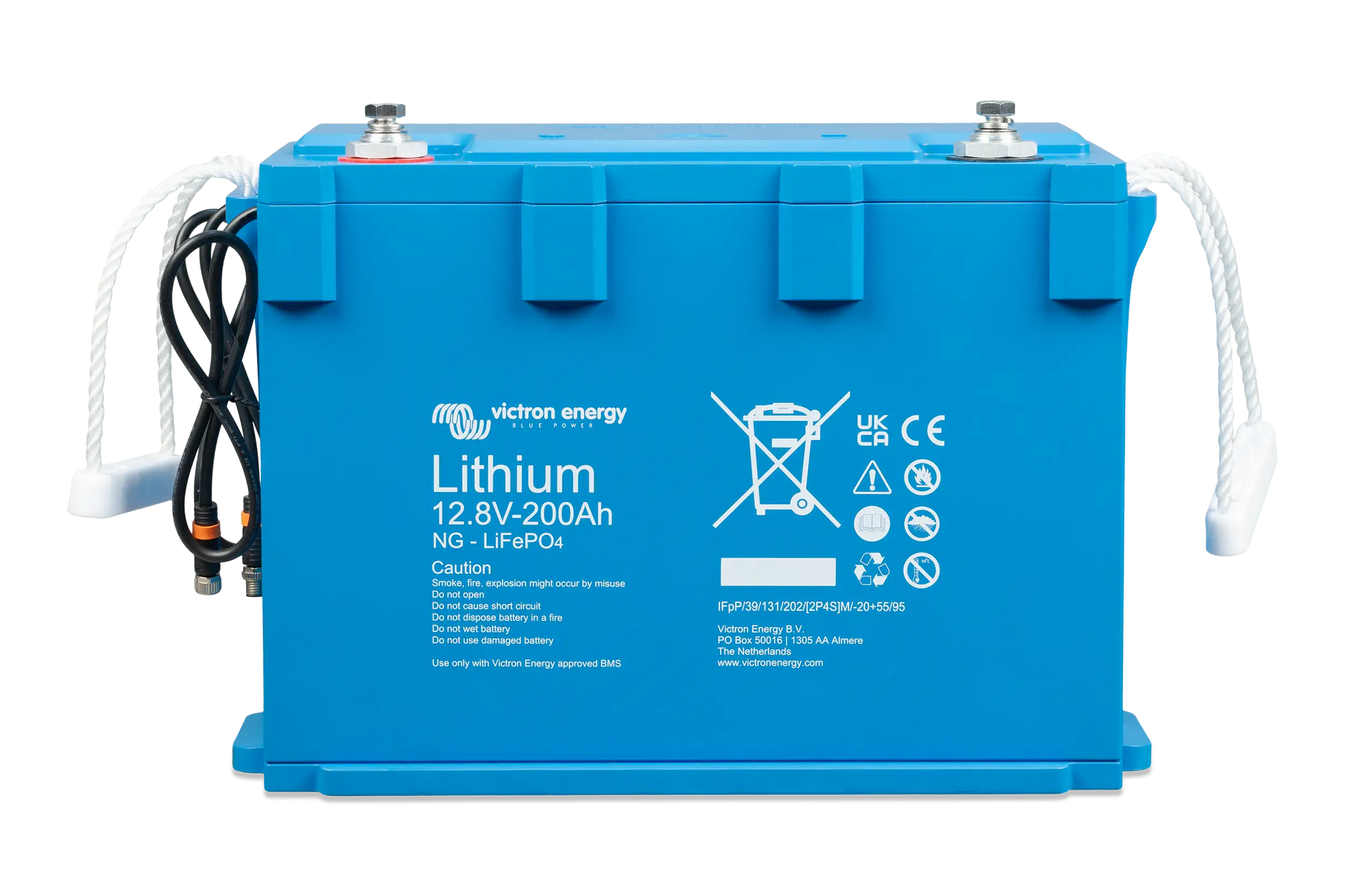

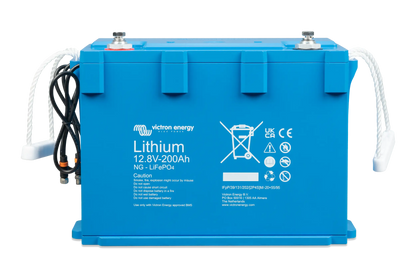

Victron Lithium NG LiFePO4 Battery 12.8V 200Ah – front angle view highlighting compact design, IP65-rated housing, and smart shunt terminals

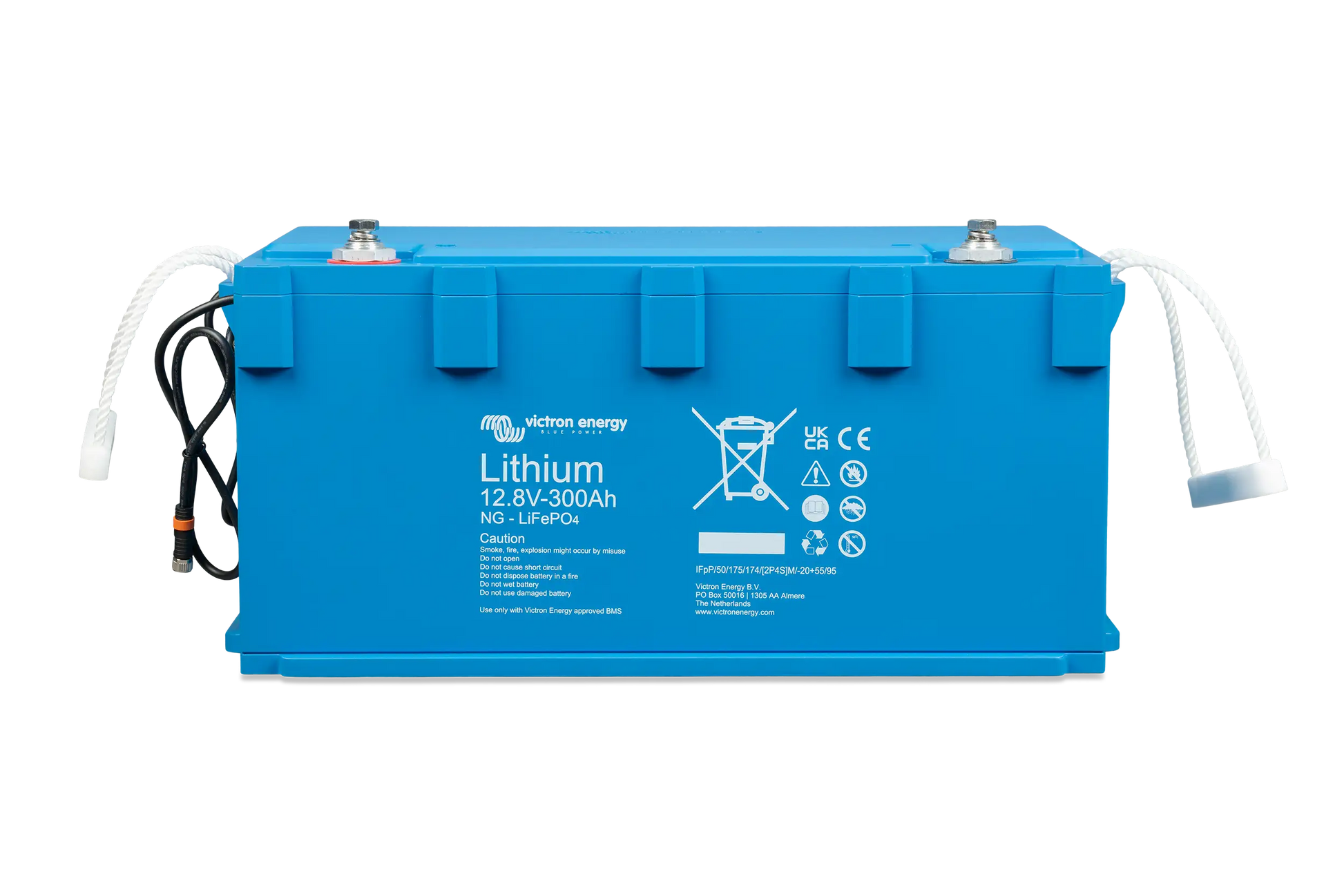

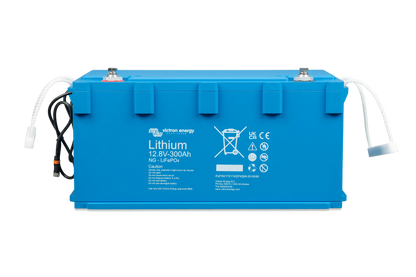

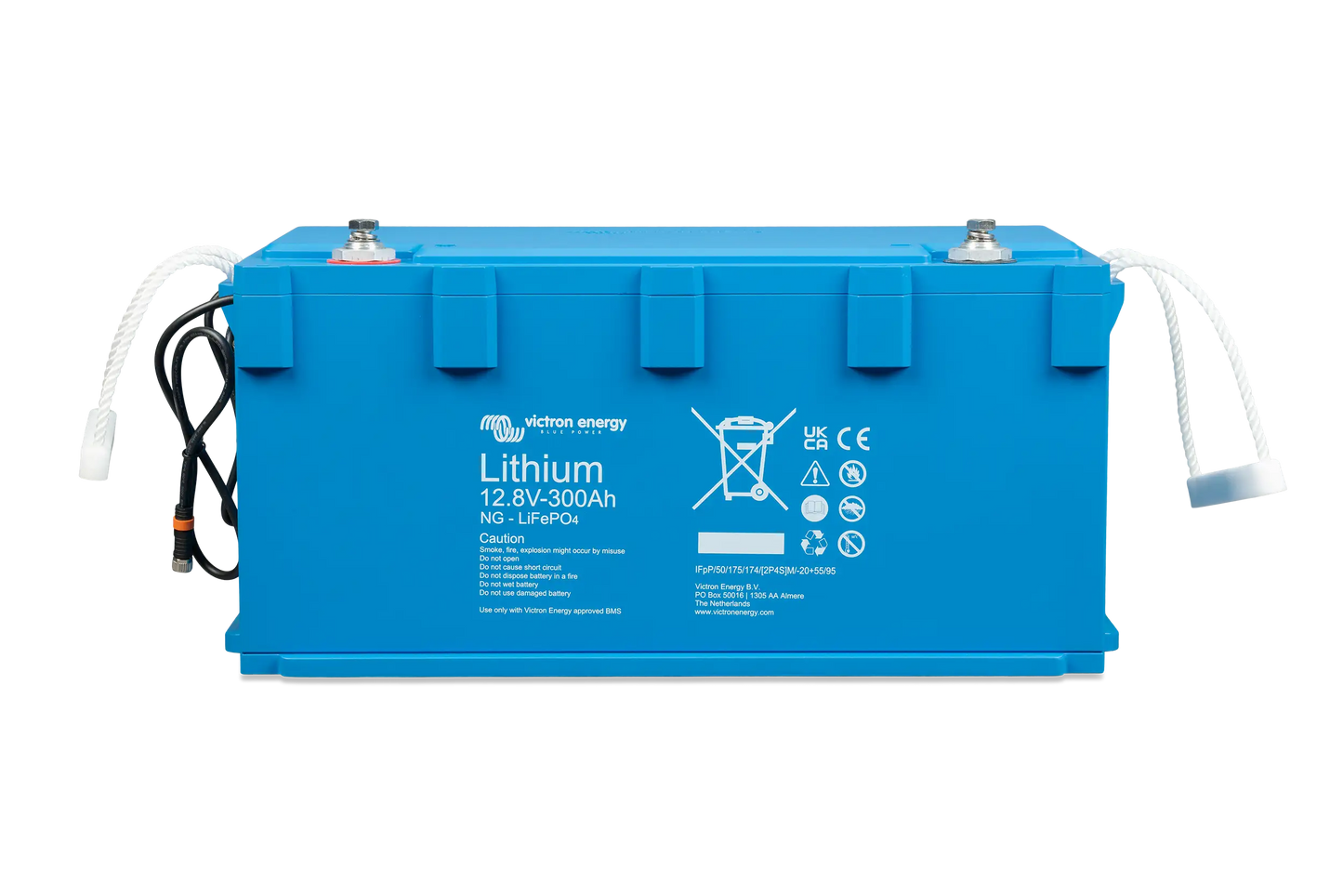

Victron Lithium NG LiFePO4 Battery 12.8V 300Ah – front angle view showing compact IP65 housing and smart terminal layout

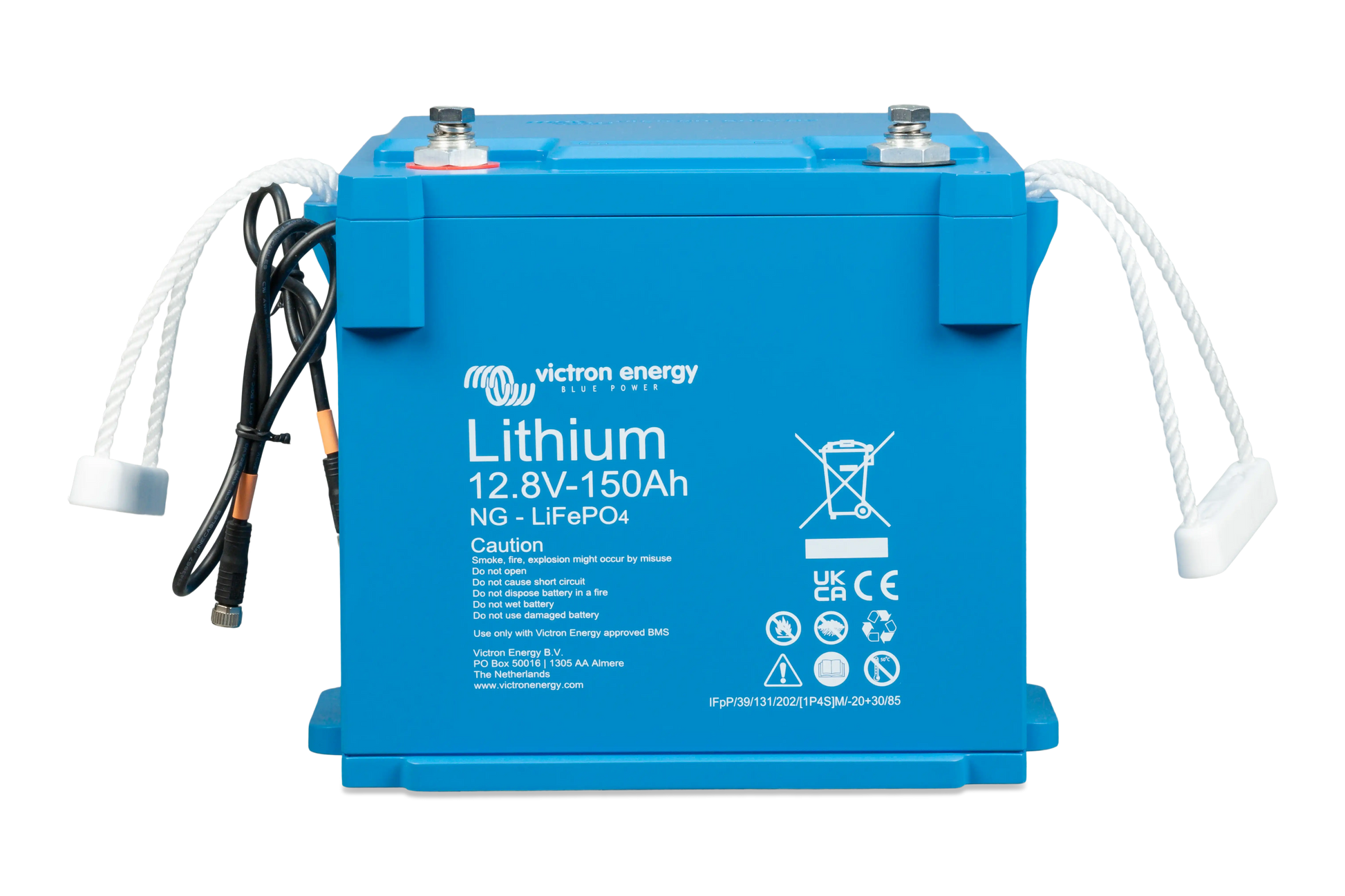

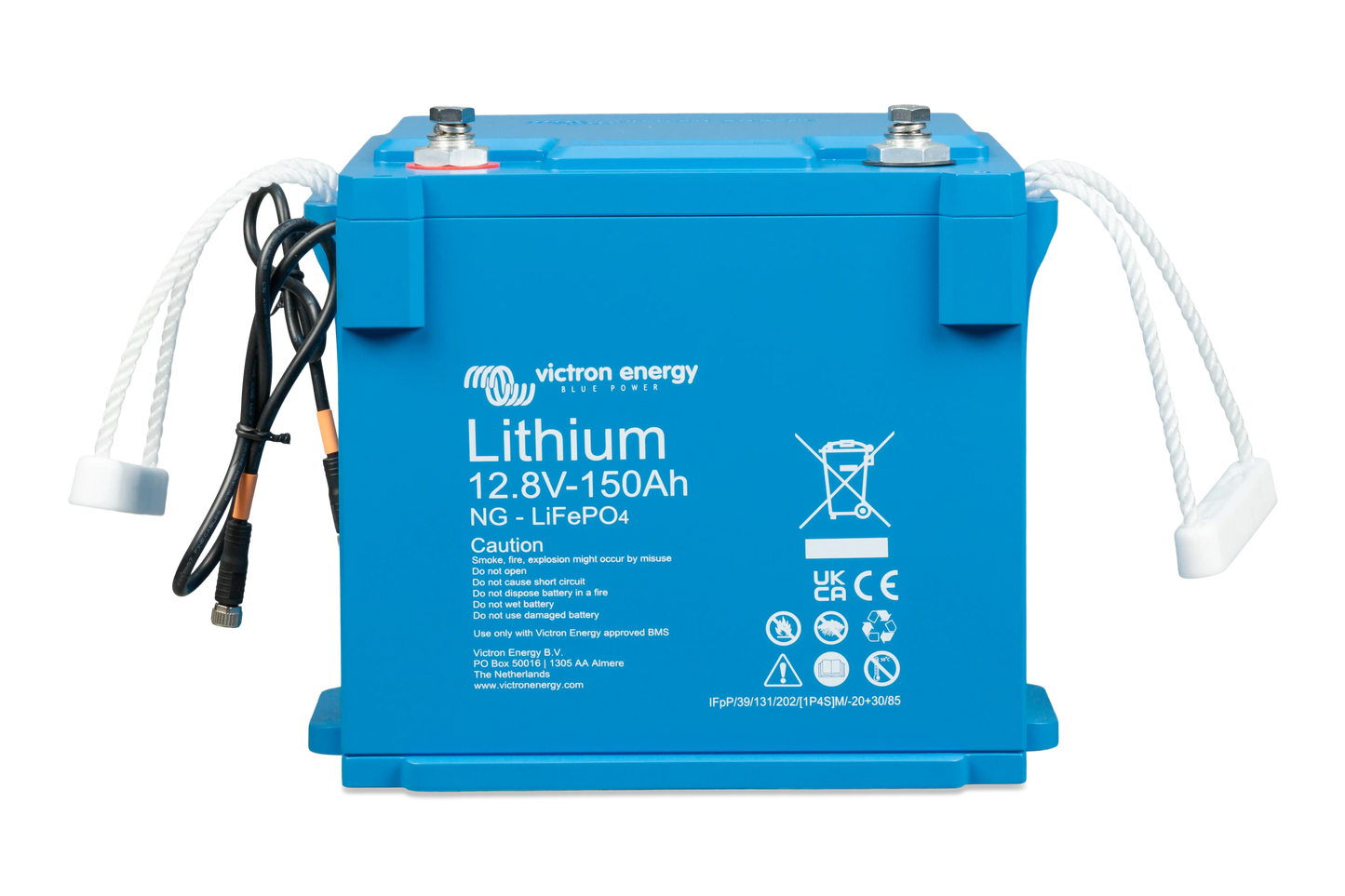

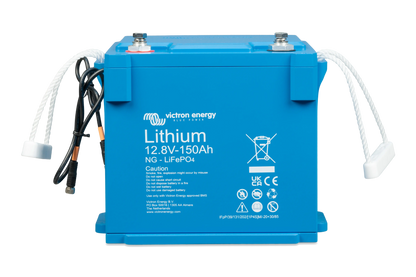

Victron Lithium NG LiFePO4 Battery 12.8V 150Ah – front angle view with smart terminals and rugged IP65-rated case

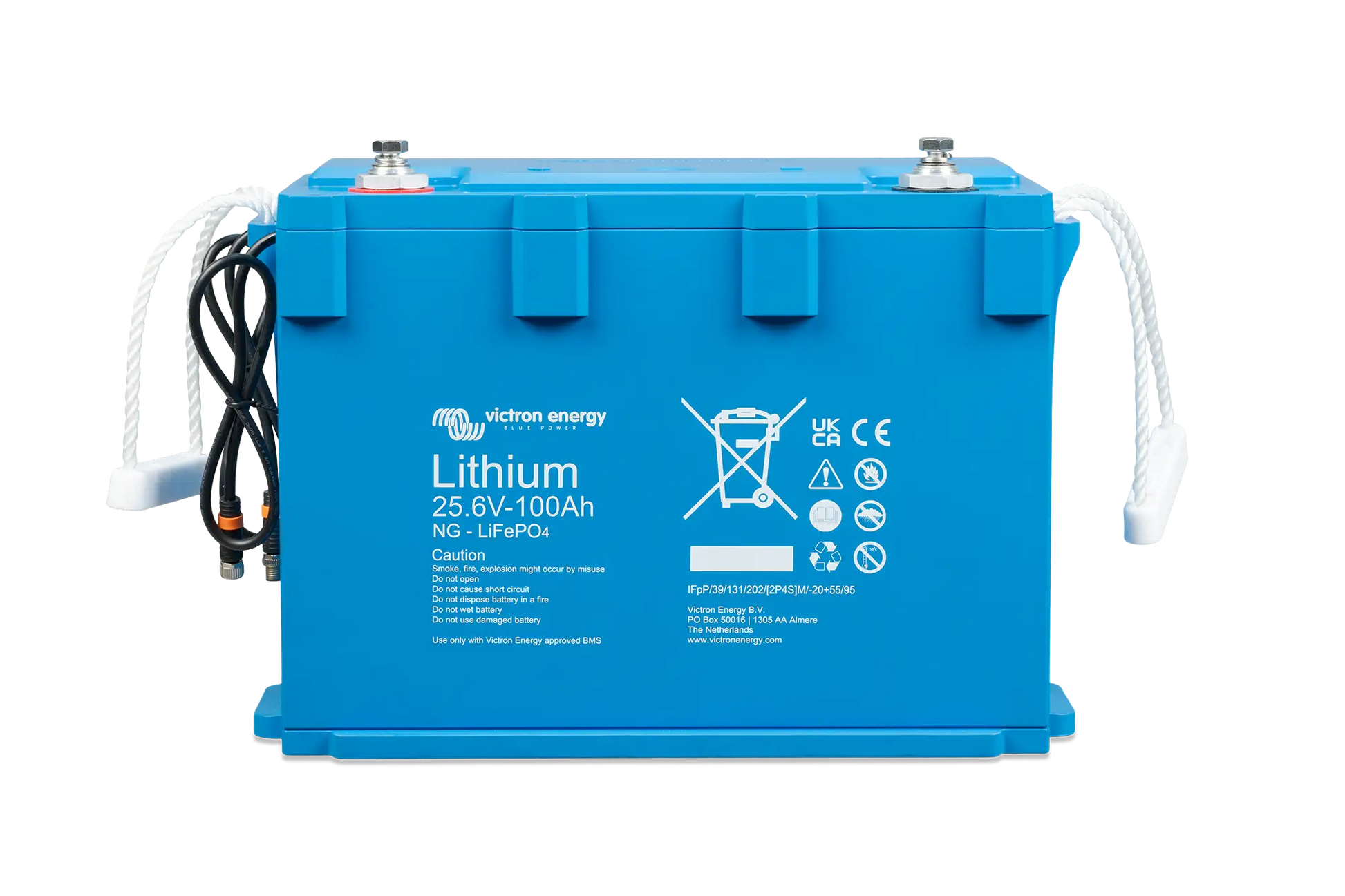

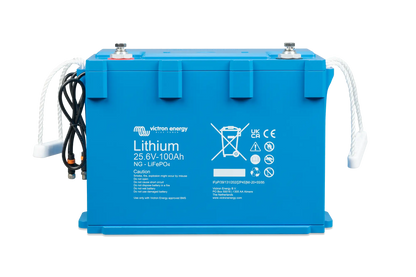

Victron Lithium NG LiFePO4 Battery 25.6V 100Ah – front angle view with durable IP65 enclosure and integrated smart monitoring terminals

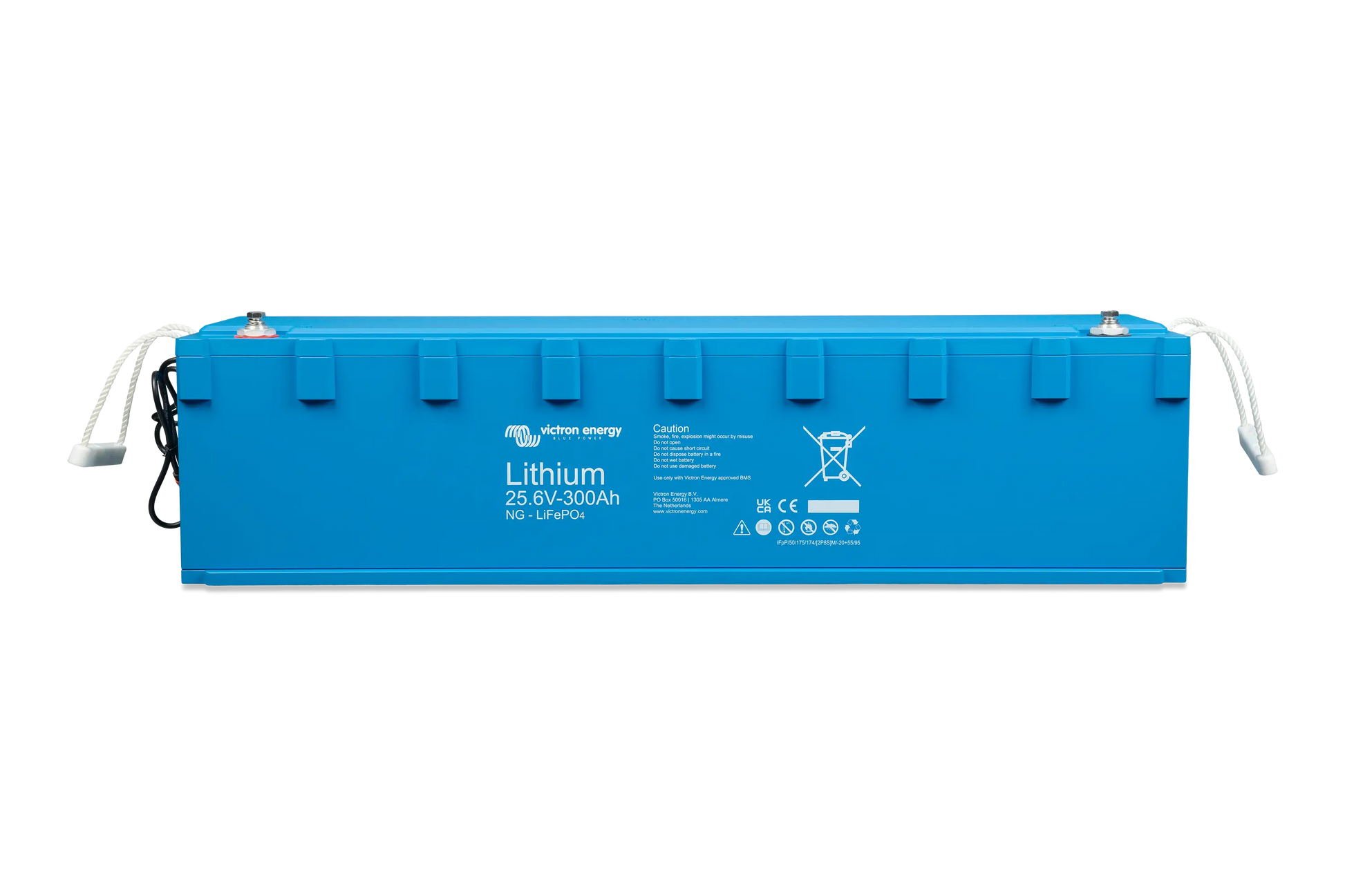

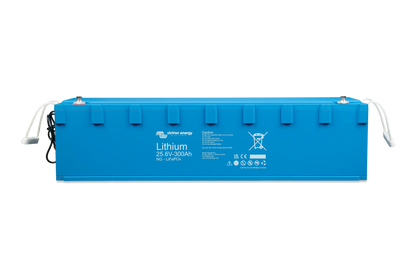

Victron Lithium NG LiFePO4 Battery 25.6V 300Ah – front angle view showing heavy-duty IP65 case and advanced smart battery terminals

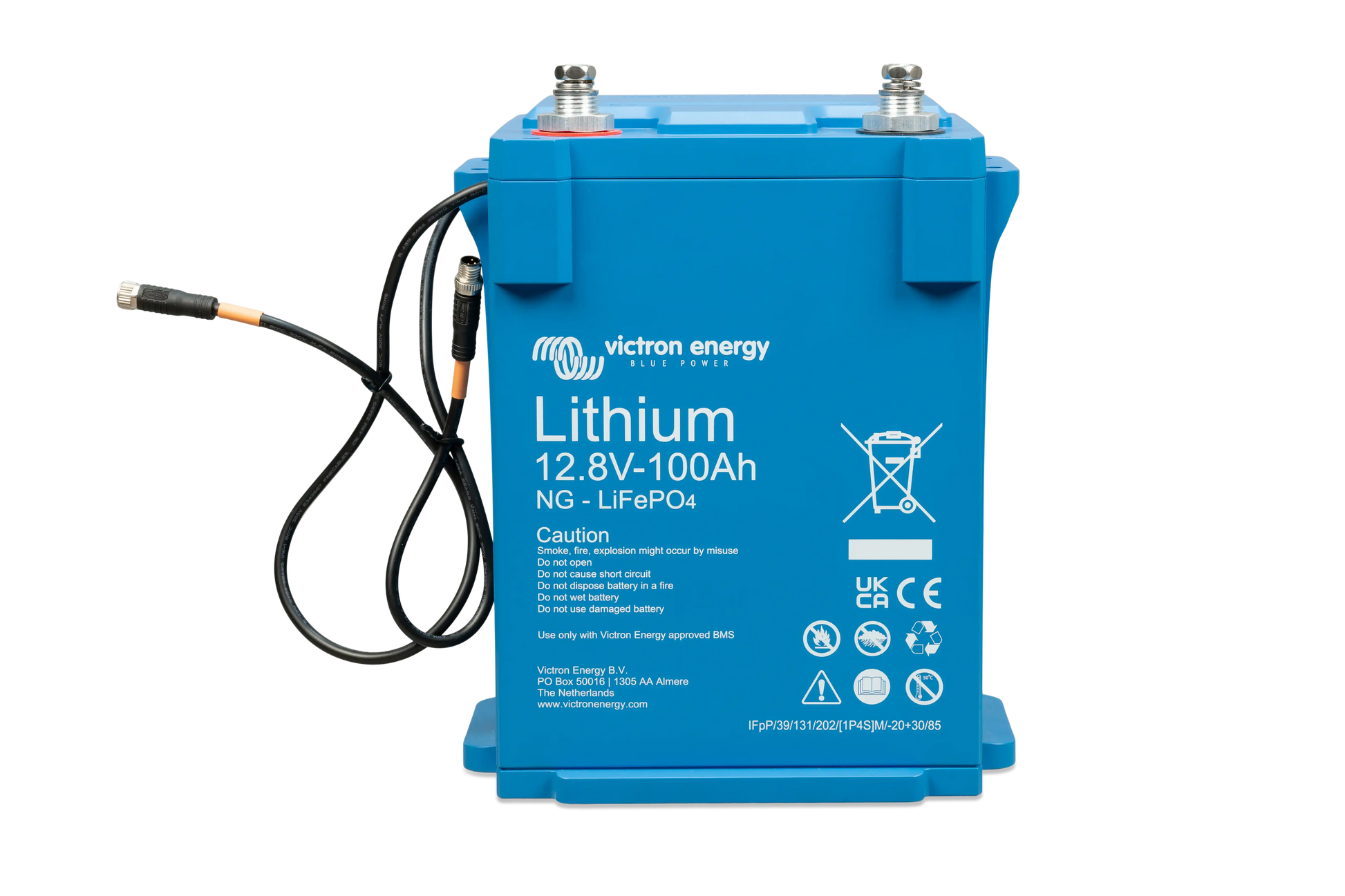

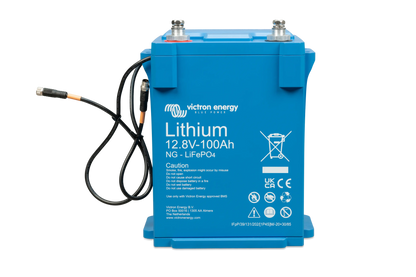

Victron Lithium NG LiFePO4 Battery 12.8V 100Ah – front angle view with compact IP65 housing and smart monitoring terminals

Victron Lithium NG Smart LiFePO₄ Batteries

Name: Victron Lithium NG Smart LiFePO₄ Batteries
Brand: Victron Energy
SKU: ART-BAT512110620-VIC
Price: 1025.1 USD
Availability: InStock

$1,025.10

NEW

Voltage: 12.8V

12.8V 25.6V 51.2V

Amperage Hours: 100AH

100AH 200Ah 150AH 300AH

Menge

history

Garantiert sichere und sichere Kaufabwicklung

Victron Lithium NG Smart LiFePO₄ Batteries – 12.8V / 25.6V / 51.2V

Victron's most advanced lithium battery yet. The Next Generation (NG) series builds on the proven performance of the Smart Lithium line and delivers more capacity, smarter monitoring, and better protection—all in a rugged IP65-rated case ready for off-grid, marine, and mobile installs.

Next Generation Series Highlights

Integrated smart shunt: Read individual cell voltages and temps
Modular scalability: Build banks up to 385kWh
Flexible voltage options: 12V, 24V, or 48V systems
Multiple capacity sizes: 100Ah, 150Ah, 200Ah, 300Ah
Dust/water resistant housing: IP65 certified
Mounting versatility: Strap and bracket options included

⚠️ Compatibility Notice

Requires: Lynx Smart BMS NG M10
Victron is adding support for VE.Bus BMS NG and SmallBMS NG. Older Smart Lithium batteries are now special order and being phased out.

Battery Specs

Voltage / Capacity	Energy	Dimensions (H × W × D)	Weight	IP Rating
12.8V / 100Ah	1.28 kWh	9.3 × 7.8 × 6.3 in	19.8 lbs	IP65
12.8V / 150Ah	1.92 kWh	8.1 × 9.8 × 8.1 in	30.9 lbs	IP65
12.8V / 200Ah	2.56 kWh	9.3 × 13.4 × 6.3 in	41.9 lbs	IP65
12.8V / 300Ah	3.84 kWh	8.1 × 17.6 × 8.1 in	63.9 lbs	IP65
25.6V / 100Ah	2.56 kWh	9.3 × 13.4 × 6.3 in	41.9 lbs	IP65
25.6V / 200Ah	5.12 kWh	9.3 × 25.5 × 6.4 in	81.6 lbs	IP65
25.6V / 300Ah	7.68 kWh	8.1 × 33.1 × 8.1 in	114.6 lbs	IP65
51.2V / 100Ah	5.12 kWh	9.3 × 25.5 × 6.4 in	81.6 lbs	IP65

Monitoring Options

Bluetooth via VictronConnect App
GX Device support (e.g., Cerbo GX)
Victron VRM Portal for remote access

Applications

Off-grid solar systems
Van builds and RV electrical
Marine, sailboats, and expedition vessels
Home backup power and battery banks

FAQ (Frequently Asked Questions) click to expand

1.Can I use this with VE.Bus BMS or SmallBMS?

Not yet. The NG series is currently only compatible with the Lynx Smart BMS NG M10. Support for other models is coming.

2.Is this replacing the old Smart Lithium batteries?

Yes. The NG line is the future of Victron's lithium offerings. Smart Lithium batteries are now special order only.

3.What’s new in the NG series?

Integrated shunt, improved diagnostics, higher max capacity, IP65 rating, and easier install options.

4.How much storage can I build with these?

Up to 50 batteries per bank. That’s up to 385kWh depending on configuration.

5.What comes in the box?

Battery module with integrated monitoring. BMS and mounting hardware sold separately.
