3M™ Thinsulate™ Insulation Kit for Ford Transit Van (High Roof, Pre-Cut)

Name: 3M™ Thinsulate™ Insulation Kit for Ford Transit Van (High Roof, Pre-Cut)
Brand: Campervan HQ
SKU: T-148-FV-AU6002-5-KIT
Price: 655.67 USD
Availability: InStock

$655.67 USD

SOLD OUT

Transit Van Model: High-Roof Ford Transit 148"WB Cargo Van High-Roof Ford Transit 148"WB Cargo Van High-Roof Ford Transit 148" EXT Cargo Van

Quantity

Meet the proven way to quiet and stabilize temps in your Transit build.

Free shipping to the lower 48 US states. Please allow 1-2 weeks before shipping.

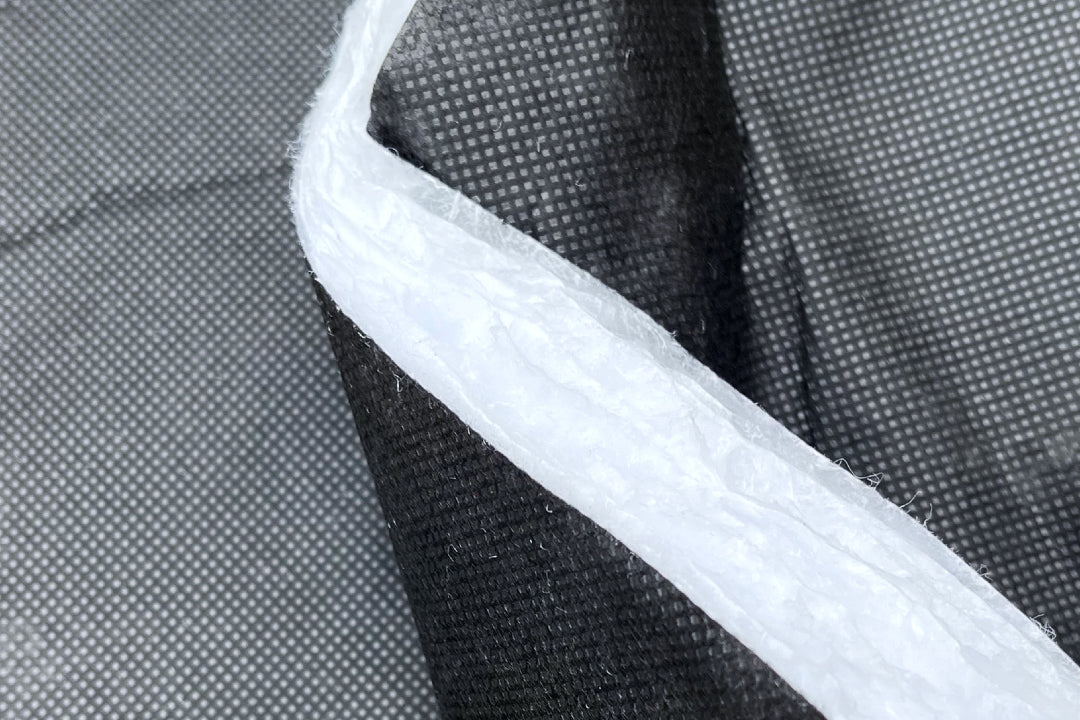

This pre-cut 3M™ Thinsulate™ AU6002 kit is CNC-cut to the main wall, ceiling, and door cavities of 2015+ Ford Transit High Roof vans (148" WB and 148" Extended), so you can install cleanly without hours of templating. The hydrophobic non-woven blends polyester and ultra-fine polypropylene fibers to deliver excellent acoustic absorption and reliable thermal performance; lightweight, compressible, and conformable for a professional finish behind panels.

Why builders choose this kit

Drop-in, pre-cut pieces for major cavities save serious build time and mess.
Acoustic control you can feel: AU6002 is engineered for vehicle noise reduction.
Hydrophobic fibers resist moisture, mold, and mildew; no extra vapor barrier needed in typical use.
Meets FMVSS 302 flammability requirements for automotive interiors.

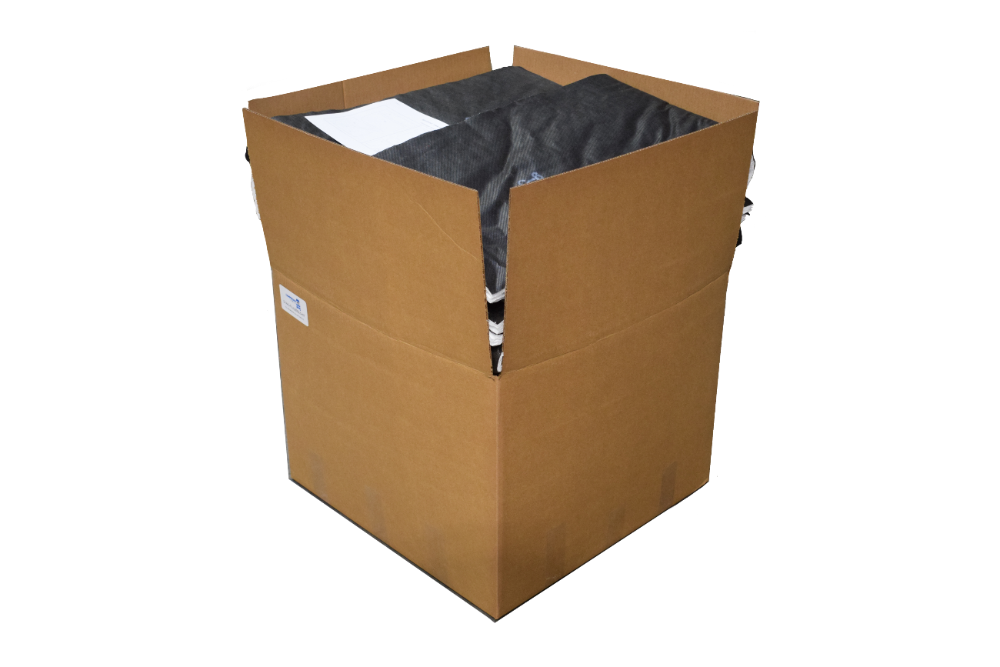

What’s included

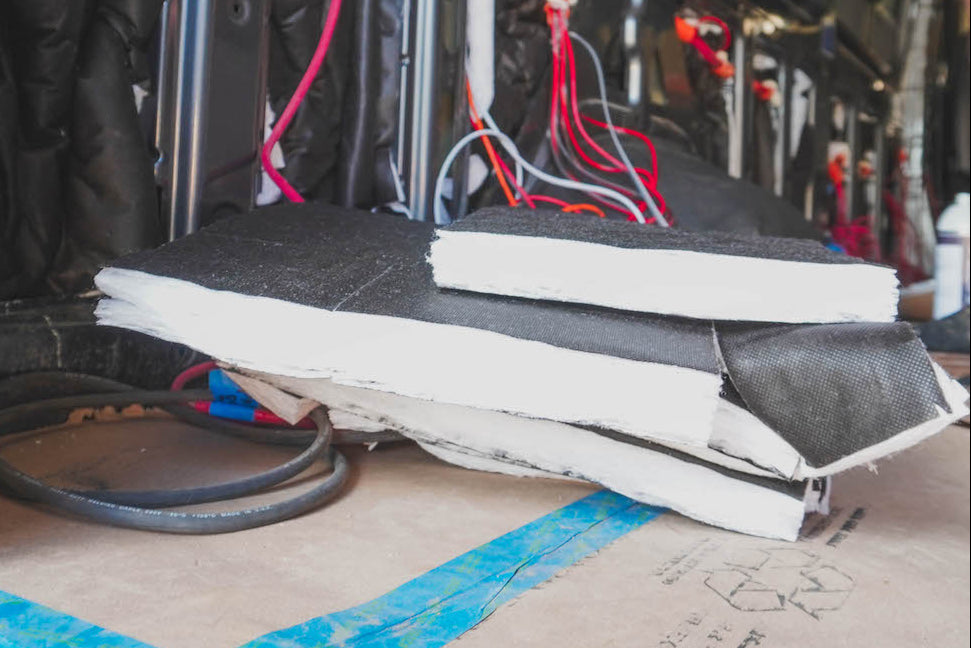

Pre-cut AU6002 panels for cargo-area walls, ceiling, and doors

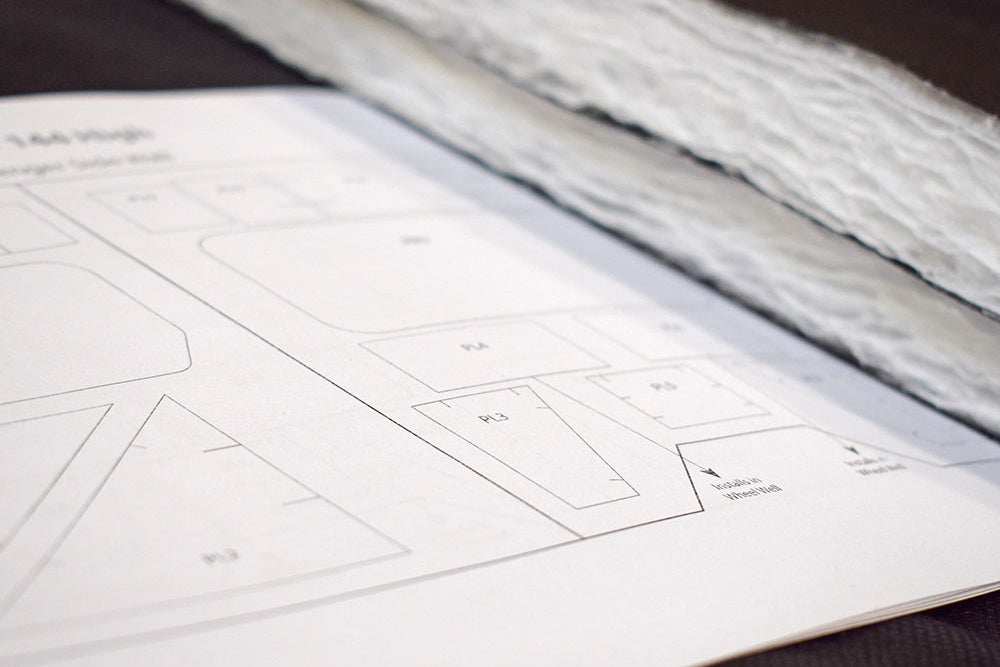

Placement diagram for piece locations
Coverage designed for open cavities in the cargo area

What’s not included

Cab area and vehicle floor
Material to stuff between beams or closed/partially covered cavities
Window surrounds beyond the main open cavity pieces (you may have extras if you have windows)

Video: 3M™ Thinsulate™ Insulation Kit for Ford Transit Van

3M™ Thinsulate™ AU6002 — Key Specs

Attribute	Spec	Notes
Material	3M™ Thinsulate™ Acoustic Insulation AU6002	Double black scrim; automotive grade
Roll Width	60 in (1524 mm)	Standard AU6002 roll width
Thickness	~44 mm	Nominal, uncompressed
Density	~16.1 kg/m³	Per 3M AU6002 series data
Thermal Resistance	RSI ≈ 0.96 (AU6002 @ 44 mm)	Commonly referenced as approx. R-5.45 per inch
Acoustic Behavior	High absorption, mid–high frequencies	Engineered for vehicle sound control
Fire Resistance	Meets FMVSS 302	Automotive flammability standard
Moisture Behavior	Hydrophobic fibers	Resists moisture, mold, mildew

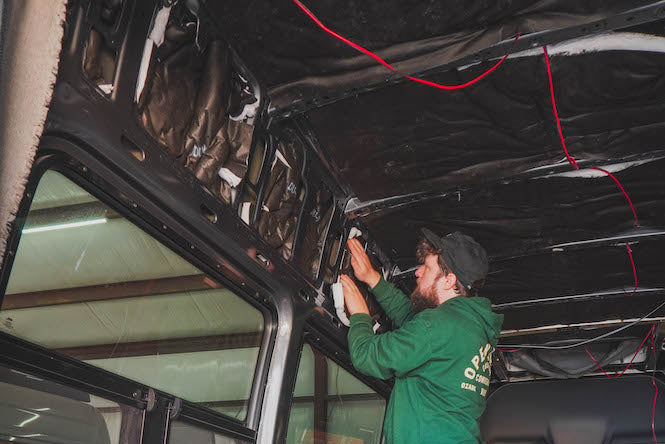

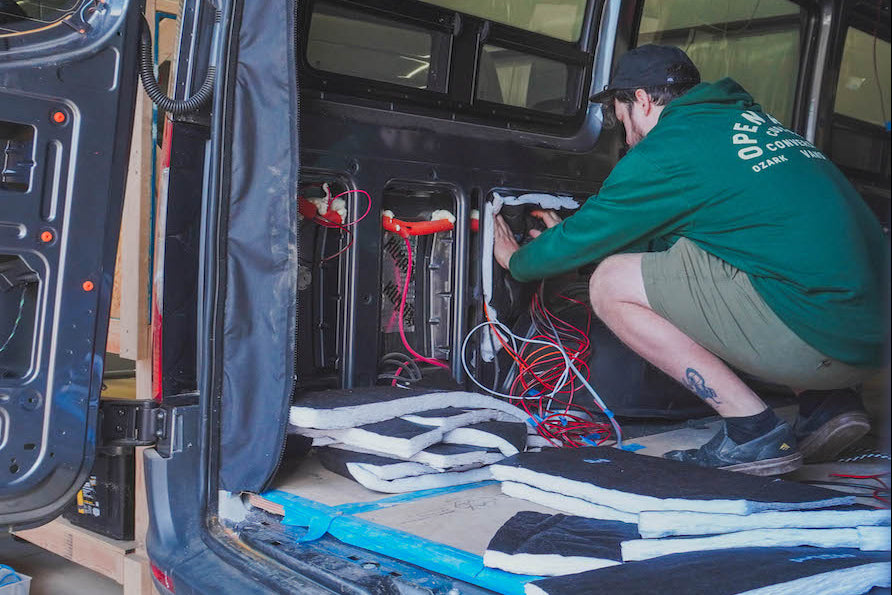

Install Method	Adhere panels inside cavities	Pre-cut per cavity; diagram included
Coverage	Walls, ceiling, doors (cargo)	Cab and floor not included

Fitment & Variants

High Roof 148" WB (2015+)
High Roof 148" Extended (2015+)

Low/mid-roof models are not included in this pre-cut kit.

FAQ (Frequently Asked Questions) click to expand

1.Will this fit my 2015+ Transit High Roof?

Yes. The kit is cut for 2015+ Ford Transit High Roof vans in 148" WB and 148" Extended wheelbases. Select your wheelbase in options.

2.Does it include the cab or the floor?

No. Coverage is for cargo-area walls, ceiling, and doors only. Cab and floor are not included.

3.Is a vapor barrier required?

3M™ Thinsulate™ fibers are hydrophobic and resist moisture, mold, and mildew in typical van applications. Most builders do not add a separate barrier behind panels. Follow your build philosophy and local codes.

4.How does AU6002 help with road noise?

AU6002 is an automotive acoustic insulator with high absorption, especially in mid-to-high frequencies common to road and wind noise.

5.What about fire safety?

AU6002 meets the FMVSS 302 interior flammability standard commonly used for vehicle components.
