The Smallest Walkable Marine Solar Panel
Introducing our smallest walkable solar panel, the robust and efficient 65W walkable monocrystalline solar panel. Featuring high-efficiency SunPower cells, this panel guarantees exceptional performance even in partial sunlight conditions. Its compact design allows it to fit in many places our other size panels do not.
These are NOT your typical solar panels! For the most efficient use of space on your van roof and better overall function, Orion's modular deck panels combined with these walkable solar panels offer an optimal solution.
Key Features:
- Durable Construction: These panels are walk-on certified and feature an ETFE laminate non-skid surface, ensuring they can be walked on without damaging the solar cells.
- Premium SunPower Solar Cells: Harness the power of SunPower cells for maximum efficiency and durability.
- Designed for Harsh Environments: Built to withstand the rigors of marine environments, making them ideal for mounting on a van or RV roof.
- Hardware not included: Please refer to our recommendations below for mounting hardware.
- Manufacturer's Warranty: Enjoy a 1-year warranty at 80% efficiency, plus 4 years prorated.
- Free Shipping: Available for orders shipped to the lower 48 states.
Check out our full collection of Walkable Marine Solar Panels
- 100 Watt Walkable Marine Solar Panel
- 155 Watt Walkable Marine Solar Panel
- 165 Watt Walkable Marine Solar Panel
- 175 Watt Walkable Marine Solar Panel
- 200 Watt Walkable Marine Solar Panel
Specifications:
- Panel Type: Premium Maxeon Sunpower Cells
- Rated Power: 65 Watts
- Manufacturer's Warranty: 1 Year @ 80% + 4 Years Prorated

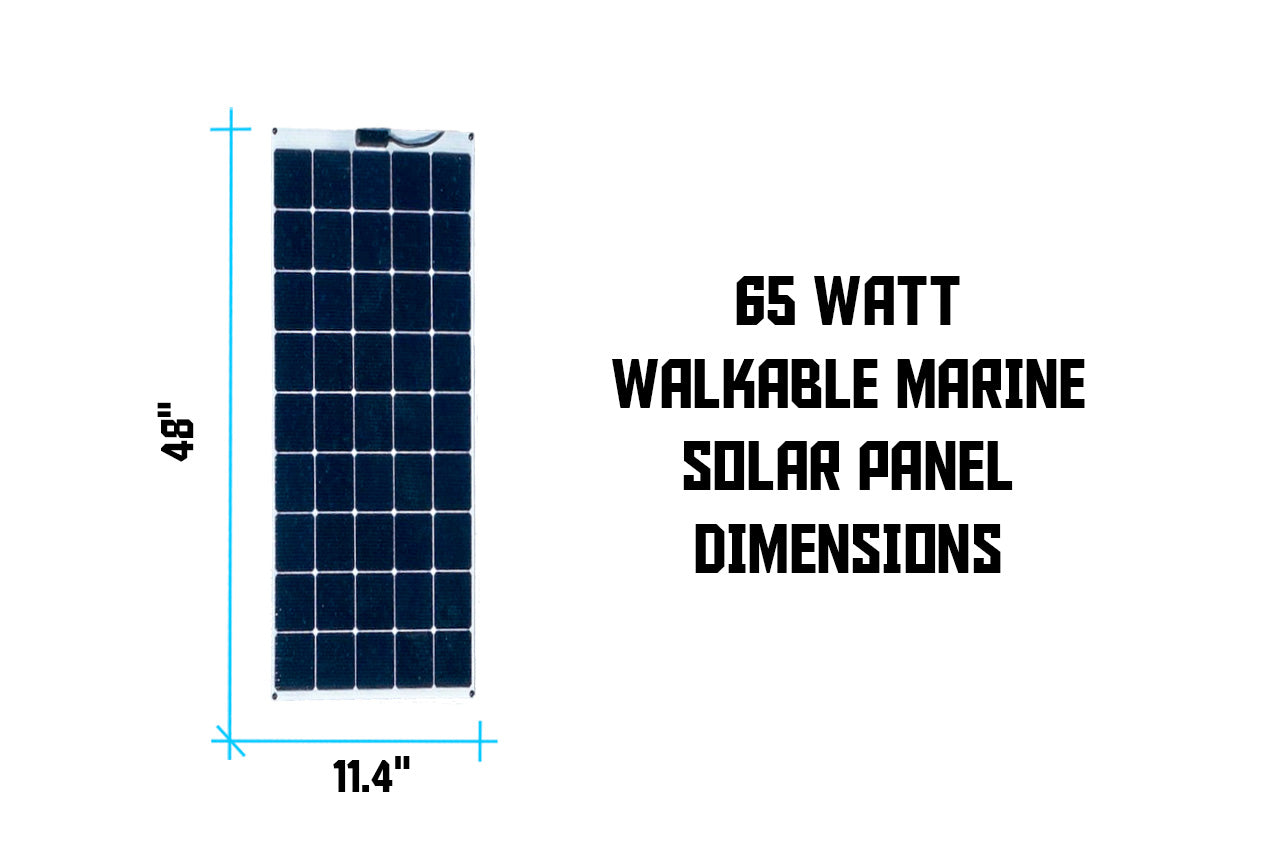

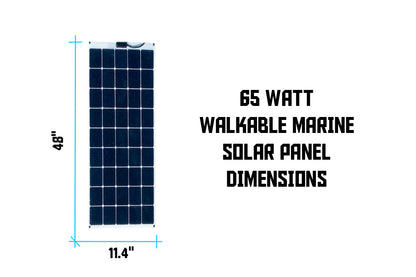

- Dimensions: 11.4" X 48"
- Weight: 8 pounds
- Output Connections: 6-foot Duplex Cable 3/8" OD
- Peak Power Voltage (Vmpp): 20.9 Volts
- Peak Power Amps (Impp): 2.9 Amps
- Open Circuit Voltage (Voc): 24.4 Volts
- Short Circuit Current (Isc): 3.1 Amps
-
Cell Conversion Efficiency: 25.4%
Installation:
For Sprinter Stealth+ Roof Rack or Transit Stealth+ Roof Rack with Deck Panels: We recommend rivnuts (must be able to span .136" material thickness) with our walkable solar washers on all 4 corners (medium threadlocker) in addition to 'J' channels and 'H' channels on every edge of each panel.
Contact us if you have any questions or need assistance with your installation. These panels can be paired effectively with Orion's Modular Roof Deck Panels for optimal space utilization and function on van roofs. For more details, you can check out the Modular Roof Deck Panels page.
FAQs for Walkable Marine Solar Panels
The 65W walkable marine solar panel features durable construction with a carbon fiber backing and ETFE laminate non-skid surface. They use high-efficiency SunPower cells, designed to perform well even in partial sunlight. It is lightweight, easy to install, and built to withstand harsh marine environments.
Yes, these panels are designed to be walked on when properly installed and have a non-skid surface.
The available sizes include:
- 65 Watt Walkable Marine Solar Panel
- 100 Watt Walkable Marine Solar Panel
- 155 Watt Walkable Marine Solar Panel
- 165 Watt Walkable Marine Solar Panel
- 175 Watt Walkable Marine Solar Panel
- 200 Watt Walkable Marine Solar Panel
The 65W solar panel measures 11.4" X 48" and weighs ~8 pounds.
Yes, these panels are specifically designed to withstand the rigors of marine environments, making them ideal for use on van or RV roofs.
The panels use SunPower cells, known for their high efficiency and durability.
The cell conversion efficiency of the solar cells is 25.4%.
The manufacturer provides a 1-year warranty at 80% efficiency, plus 4 years prorated.
For Sprinter Stealth+ or Transit Stealth+ Roof Racks with Deck Panels: Use Rivnuts with our corner washers on all four corners and apply medium threadlocker. Use 'J' and 'H' channels on all edges of the panels in addition to the corner washers.
No, hardware is not included. Recommendations for mounting hardware are provided in the product description. We are working on custom hardware kit specifically for our roof racks.
Yes, free shipping is available for orders shipped to the lower 48 states.
You can contact us through our website for any questions or assistance with installation.
Please visit our website to explore the full range of walkable solar panels.
