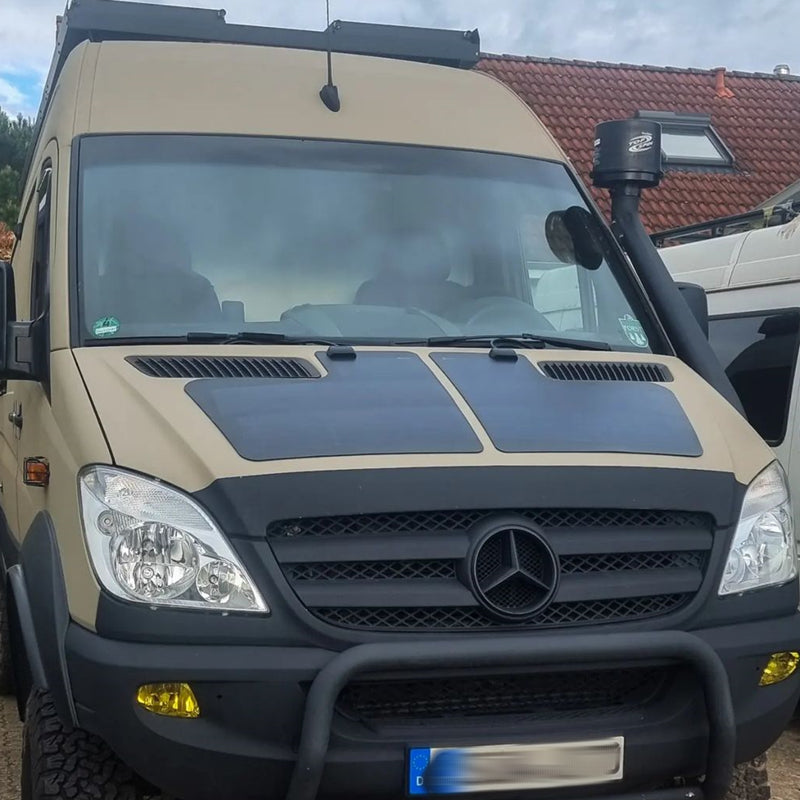

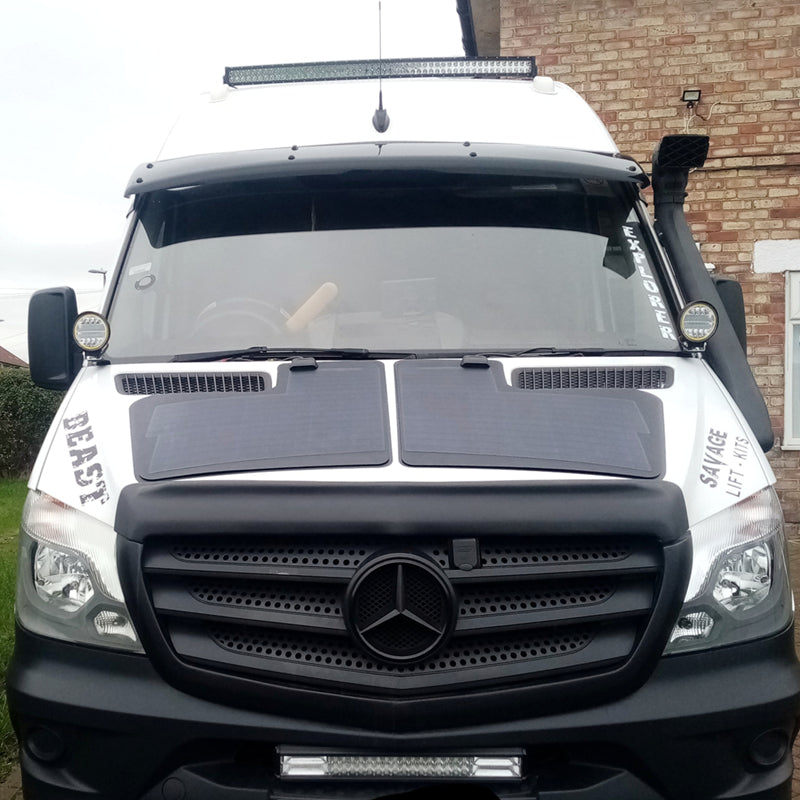

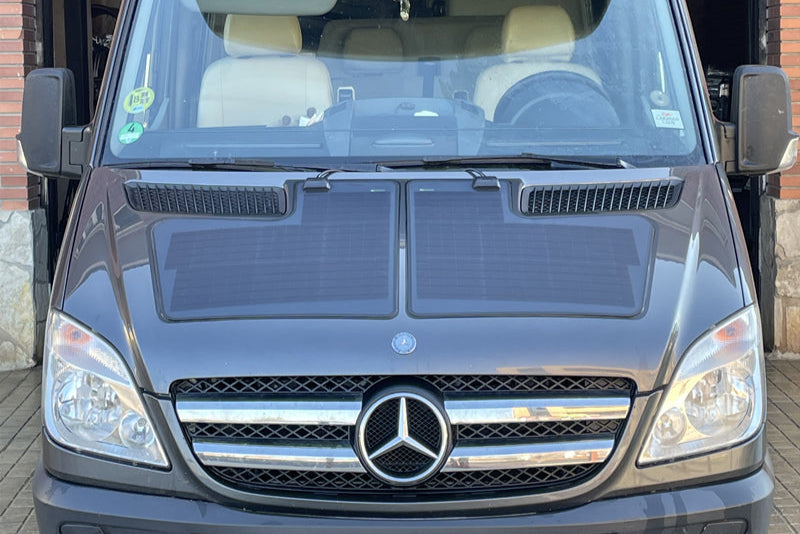

80W Hood Solar Panel for Mercedes Sprinter Van 2nd Gen (2006-2018)

80W Solar Panel for Mercedes Sprinter Hood - 2nd Gen (2006-2018)

If you don’t know which generation your car is, please click Wikipedia to check.

This flexible solar panel mounts to the hood of your Sprinter van. Charge the vehicle battery, leisure battery, or power station(jackery, goal zero, etc) during daylight. Keep your fridges, dash cam, lighting, phones, etc., charged without starting your engine. Do not worry again about a dead battery while camping/off the grid.

It is perfectly shaped for the  2nd Gen Sprinter. Easy to install plug-and-play wiring.

The cutting-edge technology incorporates special materials designed to safeguard the solar cells against extreme weather conditions such as high winds, heavy snow, and hail, guaranteeing the hood flexible solar panels' longevity and maintenance-free operation for years. Covered by a 24-month workmanship warranty.

Benefits:

1. Keep your vehicle or auxiliary battery topped up at all times. It is ideal for overlanders and campers seeking to power devices worry-free without draining their battery.
2. Keep your power station charged. The solar panel comes with standard connectors and uses adaptors (buy separately) to charge for most of the power stations on the market.
3. Decreased hood glare. The Lensun hood flexible solar panel features a top-tier ETFE film surface that eliminates light reflection, reducing glare while driving.
4. Protect and extend battery life. The Batteries usually hit only 60% charge with daily driving, and if parked for 2-3 weeks, starting becomes unreliable, especially in summer.
5. Convenience and space-saving. The hood flexible solar panel attaches directly to the vehicle's hood; no roof rack is needed. Unlike portable solar panels that eat up cargo space with setup and storage, it's a plug-and-play system for easy installation.
6. The optional custom-fitted vinyl decal. A vinyl decal between the solar panel and hood is highly recommended. It protects the vehicle paint from damage.

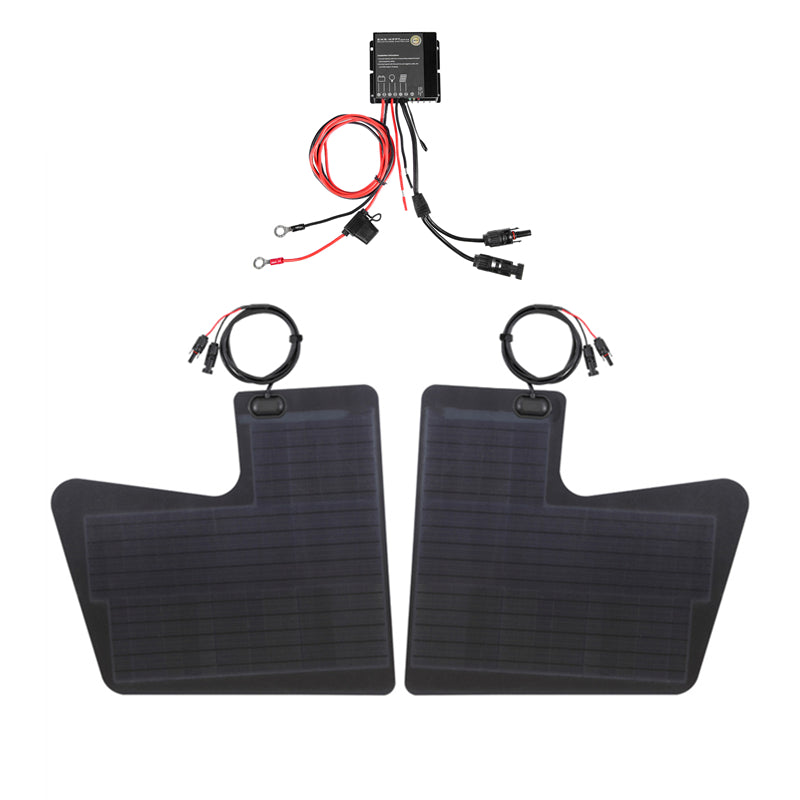

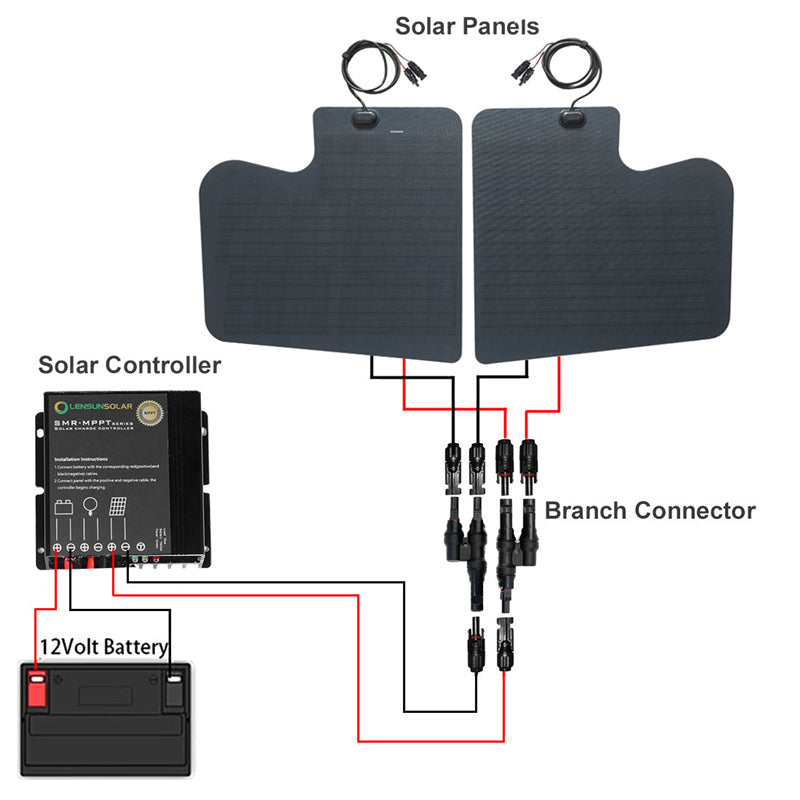

7. Easy to install plug-and-play wiring. The optional Plug-and-play 10A Waterproof MPPT solar controller. It comes pre-wired with fuses, terminals, and connectors. It features advanced MPPT control with intelligent protection against risks like reverse polarity and overcharging. Compatible with Sealed, AGM, Gel, Liquid, and Lithium-ion batteries.
8. Covered by a 24-month workmanship warranty.

Solar Panel Features:

1. Solar Cell: Grade A PERC Monocrystalline solar cells with much higher efficiency and more durability than other mono solar cells.
2. Premium EFTE Film: This film features superior light transmittance and weatherproof performance and is heat, corrosion, and UV resistant.
3. Durability: Cutting-edge tech and robust materials ensure resilience against snow, ice, mud, rocks, etc. Their high durability makes them perfect for off-road vehicles.
4. Ultrathin & Lightweight: At only 3mm/0.12 inches thick, it is lightweight (60% less than conventional solar panels).

Electrical Information:

Peak power: 80W
Solar cell efficiency: 23.5%
Maximum power voltage: 20V
Maximum power current: 4A
Open circuit voltage: 23V
Short circuit current: 4.4A
Power allowance range: +/-3%
Maximum system voltage: 500V
Net Weight: 2.5kg /5.5 lb
J-Box: IP 68 rated with 1.5m/5ft cables

MPPT Specs:

Battery Type: Gel, AGM, Liquid, Lithium, Flooded
System Voltage: 12V
Max Charging Current: 10A
Max Input Solar Panel: 130W
Max Volt on Bat. Terminal: 25V
Max volt on PV Terminal: 45V
Communication: Bluetooth
Max Tracking Efficiency: 99.9%
Max Charging Conversion: 96.5%
Self Consumption: 6mA
Charging Voltage Target: 10-17V(Programmable, Lithuim)
Charging Voltage Recovery: 9.2-16.8V(Programmable, Lithuim)
Low Voltage Disconnect: 10.8-11.8V; SOC1-5(Programmable, Liquid/GEL/AGM) 9-15V(Programmable, Lithuim)
Low Voltage Reconnect: 11.4-12.8V (Programmable, Liquid/GEL/AGM) 9.6-16V(Programmable, Lithuim)
Dimensions: 3.4x3.2x0.9inch/86x81x23mm
Weight: 350g/0.8lbs
Maximum Terminals Wire Size: 10AWG(4mm²)
Wire Lengths: The length of the cable connecting the solar panel is 15.7 inches, the cable connecting the vehicle battery is 59 inches.

Includes:

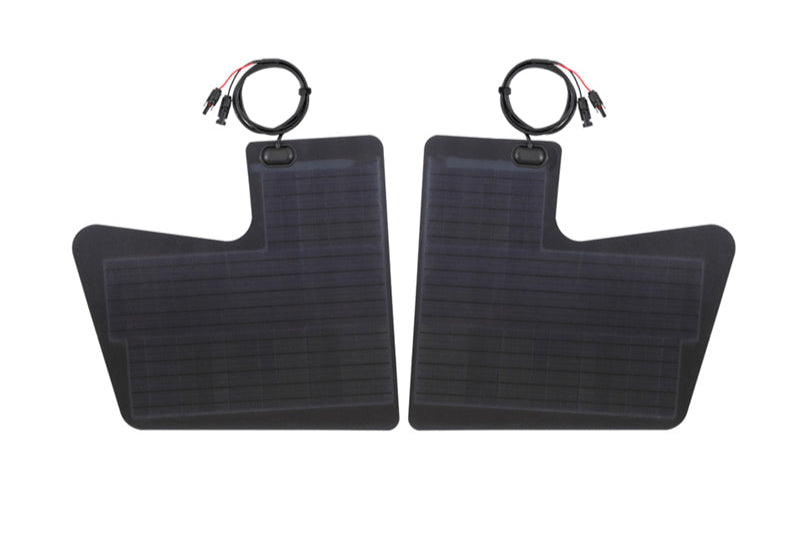

1 x 80w hood solar panel

Optional:

1 x vinyl decal
1 x 10A waterproof mppt solar controller

FAQ

1. How does the 80W Hood Solar Panel attach to my 2nd Gen Sprinter (2006–2018)?
It’s designed to fit the contours of your Sprinter hood and installs easily using adhesive or the optional custom-fitted vinyl decal. This eliminates the need for a roof rack or drilling, simplifying setup and maintaining your van’s appearance.

2. Do I need to purchase the vinyl decal?
It’s optional but highly recommended. The decal protects your van’s paint and provides an ideal surface for adhesion, ensuring a more secure fit and easier removal in the future.

3. Can this solar panel power both my vehicle battery and external devices like a power station?
Yes. The panel can directly charge your vehicle battery or connect to compatible power stations (Jackery, Goal Zero, etc.). Standard connectors are included, and additional adaptors (sold separately) can support different power station inputs.

4. Will I be responsible for import duties if I’m ordering internationally?
Not usually. These panels ship from the US, UK, or Germany, depending on your location, to help you avoid import duties.

5. How does the panel handle harsh weather conditions?
The panel uses specialized materials and advanced construction methods for durability in extreme environments—withstanding high winds, heavy snow, hail, and typical off-road debris.

6. Does the panel reduce glare while driving?
Yes. Its premium ETFE surface helps minimize glare, improving your driving visibility and overall safety.

7. Is there a warranty included?
Absolutely. Each 80W Hood Solar Panel is covered by a 24-month workmanship warranty, ensuring peace of mind and protection against manufacturing defects.

8. What is the advantage of using the optional 10A Waterproof MPPT Solar Controller?
The MPPT controller maximizes charging efficiency for different battery types—Gel, AGM, Flooded, Lithium, etc.—and safeguards against risks like reverse polarity or overcharging. It also offers plug-and-play wiring for a hassle-free setup.
