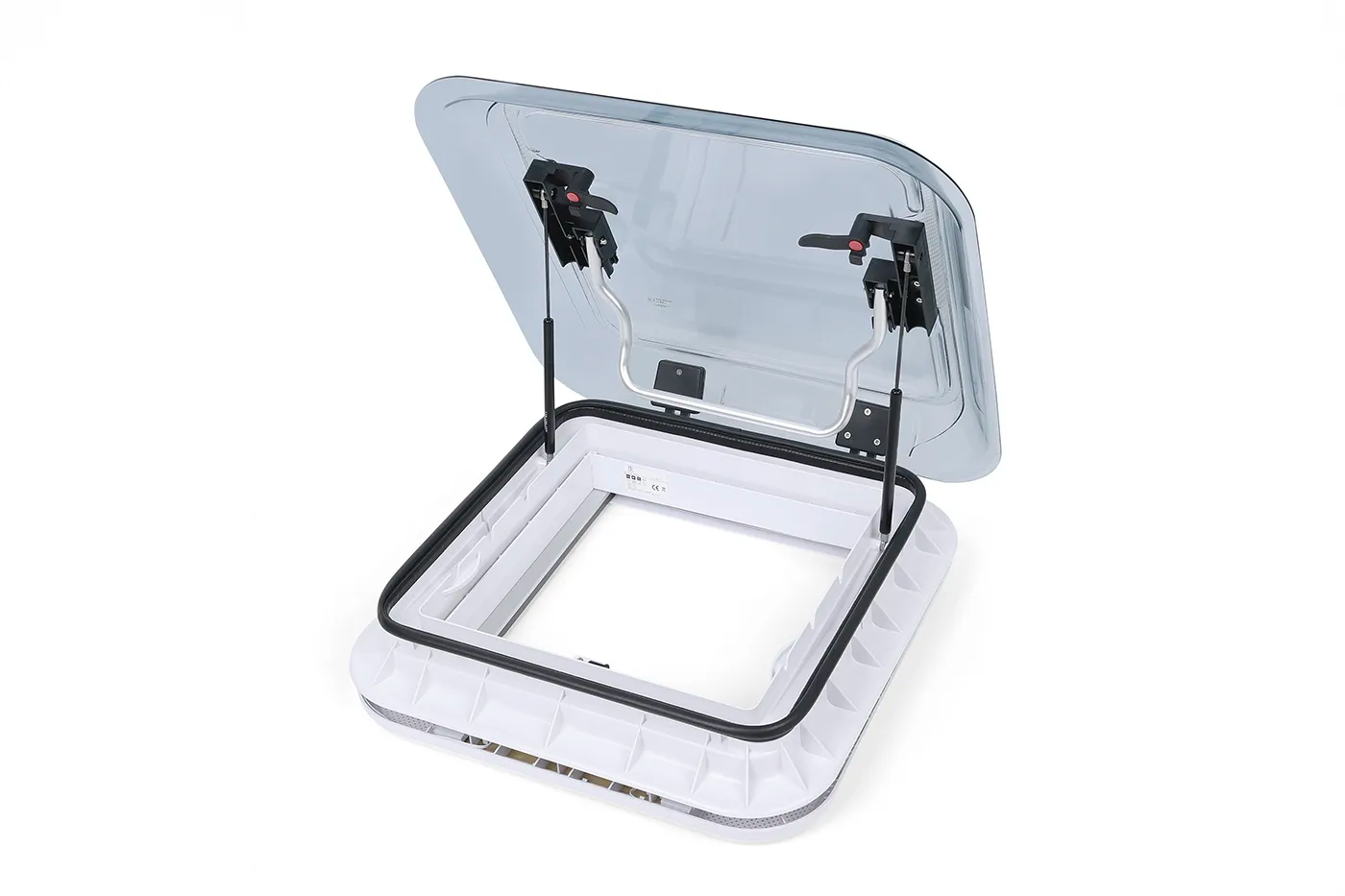

• NomadicArk 450 x 400 van and RV skylight roof hatch shown open on a white background

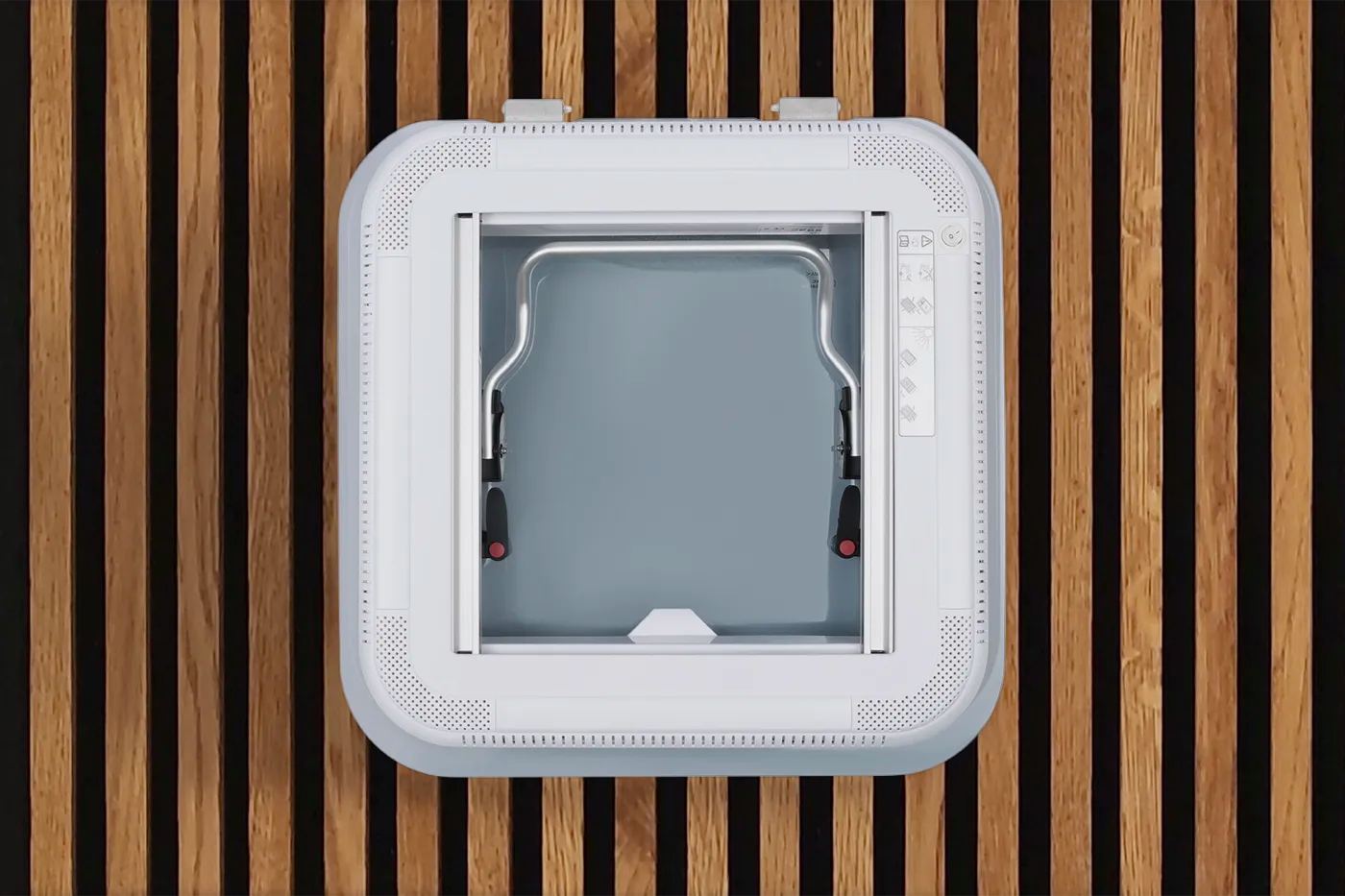

  • Interior view of the NomadicArk 450 x 400 van and RV skylight showing LED lights, handles, blind, and bug screen installed on wood slats on van ceiling

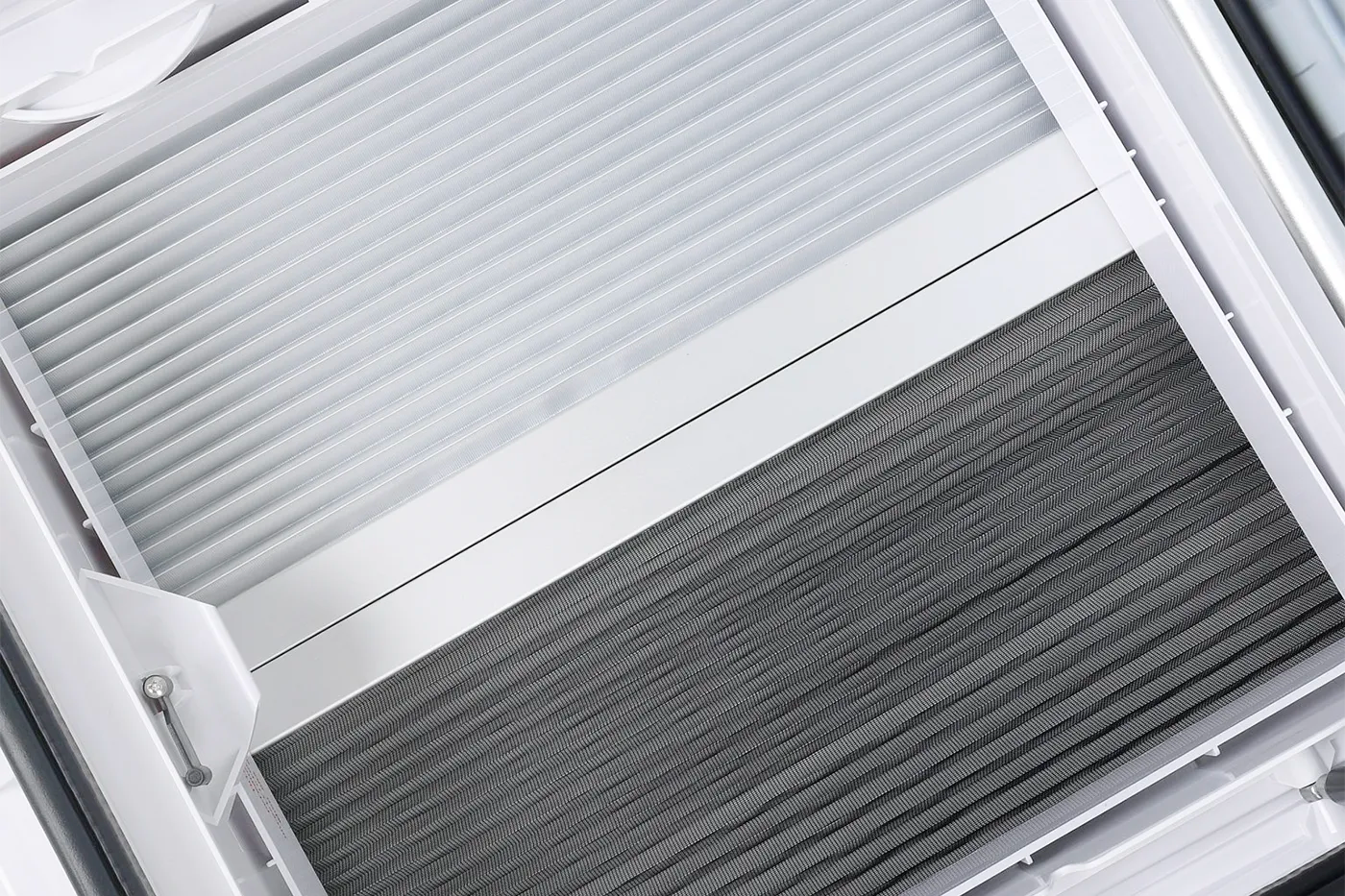

  • Close up of the NomadicArk 450 x 400 van and RV skylight with pleated blind and bug screen partially closed

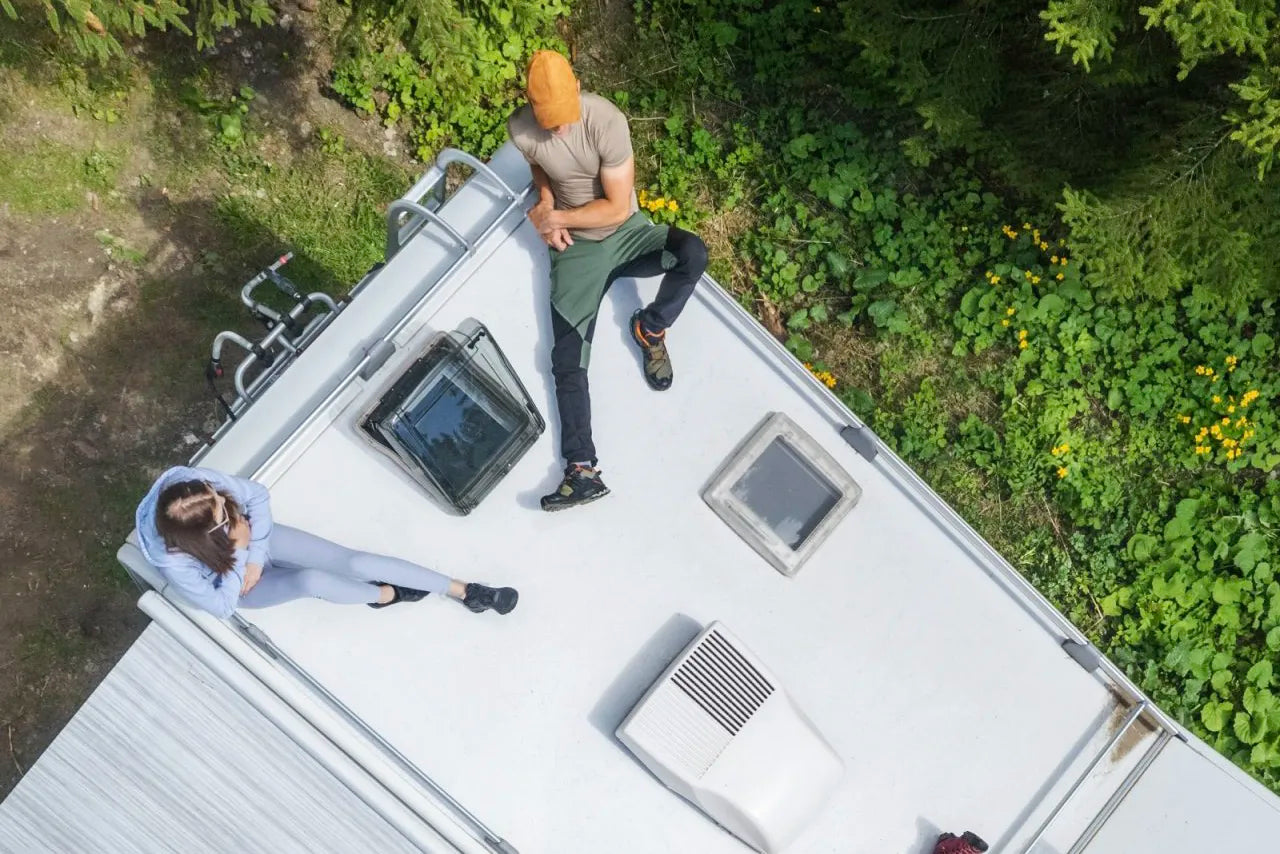

  • Aerial view of an RV roof with skylights installed, showing a camper setup with people relaxing outside

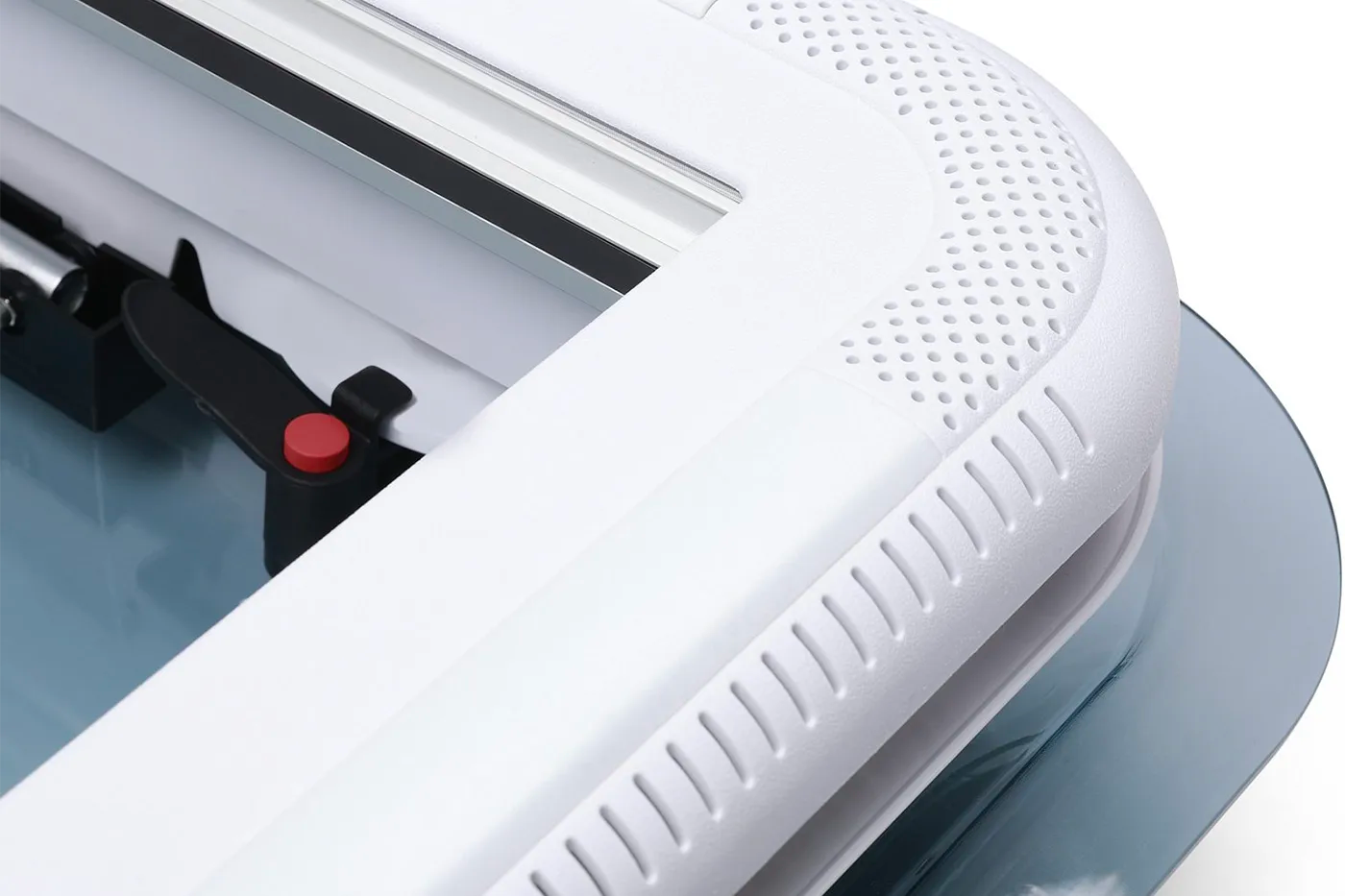

  • Close up of the NomadicArk 450 x 400 van and RV skylight frame showing integrated ventilation detail

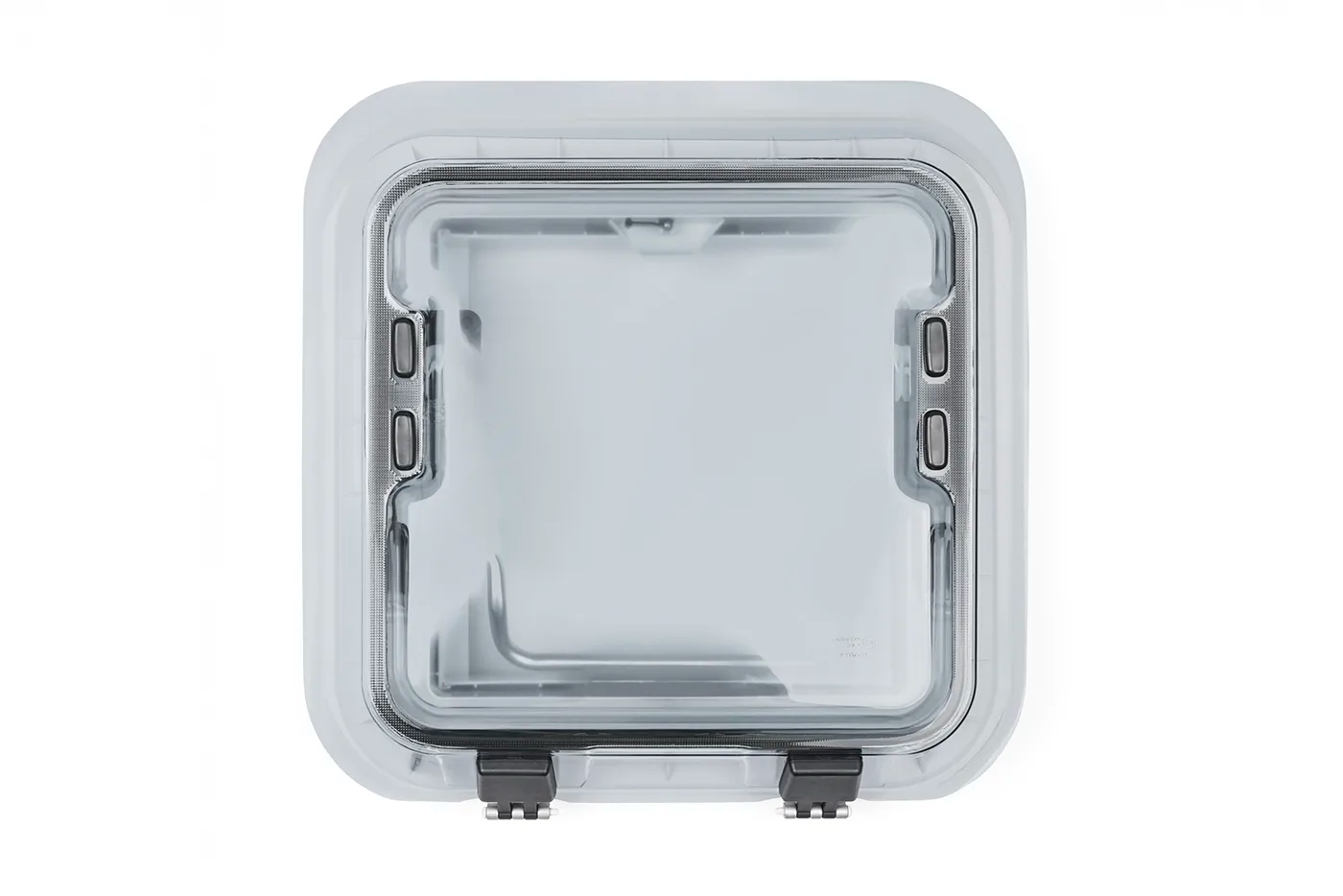

  • Top view of the NomadicArk 450 x 400 van and RV skylight roof hatch shown closed

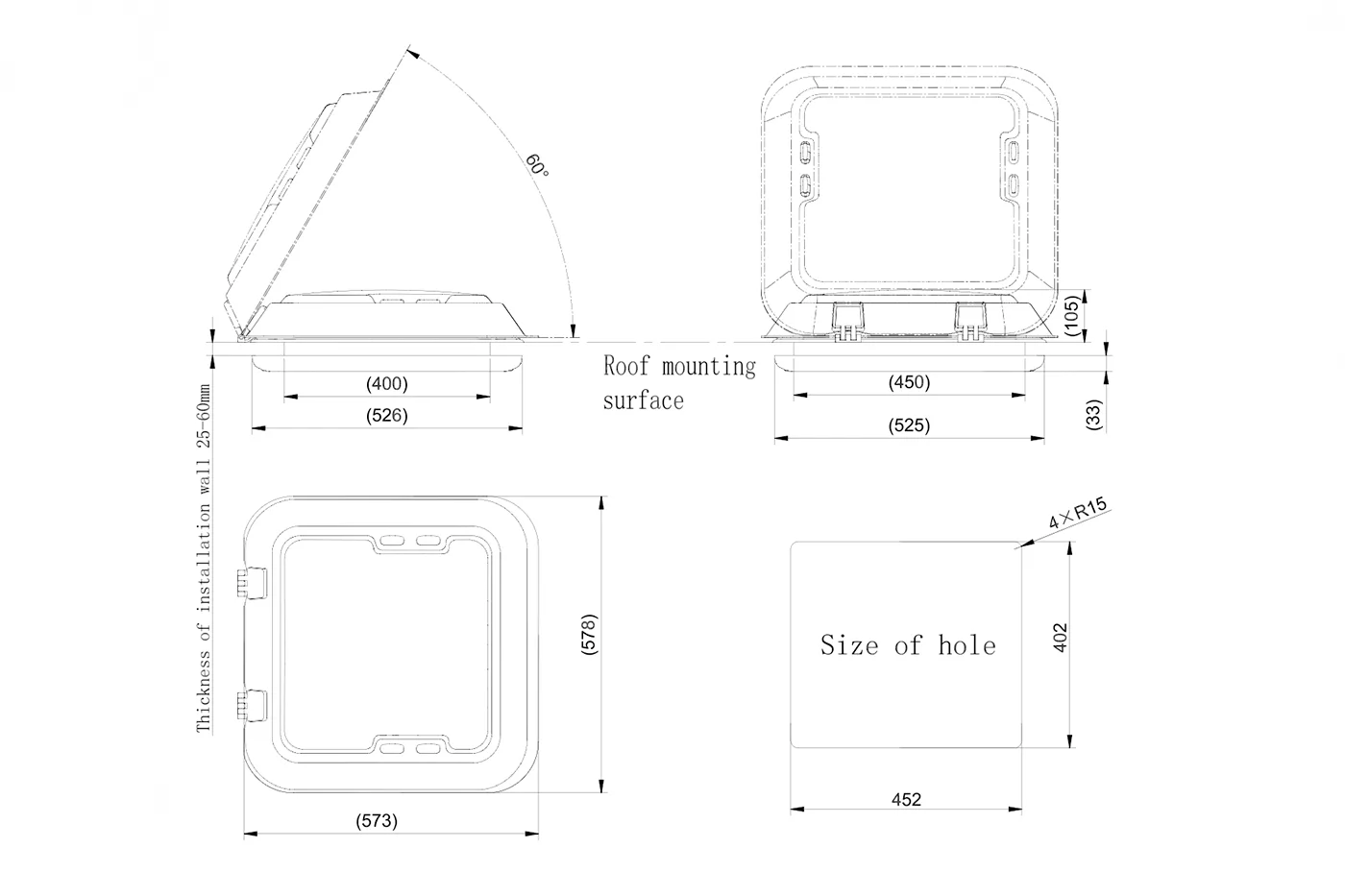

  • NomadicArk 450 x 400 hatch specs and dimensions

NomadicArk 450 x 400 Van and RV Skylight Roof Hatch with LED Lights, Blind, and Bug Screen

$479.00 USD
$479.00 USD
SOLD OUT

Overview

The NomadicArk 450 x 400 Van and RV Skylight Roof Hatch is a premium opening roof hatch for vans, campers, and motorhomes. It is designed to add natural light, ventilation, and an integrated comfort package to a compact roof opening. This skylight includes gas strut assisted operation, integrated 12V DC LED lighting, a double glazed acrylic dome top, an ASA frame, a pleated blind, and a bug screen. It is a strong fit for van conversions, RV upgrades, camper builds, and other mobile living spaces where roof light, airflow, and interior shade control are important.

Important Info

This skylight is commonly referred to as a 450 x 400 model. That size refers to the nominal roof opening class. The cutout size is 452 x 402 mm, approximately 17.8 x 15.8 in, while the exterior footprint is approximately 573 x 578 mm, or 22.6 x 22.8 in.

Key Features

  • Gas struts assist opening and closing
  • Integrated 12V DC LED lighting with adjustable brightness
  • Double glazed acrylic dome top
  • Long life ASA inner and outer frame material
  • Integrated ventilation for improved interior airflow
  • Maximum opening angle of 60 degrees
  • Pleated blind and bug screen included
  • E marked and DOT certified

Technical Specs

Product Specs

Spec Details
Brand NomadicArk
Manual Cutout Size 452 x 402 mm, approximately 17.8 x 15.8 in
Exterior Footprint 573 x 578 mm, approximately 22.6 x 22.8 in
Raised Top Size Shown 450 x 400 mm, approximately 17.7 x 15.7 in
Closed Height 105 mm, approximately 4.1 in
Below Roof Depth Shown 33 mm, approximately 1.3 in
Installation Thickness 25 to 60 mm, approximately 1 to 2.4 in
Corner Radius for Cutout R15 mm, approximately R0.6 in
Input Voltage 12V DC
Maximum Opening Angle 60 degrees
Frame Material ASA
Dome Material Double glazed acrylic
Color White
Blind Pleated blackout blind included
Screen Pleated fly screen included
Operation Manual opening with gas struts
Net Weight 7 kg, approximately 15.4 lb

Installation Notes

Spec Details
Sealant Not included
Included Hardware 4 small installation blocks, 8 ST3.5 x 30 cross pan head screws, 8 ST4 x 12 cross large pan head screws, and instruction manual
Warranty One year manufacturer warranty

Resources and Downloads

Frequently Asked Questions (click to expand)

1. What size opening does this skylight fit?

This is the 450 x 400 size class. The cutout size as 452 x 402 mm, approximately 17.8 x 15.8 in.

2. Is 450 x 400 the outside size?

No. The 450 x 400 name is the nominal size class. The manual drawing shows the exterior footprint as approximately 573 x 578 mm, or 22.6 x 22.8 in.

3. Does this version include LED lights?

Yes. This listing is for the LED version with integrated 12V DC LED lighting.

4. Does it include a blind and bug screen?

Yes, includes a pleated blackout blind and bug screen as standard.

5. Does the skylight open?

Yes. It opens manually and uses gas struts to help support opening and closing. The maximum opening angle is listed as 60 degrees.

6. What roof thickness does it support?

The listed installation thickness range is 25 to 60 mm, approximately 1 to 2.4 in.

7. Can it be opened while driving?

No. The manual says to close the roof window before driving and not to open it while driving.

8. Can it be used in bad weather?

The manual says not to open the roof window in strong winds or under heavy rain, and to close it in bad weather such as rain and snow.

9. Is sealant included?

No. Sealant is not included. The manual references applying sealant during installation, but it is not shown in the packing list.

10. What is the warranty?

A one year manufacturer warranty.
