Promaster Roof Deck Brackets

Name: Promaster Roof Deck Brackets
Brand: Orion Van Gear
SKU: DK-BRK
Price: 69.0 USD
Availability: InStock

$69.00 USD

~~$89.00 USD~~ $69.00 USD

SAVE 22% SOLD OUT

Quantity

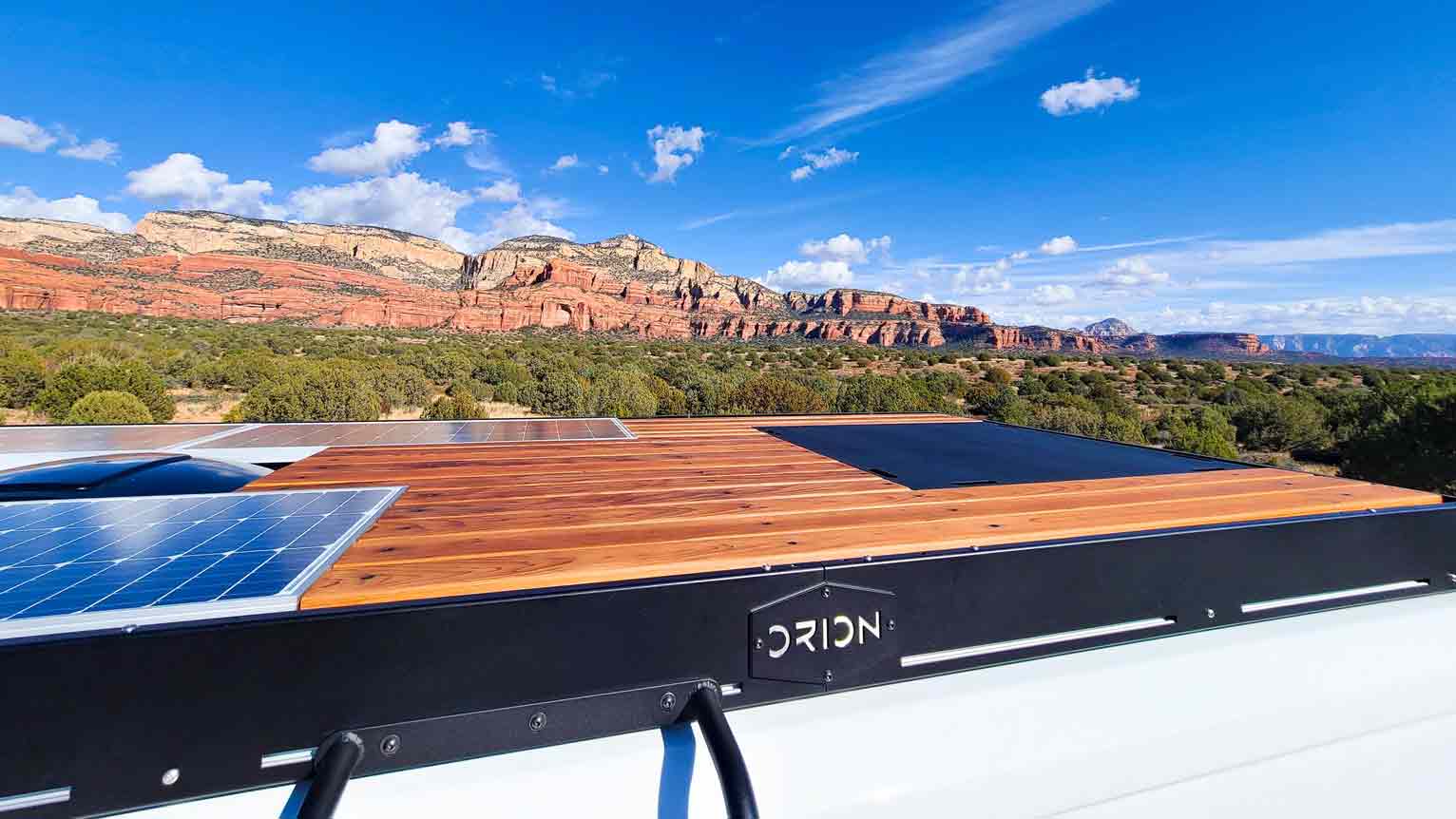

It's never been easier to add a roof deck to your adventure van.

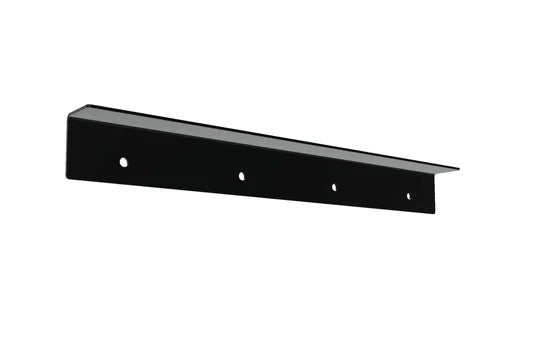

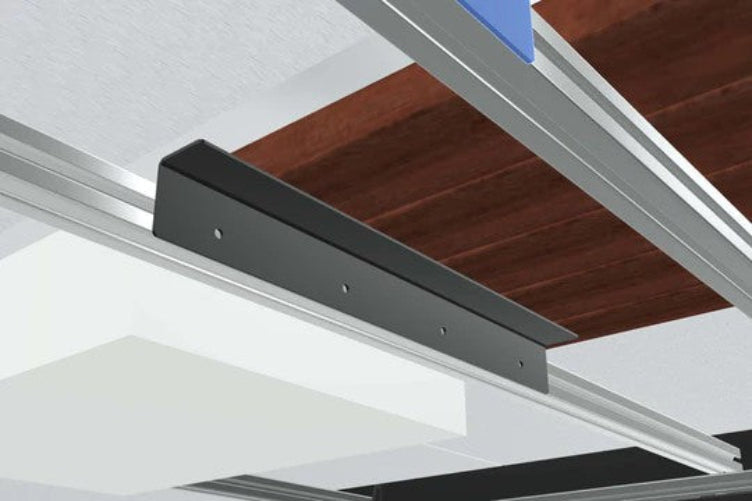

Designed specifically for the Promaster Stealth+ Roof Rack, these deck brackets mount directly to the crossbars with included hardware. They are designed to be used with nominal 2x4 and 2x6 lumber so that the decking will sit flush with the top edge of our promaster rack. Combine with our Flush Mount Solar Brackets to create a completely flush roof profile that reduces drag and potential shading on solar panels.

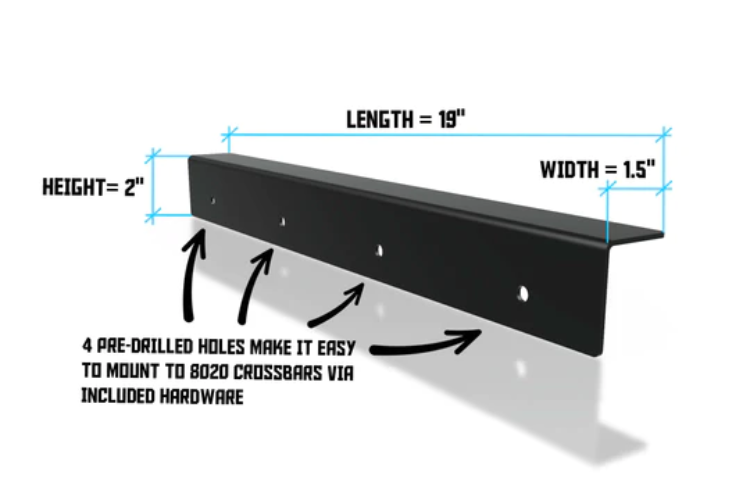

Dimensions: 19" Length x 2" Width x 1.5" Depth (see diagram)
3 Brackets fit width-wise across our promaster rack: allows for custom decking around roof accessories like fans, vents, and air conditioners
Made out of aluminum
UV-resistant powder coating

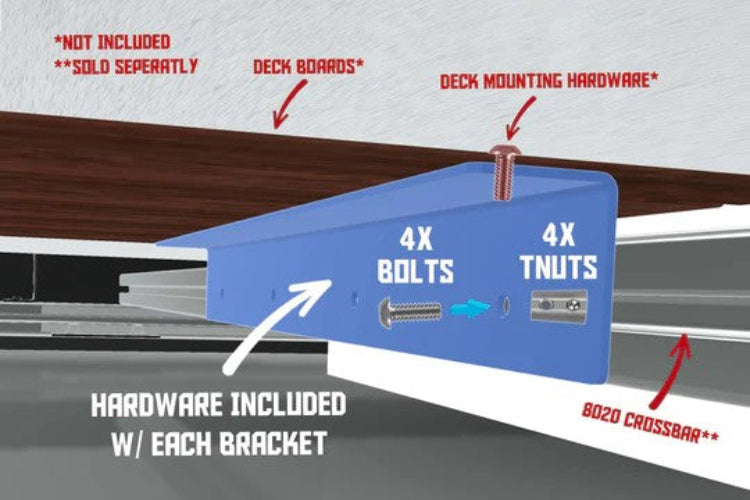

Includes hardware to attach each deck bracket to 8020 *Does not include hardware to attach decking material to brackets
Easy DIY installation
Proudly Made in Oregon
FREE SHIPPING to the lower 48 states

Tips for determining how many deck brackets are needed:

3x brackets stretch the full width of one Stealth+ Crossbar*

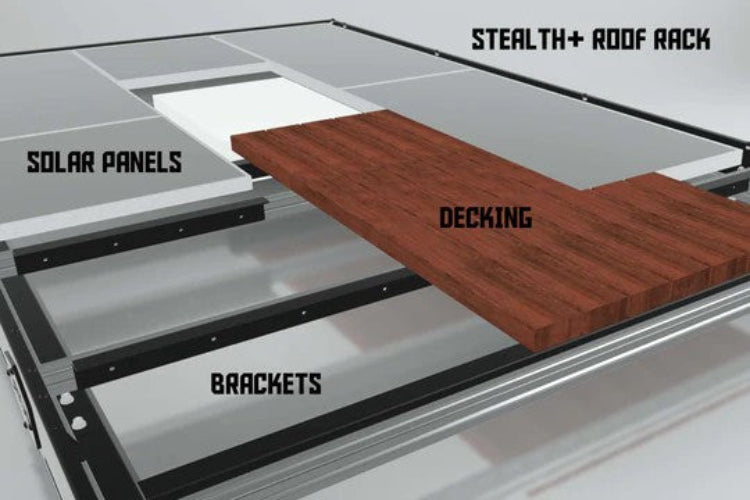

Brackets should be placed everywhere a crossbar supports decking material. (Example: To create a full-width, full-length deck platform on a 159" Stealth+ Rack with no solar, no fans, and no air-conditioners, you would need 5 sets of these deck brackets.)

Please request a CAD-verified roof layout for help determining the correct number of brackets needed for your roof configuration.

*Crossbars not included (extras should be ordered at the time of rack purchase)

Get a CAD-Verified Roof Layout

We understand that every van setup is unique. That's why we offer CAD-verified roof layouts for customers who have purchased or plan to purchase an Orion roof rack - so you can maximize space and fit exactly what you need, where you need it. Request a layout here ›
