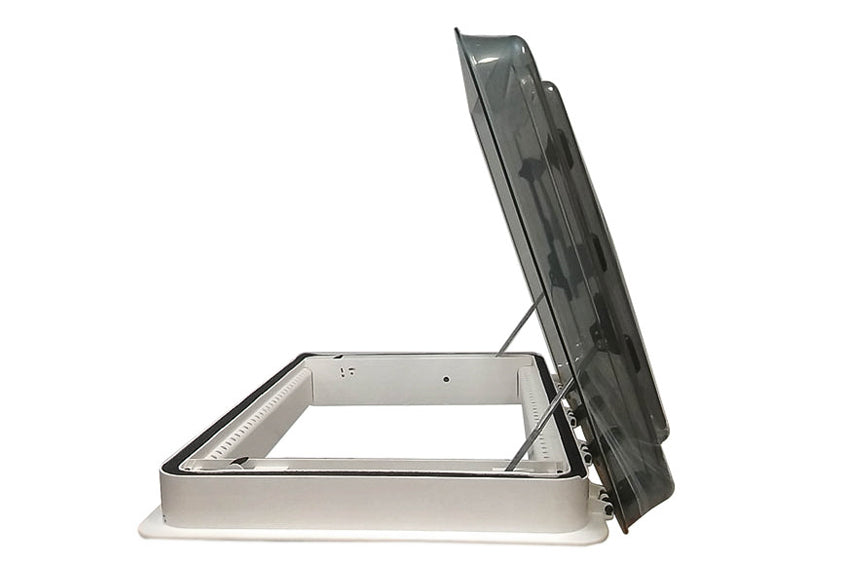

• Arctic Tern Electric Roof Hatch, featuring a double-glazed dome with smoke-colored tint, integrated LED lights, and a retractable fly screen and blackout blind. The hatch is open, showing its electric operation capabilities, and the sleek design that enhances both ventilation and natural light inside the vehicle.

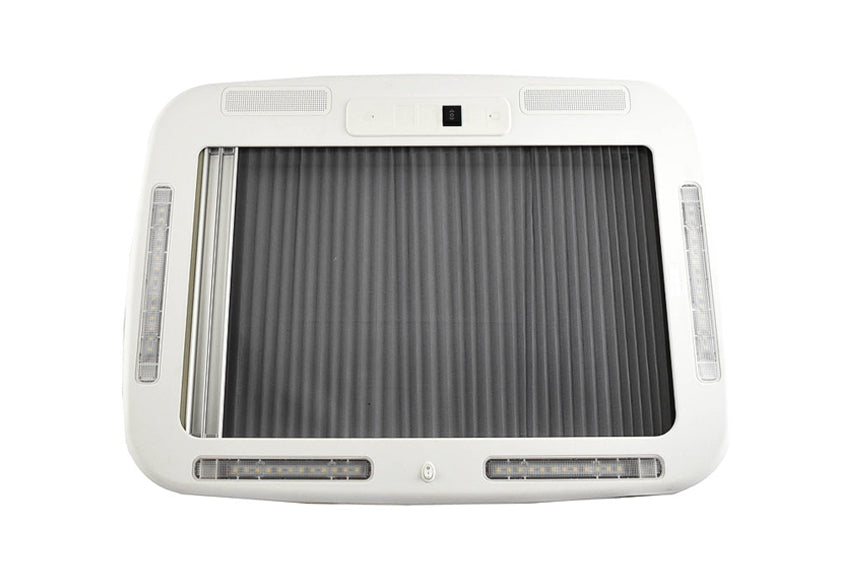

  • Internal components of the Arctic Tern Electric Roof Hatch, showcasing integrated 12V LED lights, and closed retractable fly screen and blackout blind.

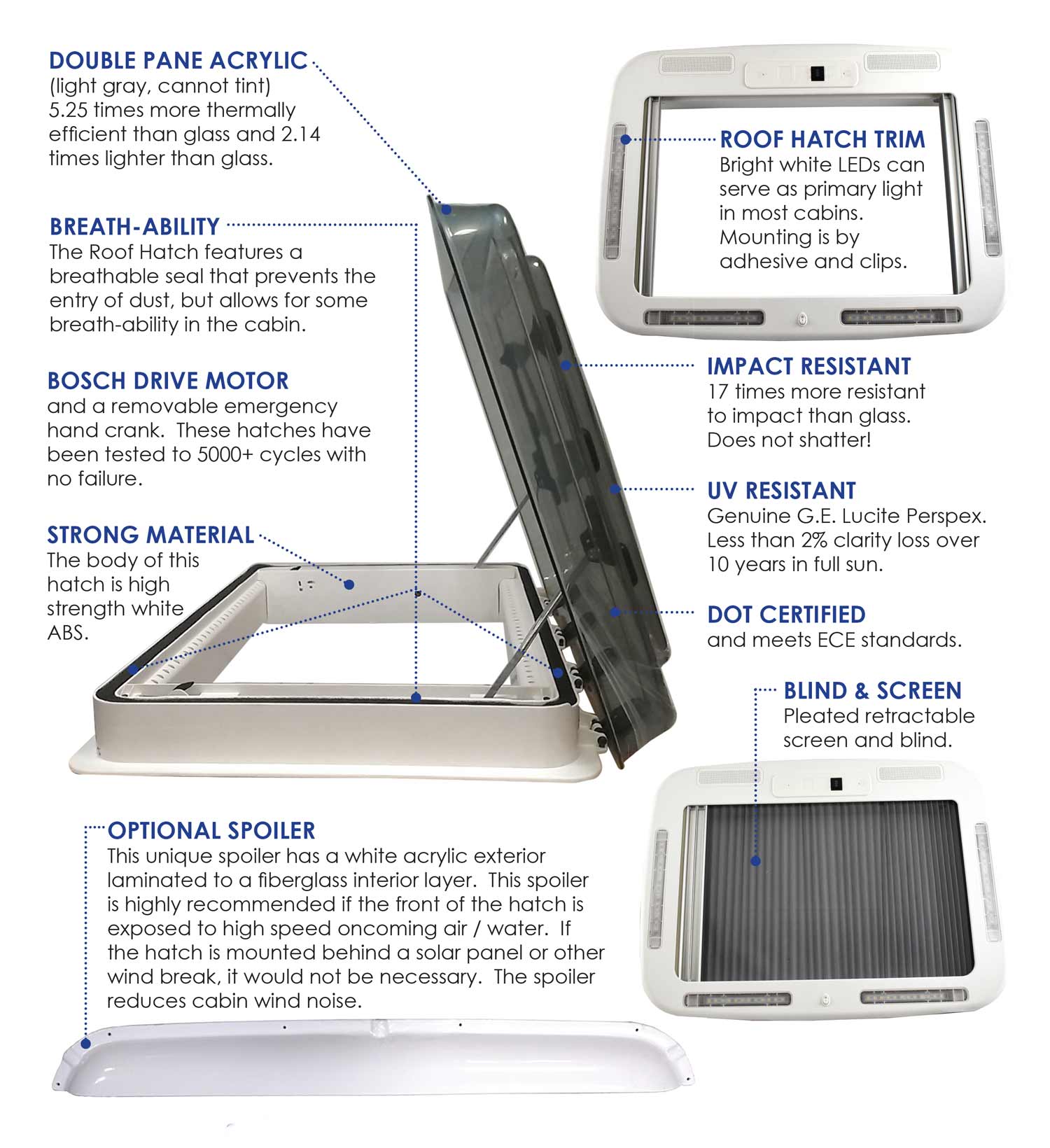

  • Arctic Tern Electric Roof Hatch Features

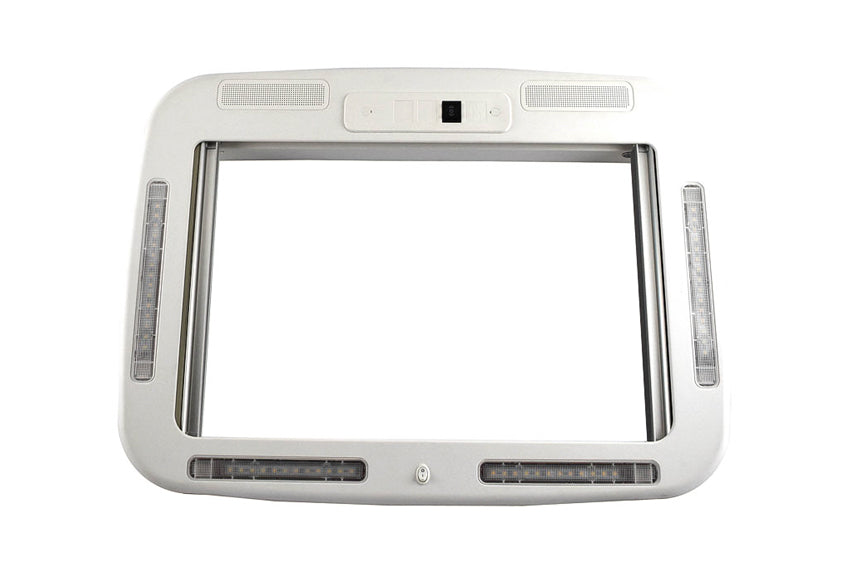

  • Internal components of the Arctic Tern Electric Roof Hatch, highlighting the integrated 12V LED lights and high-strength construction.

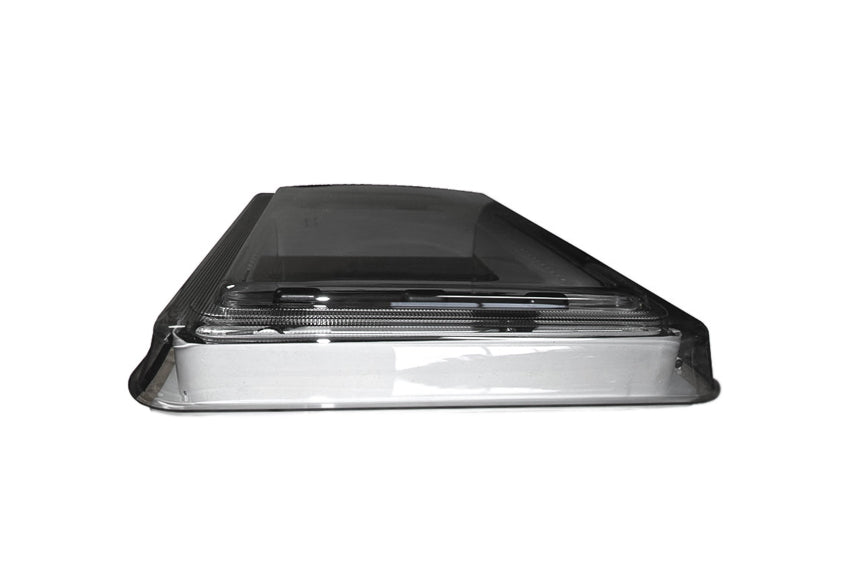

  • Closed Arctic Tern Electric Roof Hatch with a sleek, low-profile design perfect for vans

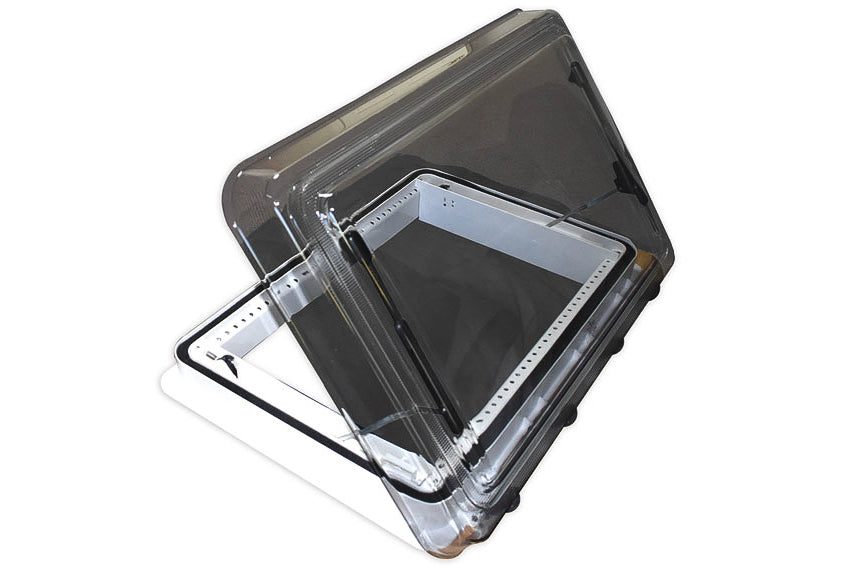

  • Arctic Tern Electric Roof Hatch Open from above showing insulated lid

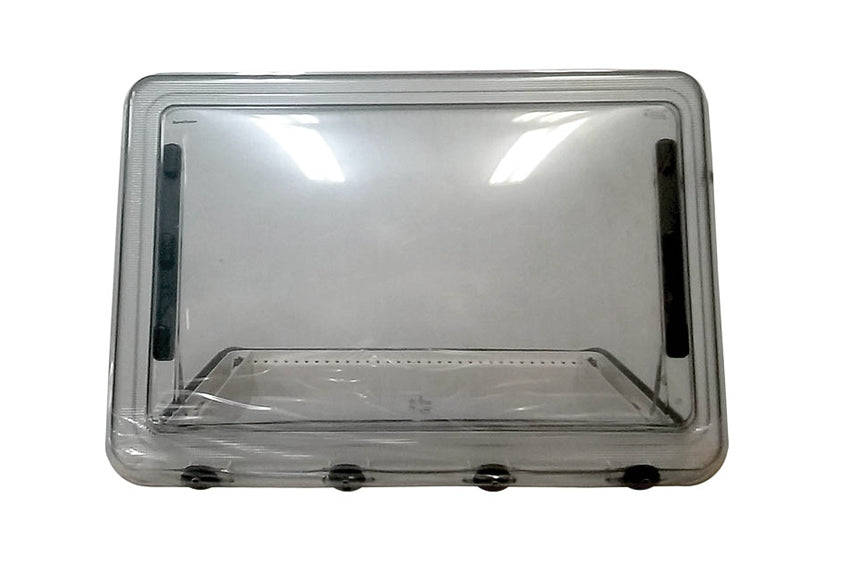

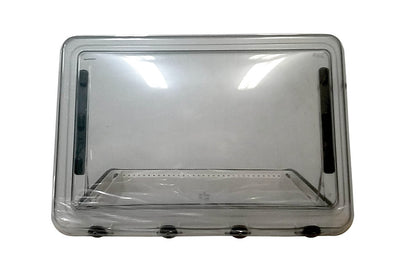

  • Tern Overland Electric roof hatch open

Arctic Tern Electric Roof Hatch - High-Performance Ventilation

$1,699.00 USD
$1,699.00 USD
SOLD OUT

Experience superior ventilation and comfort with the Arctic Tern Electric Roof Hatch, a high-quality, European-made skylight designed for camper vans and motorhomes. This versatile roof hatch serves as both a skylight and an electric roof vent, featuring a durable Bosch motor tested for over 5000 cycles. Enhance your van and RV living with fresh air and natural light, all at the touch of a button.

This hatch also pairs with an optional spoiler, only recommended if your hatch is mounted at the front of your vehicle's roof, and not behind a rack, solar panel or other windbreak. The fiberglass spoiler is laminated with smooth white acrylic, and mounted with 3M high-strength tape and rivets.

FEATURES:

  • Electric Operation: Easily open and close the hatch with a Bosch electric motor, providing seamless and reliable operation.
  • Versatile Design: Functions as both a skylight and a roof hatch, perfect for ventilation and daylight.
  • High-Quality Construction: Made from high-strength injection-molded ABS plastic, meeting ECE standards for UV and impact resistance (DOT certified).
  • Impact Resistance: 17 times more resistant to impact than glass and does not shatter.
  • UV Resistant: Made from genuine G.E. Lucite Perspex with less than 2% clarity loss over 10 years in full sun.
  • Double-Glazed Dome: The smoke-colored acrylic dome opens up to 45°, preventing water penetration and providing excellent insulation.
  • Integrated LED Lighting: Four bright 12VDC LED lights illuminate your RV interior.
  • Breathability: Features a breathable seal that prevents dust entry while allowing for cabin ventilation.
  • Retractable Covers: Includes a sliding combination blackout blind and fly screen for versatile interior covering.
  • Custom Fit: Available in multiple sizes to fit varying roof thicknesses (30-84mm).
  • Limited 1-year warranty.
  • Free Shipping across the lower 48 states.

SPECIFICATIONS:

  • Outer Dimensions: 33.58" W x 23.35" L (593mm x 853mm)
  • Total Length Required to Open Lid: 25.5" L
  • Interior Dimensions: 31.65" W x 23.62" L (600mm x 804mm)
  • Cut-Out Dimensions: 19.7" W x 27.6" L (500mm x 700mm)
  • Roof Clearance: Sits ~5" above the roof and ~1" below the ceiling
  • Material: High-strength injection-molded ABS plastic
  • Weight: 26 lbs (11.8 kg)
  • Voltage: 12V DC (requires power for lights/motor)
  • Operation: Electric push-button control

BENEFITS:

  • Optimal Comfort: Ensures excellent airflow and natural light, enhancing the comfort of your RV interior.
  • Energy Efficiency: The double-glazed dome provides superior insulation, reducing energy consumption for heating and cooling.
  • Convenience: The electric motor allows for effortless operation via the touch of a button, and the integrated lighting adds functionality.

INSTALLATION:

  • Roof Compatibility: Fits roof thicknesses from 30-69mm with an optional Expansion ring for roofs 70-84mm.
  • Optional Spoiler: An optional fiberglass spoiler is available for front-mounted installations to reduce wind resistance. (not needed if using a roof rack).
  • All roof hatches come with hardware for 84mm roofs. Screws must be cut to length before installation.
  • A completely flat frame must be created to support the hatch (for example, Impact Products makes an adapter for this skylight).
  • Roofs must be a minimum of 1-3/16” (30mm) thick.
  • 1 Tube of Polyurethane Adhesive is recommended for installation.
  • If installation instructions are not followed correctly, the warranty will be void.

WHAT'S INCLUDED:

Why Choose the Arctic Tern Electric Roof Hatch?

The Arctic Tern Electric Roof Hatch stands out for its innovative design, durability, and superior functionality. It is the perfect addition for van & RV owners looking to upgrade their ventilation system with a reliable, easy-to-use, and efficient solution. Enjoy enhanced comfort and convenience on all your journeys with this top-tier roof hatch.

Get a CAD-Verified Roof Layout

We understand that every van setup is unique. That's why we offer CAD-verified roof layouts for customers who have purchased or plan to purchase an Orion roof rack - so you can maximize space and fit exactly what you need, where you need it. Request a layout here ›
