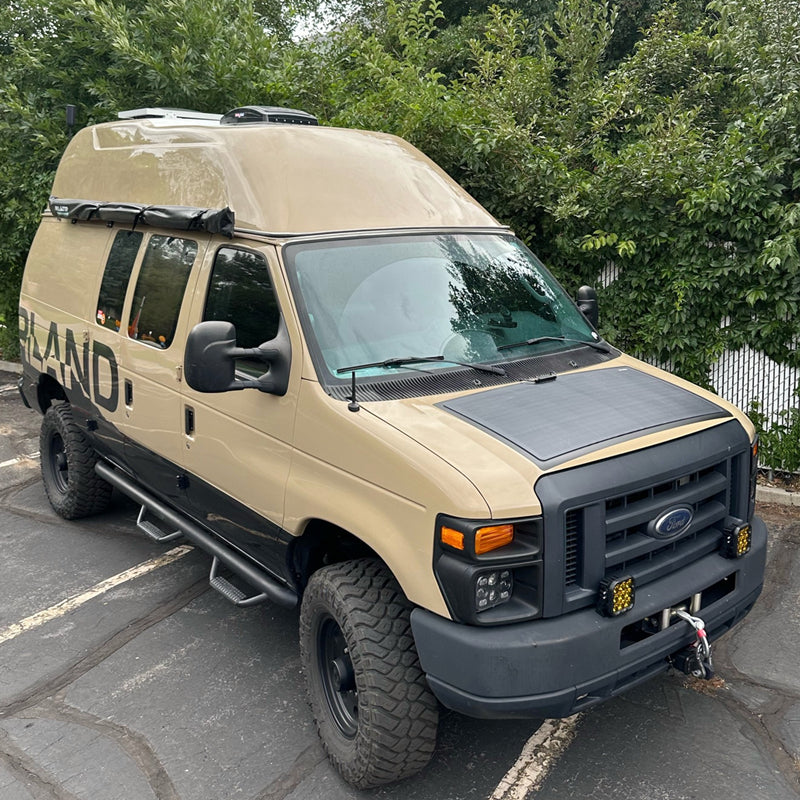

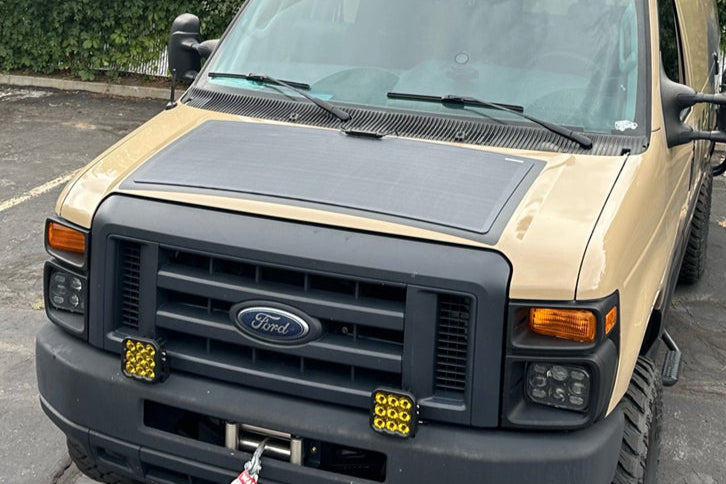

Take your off-grid adventures to the next level with this hood-mounted, flexible solar panel designed specifically for Ford E250, E350, and E450 vans (2008–present). By harnessing sunlight during the day, it keeps your vehicle battery, leisure battery, or portable power station (Jackery, Goal Zero, etc.) reliably charged, so you never have to worry about a dead battery or running your engine just to power essentials like fridges, dash cams, and lighting.

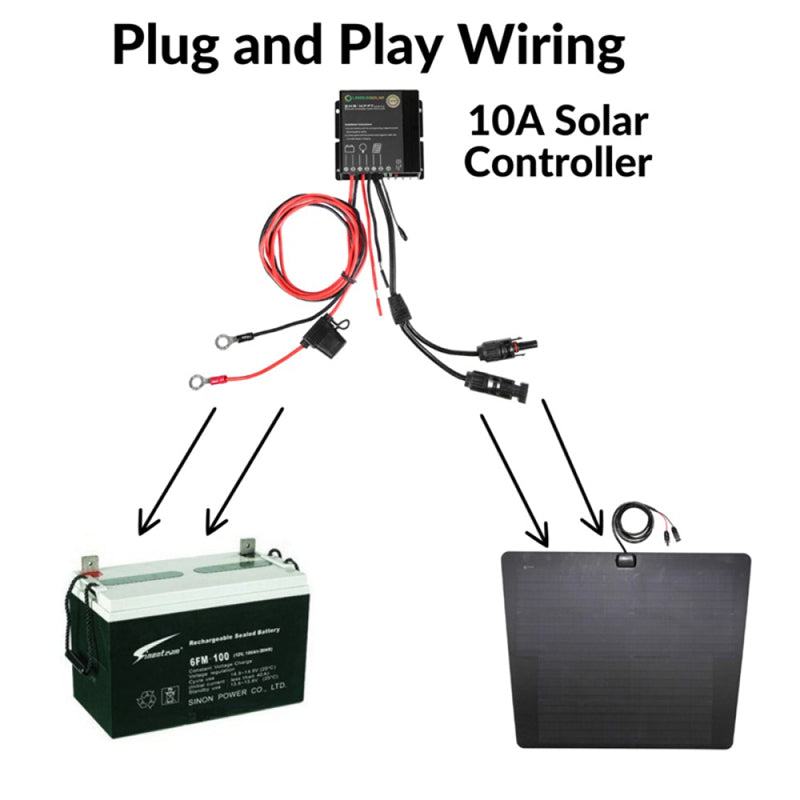

Crafted using cutting-edge technology and special materials, the new panel is built to withstand harsh weather conditions including high winds, heavy snow, and hail while remaining virtually maintenance-free. Its form-fitting design makes installation a breeze with simple plug-and-play wiring. Plus, every panel is backed by a 24-month workmanship warranty, giving you peace of mind on all your journeys.
Peak power: 110WSolar cell efficiency: 25%Maximum power voltage: 19.6VMaximum power current: 5.61AOpen circuit voltage: 21.56VShort circuit current: 6.17APower allowance range: +/-3%Maximum system voltage: 500VNet Weight: 2.5kg/5.5 lbsJ-Box: IP 68 rated with 1.5m/5ft cables
Battery Type: Gel, AGM, Liquid, Lithium, FloodedSystem Voltage: 12VMax Charging Current: 10AMax Input Solar Panel: 130WMax Volt on Bat. Terminal: 25VMax volt on PV Terminal: 45VCommunication: BluetoothMax Tracking Efficiency: 99.9%Max Charging Conversion: 96.5%Self Consumption: 6mACharging Voltage Target: 10-17V(Programmable, Lithuim)Charging Voltage Recovery: 9.2-16.8V(Programmable, Lithuim)Low Voltage Disconnect: 10.8-11.8V; SOC1-5(Programmable, Liquid/GEL/AGM) 9-15V(Programmable, Lithuim)Low Voltage Reconnect: 11.4-12.8V (Programmable, Liquid/GEL/AGM) 9.6-16V(Programmable, Lithuim)Dimensions: 3.4x3.2x0.9inch/86x81x23mmWeight: 350g/0.8lbsMaximum Terminals Wire Size: 10AWG(4mm²) Wire Lengths: The length of the cable connecting the solar panel is 15.7 inches, the cable connecting the vehicle battery is 59 inches.
1 x 110w hood solar panel
1 x vinyl decal 1 x 10A waterproof mppt solar controller
1. How does the 110W Flexible Solar Panel attach to the hood?The panel mounts directly to your vehicle’s hood using adhesive or an optional custom-fitted vinyl decal for added protection. This design eliminates the need for a roof rack or specialized hardware, making installation quick and hassle-free.
2. Can this solar panel charge both the main vehicle battery and a separate power station?Yes. You can connect the panel to your van’s primary battery or to a portable power station (like Jackery, Goal Zero, etc.). Standard connectors are included, and you can purchase separate adapters to fit specific power stations.
3. Is a vinyl decal necessary for installation?A vinyl decal isn’t required, but it’s highly recommended. It protects your vehicle’s paint from potential wear over time, provides a reliable surface for the adhesive, and makes any future removal simpler.
4. Will I have to pay import duties when ordering internationally?In most cases, no. These panels ship free from the US, UK, or Germany, depending on your location, so you generally won’t be charged import duties.
5. Does the panel work well in extreme weather conditions?Absolutely. The panel is built with durable materials that withstand high winds, heavy snow, hail, and off-road debris, ensuring long-lasting performance in diverse climates.
6. Can I use the 10A MPPT Solar Controller with different battery types?Yes. The optional MPPT controller supports Gel, AGM, Flooded, Lithium, and more. It maximizes charging efficiency and safeguards your battery against reverse polarity, overcharging, and other potential issues.
7. Will this solar panel reduce glare while driving?Yes. The top-tier ETFE surface is designed to minimize reflections, helping reduce glare on your hood and improving your on-road visibility.
8. How does it improve battery life and reliability?By continuously topping up your battery, the solar panel reduces the risk of deep discharges, extending battery life and lowering the chance of encountering a dead battery when camping or parked for extended periods.
9. Does the panel come with a warranty?Yes. The 110W Flexible Solar Panel includes a 24-month warranty, giving you peace of mind and ensuring that any potential manufacturing defects are covered during that period.
We understand that every van setup is unique. That's why we offer CAD-verified roof layouts for customers who have purchased or plan to purchase an Orion roof rack - so you can maximize space and fit exactly what you need, where you need it. Request a layout here ›
We offer free shipping to the lower 48 states on all products. Orders shipping to Alaska, Hawaii, Canada, or international destinations may have additional shipping charges calculated at checkout or quoted separately. Local pickup is also available at our McMinnville, Oregon warehouse by appointment.
Most purchases can be returned within 30 days of purchase if they are in new, resalable condition with original packaging. A 20% restocking fee applies; return shipping is the customer’s responsibility, and some items are final sale or not eligible for return. For full details, please see our Shipping Policy and Return Policy.
Everything was as advertised, but the vinyl decal was WAY too large. I had to cut nearly an inch off all the way around. When you put them on the hood, they overlapped and looked terrible. I haven’t hooked up the charger yet, but am assuming it will do the trick and keep the chassis battery topped off. Update: Orion refunded me for the vinyl and is contacting the manufacturer. Really happy with their customer service.
Thanks for the honest review and for sharing the photos. We appreciate you sharing as it helped us relay to the manufacturer and make improvements. This issue has been addressed going forward, and all updated units reflect the fix. Let us know if there’s anything else we can do to help.
Fantastic fit and quality
Great product. Used daily in my build— ac fan solar….
Kaiya provided wonderful support for a troublesome panel struggling during a second year of operation -- I could not be more pleased to have chosen Orion for my solar! The Stealth rack & awning are quite sweet as well :). Thanks Orion!
So far so good. Installed on my Sportsmobile converted dodge promaster. Waiting for the rain to see how it does in wet conditions. Once I figured out how to install it was VERY easy. Only ask would be more details on initial installation process since I wasn't sure exactly where to place the track. Once I got it installed and put the fly in the track it was so easy. Excited for how this will work on my pop-top van.
Great products, responsive team!
What can I say? Orion takes great care of their customers. They went out of their way to help me and I appreciate it. I also found out too late that they sell 8020 Roll in nuts. I use the 10 series for my build. The nice thing about Orion‘s 10 series rolling nuts is they have a register on top of the nut that keeps it from twisting in the extrusion. I wish I would’ve known this when I bought all my hardware. I would’ve definitely bought this product from Orion. Check them out.
