60W Hood Solar Panel for Mercedes Sprinter 1st Gen (1996-2006)

60W Flexible Solar Panel for Mercedes-Benz Sprinter 1st Gen Hood (1996-2004)

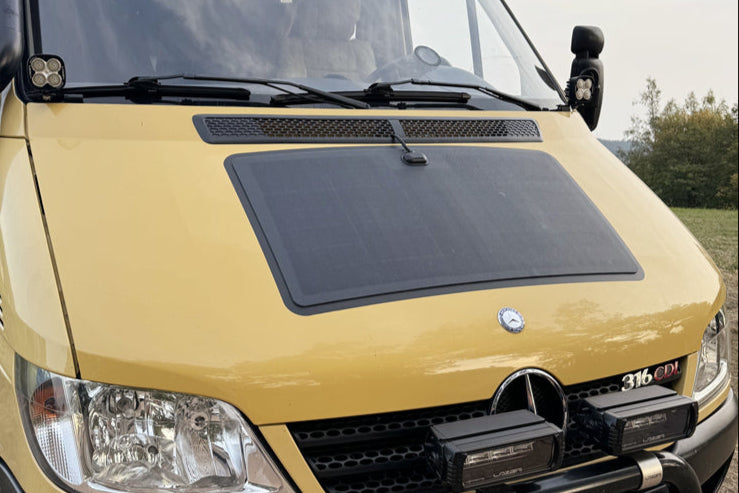

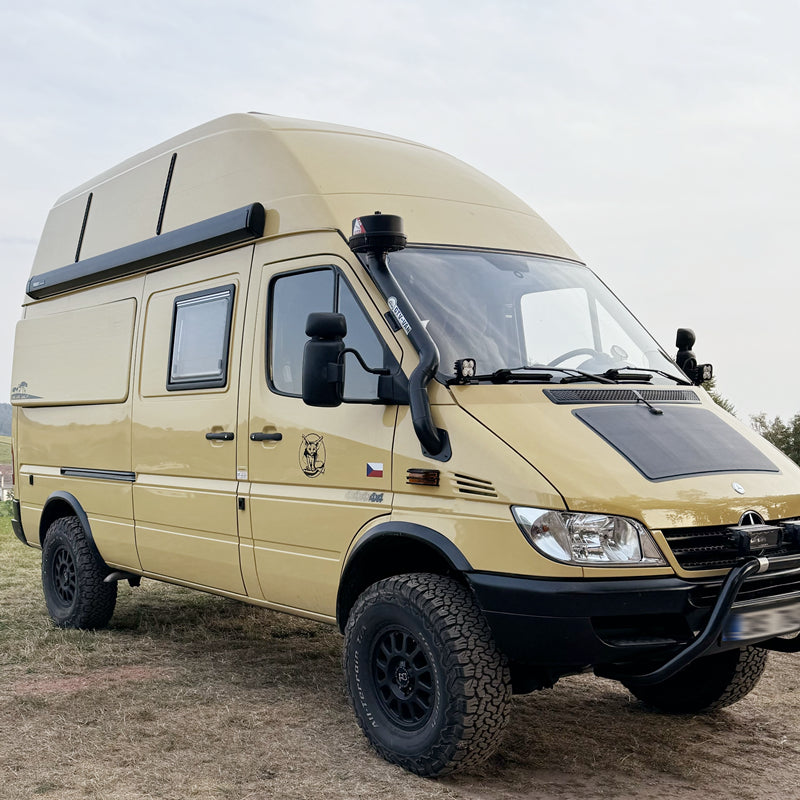

This solar panel mounts to the hood of your van. Charge the vehicle battery, leisure battery, or power station(jackery, goal zero, etc) during daylight. Keep your fridges, dash cam, lighting, phones, etc., charged without starting your engine. Do not worry again about a dead battery while camping/off the grid.

It is perfectly shaped for the 1st gen sprinter hood. Easy to install plug-and-play wiring.

The cutting-edge technology incorporates special materials designed to safeguard the solar cells against extreme weather conditions such as high winds, heavy snow, and hail, guaranteeing the hood flexible solar panels' longevity and maintenance-free operation for years. Covered by a 24-month workmanship warranty.

Solar Panel Benefits:

1. Keep your vehicle or auxiliary battery topped up at all times. It is ideal for overlanders and campers seeking to power devices worry-free without draining their battery.
2. Keep your power station charged. The solar panel comes with standard connectors and uses adaptors (buy separately) to charge for most of the power stations on the market.
3. Decreased hood glare. The Lensun hood flexible solar panel features a top-tier ETFE film surface that eliminates light reflection, reducing glare while driving.
4. Protect and extend battery life. The Batteries usually hit only 60% charge with daily driving, and if parked for 2-3 weeks, starting becomes unreliable, especially in summer. Plus, they degrade within 2-3 years. The Lensun hood flexible solar panel maintains battery charge, tackling these issues.
5. Convenience and space-saving. The hood flexible solar panel attaches directly to the vehicle's hood; no roof rack is needed. Unlike portable solar panels that eat up cargo space with setup and storage, it's a plug-and-play system for easy installation.
6. The optional custom-fitted vinyl decal. A vinyl decal between the solar panel and hood is highly recommended. It protects the vehicle paint from damage.

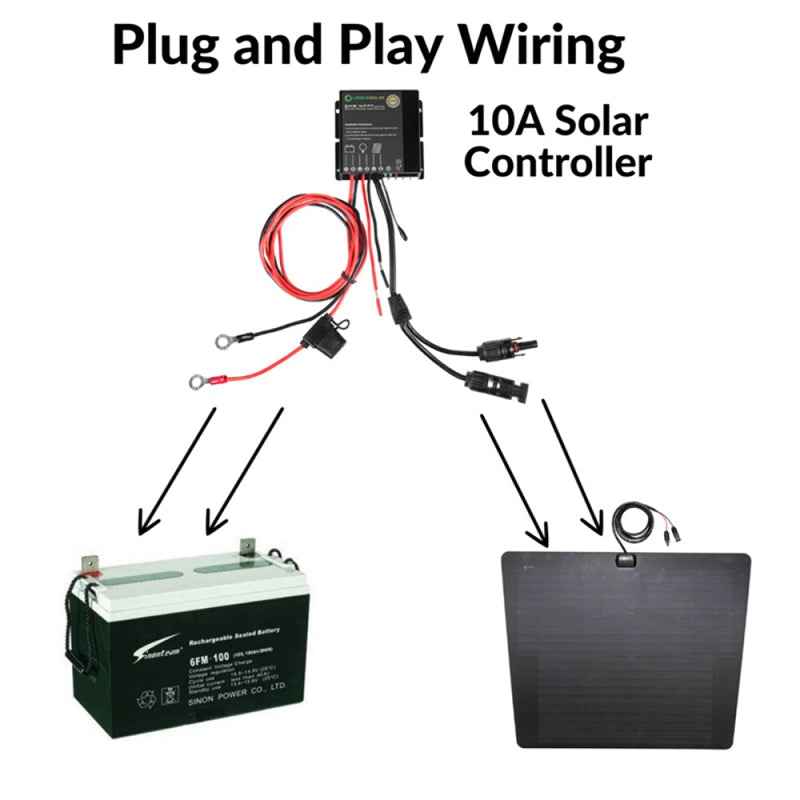

7. Easy to install plug-and-play wiring. The optional Plug-and-play 10A Waterproof MPPT solar controller. It comes pre-wired with fuses, terminals, and connectors. It features advanced MPPT control with intelligent protection against risks like reverse polarity and overcharging. Compatible with Sealed, AGM, Gel, Liquid, and Lithium-ion batteries.
8. Covered by a 24-month workmanship warranty.

Flexible Solar Panel Features:

1. Solar cell: Grade A PERC Monocrystalline solar cells with much higher efficiency and more durability than other mono solar cells.
2. Premium EFTE Film: This film features superior light transmittance and weatherproof performance and is heat, corrosion, and UV resistant.
3. Durability: Cutting-edge tech and robust materials ensure resilience against snow, ice, mud, rocks, etc. Their high durability makes them perfect for off-road vehicles.
4. Ultrathin & Lightweight: At only 3mm/0.12 inches thick, it is lightweight (60% less than conventional solar panels).

Solar Panel Specifications:

Peak power: 60W
Solar cell efficiency: 23.5%
Maximum power voltage: 17V
Maximum power current: 3.52A
Open circuit voltage: 20V
Short circuit current: 3.88A
Power allowance range: +/-3%
Maximum system voltage: 500V
Net Weight: 1.5kg /3.3 lb
J-Box: IP 68 rated with 1.5m/5ft cables

MPPT Specifications:

Battery Type: Gel, AGM, Liquid, Lithium, Flooded
System Voltage: 12V
Max Charging Current: 10A
Max Input Solar Panel: 130W
Max Volt on Bat. Terminal: 25V
Max volt on PV Terminal: 45V
Communication: Bluetooth
Max Tracking Efficiency: 99.9%
Max Charging Conversion: 96.5%
Self Consumption: 6mA
Charging Voltage Target: 10-17V(Programmable, Lithuim)
Charging Voltage Recovery: 9.2-16.8V(Programmable, Lithuim)
Low Voltage Disconnect: 10.8-11.8V; SOC1-5(Programmable, Liquid/GEL/AGM) 9-15V(Programmable, Lithuim)
Low Voltage Reconnect: 11.4-12.8V (Programmable, Liquid/GEL/AGM) 9.6-16V(Programmable, Lithuim)
Dimensions: 3.4x3.2x0.9inch/86x81x23mm
Weight: 350g/0.8lbs
Maximum Terminals Wire Size: 10AWG(4mm²)
Wire Lengths: The length of the cable connecting the solar panel is 15.7 inches, the cable connecting the vehicle battery is 59 inches.

Includes:

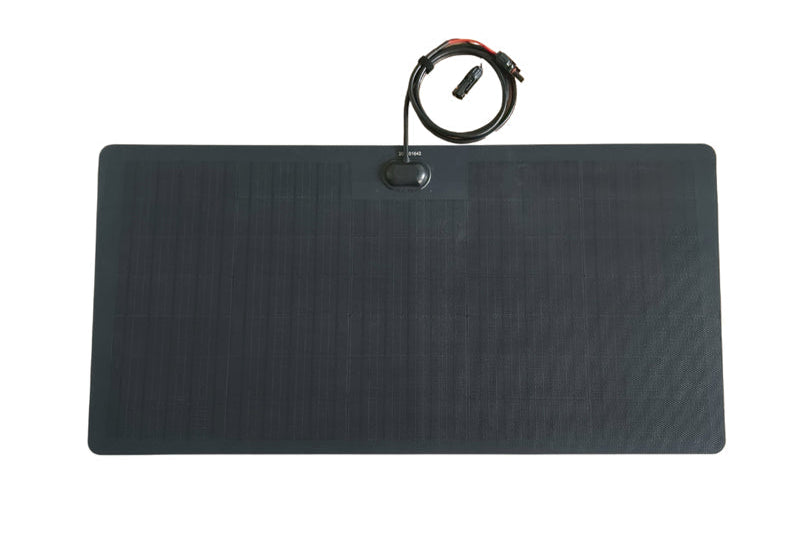

1 x 60w hood solar panel

Optional:

1 x vinyl decal

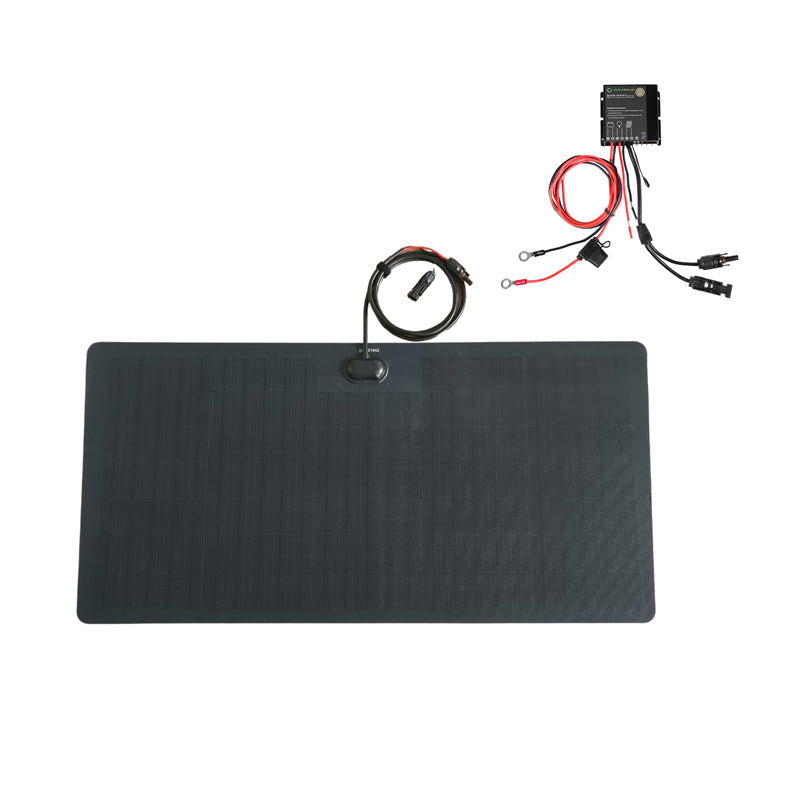

1 x 10A waterproof mppt solar controller

Frequently Asked Questions (FAQ)

1. Will this 60W Flexible Solar Panel fit my 1st Gen (1996-2004) Mercedes-Benz Sprinter hood?
   Yes. This solar panel is specially designed and pre-shaped to fit perfectly on the hood of a 1st Gen Sprinter (1996-2004).

2. How does it charge my batteries or power station?
   The panel can charge the vehicle’s starter battery, an auxiliary (leisure) battery, or a portable power station (e.g., Jackery, Goal Zero) during daylight hours. It comes with standard connectors, and optional adapters are available for different power stations.

3. Why should I install a hood-mounted panel instead of a roof-mounted or portable panel?

   • Space Saving: Mounting on the hood frees up roof space or eliminates the need for a roof rack.
   • Convenience: You don’t need to set up or store portable panels.
   • Reduced Glare: The ETFE film surface significantly cuts down on hood glare.



4. Does it offer protection for my vehicle’s hood paint?
   For paint protection, an optional custom-fitted vinyl decal is recommended. This decal goes between the hood and the solar panel to shield the paint from wear or scratches.

5. Is it durable enough for harsh weather and off-grid travel?
   Yes. The panel uses robust materials and advanced construction to withstand high winds, heavy snow, rain, and hail. It’s suitable for off-road vehicles encountering mud, rocks, and other rough conditions.

6. How does this panel help maintain and extend battery life?

   • The solar panel keeps your starter or auxiliary battery topped up, preventing the deep discharge that can lead to battery degradation.
   • It helps avoid dead batteries when the vehicle is parked for extended periods.
   • Batteries that remain fully charged tend to last longer and perform more reliably.



7. Can I mix different battery sizes or types with this system?
   Yes. The panel is compatible with various battery types (Sealed, AGM, Gel, Liquid, and Lithium-ion) when used with an optional 10A waterproof MPPT solar controller. This controller includes programmable settings to accommodate different battery technologies.

8. What is the benefit of using the optional 10A Waterproof MPPT Controller?

   • Advanced MPPT Technology: Maximizes power generation by tracking the solar array’s maximum power point.
   • Intelligent Protection: Protects against reverse polarity, overcharging, and more.
   • Plug-and-Play: Comes pre-wired with fuses, terminals, and connectors for a straightforward installation.



9. How do I install the solar panel on my Sprinter’s hood?

   • Clean and prepare the hood surface (and decal surface, if using the optional decal).
   • Attach the panel following the instructions provided, ensuring a secure, weatherproof bond.
   • Connect the panel cables to your battery or optional MPPT controller according to the included user manual.



10. What warranty coverage is provided?
    This 60W hood flexible solar panel is covered by a 24-month workmanship warranty, ensuring peace of mind regarding manufacturing defects.

11. What’s included, and what do I need to purchase separately?

• Included: One 60W hood solar panel.
• Optional Add-Ons:
  • Vinyl decal (recommended to protect the vehicle’s paint).
  • 10A waterproof MPPT solar controller (enables charging multiple battery types and provides advanced protections).
