90W Hood Solar Panel for Ford Econoline Van (1992-2008) E150 E250 E350 E450

90W Flexible Hood Solar Panel for Ford Econoline Van (1992-2008) E150 E250 E350 E450

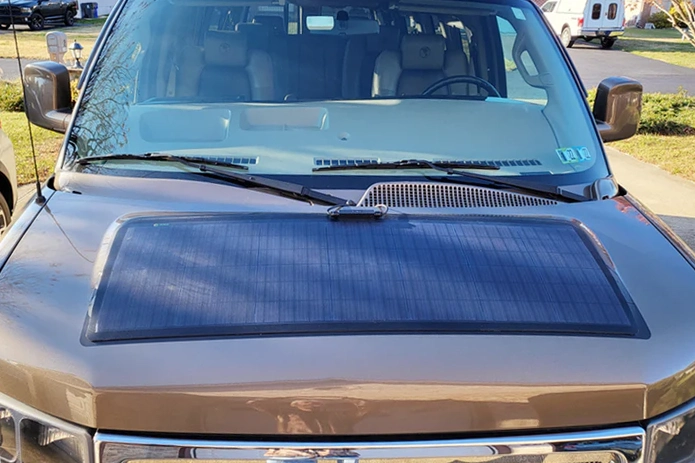

This flexible solar panel mounts to the hood of your van. Charge the vehicle battery, leisure battery, or power station (jackery, Goal Zero, etc) during daylight. Keep your fridges, dash cam, lighting, phones, etc., charged without starting your engine. Do not worry again about a dead battery while camping/off the grid. It is perfectly shaped for the Ford Econoline's Hood. Easy to install plug-and-play wiring.

The cutting-edge technology incorporates special materials designed to safeguard the solar cells against extreme weather conditions such as high winds, heavy snow, and hail, guaranteeing the hood flexible solar panels' longevity and maintenance-free operation for years. Covered by a 24-month workmanship warranty.

Solar Panel Benefits:

1. Keep your vehicle or auxiliary battery topped up at all times. It is ideal for overlanders and campers seeking to power devices worry-free without draining their battery.
2. Keep your power station charged. The solar panel comes with standard connectors and uses adaptors (buy separately) to charge for most of the power stations on the market.
3. Decreased hood glare. The Lensun hood flexible solar panel features a top-tier ETFE film surface that eliminates light reflection, reducing glare while driving.
4. Protect and extend battery life. The Batteries usually hit only 60% charge with daily driving, and if parked for 2-3 weeks, starting becomes unreliable, especially in summer. Plus, they degrade within 2-3 years. The Lensun hood flexible solar panel maintains battery charge, tackling these issues.
5. Convenience and space-saving. The hood flexible solar panel attaches directly to the vehicle's hood; no roof rack is needed. Unlike portable solar panels that eat up cargo space with setup and storage, it's a plug-and-play system for easy installation.
6. The optional custom-fitted vinyl decal. A vinyl decal between the solar panel and hood is highly recommended. It protects the vehicle paint from damage.

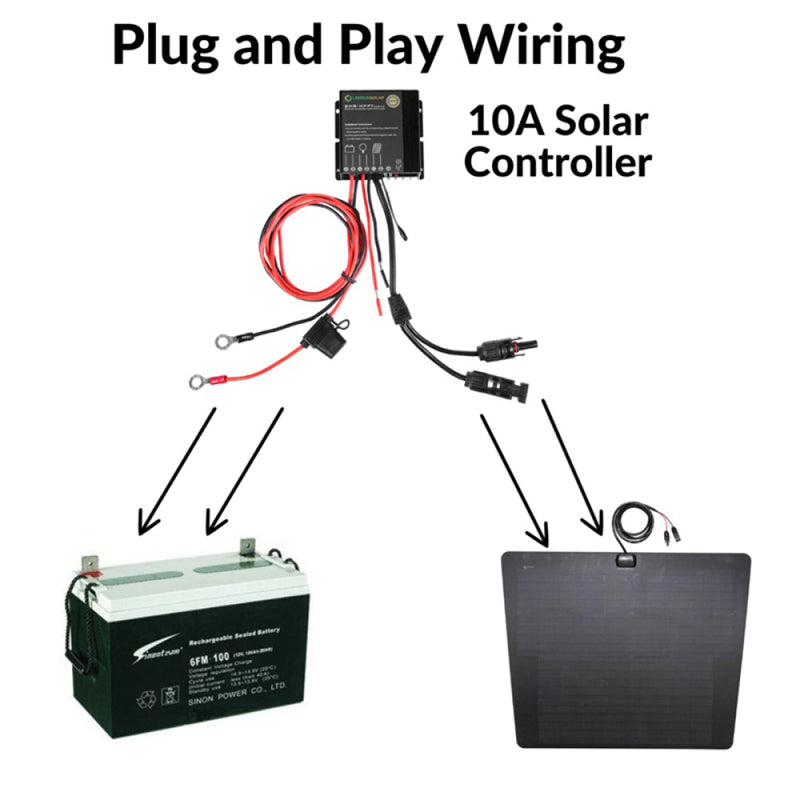

7. Easy to install plug-and-play wiring. The optional Plug-and-play 10A Waterproof MPPT solar controller. It comes pre-wired with fuses, terminals, and connectors. It features advanced MPPT control with intelligent protection against risks like reverse polarity and overcharging. Compatible with Sealed, AGM, Gel, Liquid, and Lithium-ion batteries.
8. Covered by a 24-month workmanship warranty.

Solar Panel Features:

1. Solar cell: Grade A PERC Monocrystalline solar cells with much higher efficiency and more durability than other mono solar cells.
2. Premium EFTE Film: This film features superior light transmittance and weatherproof performance and is heat, corrosion, and UV resistant.
3. Durability: Cutting-edge tech and robust materials ensure resilience against snow, ice, mud, rocks, etc. Their high durability makes them perfect for off-road vehicles.
4. Ultrathin & Lightweight: At only 3mm/0.12 inches thick, it is lightweight (60% less than conventional solar panels).

Solar Panel Specs:

Peak power: 90W
Solar cell efficiency: 23.5%
Maximum power voltage: 18V
Maximum power current: 5A
Open circuit voltage: 21.4V
Short circuit current: 5.5A
Power allowance range: +/-3%
Maximum system voltage: 500V
Dimensions: 40.9 in (L) x 17.7 in (W)
Net Weight: 5.5 lbs
J-Box: IP 68 rated with 5ft cables

MPPT Specifications:

Battery Type: Gel, AGM, Liquid, Lithium, Flooded
System Voltage: 12V
Max Charging Current: 10A
Max Input Solar Panel: 130W
Max Volt on Bat. Terminal: 25V
Max volt on PV Terminal: 45V
Communication: Bluetooth
Max Tracking Efficiency: 99.9%
Max Charging Conversion: 96.5%
Self Consumption: 6mA
Charging Voltage Target: 10-17V(Programmable, Lithuim)
Charging Voltage Recovery: 9.2-16.8V(Programmable, Lithuim)
Low Voltage Disconnect: 10.8-11.8V; SOC1-5(Programmable, Liquid/GEL/AGM) 9-15V(Programmable, Lithuim)
Low Voltage Reconnect: 11.4-12.8V (Programmable, Liquid/GEL/AGM) 9.6-16V(Programmable, Lithuim)
Dimensions: 3.4x3.2x0.9inch/86x81x23mm
Weight: 350g/0.8lbs
Maximum Terminals Wire Size: 10AWG(4mm²)
Wire Lengths: The length of the cable connecting the solar panel is 15.7 inches, the cable connecting the vehicle battery is 59 inches.

Included:

1 x 90w hood solar panel

Optional:

1 x vinyl decal (optional)
1 x 10A waterproof MPPT solar controller (optional)

Vehicle Compatibility & Fitment Notes

Compatible with:

• Ford Econoline Van (1992-2008) E150, E250, E350, E450

• Chevrolet Express Van
• Hummer H1 (1992–2006)
• Toyota Sienna 4th Gen (2021-Present)

Frequently Asked Questions (FAQ)

1. Will this 90W flexible hood solar panel fit my Ford Econoline (1992–2008) E-series van? Yes. This panel is specially designed and shaped to fit the hood of 1992–2008 Ford Econoline vans, including E150, E250, E350, and E450 models.
2. What can I power with this hood-mounted solar panel? You can charge your vehicle’s starter battery, auxiliary (leisure) battery, or portable power stations (e.g., Jackery, Goal Zero). This setup helps power refrigerators, dash cams, lighting, and mobile devices without needing to start your engine.
3. Why install a hood panel instead of a roof or portable panel? It mounts right on the hood, so you save space by freeing up your roof for other uses or eliminating the need for a roof rack altogether. You also enjoy greater convenience, because unlike portable panels, the hood-mounted panel requires no additional setup or storage. Finally, the ETFE top film significantly reduces hood glare, providing a clearer view while driving.
4. Does it damage my vehicle’s paint? An optional custom-fitted vinyl decal is highly recommended to protect your vehicle’s paint. This decal acts as a protective layer between the solar panel and the hood, minimizing any risk of scratches or wear.
5. How does the solar panel extend battery life? By consistently topping up your battery, the panel prevents the deep discharge that can accelerate battery degradation. When a battery remains fully charged, it stays healthier, reducing the likelihood of starting issues after long periods of parking.
6. What comes in the box? One 90W hood solar panel is included. You can also add a vinyl decal for paint protection and a 10A Waterproof MPPT Solar Controller for efficient charging and extra battery safeguards.
7. What are the benefits of the optional 10A Waterproof MPPT Controller? It delivers efficient charging by employing Maximum Power Point Tracking (MPPT) to optimize energy collection. It also provides robust battery protection, guarding against reverse polarity, overcharging, and short circuits. The controller is versatile enough to work with Sealed, AGM, Gel, Liquid, and Lithium-ion batteries. Finally, it’s a true plug-and-play option, arriving pre-wired with fuses, terminals, and connectors for a straightforward installation.
8. How do I install the panel? First, clean and prepare the hood surface. If you’re using the vinyl decal, apply it before attaching the solar panel. Then, securely fasten the panel according to the instructions provided. Lastly, connect the pre-wired cables to your battery or MPPT controller, and you’re all set.
9. Is it durable enough for harsh weather and off-road conditions? Absolutely. This solar panel is built with robust materials and advanced engineering to withstand high winds, heavy snow, hail, and off-road debris like mud and rocks, making it suitable for all kinds of adventures.
10. What warranty is provided? The solar panel comes with a 24-month workmanship warranty, ensuring protection against any manufacturing defects during the coverage period.
