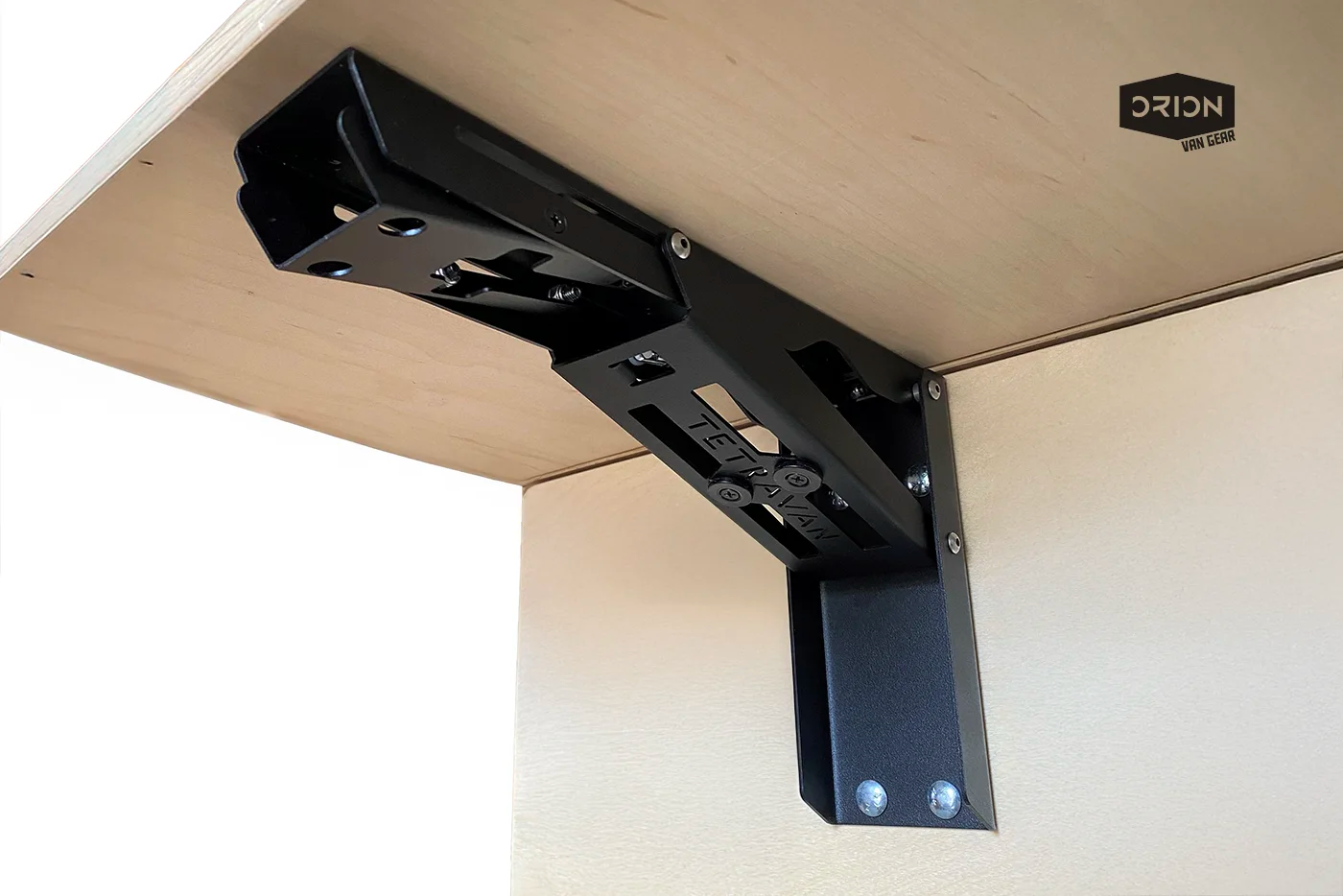

• Heavy duty folding bracket for van countertop extensions

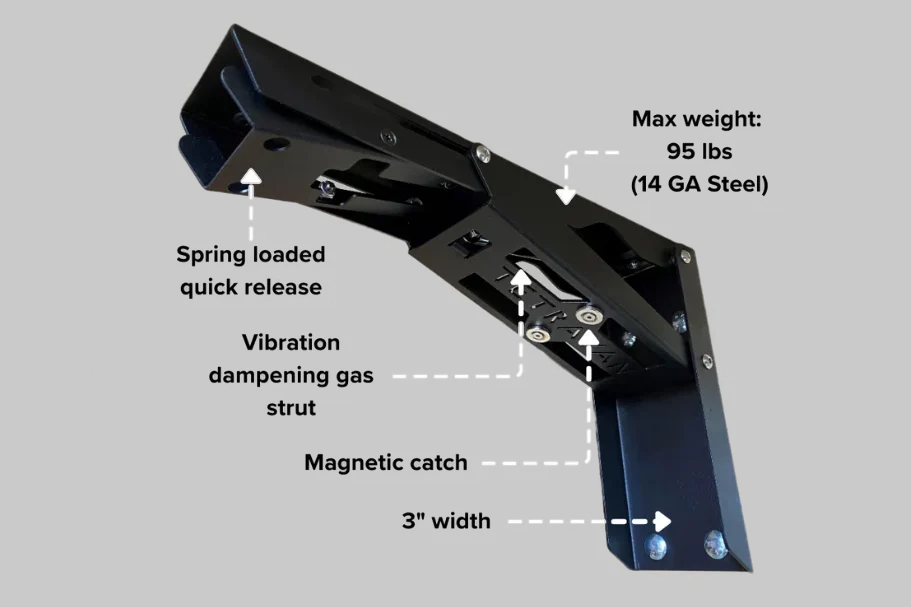

  • Tetravan heavy duty countertop extension bracket for van interiors - features

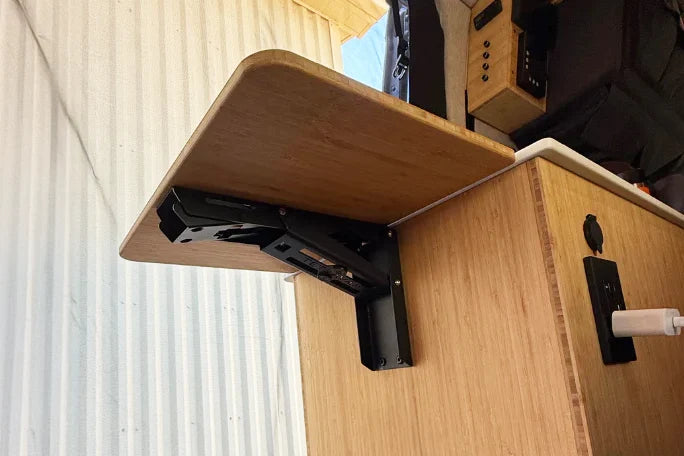

  • Heavy duty fold-down table bracket for camper vans and RVs

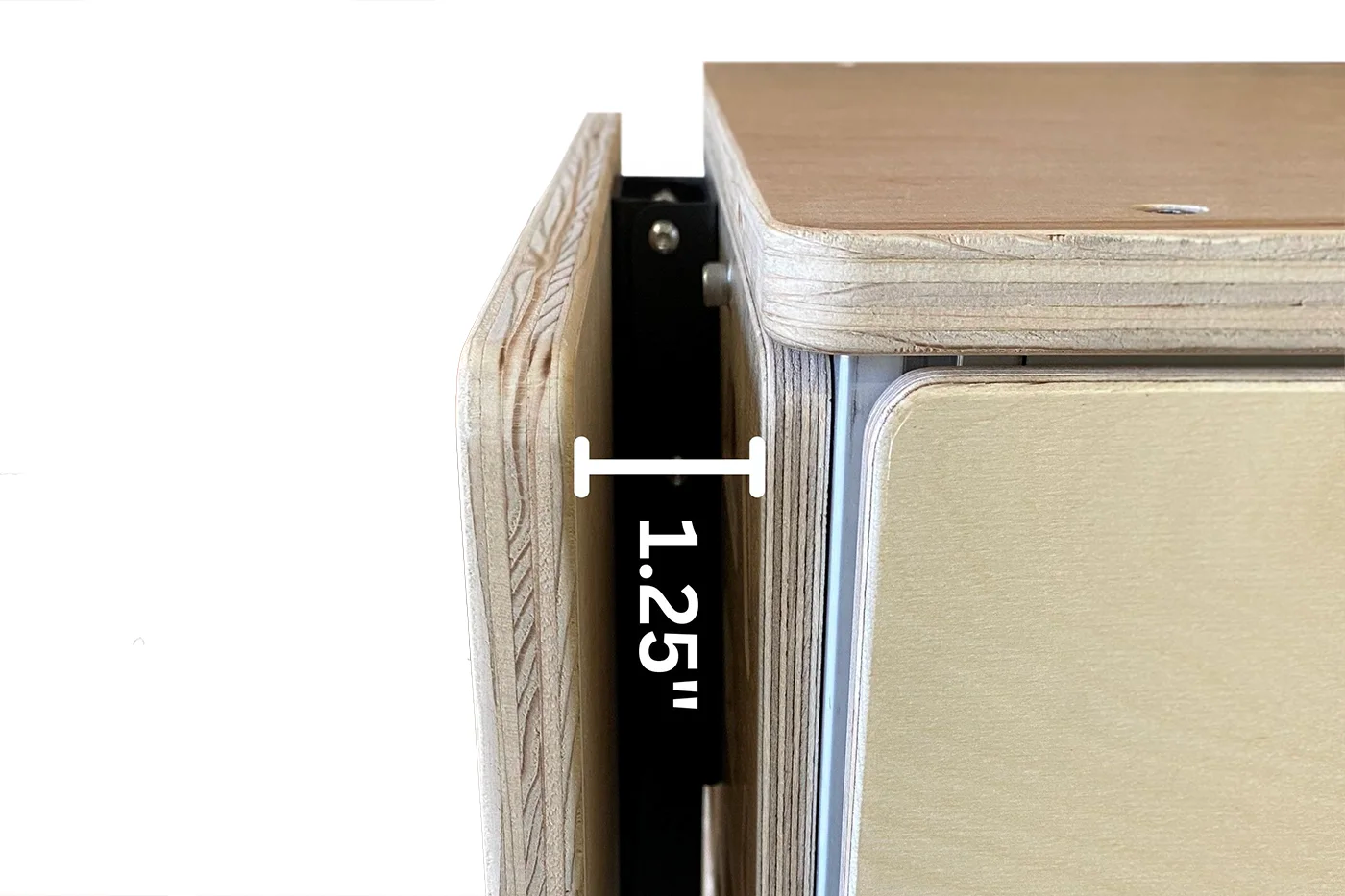

  • Wooden drawer with a measurement label indicating 1.25 inches.

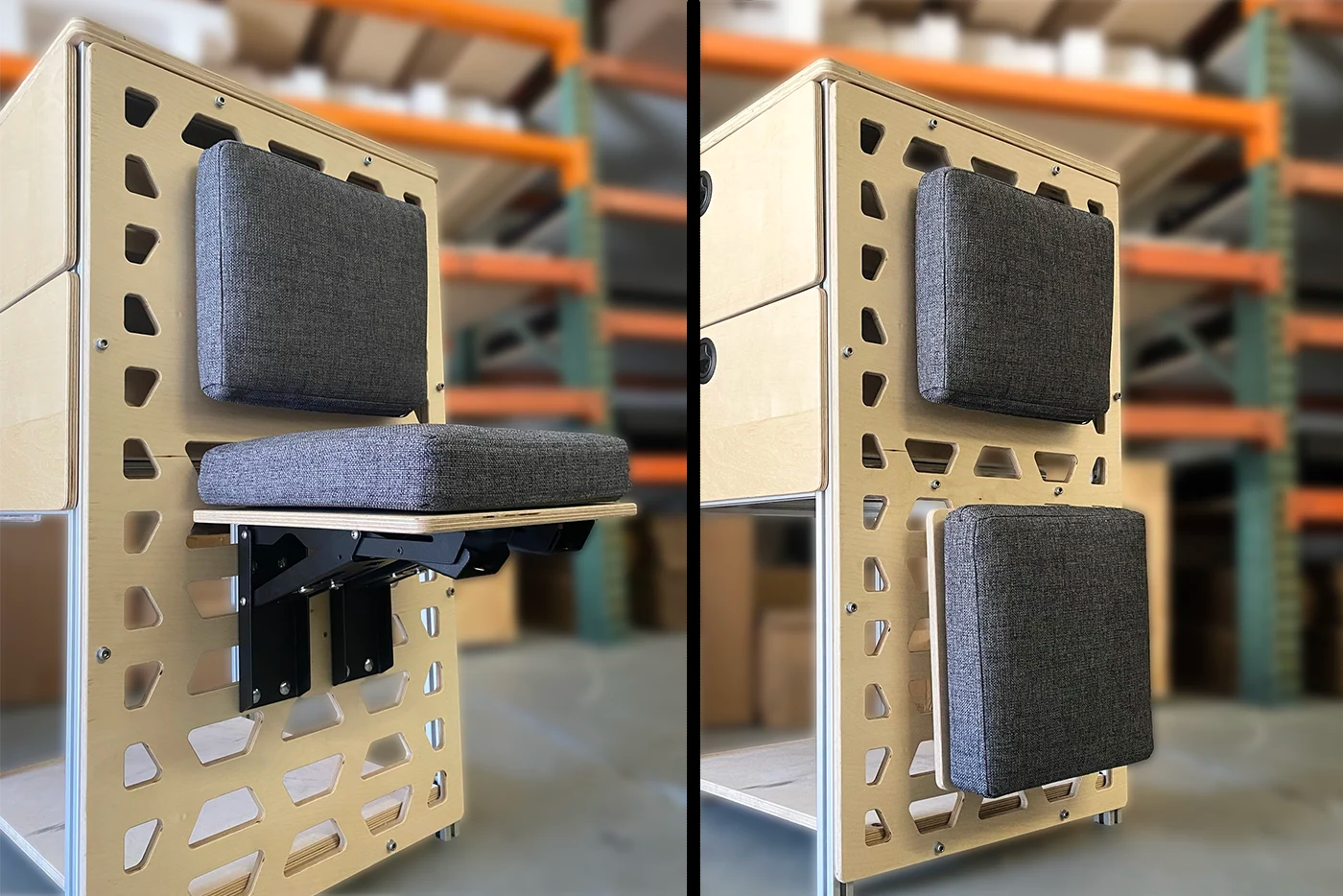

  • Compact folding seat bracket for van conversion interiors

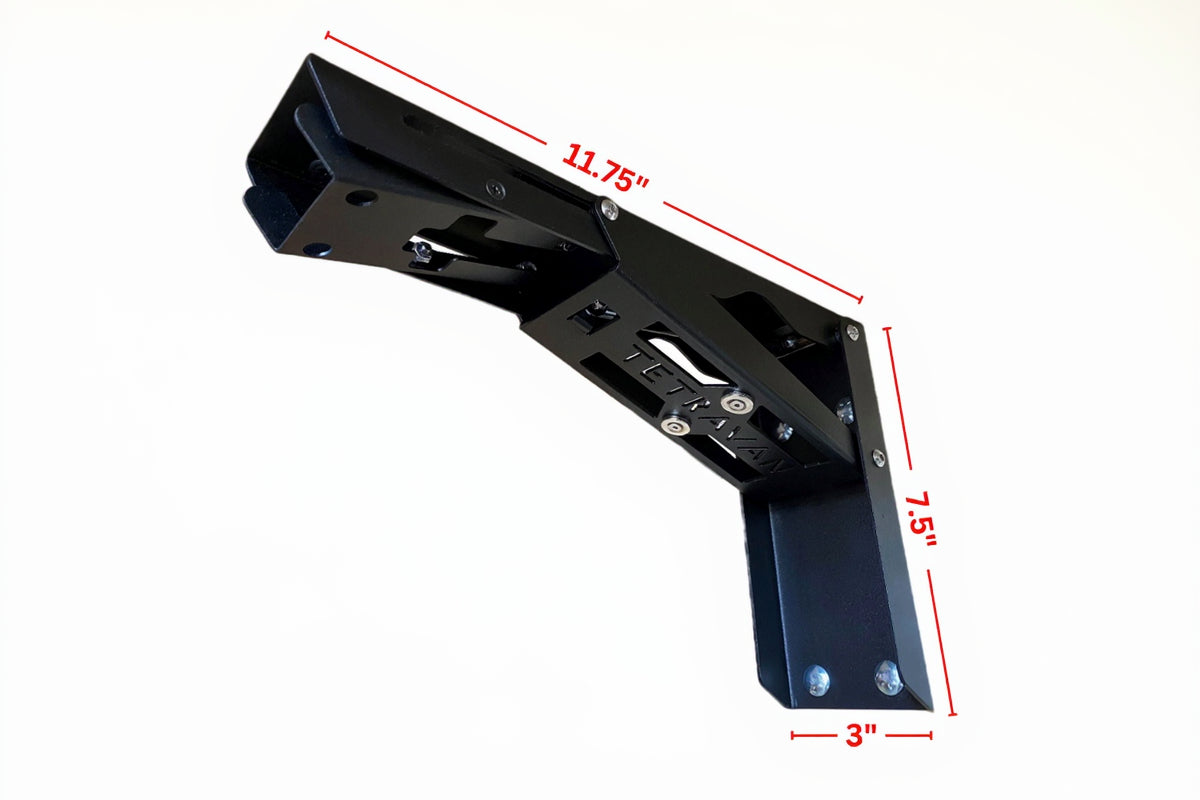

  • Black metal folding van bracket with dimensions marked on a white background

Heavy Duty Folding Bracket for Van Countertop Extensions

$165.00 USD
$165.00 USD
SOLD OUT

Overview

Build a fold-down countertop, workstation, compact table, or similar interior extension that actually feels solid. The Tetravan MOAB Heavy Duty Folding Bracket is designed for van, RV, and mobile build interiors where ordinary folding brackets can rattle, flex, or feel unreliable on the road. This heavy-duty fold-down bracket uses gas-strut reinforcement, a magnetic latching system, and a spring-loaded release handle to create a more stable, road-ready solution for compact spaces. Use it for van galley counter extensions, work surfaces, fold-down tables, or other custom interior projects where strength and clean stowage matter.

Important Info

This bracket is rated to hold 95 lb for long-term use. It has been stress-tested to 270 lb, but the recommended long-term load rating is 95 lb.

Key Features

  • Heavy-duty folding bracket for van, RV, and compact interior builds
  • Designed for fold-down countertops, workstations, and similar extensions
  • 3" wide bracket body
  • One bracket supports up to a 20" wide extension
  • Rated to hold 95 lb for long-term use (stress-tested to 270 lb)
  • Gas-strut reinforcement improves support and control
  • Magnetic latching system helps reduce rattle and vibration
  • Spring-loaded release handle for setup and stowing
  • All installation hardware included
  • Free Shipping to the Lower 48 States

Resources

Technical Specs

Technical Specs

Spec Details
Width 3 in
Length 11.75 in
Height 7.5 in
Folded Depth 1.375 in top, 1.625 in bottom
Rated Capacity 95 lb
Stress-Tested Capacity 270 lb
Recommended Long-Term Load Limit 95 lb
Extension Size Guidance One bracket can support up to a 20" wide extension
Latch Type Magnetic latching system
Support Type Gas-strut reinforcement
Release Spring-loaded release handle
Approximate Product Weight 1361 g, about 3 lb

What Is Included

Item QTY Included
MOAB Heavy Duty Folding Bracket 1
Carriage bolts 4
Washers 4
Nyloc nuts 4
Black 3/4 in wood screws 6

Frequently Asked Questions (click to expand)

1. What is the Heavy Duty Folding Bracket used for?

It is used to support fold-down countertops, compact tables, workstations, and similar interior extensions in vans, RVs, and other mobile builds.

2. Why choose this instead of a basic folding bracket?

This bracket is built for heavier-duty mobile use, with gas-strut reinforcement, a magnetic latching system, and a spring-loaded release handle to reduce flex and rattle compared with lighter hardware.

3. How much weight is it rated to hold?

The recommended long-term load rating is 95 lb.

4. What does stress-tested to 270 lb mean?

The bracket has been stress-tested to 270 lb, but the recommended long-term working load is 95 lb.

5. How wide of a countertop extension can one bracket support?

One bracket can support up to a 20 in wide extension.

6. Does it rattle while driving?

The bracket includes a magnetic latching system designed to help reduce rattle and vibration while traveling.

7. How does the bracket release and fold down?

The bracket uses a spring-loaded release handle for setup and stowing.

8. What hardware is included?

The bracket includes 4 carriage bolts, 4 washers, 4 nyloc nuts, and 6 black 3/4 in wood screws.

9. Can it be used for a fold-down table or workstation?

Yes. It can be used for fold-down counters, compact workstations, tables, and similar custom interior projects when installed into an appropriate structure.

10. What are the bracket dimensions?

The bracket is 3 in wide, 11.75 in long, and 7.5 in tall. Folded depth is 1.375 in at the top and 1.625 in at the bottom.
