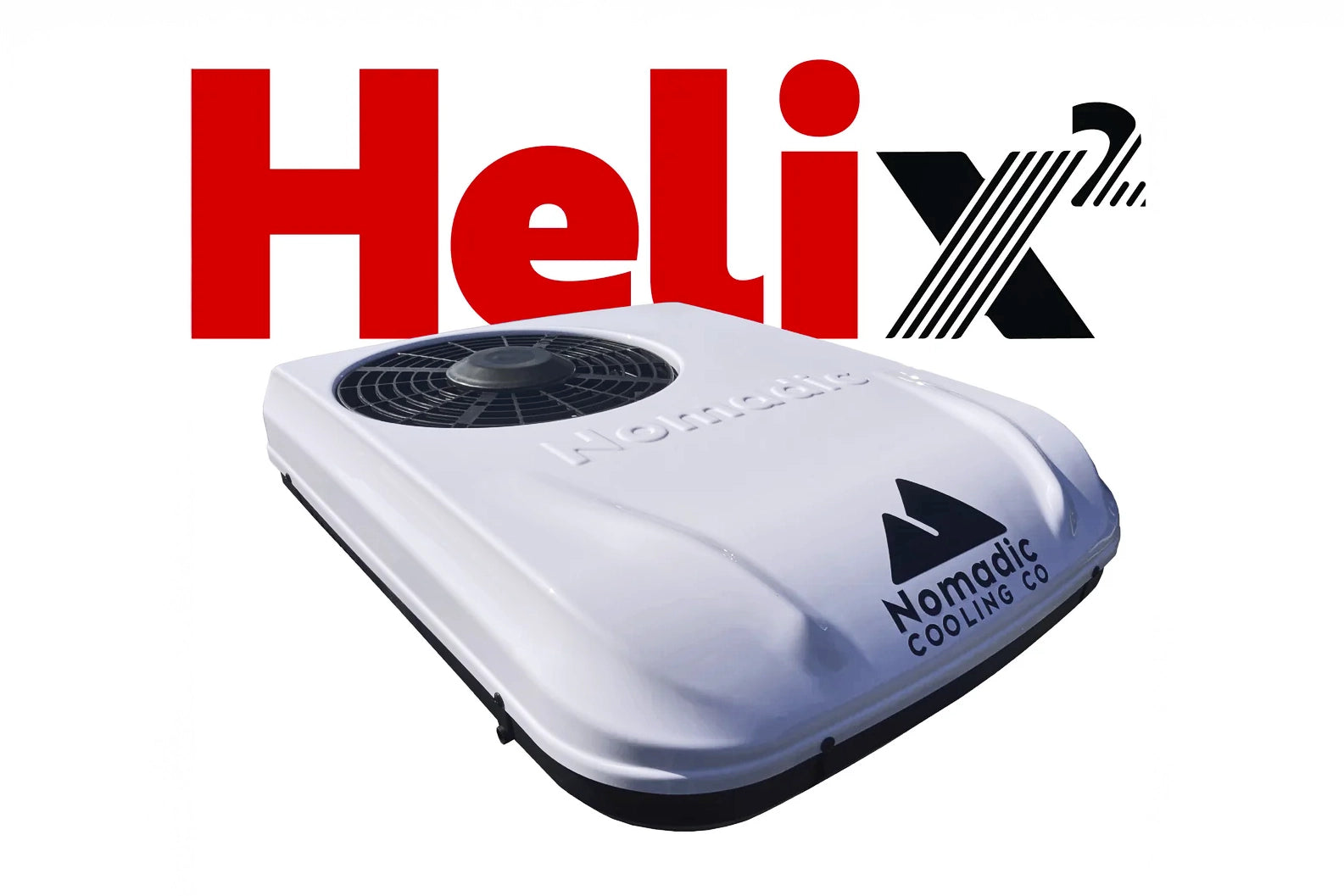

Nomadic X2 Helix Gen II 12V/48V DC Rooftop Air Conditioner

Regular price $3,699.00 USD
Sale price $3,699.00 USD
SOLD OUT
Voltage: 12V
External Shroud Color: Black
Package: AC Only

Battery-powered rooftop cooling for vans, RVs, and off-grid builds.

The Nomadic X2 Helix Gen II delivers direct-DC air conditioning with PWM compressor control, an integrated control panel, an included remote, and Nomadic Controls app support. Choose the dedicated 12V or 48V model to match your electrical system.

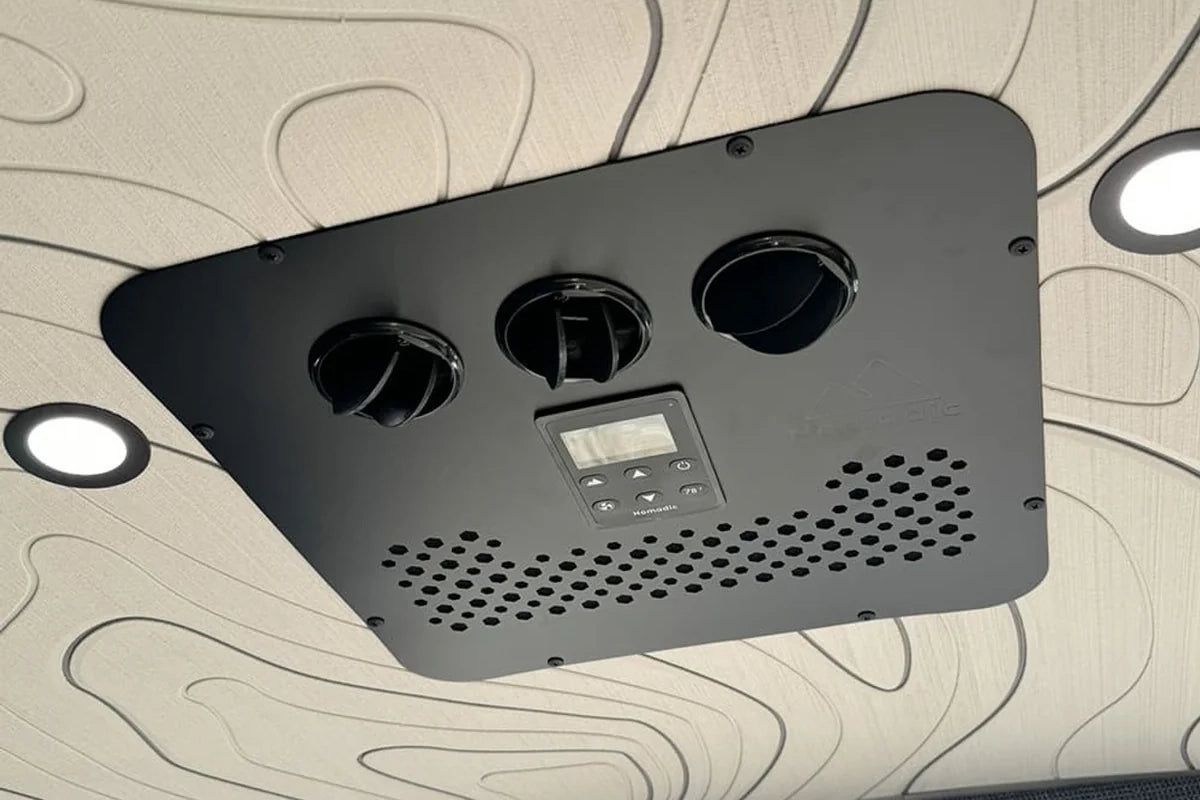

Gen II updates the exterior shroud and lower base, adds integrated adjustable leveling feet, and incorporates directional water-management fins. A flush powder-coated metal interior faceplate provides a clean ceiling finish.

Plan for the Gen II footprint: the exterior footprint is approximately 29.93″ long × 26.58″ wide, with an approximate unit weight of 43 lb. It uses a 14″ × 14″ roof opening, but its larger exterior footprint means an older X2 roof layout should be checked again before installation.

Installing on an Orion roof rack? Request a CAD-verified roof layout to plan around solar panels, fans, awnings, and other rooftop equipment.

Helix Gen II Highlights

  • Direct-DC operation: runs from a compatible battery system without an AC inverter in the power path.

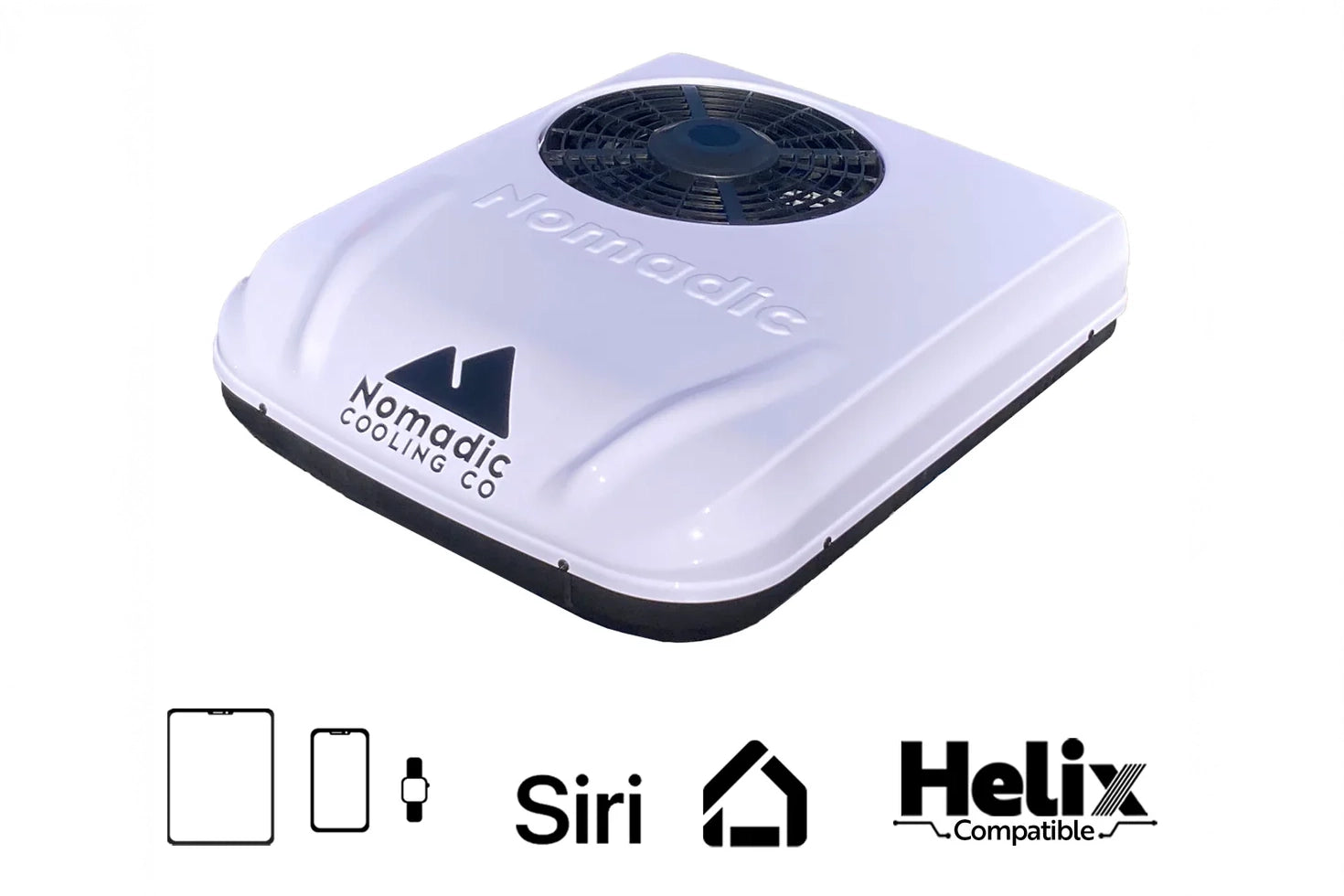

  • Multiple control options: use the integrated panel, included remote, or Nomadic Controls app.
  • PWM compressor control: modulates compressor operation as cooling demand changes.
  • App settings and diagnostics: adjust supported operating settings and view temperature, runtime, and fault information. Scenes and schedules depend on the installed app and firmware.
  • High Humidity Mode: periodically reduces fan speed to support condensate movement during humid operation.
  • Updated mounting and support: double-layer roof gasket, integrated adjustable leveling feet, and supplied leveling strips.
  • Gen II water management: revised lower-base design with directional water-management fins.
  • Flush interior finish: powder-coated metal faceplate with integrated controls.
  • Manufacturer support: one-year limited warranty and Nomadic technical support based in Elkhart, Indiana.

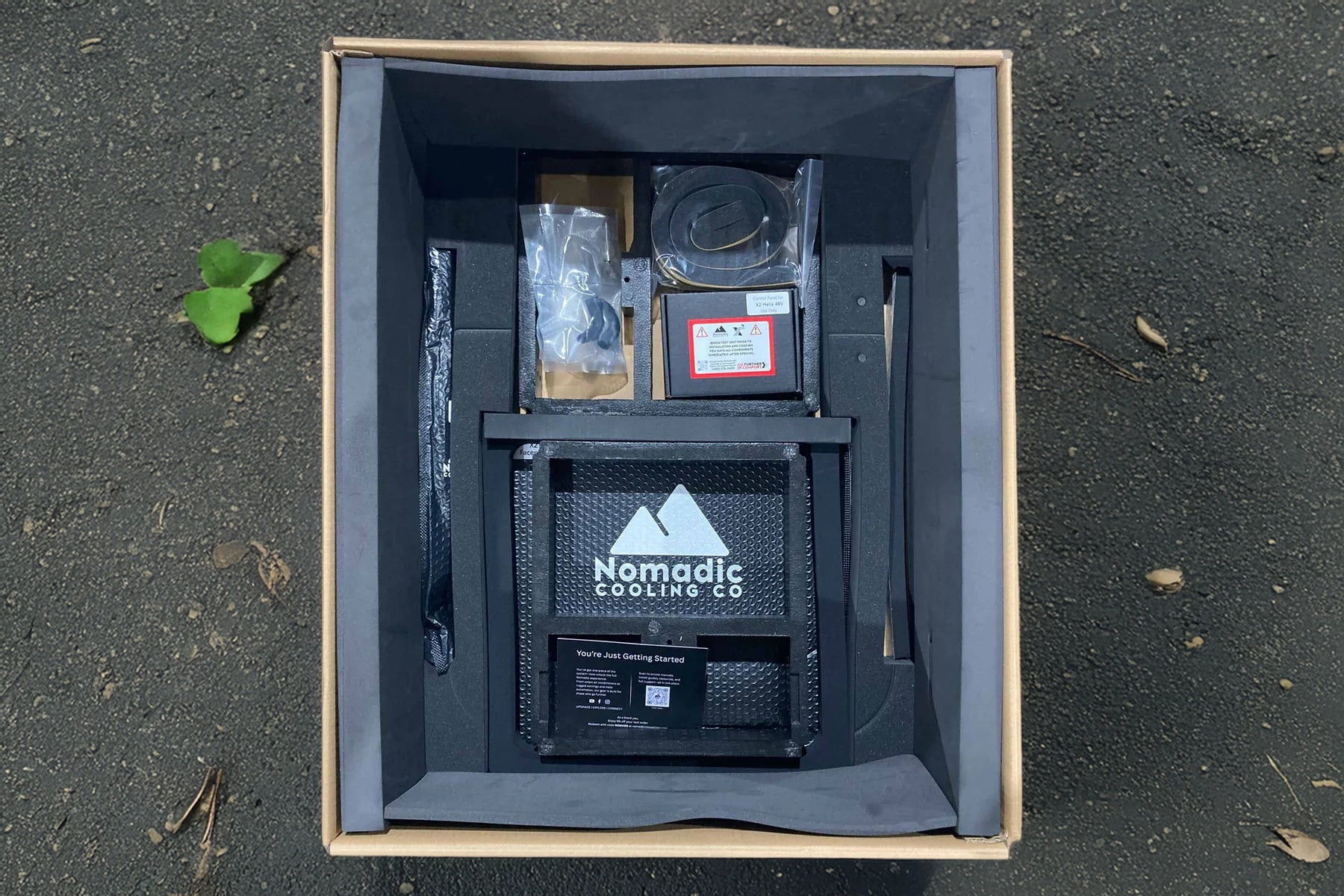

What’s Included & Package Options

Select your voltage, available shroud color, and package from the product options.

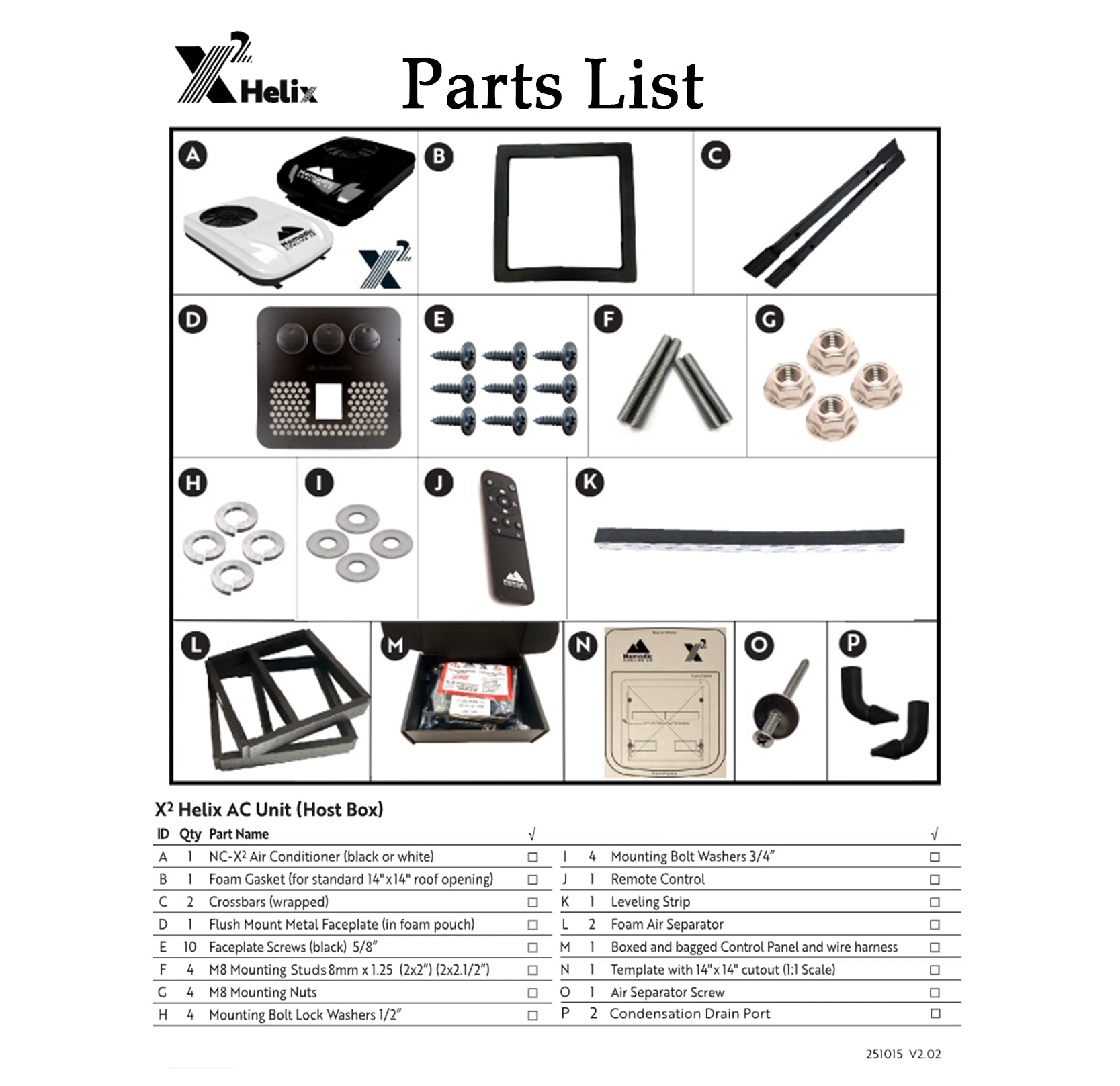

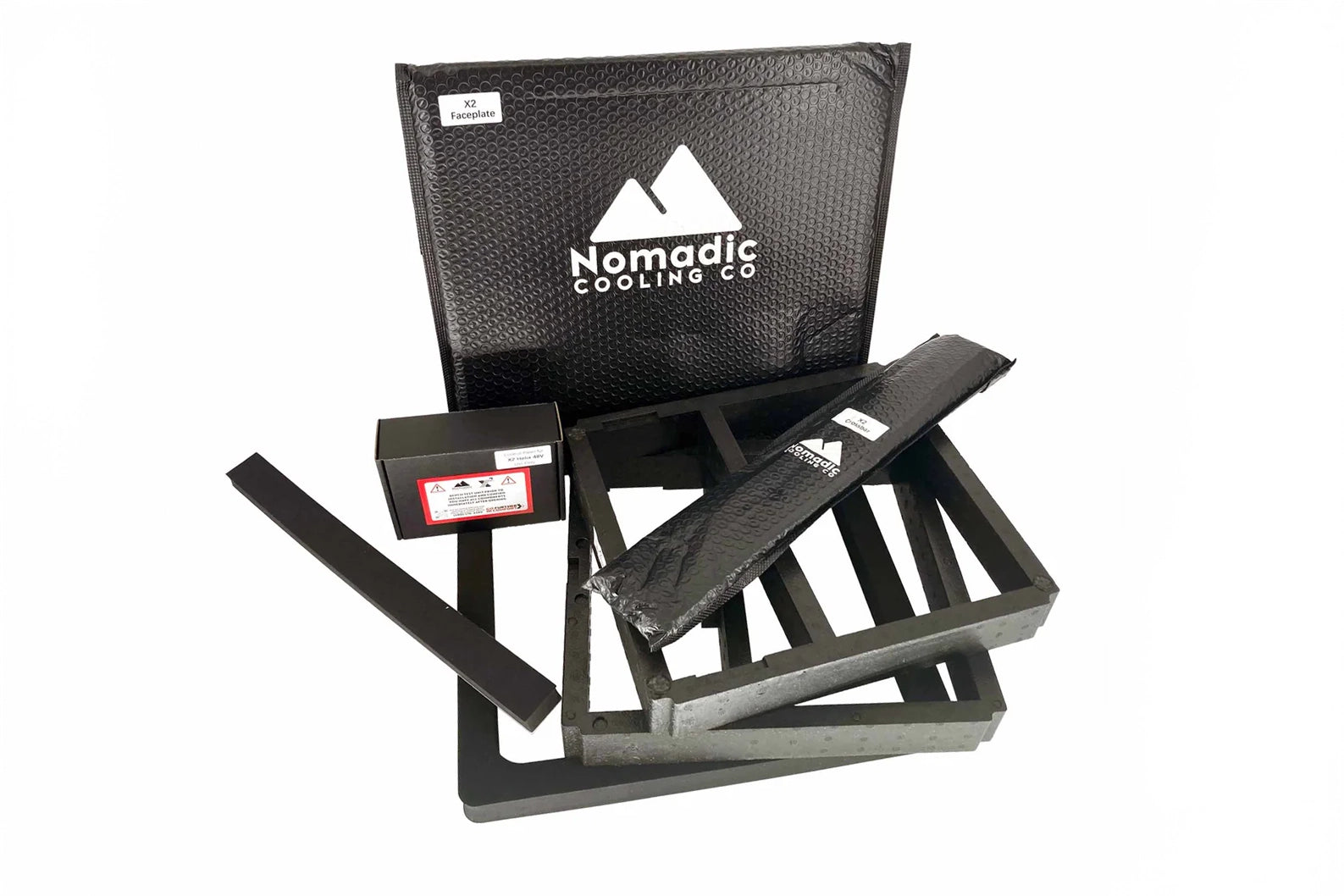

AC Only — Standard Gen II Package

  • X2 Helix Gen II rooftop unit with four preinstalled adjustable leveling feet.
  • One double-layer roof gasket for a standard 14″ × 14″ opening.
  • Two mounting crossbars.
  • Interior faceplate and eight faceplate screws.
  • M8 mounting studs in two supplied lengths, mounting lock nuts, washers, and spacers.

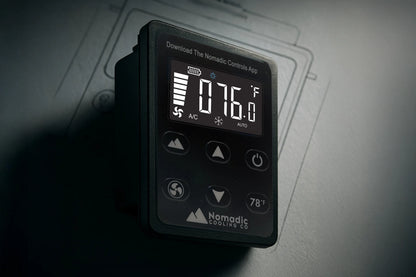

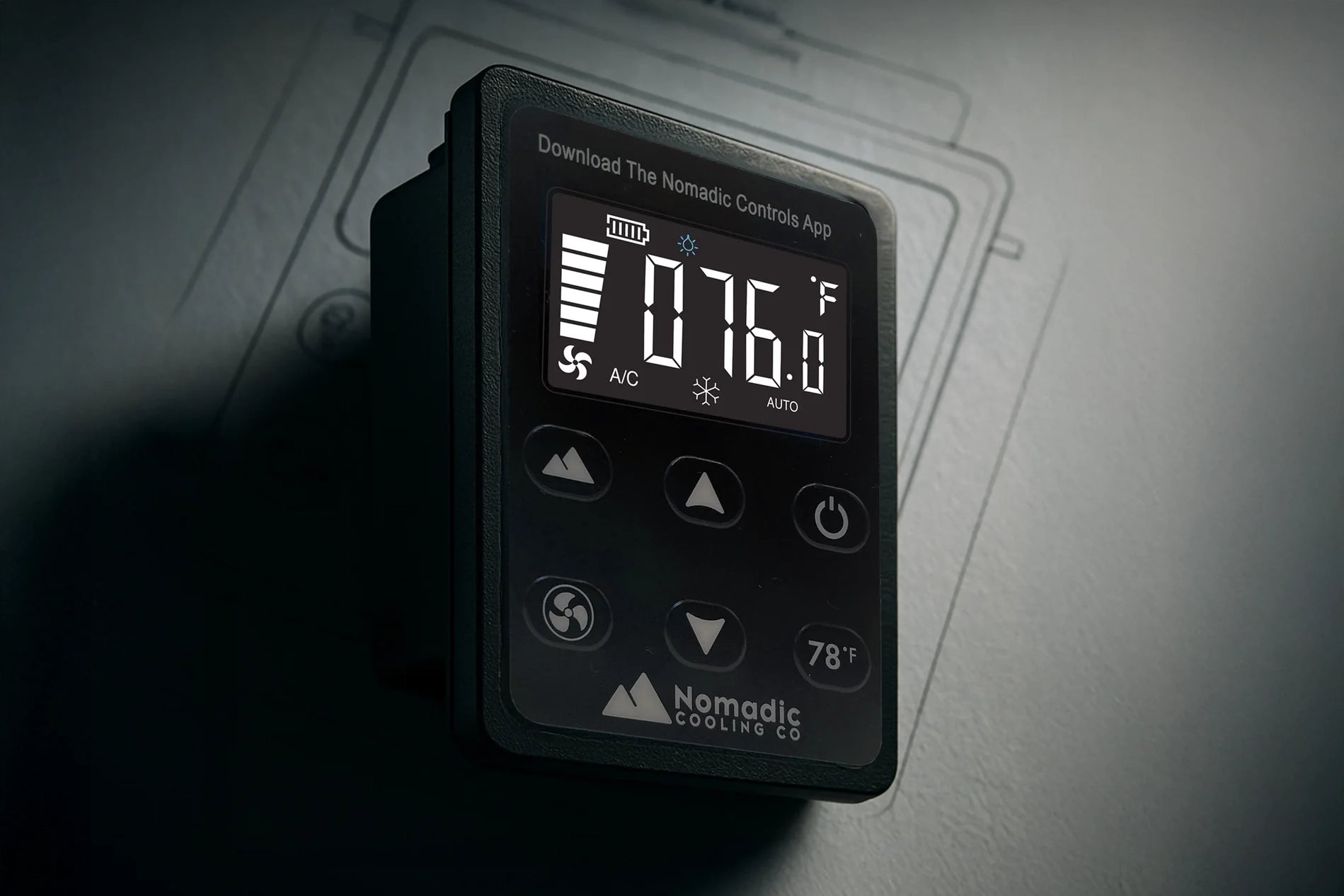

  • Remote control and control panel.
  • Two leveling strips.
  • Two foam air separators, foam tape, and air-duct sponge.
  • Two insulated inline splice connectors.
  • 14″ × 14″ template guide.

Contents may vary by voltage variant, ordered configuration, or production update. The packing list supplied with your order governs the included components.

AC + DIY Install Kit — Optional Upgrade

Includes the standard unit package above, plus:

  • 15 ft power harness: 2 AWG for the 12V package or 8 AWG for the 48V package.
  • Foam-gasket adhesive.
  • Additional thermal tape for plenum sealing; thermal tape is already included in the standard Gen II product box.
  • Heat-shrink and threadlocker. Threadlocker is included in the current DIY kit but is not recommended for Gen II installation.
  • Internal support trim ring.
  • Additional hardware and zip ties.

Verify cable sizing, voltage drop, circuit protection, and connection compatibility for your installation. Use the Gen II connection procedure and approved connectors or conductor transitions. Follow the Gen II instructions for adhesive application. Nomadic does not recommend using the included threadlocker for Gen II installation.

Check the Full Roof Layout Before Installation

A 14″ × 14″ opening alone does not confirm compatibility. Verify roof structure, continuous gasket support, crossbar support, interior clearance, leveling-foot contact areas, and clearance around other rooftop equipment.

The manual lists an approximate unit height of 6.69″ and an approximate installed height of 7.48″ ± 0.5″ above a flat roof. Use the installed-height specification for overall vehicle-height and overhead-clearance planning. Actual installed height varies with roof profile, gasket compression, and the completed mounting system. Use the Gen II template and installation guide for final positioning.

Gen II Condensation & High Humidity Guidance

No additional condensation kit is required for Gen II; water management is integrated into the unit’s design. Gen II does not use the previous Gen I external snorkels, permanent drain tubes, blue foam drain filters, or one-way check valves. Do not add those components. Keep the lower-base water-management areas clear and follow the Gen II mounting, leveling, and air-sealing instructions.

High Humidity Mode reduces fan speed for approximately 15 seconds after each 10-minute period of continuous operation when the fan is running at Level 2 or higher. Enable it through the supported app setting or the remote sequence T → V → V → V, then confirm the mode indicator appears.

Exterior condensate can occur during normal cooling. Water entering the cabin is not normal and should be investigated. High Humidity Mode does not replace correct installation, clean filters, or proper air separation.

X2 Helix Gen II Specifications

Specification 12V Model 48V Model
Operating voltage range 11–15V DC 42–52V DC
Maximum continuous operating current* 75A 25A
Required roof opening 14″ × 14″
Exterior footprint Approximately 29.93″ L × 26.58″ W
Exterior unit height Approximately 6.69″, per the manual’s specification table
Installed height above a flat roof Approximately 7.48″ ± 0.5″
Unit weight Approximately 43 lb
Interior faceplate dimensions 16.375″ × 16.375″
Compressor control PWM
Compressor speed range 1,000–3,000 RPM
Operating modes Auto / ECO / COOL / Fan Only
Ambient operating-temperature range 60–120°F
Temperature setpoint range 61–86°F
Refrigerant R1234yf; factory charge 490 g ± 10 g
Refrigerant oil POE 68, factory prefilled
Controls Integrated control panel, included remote, and Nomadic Controls app
Wireless connectivity Wi-Fi and Bluetooth
Warranty One-year limited manufacturer warranty

*Maximum continuous operating current is specified for extreme high-temperature conditions. It is not typical power consumption or a recommended fuse rating. Size wiring and circuit protection using the current manufacturer guidance and the complete installation requirements.

Cooling Performance & Power Planning

The figures below summarize the range of averages in Nomadic’s published in-house tests across its 80–90°F, 90–100°F, and 100°F+ ambient-temperature bands.

Model / Mode Cooling Output Electrical Input Current Draw
12V — COOL / Full AC 8,210–9,586 BTU/h 782.9–947.4W 53.0–64.3A
12V — ECO 5,552–6,216 BTU/h 498.9–556.8W 33.7–37.7A
48V — COOL / Full AC 8,879–9,974 BTU/h 818.55–986.34W 16.05–19.34A
48V — ECO 5,109–6,361 BTU/h 419.22–474.30W 8.22–9.30A

Test conditions matter: these results correspond to calculated reference voltages of approximately 14.7–14.8V for the 12V model and 51V for the 48V model. They are in-house performance references, not guaranteed output, minimum consumption, or maximum-current ratings. Actual performance varies with supply voltage, ambient temperature, humidity, insulation, sun exposure, airflow, installation, and operating settings. See the specification sheet for individual test rows and conditions.

Electrical Compatibility

  • Choose the dedicated voltage model that matches your electrical system; the unit is not field-switchable between 12V and 48V.
  • Confirm that the source voltage remains within the unit’s operating range during charging and discharging.
  • Battery capacity and charging capability determine available runtime. Solar can help replenish the battery but does not guarantee continuous A/C operation.
  • Plan cable length, conductor size, connections, disconnects, and source-side circuit protection before installation.

48V power-system compatibility: The 48V model requires 42–52V DC at the air conditioner’s input. 52V is the upper input limit, including during battery charging. Confirm the complete system’s voltage range and obtain configuration-specific validation before connecting.

Installation & Downloads

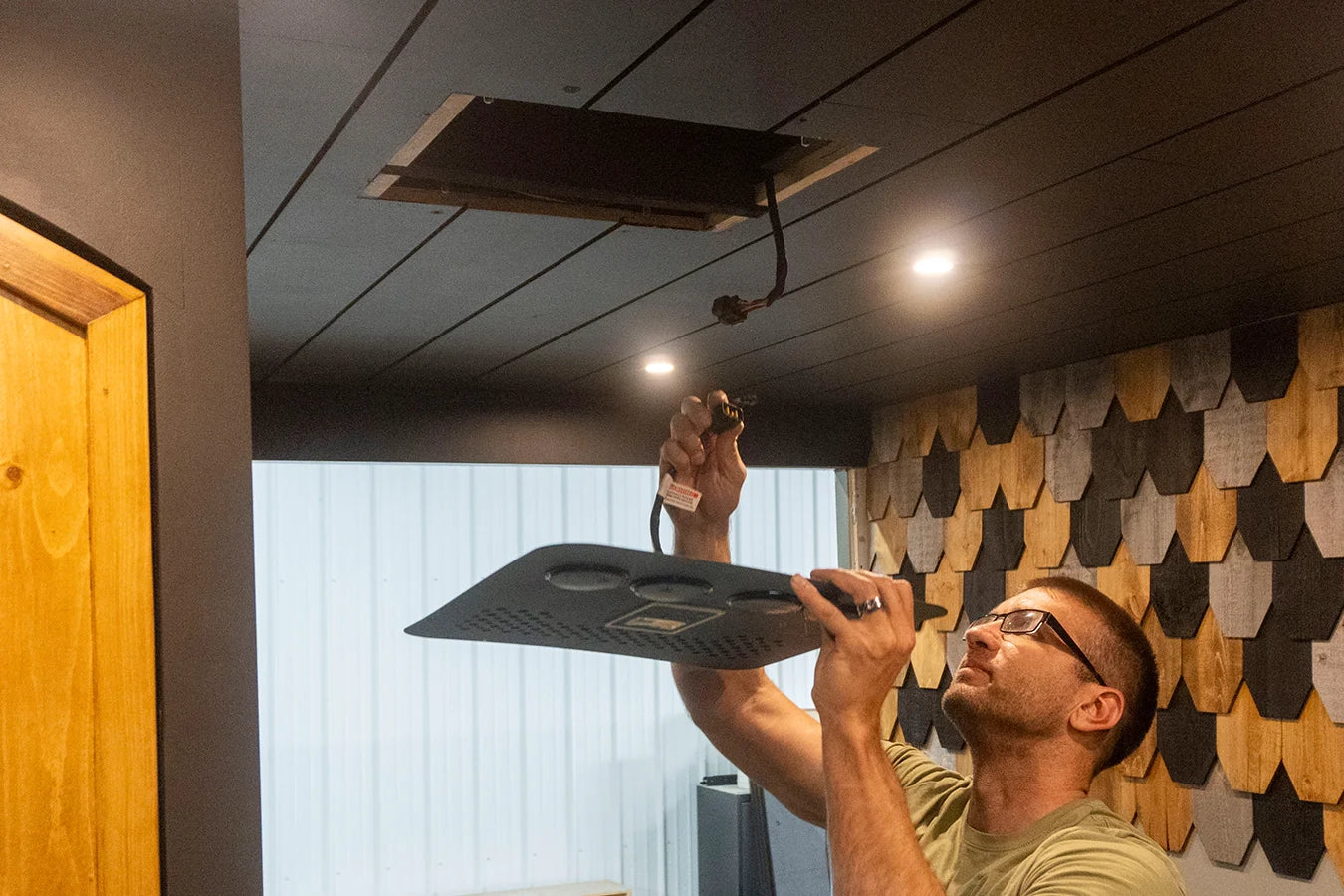

Use the Gen II installation guide for roof preparation, gasket sealing, mounting, leveling, electrical connections, and commissioning. Do not reuse Gen I drainage instructions or assume an existing X2 layout is interchangeable.

Freight Delivery

This air conditioner ships by freight only. Free shipping to the lower 48 includes residential delivery and liftgate service.

Frequently Asked Questions

What changed with X2 Helix Gen II?

Gen II updates the shroud and lower base, adds integrated adjustable leveling feet, and revises water management. Its exterior footprint differs from the earlier X2, so check rooftop clearances and layout before replacing an older unit.

Can it run from batteries without shore power?

Yes. It operates directly from a compatible DC battery system. Runtime depends on usable battery capacity, other electrical loads, operating mode, and cooling conditions. The battery still needs an appropriate charging source.

How do I choose between 12V and 48V?

Match the unit to your electrical system’s actual operating voltage. The listed input ranges are 11–15V for the 12V model and 42–52V for the 48V model. For the 48V model, 52V is the upper limit at the air conditioner’s input, including during charging. Check voltage during charging as well as discharge; the nominal battery label alone is not enough.

Will it fit an existing 14″ × 14″ opening?

That is the required opening size, but the roof must also provide suitable structure, gasket support, mounting support, and clearances. The Gen II exterior footprint is approximately 29.93″ long × 26.58″ wide. Use the supplied template and installation guide to verify the complete fit.

Does app control require a Helix Pulse hub?

No. Nomadic states that Helix Pulse is not required for the air conditioner’s app control. It is an optional addition for broader Helix system integration. The physical control panel and included remote remain available without app pairing.

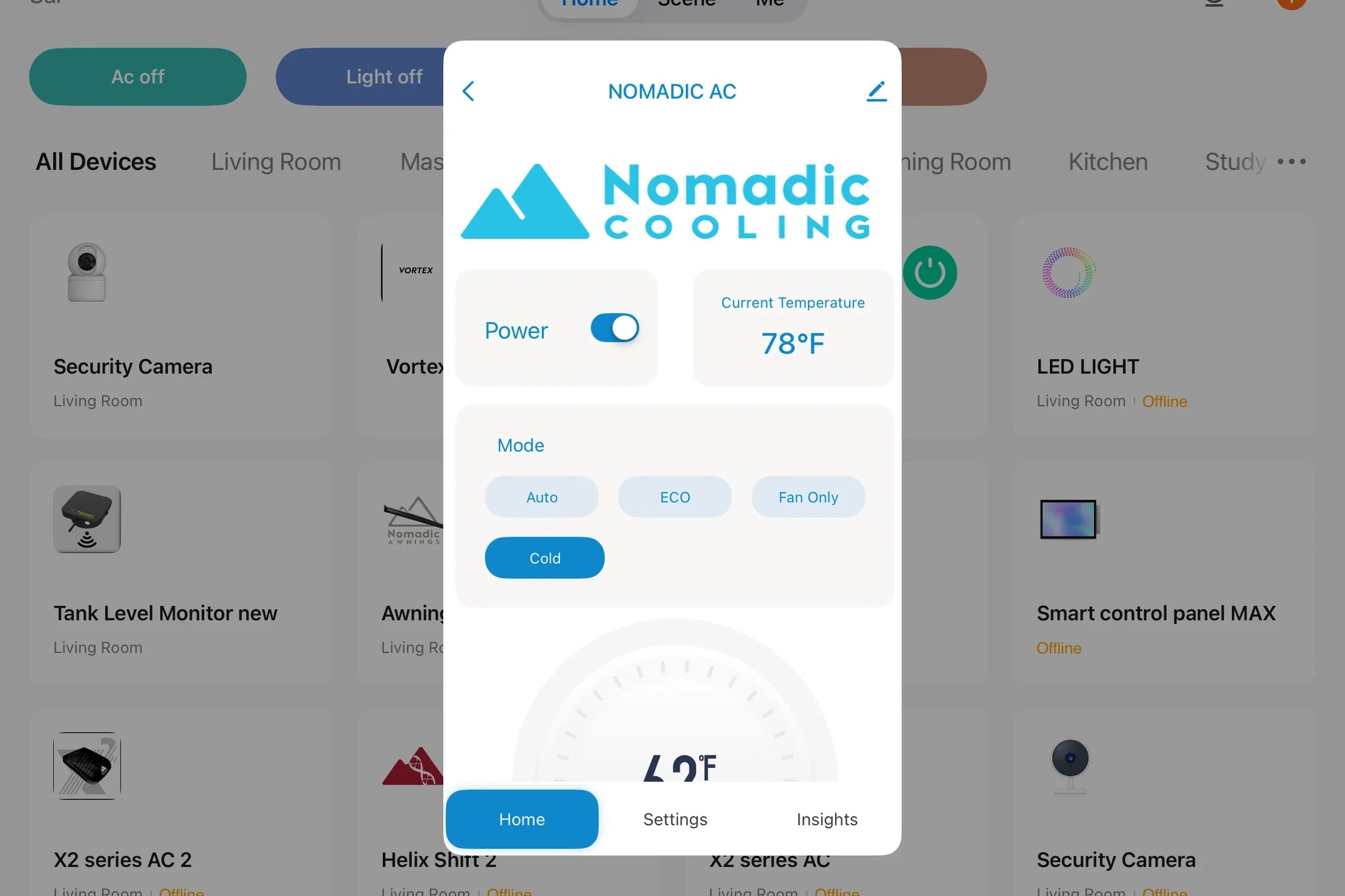

What can I control through the app?

Supported functions include power, temperature, operating mode, fan speed, High Humidity Mode, display and chime settings, and diagnostic information. Scenes, schedules, and other features depend on the installed app and firmware. Connected features require the appropriate network connection.

Does Gen II need external drain tubes or snorkels?

No additional condensation kit is required. The Gen II manual specifically says not to install the previous Gen I snorkels, permanent drain tubes, blue foam drain filters, or one-way check valves. Follow the Gen II water-management and maintenance instructions.

What does the optional Orion DIY Install Kit add?

It adds the listed 15 ft power harness (2 AWG for 12V or 8 AWG for 48V), gasket adhesive, additional thermal tape, heat-shrink, internal support trim ring, and additional hardware. Gen II already includes thermal tape in the standard box. The current DIY kit also contains threadlocker, but Nomadic does not recommend its use for Gen II installation. Review the package list above and confirm any installation-specific wiring, protection, adapters, or materials before beginning.

What warranty is included?

The unit carries a one-year limited manufacturer warranty with Nomadic technical support. Follow the warranty activation and installation requirements in the supplied documentation.

Get a CAD-Verified Roof Layout

We understand that every van setup is unique. That's why we offer CAD-verified roof layouts for customers who have purchased or plan to purchase an Orion roof rack - so you can maximize space and fit exactly what you need, where you need it. Request a layout here ›

Shipping & Returns

We offer free shipping to the lower 48 states on all products. Orders shipping to Alaska, Hawaii, Canada, or international destinations may have additional shipping charges calculated at checkout or quoted separately. Local pickup is also available at our McMinnville, Oregon warehouse by appointment.

Most purchases can be returned within 30 days of purchase if they are in new, resalable condition with original packaging. A 20% restocking fee applies; return shipping is the customer’s responsibility, and some items are final sale or not eligible for return. For full details, please see our Shipping Policy and Return Policy.
