The Tetravan Folding Shower 2.1 gives you a complete interior shower setup without permanently dedicating floor space to a shower stall. Fold it down when you need it, attach the magnetic zipped curtain, and fold it away when you are done. Built for camper vans, RVs, trailers, boats, and compact mobile interiors, this folding shower system combines a durable stainless shower body, pre-installed plumbing fixtures, a magnetic shower curtain, and a low-profile flush mount design. It is a strong choice for builders who want a real interior shower without building a full permanent wet bath.

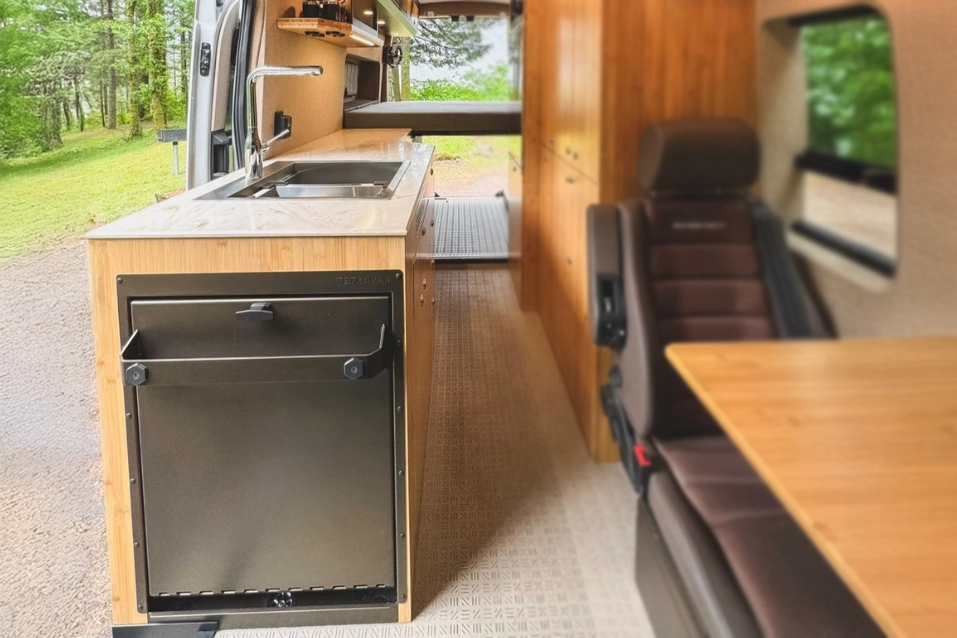

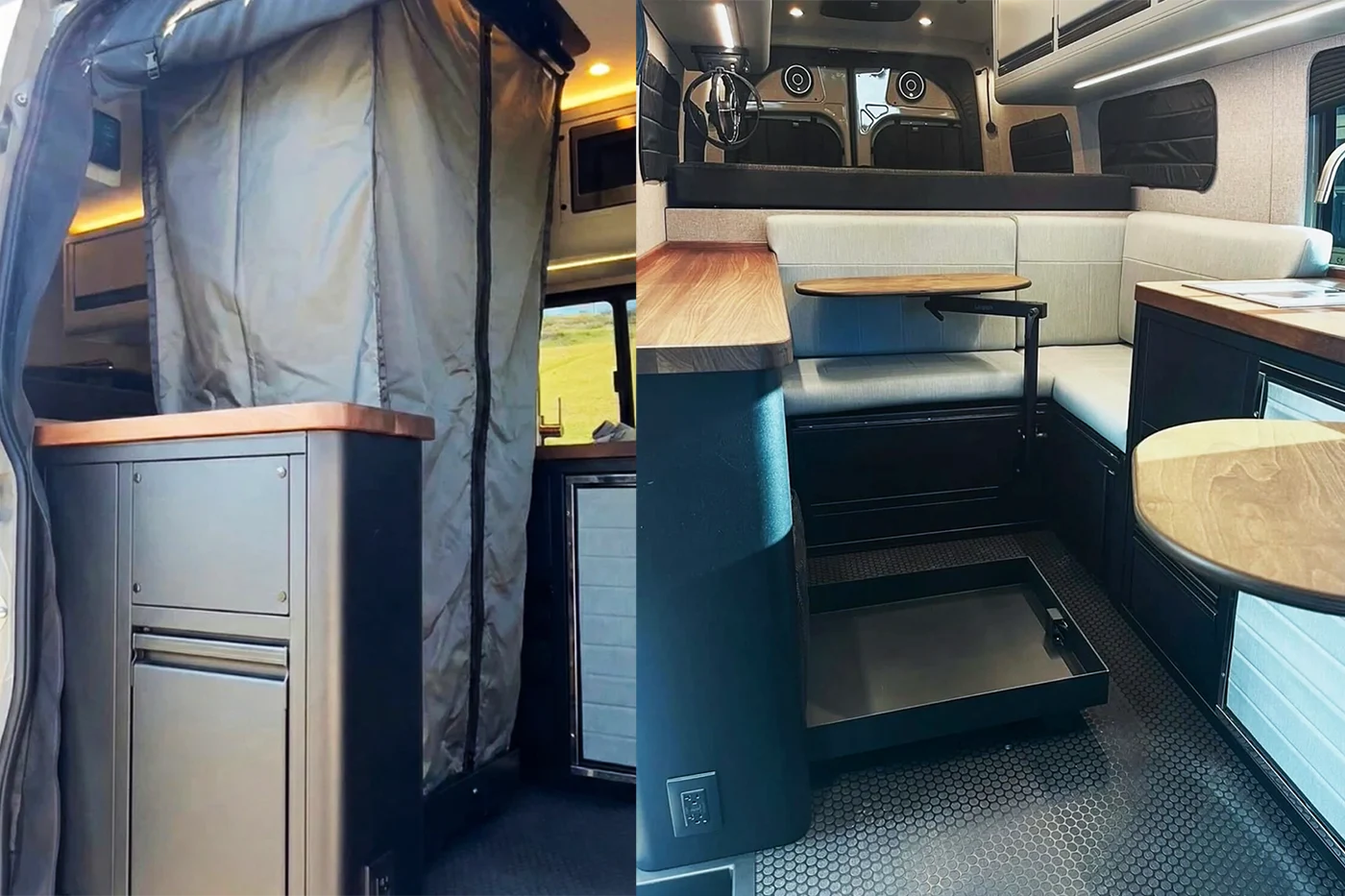

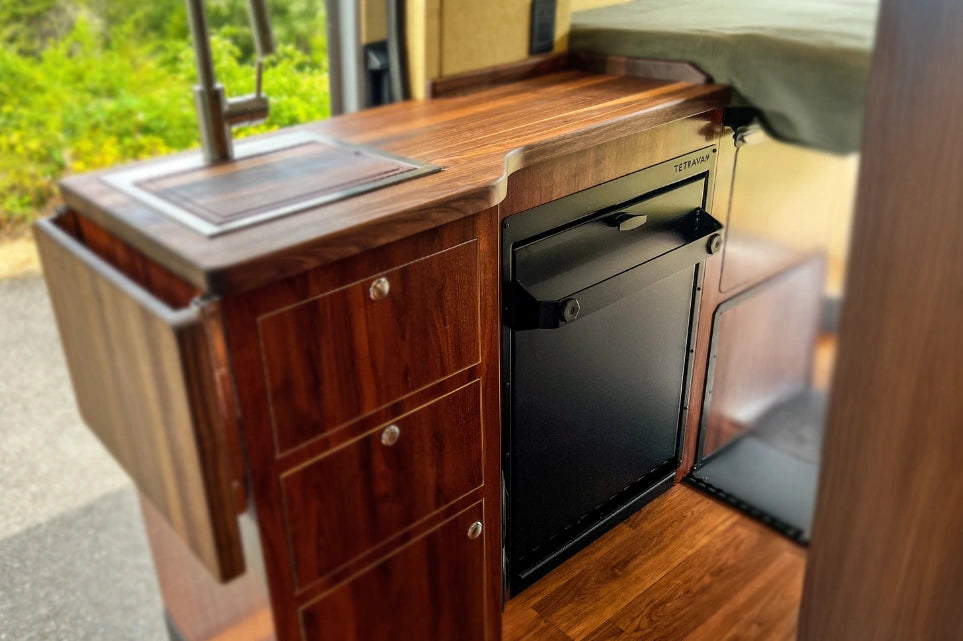

Mount the shower onto the side of a sink cabinet. This layout can share the existing hot water supply and drain used by the sink, making it a practical option for builds that already have a galley plumbing system. When deployed, the shower uses the typically underutilized entry area of the van.

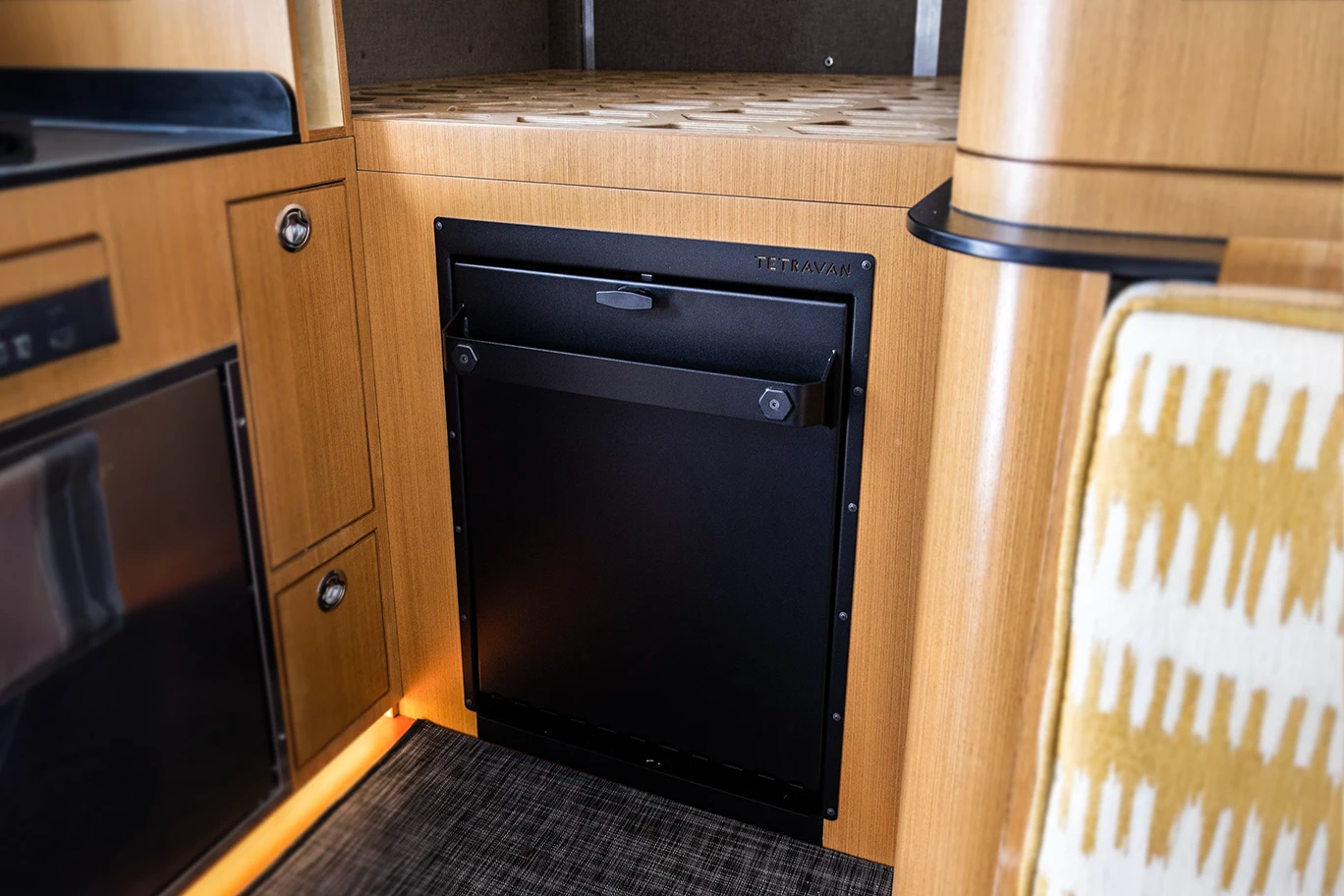

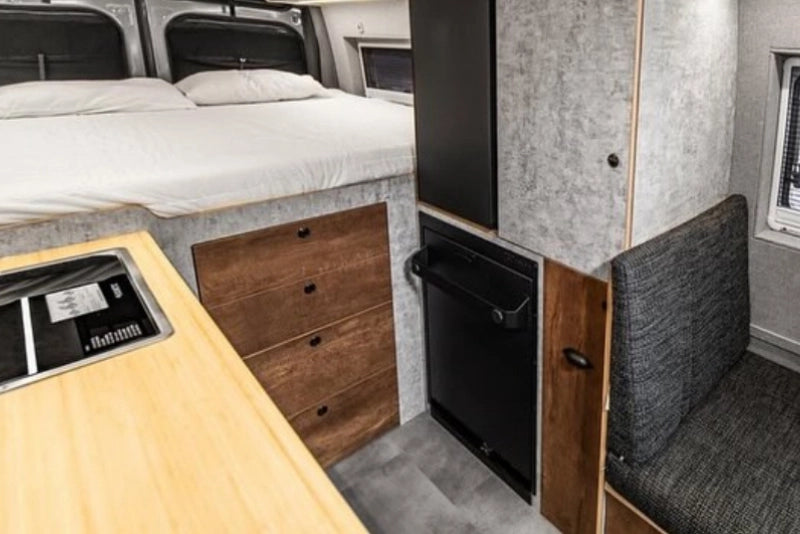

Mount the shower directly into an under-bed bulkhead. This layout places the shower in the tallest part of the van and can plumb directly into a hot water supply located in the garage area.
For modular bed designs with removable panels, the shower can be installed beneath one of the panels. This keeps the shower out of sight when not in use and avoids sacrificing non-bed floor space.
It is a compact folding shower system designed to give vans, RVs, trailers, and boats a real interior shower without permanently dedicating floor space to a shower stall.

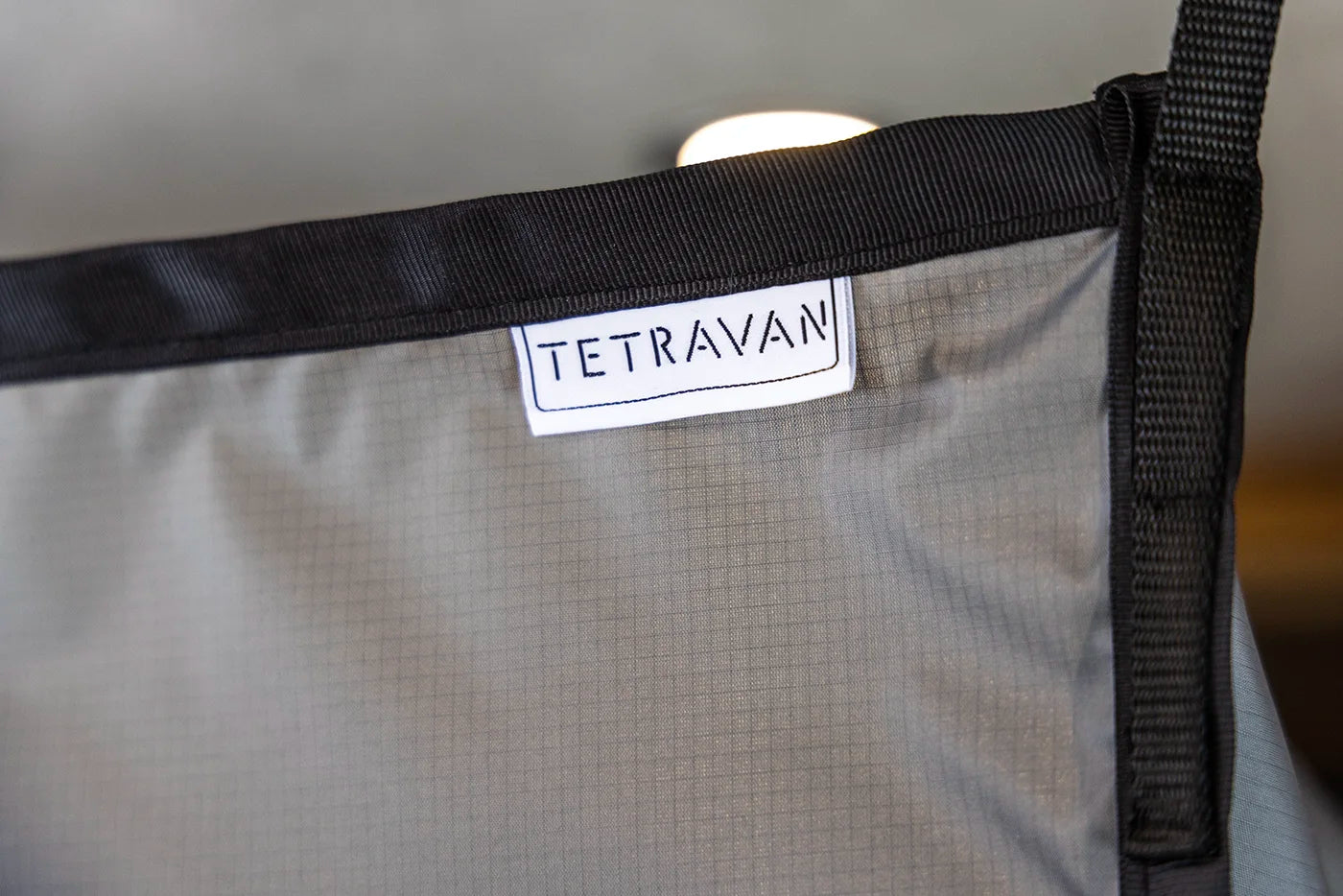

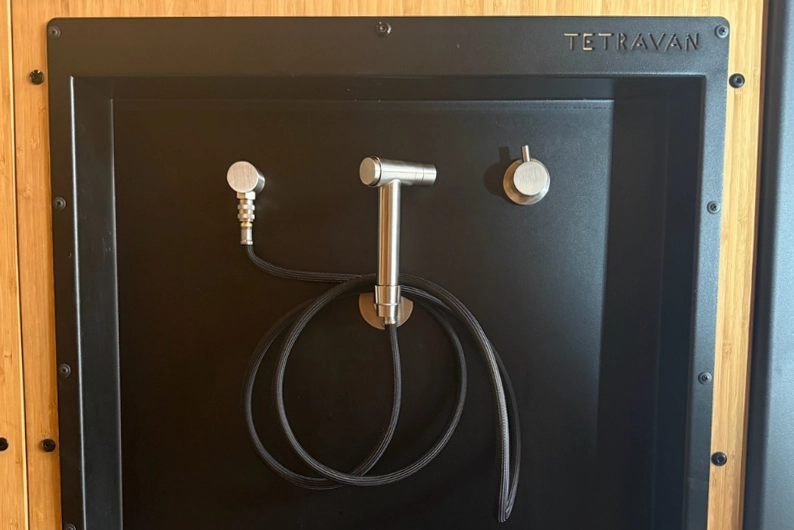

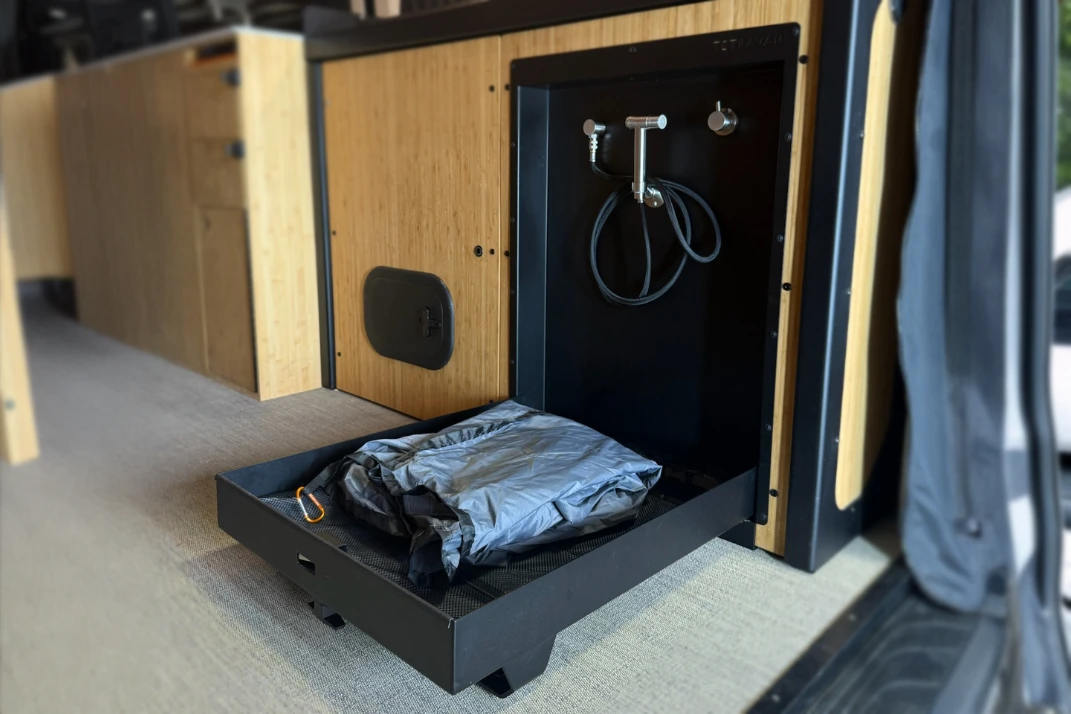

The kit includes the folding shower body, magnetic zipped shower curtain, pre-installed stainless steel shower port system, press-button stop shower head, quick-release hose, shower head holder, shower valve / mixer, Scandvik 1.5 in drain, and magnetic zipped mesh storage pouch.

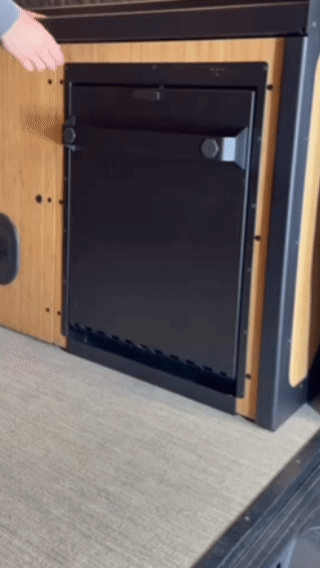

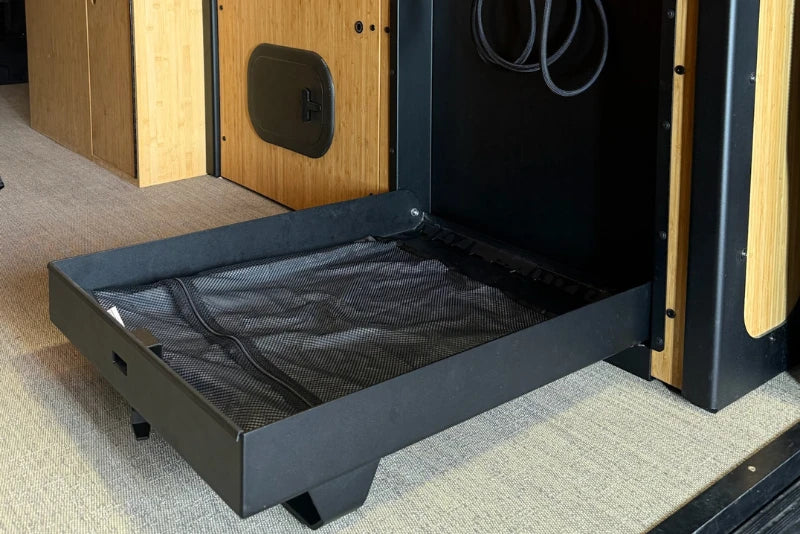

The shower folds away when not in use, making it a practical option for compact interiors where a permanent shower stall would take up too much space.

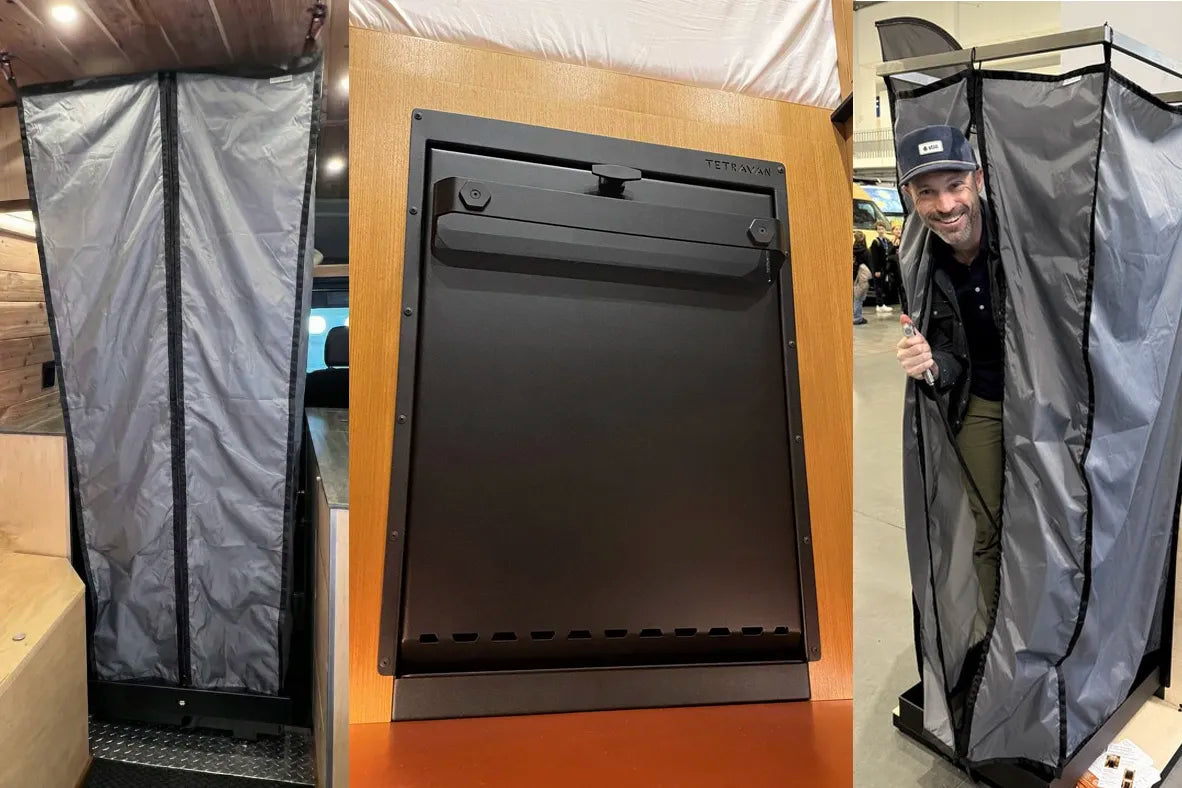

These options refer to the location of the curtain opening when facing the shower head-on from outside the shower. Choose the entry orientation that works best for your interior layout.

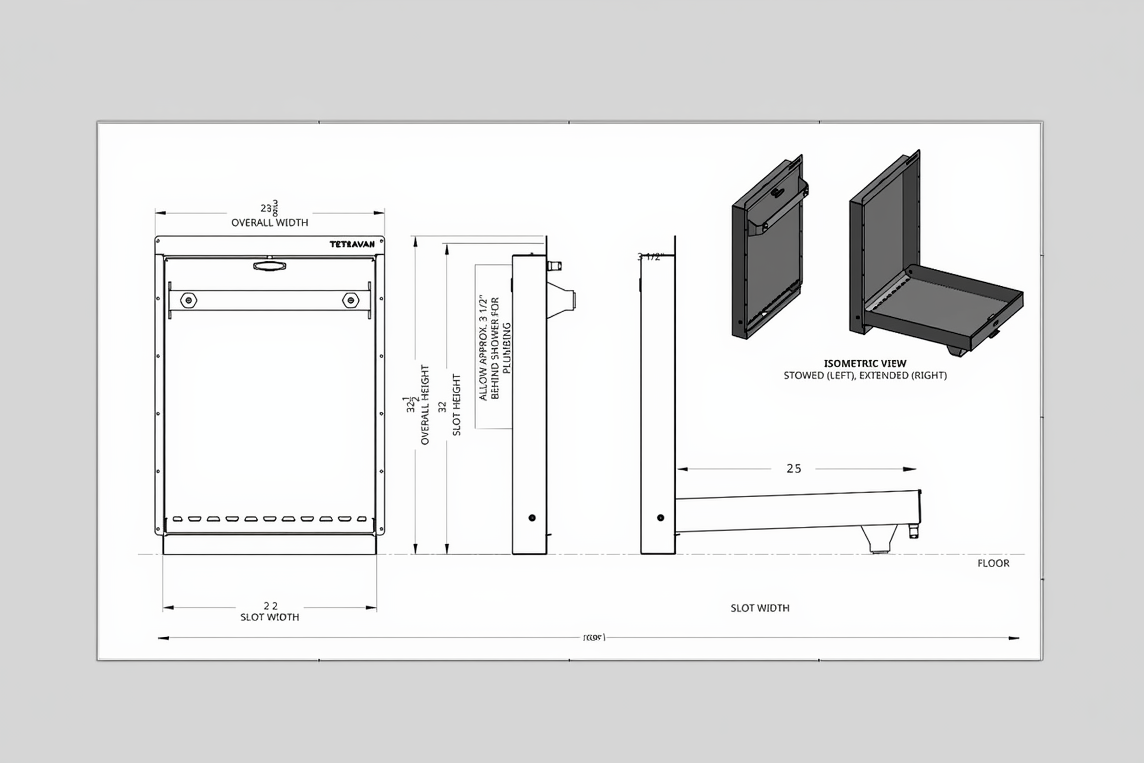

The nested shower portion is 21.75 in wide x 30.75 in tall. The outer flange is 23.25 in wide x 32.5 in tall, and the cabinet cutout should be 22 in wide x 32 in tall starting from floor level.
The shower itself is 3.5 in deep, but an additional 3.5 in behind the back should be kept clear for plumbing lines and shower head / hose storage. Plan for about 7 in total depth.

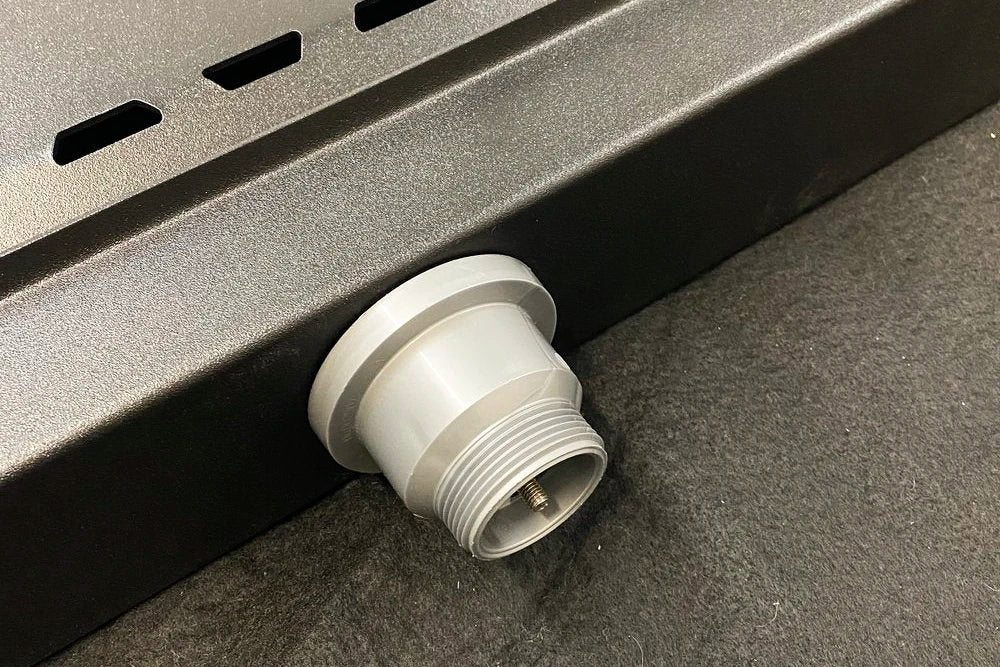

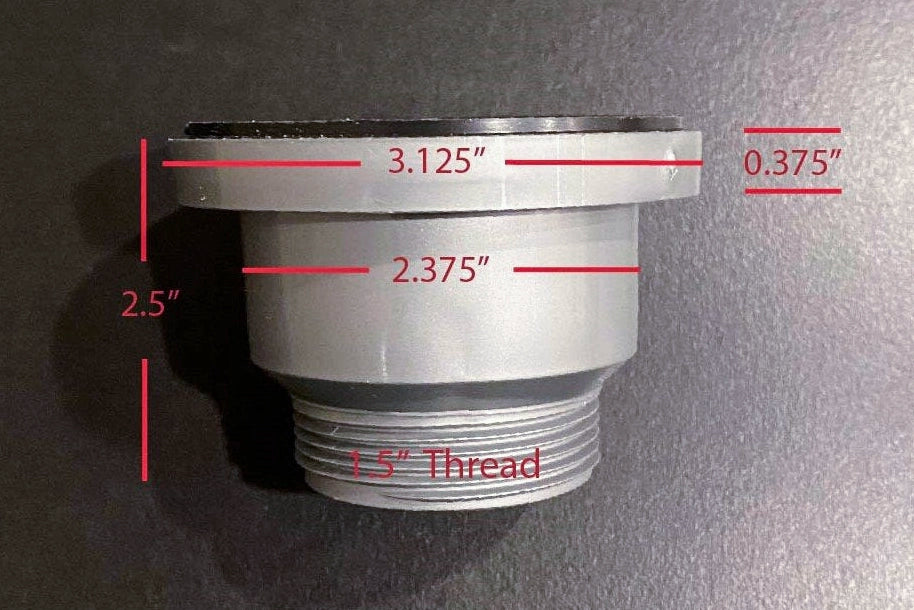

Hot and cold water connections attach with 1/2 in NPS-F fittings. The drain accommodates a standard 1.5 in threaded fitting.
Common layouts include cabinet mount, bulkhead mount, and under-bed mount installations. It can be flush-mounted into a cabinet, bed-front bulkhead, or entryway depending on the build layout.
Yes. The shower drain hole must be drilled through the floor directly underneath the center of the shower gutter.
Yes. It is designed for compact mobile interiors including Sprinter, Transit, ProMaster, RV, trailer, and boat builds when the installation space and plumbing plan are appropriate.
