Add a functional shower to your van without dedicating permanent floor space to a shower stall. The Tetravan Stainless Steel In-Floor Shower Pan installs recessed into the floor, giving you a clean hidden shower base that is ready when you need it and out of the way when you do not. This space-saving shower pan is designed for camper vans, RVs, and compact mobile interiors where every inch of floor space matters. The recessed design helps maximize headroom compared with raised shower bases, while the stainless steel pan gives you a durable, easy-to-clean shower surface.
Choose the pan only, or select the shower curtain option to add Tetravan's magnetic zippered shower curtain for a more complete shower setup. Drain hole location options are available so you can choose the layout that best matches your plumbing plan.
This shower pan is designed to work best when the van is level. Promaster vans may require floor leveling because the factory floor slopes downward toward the front.
It is a recessed stainless steel shower pan designed to add a functional shower base to a van, RV, or compact camper interior without dedicating permanent floor space to a shower stall.
An in-floor shower pan saves space by staying hidden in the floor when not in use. It is a good option for builders who want shower functionality without giving up permanent living or storage space.

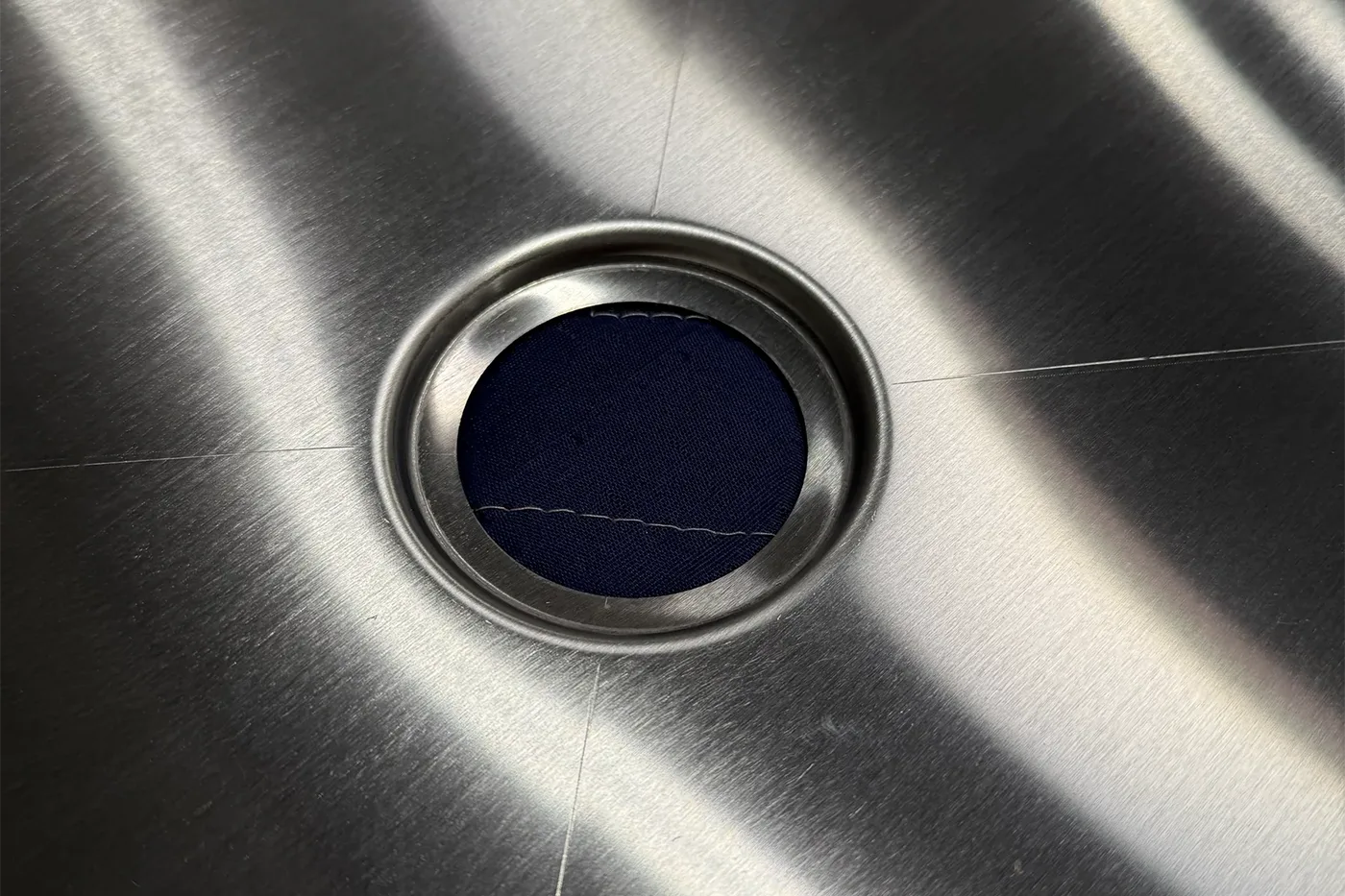

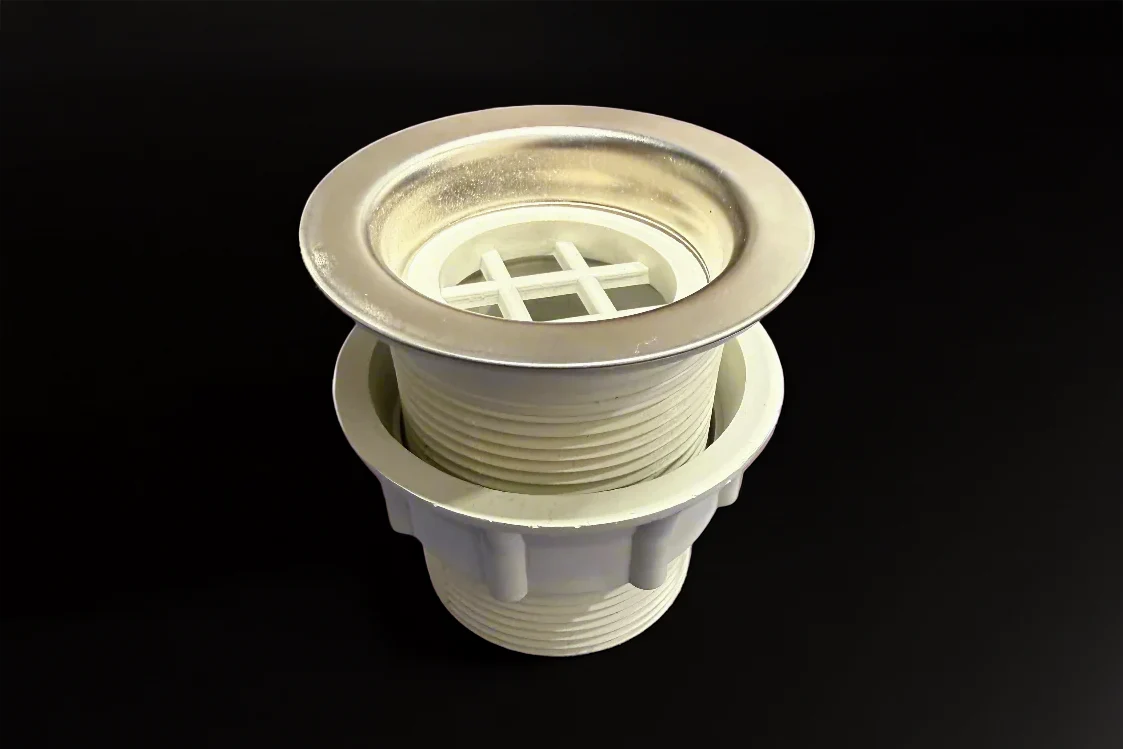

The shower pan includes the stainless steel in-floor pan and a 1-1/2 inch threaded straight drain. Shower curtain inclusion depends on the variant selected.
The No Shower Curtain option includes the pan and drain fitting. The Add Shower Curtain option includes the pan, drain fitting, and Tetravan magnetic zippered shower curtain.

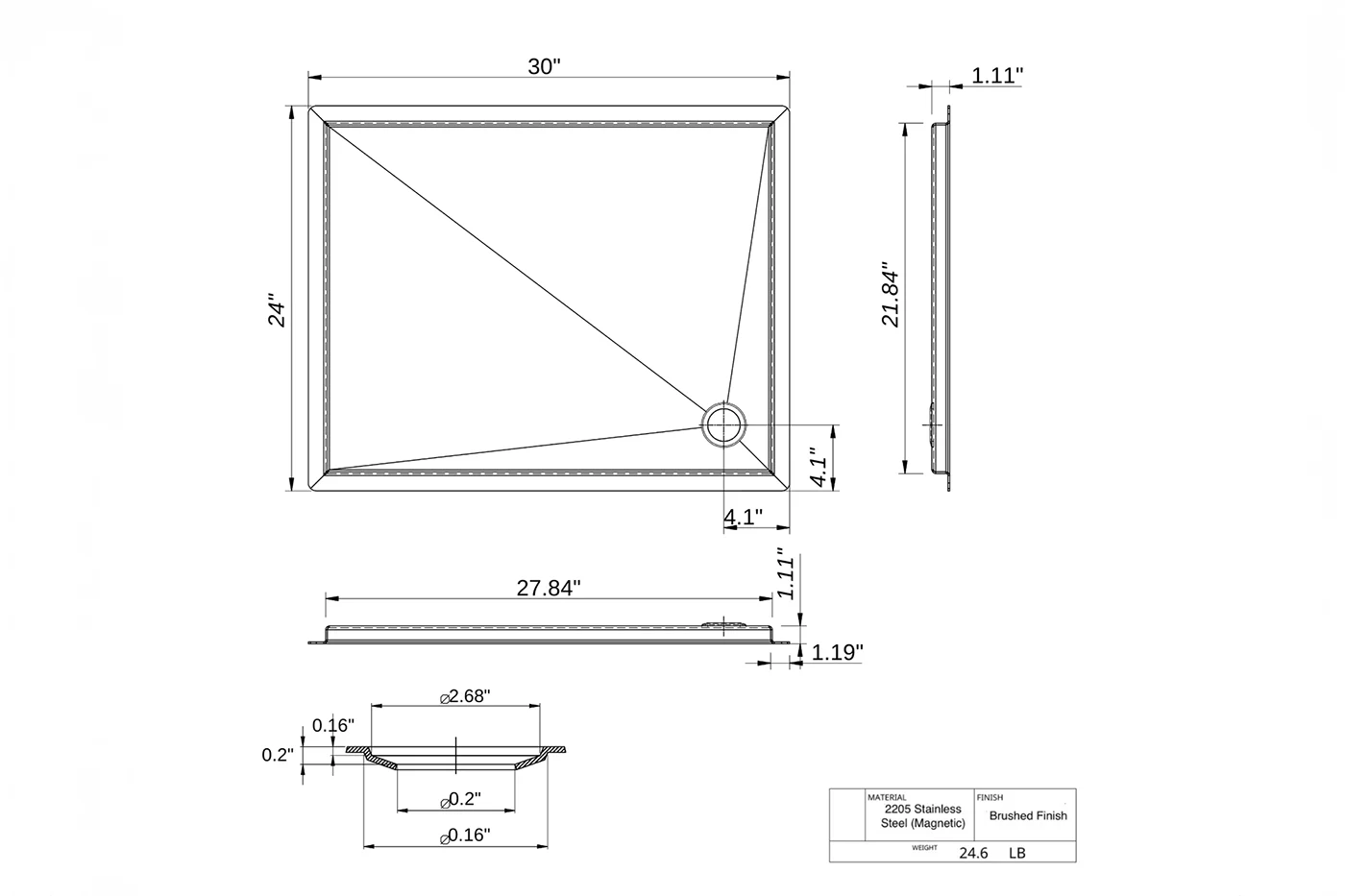

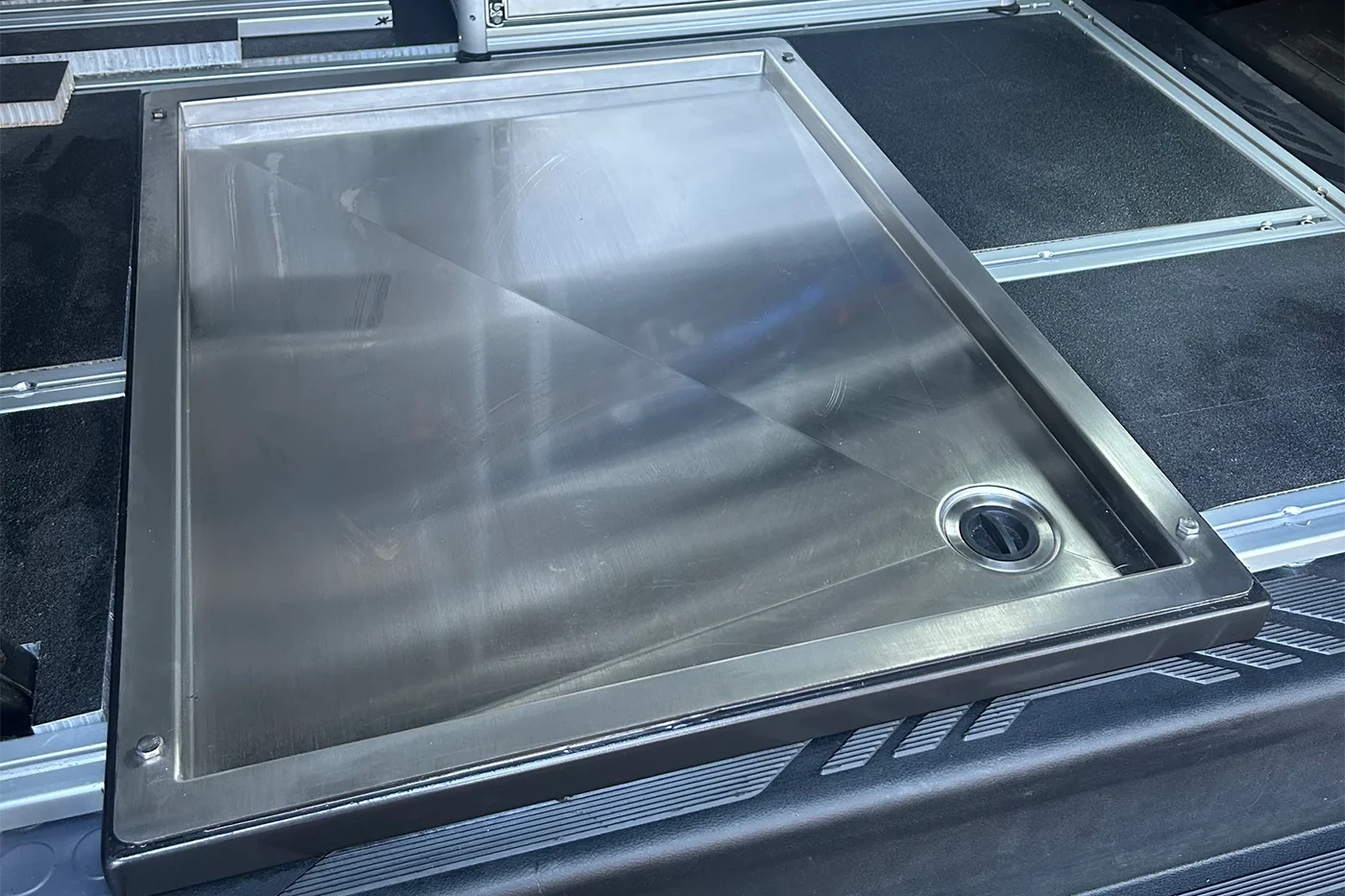

Available drain hole locations are Center, Bottom Right / Top Left, and Bottom Left / Top Right. Choose the option that best matches your planned plumbing route.
Yes. The shower pan is designed to drain best when the van is level. Promaster vans may require leveling because the stock floor slopes downward toward the front.
Yes. Because the pan is recessed into the floor instead of raised above it, it helps maximize available shower headroom.

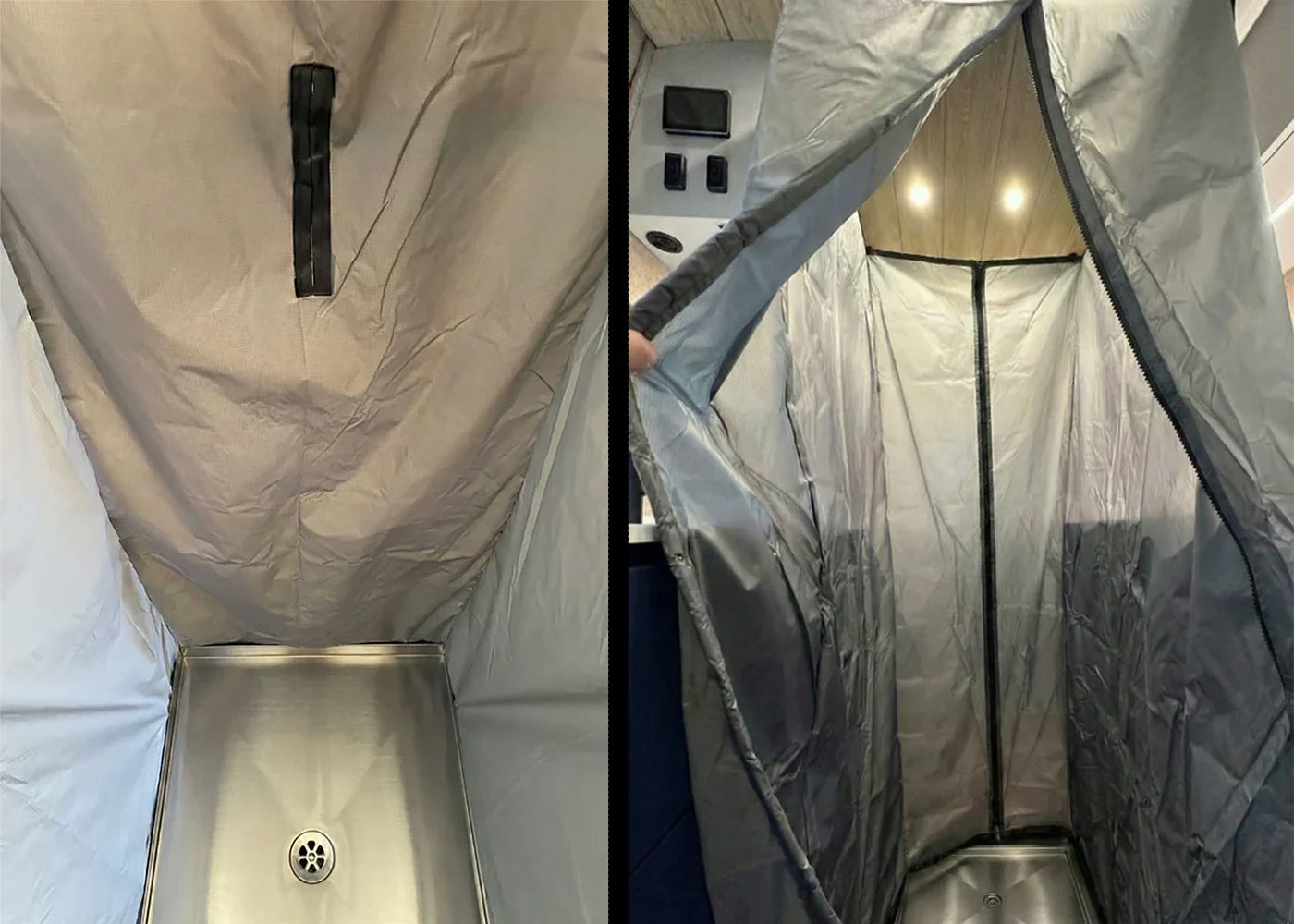

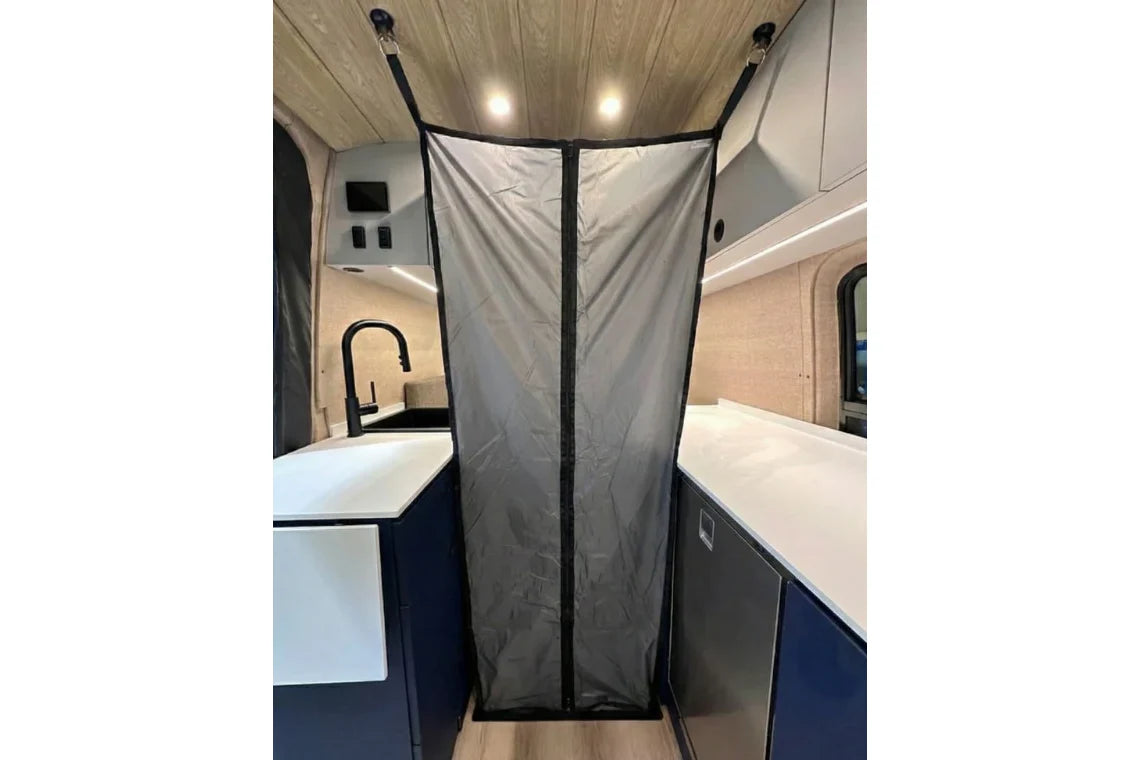

The optional Tetravan shower curtain has magnets sewn into the bottom edges, allowing it to attach to the magnetic stainless steel pan.

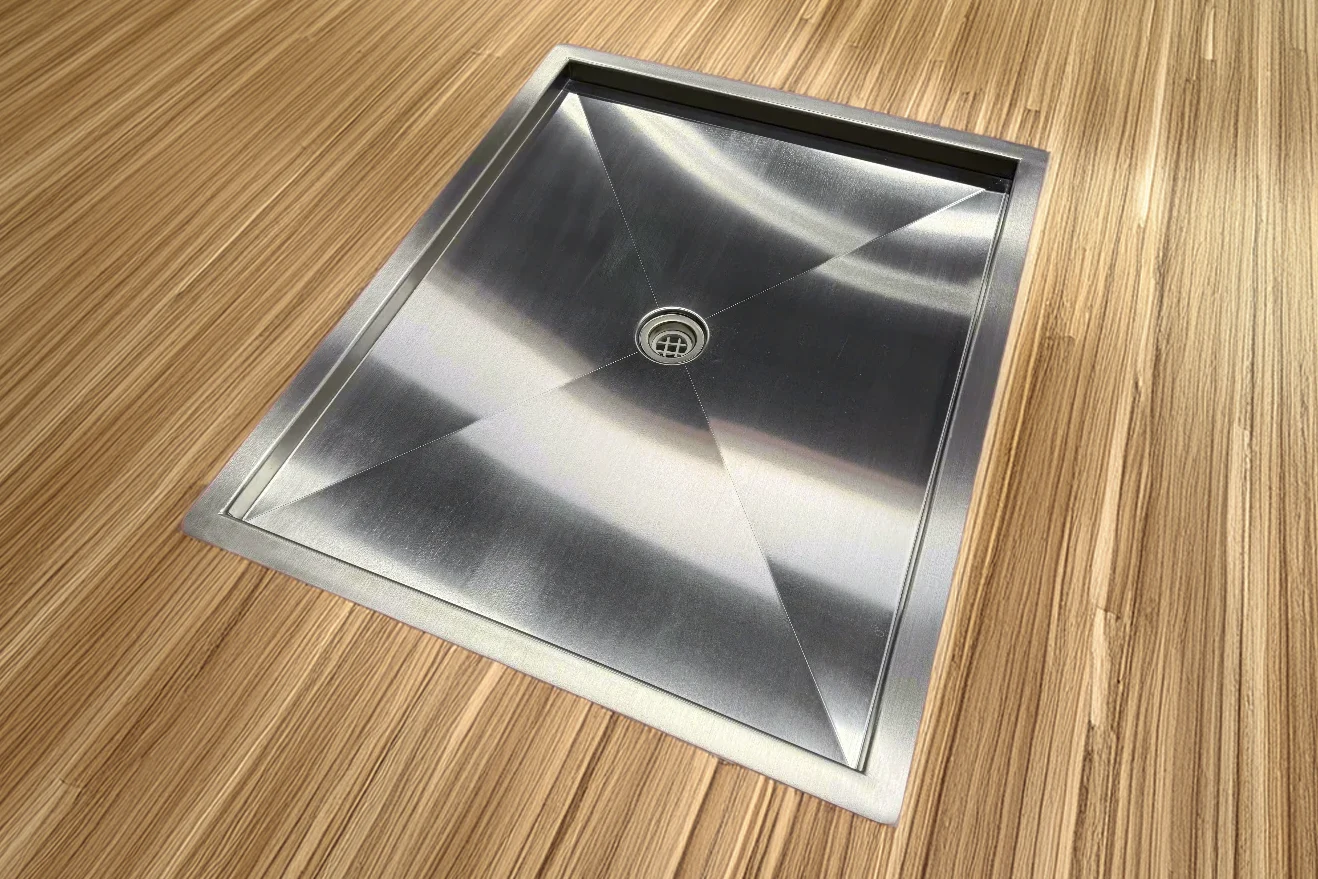

The pan is designed to be recessed into the floor. A proper adhesive should be used on the underside of the flange, along with countersunk screws through the flange into the subfloor.
Yes, it can be used in many van platforms when the floor build and drain routing are planned correctly. Always confirm floor depth, drain location, and leveling before installation.
