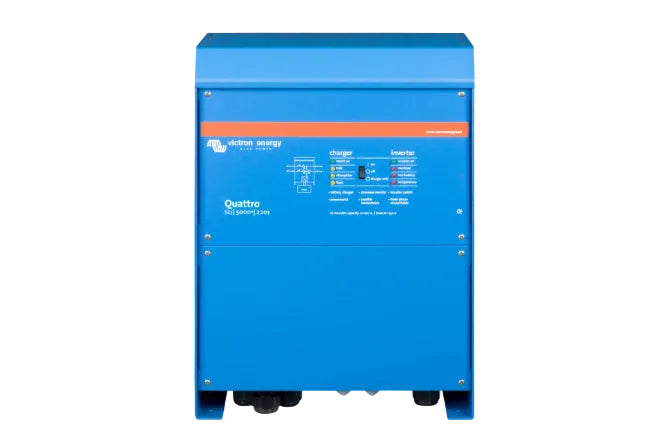

• Blue Victron Energy Quattro battery charger and inverter on a white background

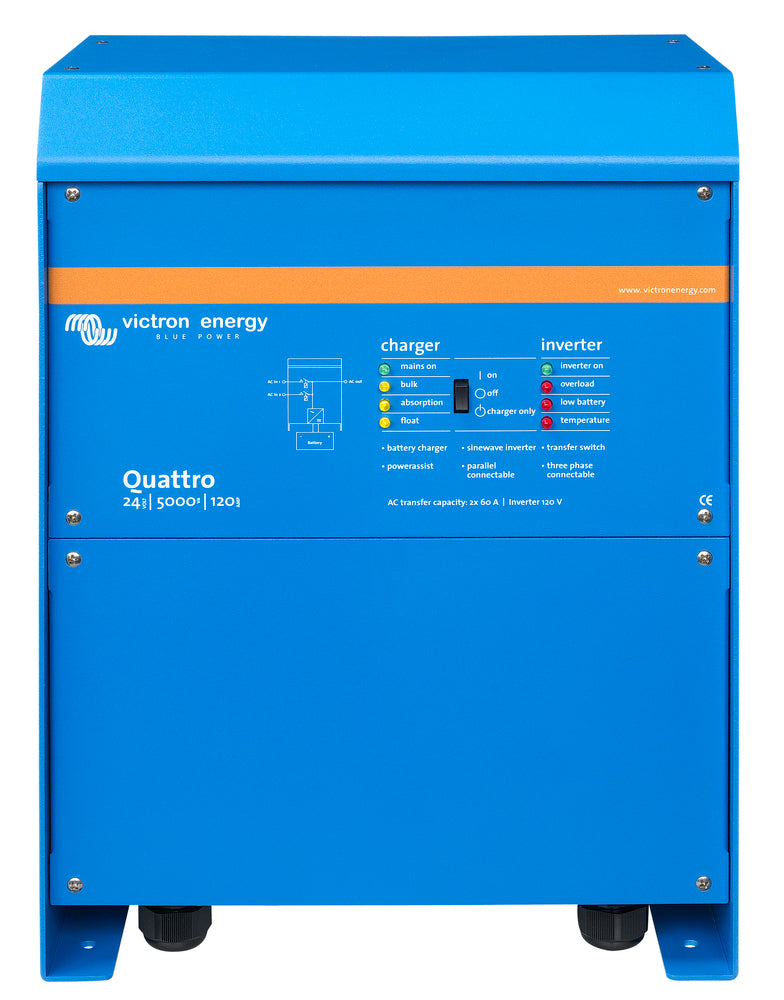

  • Blue Victron Energy Quattro power station on a white background
  • Blue Victron Energy Quattro battery charger and inverter on a white background
  • Blue Victron Energy Quattro battery charger and inverter on a white background
  • Blue Victron Energy Quattro battery charger and inverter on a white background

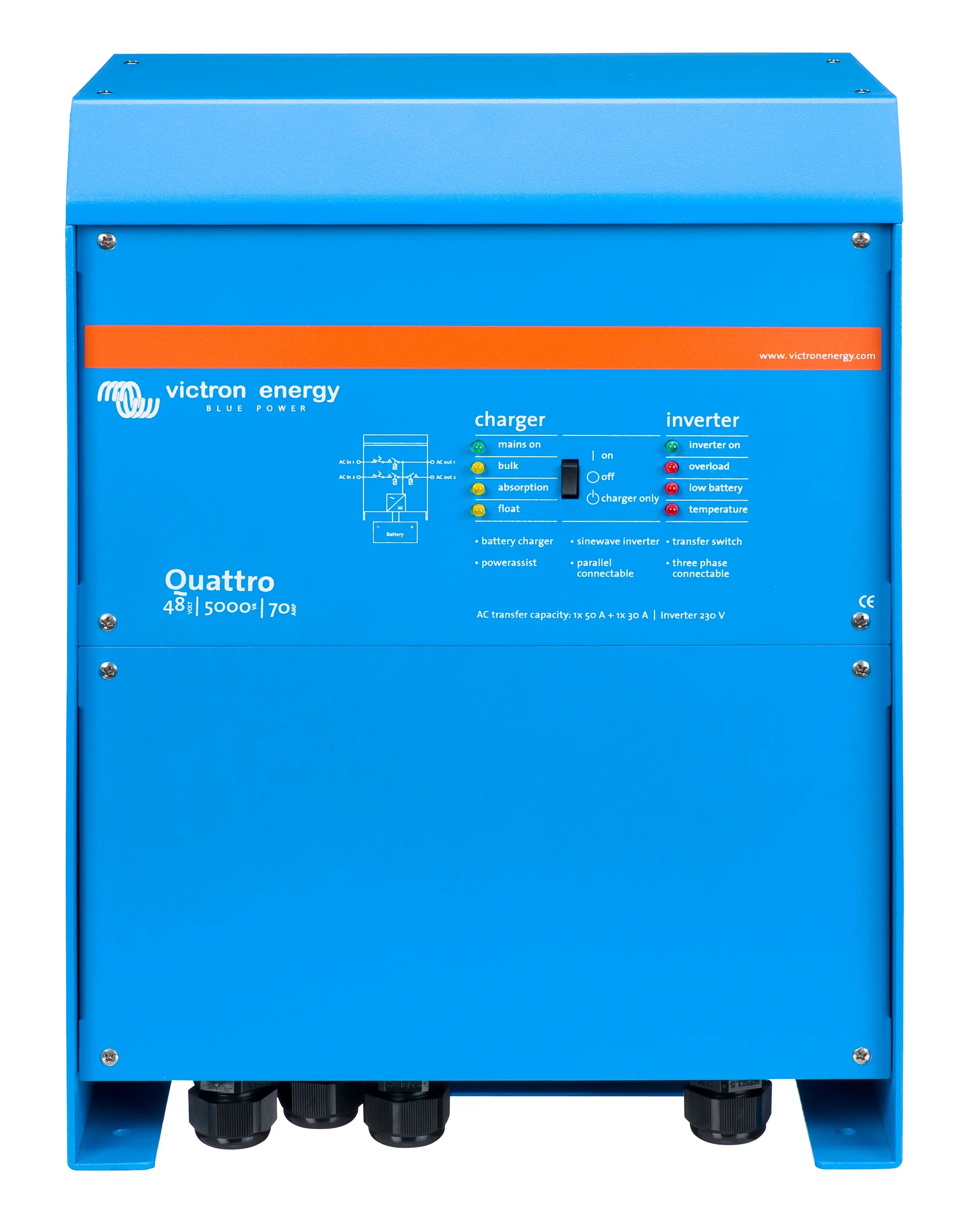

  • Blue Victron Energy Quattro 48/3500/1600 power station on a white background

Victron Quattro Inverter Charger | 120V Models (3kVA to 15kVA)

$2,834.75 USD
$2,834.75 USD
SOLD OUT
Voltage: 12V
Continuous Output Power: 5000VA

Overview

Victron Energy Quattro is a combined inverter and charger designed for AC power management and battery charging in off-grid, RV, and marine systems.

Quattro accepts two independent AC inputs and automatically connects to the active source. It includes two AC outputs, with the main output providing no-break transfer, and a second output that is live only when AC input is available.

Important Info

Quattro selection is system-critical. Confirm battery voltage, AC distribution, and model ratings using the Victron datasheet and the correct manual for your chosen kVA size.

Key Features

  • Two AC inputs and two AC outputs: Supports two independent AC sources and two output circuits.
  • No-break main output: Fast transfer helps keep sensitive loads running during AC input loss.
  • PowerAssist feature: Helps prevent overload of a limited AC source by reducing charging or boosting with battery power.

Technical Specs

Technical Specs

Spec Details
Brand Victron Energy
Product type Inverter and charger
AC inputs Two independent AC inputs (integrated transfer switch)
AC outputs Two AC outputs (main no-break output plus second output when AC available)
Model family 3kVA to 15kVA (variant dependent)
System configuration options Parallel operation and three phase or split phase options (model dependent)

Resources and Downloads

Frequently Asked Questions (click to expand)

1. How do I choose the right Quattro model?

Choose based on battery voltage, required inverter output, and charger requirements for your system.

2. What is the benefit of two AC inputs?

It allows connection to two independent AC sources, such as shore power and generator, with automatic selection.

3. What is the difference between AC-out-1 and AC-out-2?

AC-out-1 is no-break. AC-out-2 is live only when an AC source is present.

4. What is PowerAssist?

PowerAssist helps avoid overload by reducing charger draw or supplementing AC input with battery power.

5. Can I run multiple units together?

Parallel and phase configurations are possible on supported models. Confirm capabilities in the datasheet for your chosen model.

6. Does it require professional installation?

This is a system-critical component. Installation should follow Victron guidance and local electrical standards.
