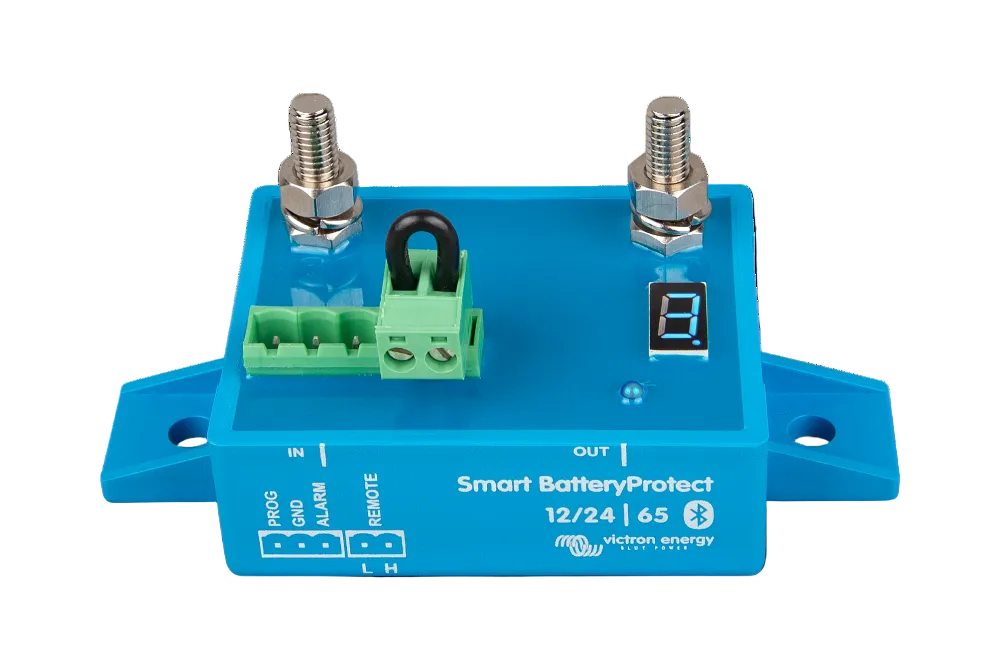

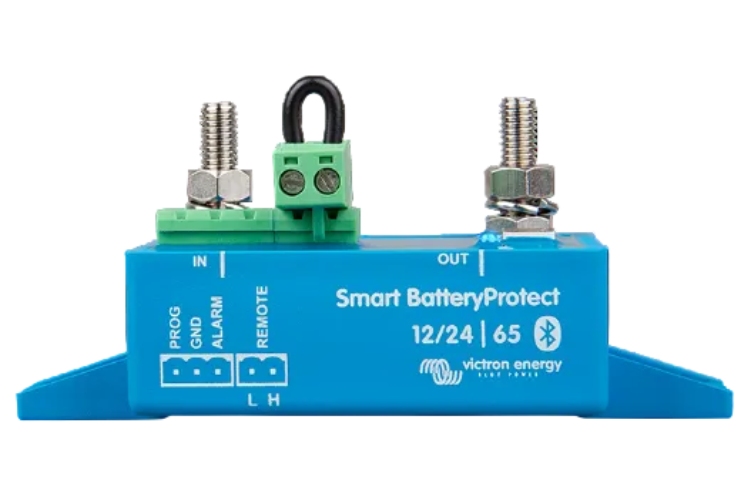

Victron Smart BatteryProtect | 12/24V Low Voltage Disconnect

Name: Victron Smart BatteryProtect | 12/24V Low Voltage Disconnect
Brand: Victron Energy
SKU: ART-BPR065022000-VIC
Price: 53.55 USD
Availability: InStock

$53.55 USD

SOLD OUT

Voltage: 12/24V 12/24V 48V

Amperage: 65A 65A 100A 220A

Quantity

Overview

Victron Energy Smart BatteryProtect is designed to help protect a battery from excessive discharge by disconnecting loads at a set voltage threshold. It supports Bluetooth programming for setting engage and disengage levels in VictronConnect.

Important Info

Choose the correct Smart BatteryProtect current rating for your maximum continuous load. Follow the manual for wiring and programming.

Key Features

12/24V auto-ranging: Automatically detects system voltage one time only.
Bluetooth programming: Set engage and disengage levels using VictronConnect.
Multiple current ratings: Available in 65A, 100A, and 220A versions.

Technical Specs

Spec	Details
Brand	Victron Energy
Product type	Battery protection / load disconnect
System voltage	12/24V auto-ranging
Models	SBP-65, SBP-100, SBP-220
Max continuous load current	65A, 100A, 220A (model dependent)
Operating voltage range	6 to 35V (per manual technical specifications)

Resources and Downloads

Frequently Asked Questions (click to expand)

1. What does Smart BatteryProtect do?

It disconnects non-essential loads before the battery voltage becomes too low, based on configured thresholds.

2. Is it a battery charger?

No. It is a protection device for loads.

3. How do I set the disconnect level?

Use Bluetooth programming in VictronConnect, or predefined levels depending on configuration.

4. Which current rating should I choose?

Choose based on your maximum continuous load current.

5. Does it work on 12V and 24V systems?

Yes, it is 12/24V auto-ranging.

6. Do I still need fuses?

Yes, proper circuit protection is required. Follow manufacturer guidance.
