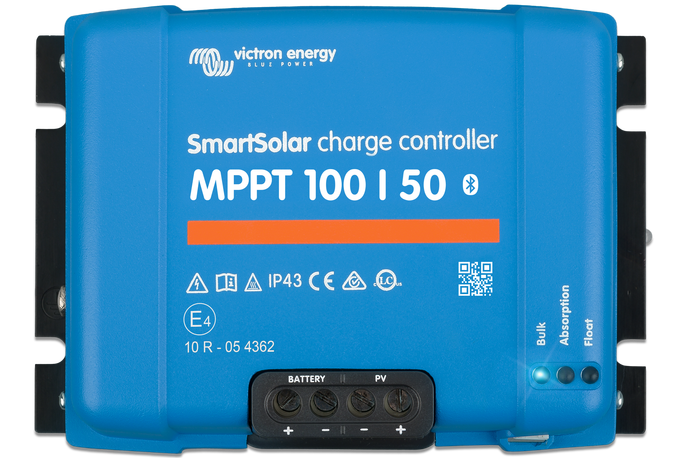

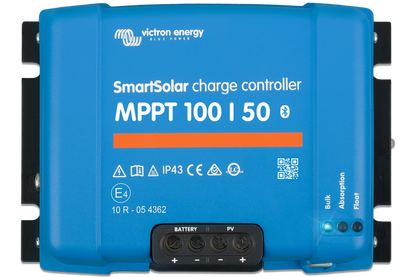

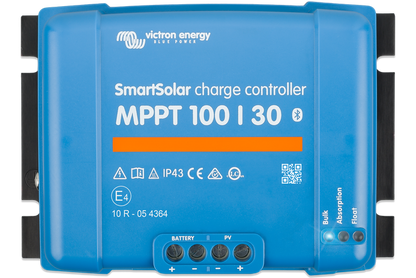

Victron SmartSolar MPPT Solar Charge Controller | Screw Terminals (75V to 250V, 10A to 70A)

$65.45 USD
$65.45 USD
SOLD OUT
Maximum Photovoltaic Open Circuit Voltage: 75V
Rated Charge Current: 10A

Overview

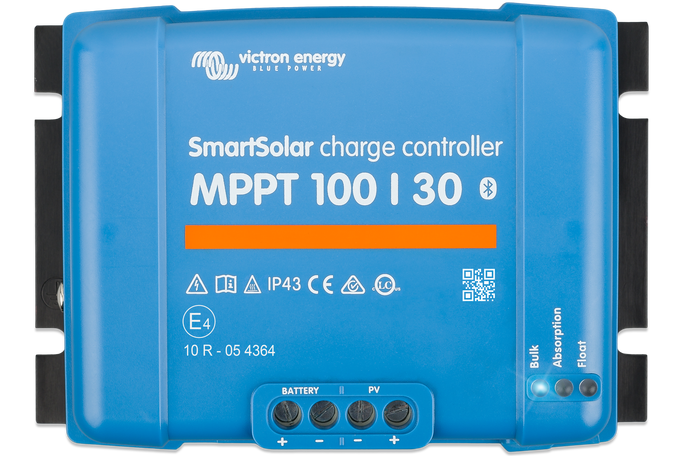

Victron's SmartSolar MPPT controllers maximize solar harvest using fast maximum power point tracking while charging and protecting your battery bank. This listing is for the TR terminal versions, meaning PV wiring lands on screw terminals.

These models include built-in Bluetooth for monitoring and configuration with the VictronConnect app, and they use a VE.Direct port for wired integration with compatible Victron GX devices and accessories.

Important Info

These are TR screw terminal, VE.Direct models, not VE.Can. If you need a VE.Can networked SmartSolar MPPT, use this product page: SmartSolar MPPT TR VE.Can.

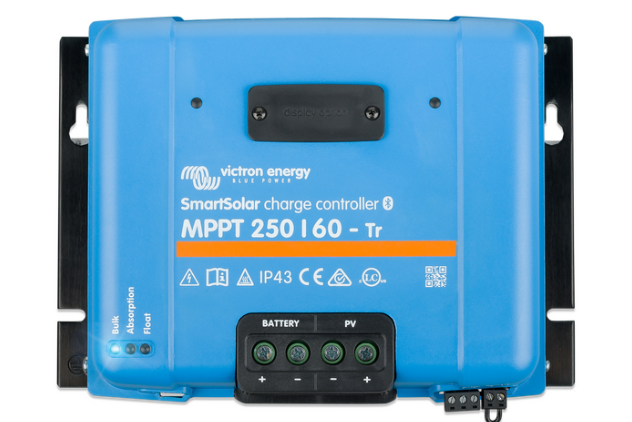

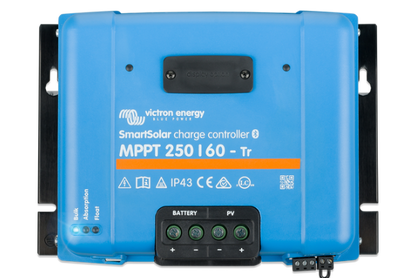

TR Screw Terminal PV Inputs

TR versions use screw terminals for PV connections, which is helpful when bringing PV conductors into a combiner, junction box, or other hardwired install.

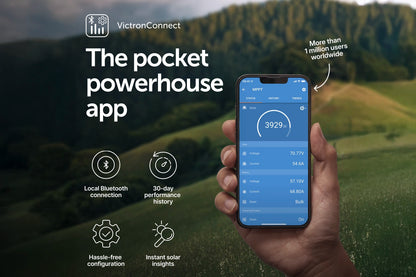

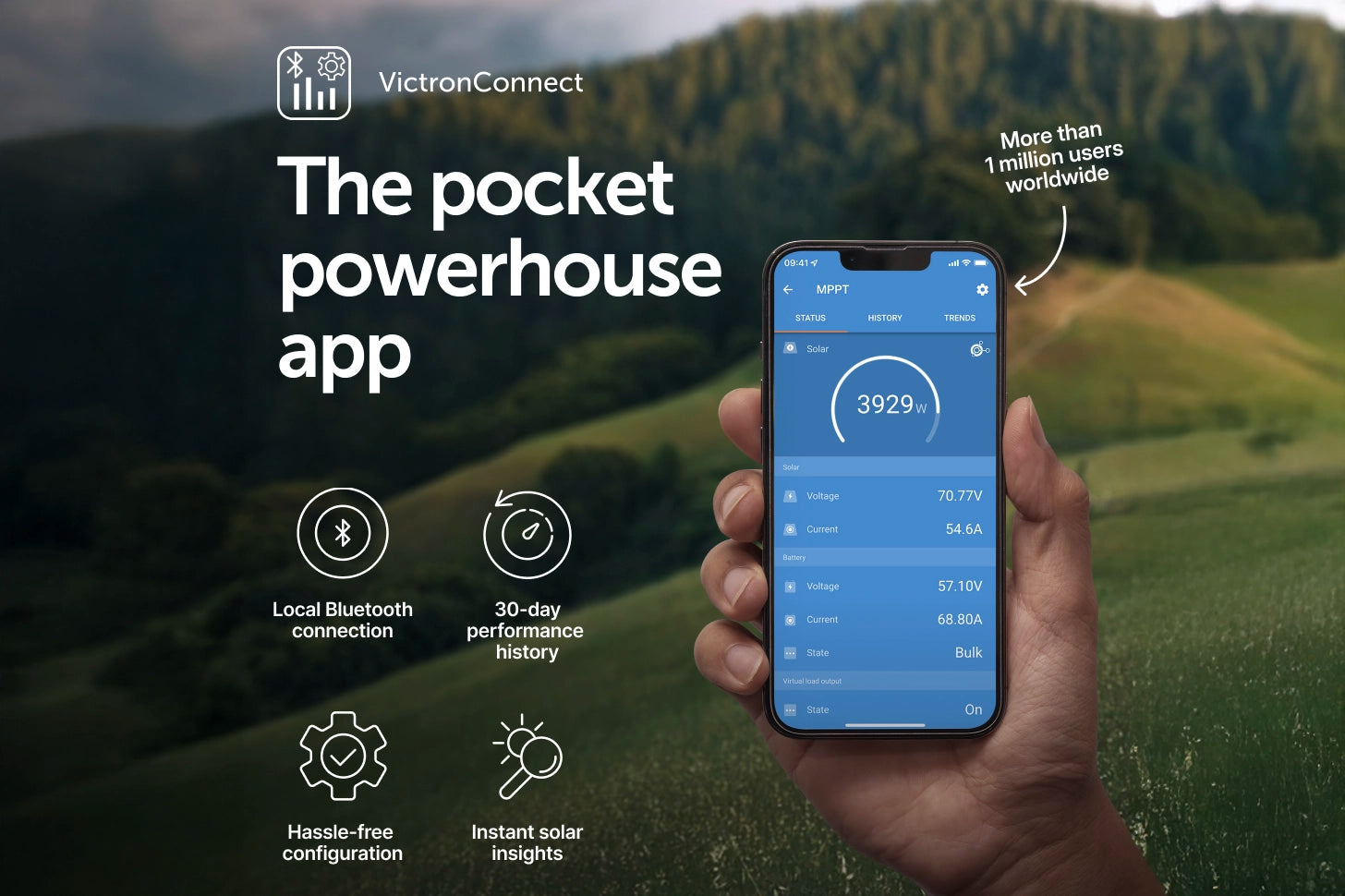

Built-in Bluetooth Monitoring

Configure settings and view live status using the VictronConnect app, no external Bluetooth dongle required for these SmartSolar variants.

VE.Direct Connectivity

Use VE.Direct for a wired data connection to compatible Victron monitoring and control hardware. VE.Can is a separate SmartSolar MPPT model family intended for CAN bus networking.

Key Features

  • Fast MPPT tracking to maximize energy harvest in changing conditions
  • Built-in Bluetooth for VictronConnect monitoring and configuration
  • VE.Direct port for wired integration with compatible Victron devices
  • Multi-stage charging with configurable battery settings (battery type and parameters depend on system requirements)

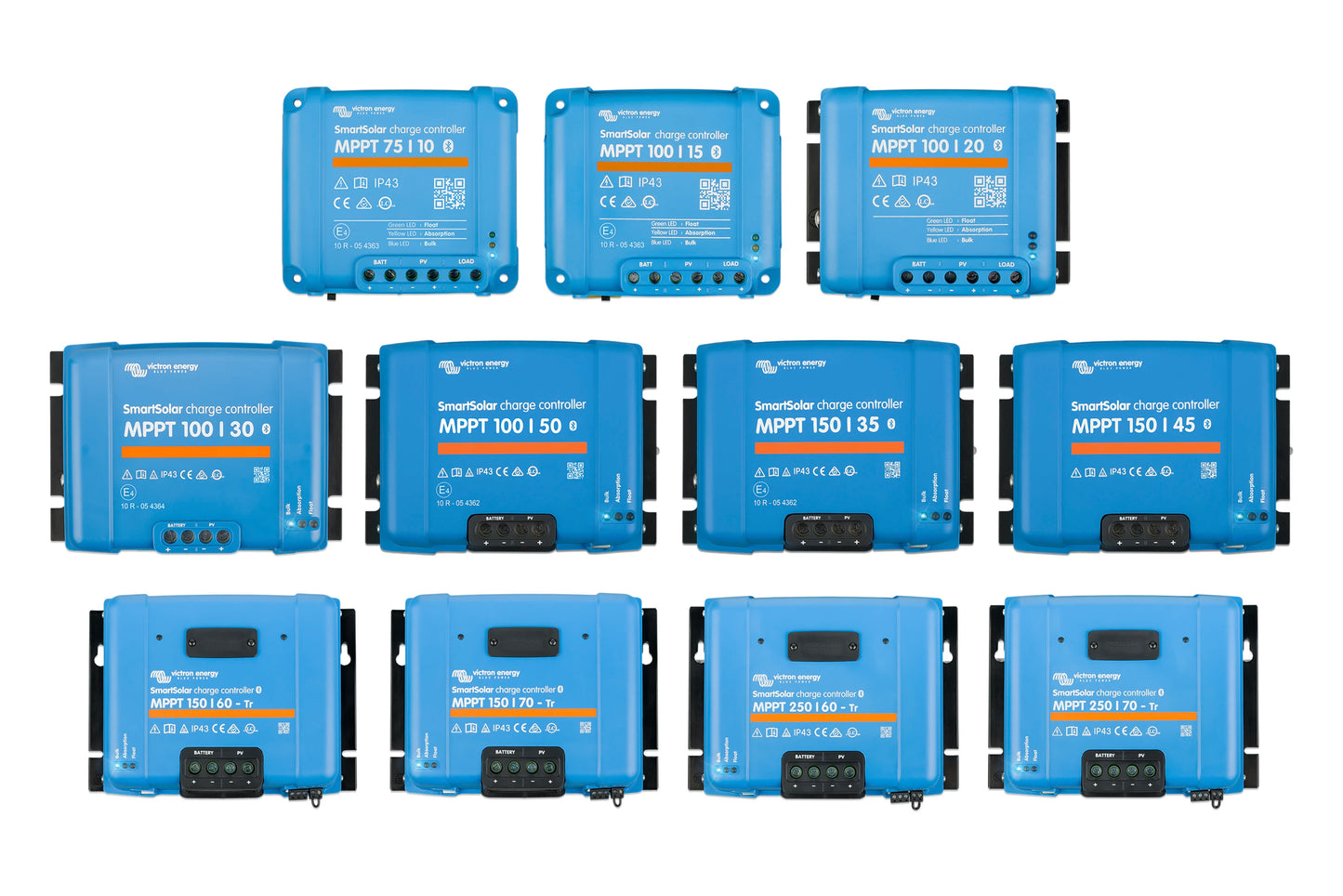

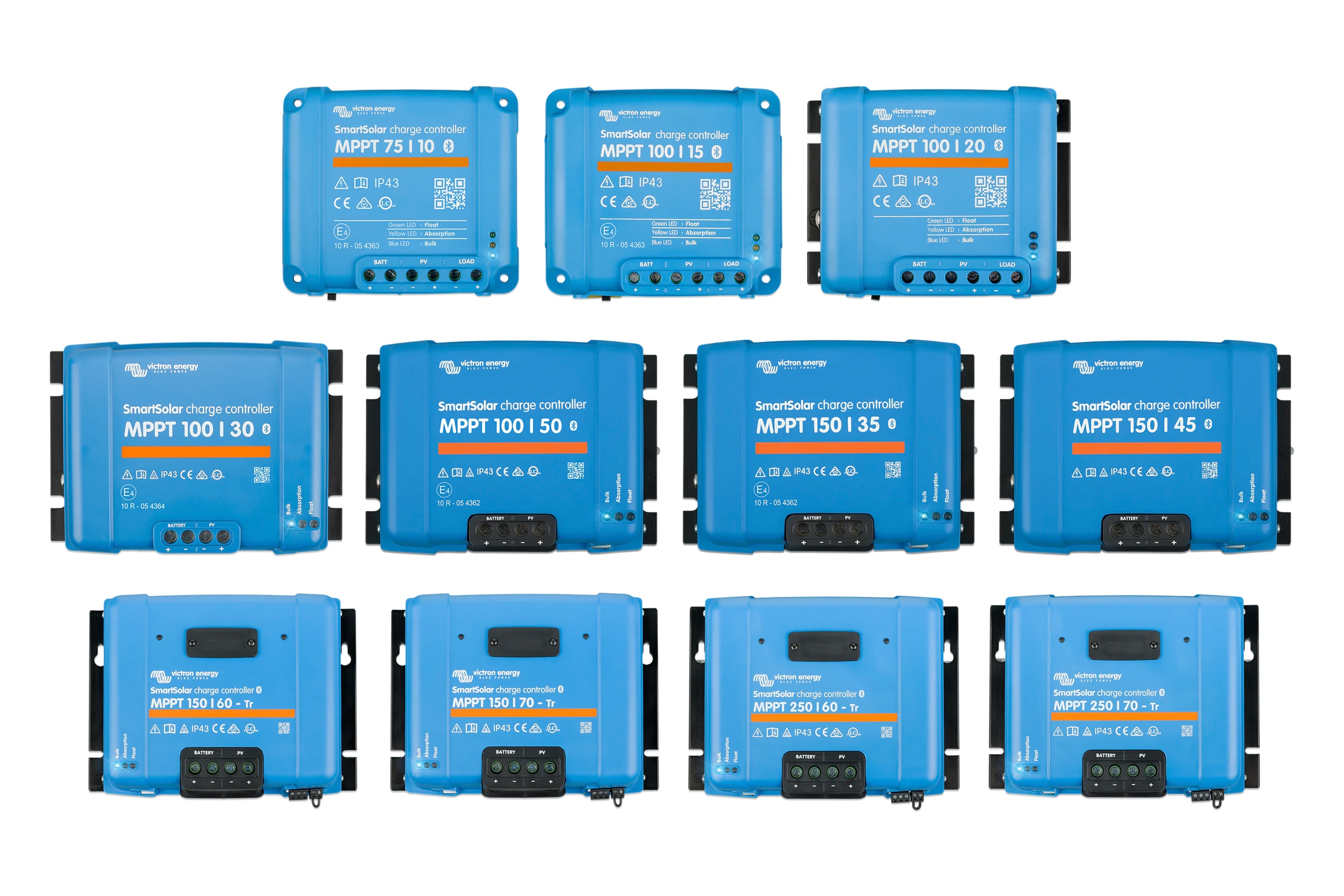

  • Multiple voltage and current variants, select by PV voltage rating and required charge current

Technical Specs

Model Range Summary

Spec Details
Brand Victron Energy
Product family SmartSolar MPPT (TR screw terminal versions)
PV input voltage rating (by variant) 75V, 100V, 150V, 250V (max PV open circuit voltage rating varies by model)
Charge current (by variant) 10A to 70A
Monitoring Built-in Bluetooth for VictronConnect
Wired communications VE.Direct
Terminal type TR screw terminals (PV connections)

Resources and Downloads

Frequently Asked Questions (click to expand)

1. What does TR mean on these SmartSolar MPPT models?

TR indicates the PV input connections are screw terminals, intended for hardwired PV conductors rather than MC4 plug-in connections.

2. Are these VE.Can models?

No. These variants use VE.Direct for wired communications. VE.Can SmartSolar MPPTs are a different model family.

3. What is the difference between VE.Direct and VE.Can?

VE.Direct is a direct, device-to-host connection commonly used to connect an MPPT to a GX device. VE.Can versions add CAN bus communications that can simplify networking multiple devices on a shared bus. If you need VE.Can, use our VE.Can SmartSolar MPPT page linked above.

4. Can I monitor and configure the controller from my phone?

Yes. SmartSolar MPPT models include built-in Bluetooth for monitoring and configuration using the VictronConnect app.

5. How do I choose the correct PV voltage model (75V, 100V, 150V, 250V)?

Select a model with a maximum PV open circuit voltage rating that exceeds your array Voc under coldest expected conditions. If you are unsure, share your panel model and series string count.

6. How do I choose the correct charge current (A) rating?

Choose a controller with enough charge current capacity for your array size and battery charge requirements. Higher current models can support larger arrays and higher charging demand.

7. Do these work with lithium batteries?

SmartSolar MPPT controllers support configurable charging settings and can be used with lithium systems when configured to the battery manufacturer’s requirements.

8. Can I use a GX device with VE.Direct models?

Yes. VE.Direct is commonly used to connect SmartSolar MPPT controllers to compatible GX monitoring and control devices using appropriate interface cables or adapters.
