48V Air Conditioner Cable for EcoFlow Power Kits (20 Foot)

Name: 48V Air Conditioner Cable for EcoFlow Power Kits (20 Foot)
Brand: Ecoflow
SKU: EF48CABLE
Price: 299.0 USD
Availability: InStock
Rating: 5.0 (3 reviews)

$299.00 USD

SOLD OUT

Quantity

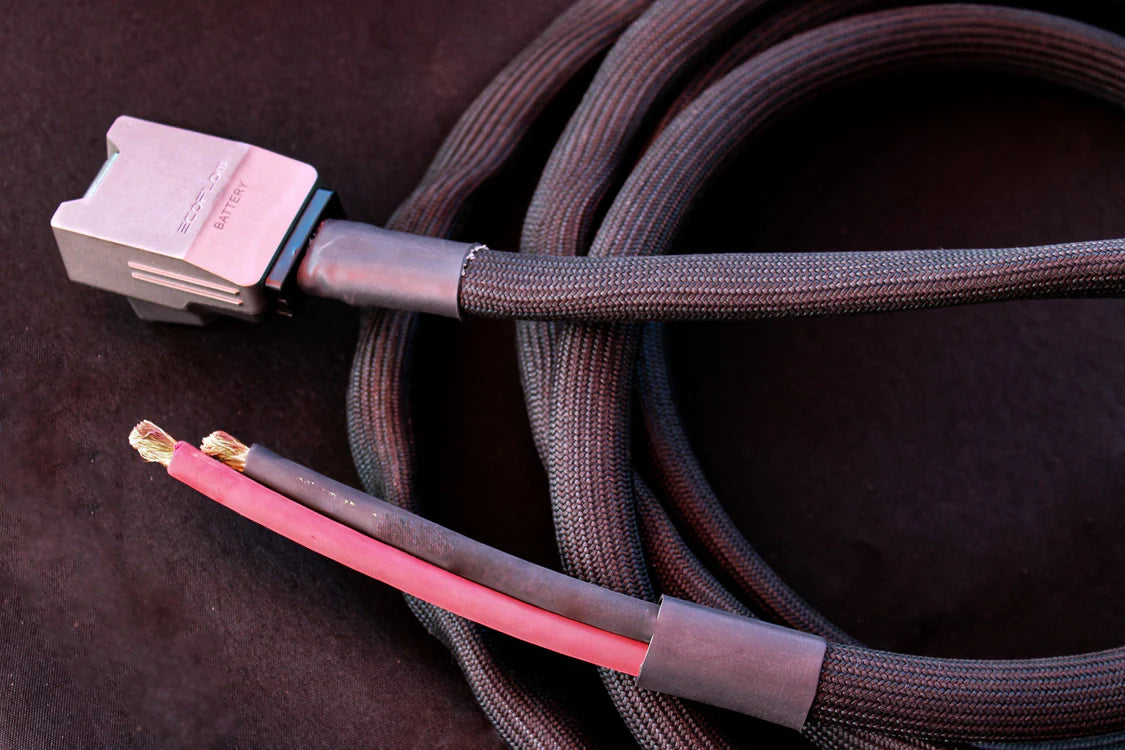

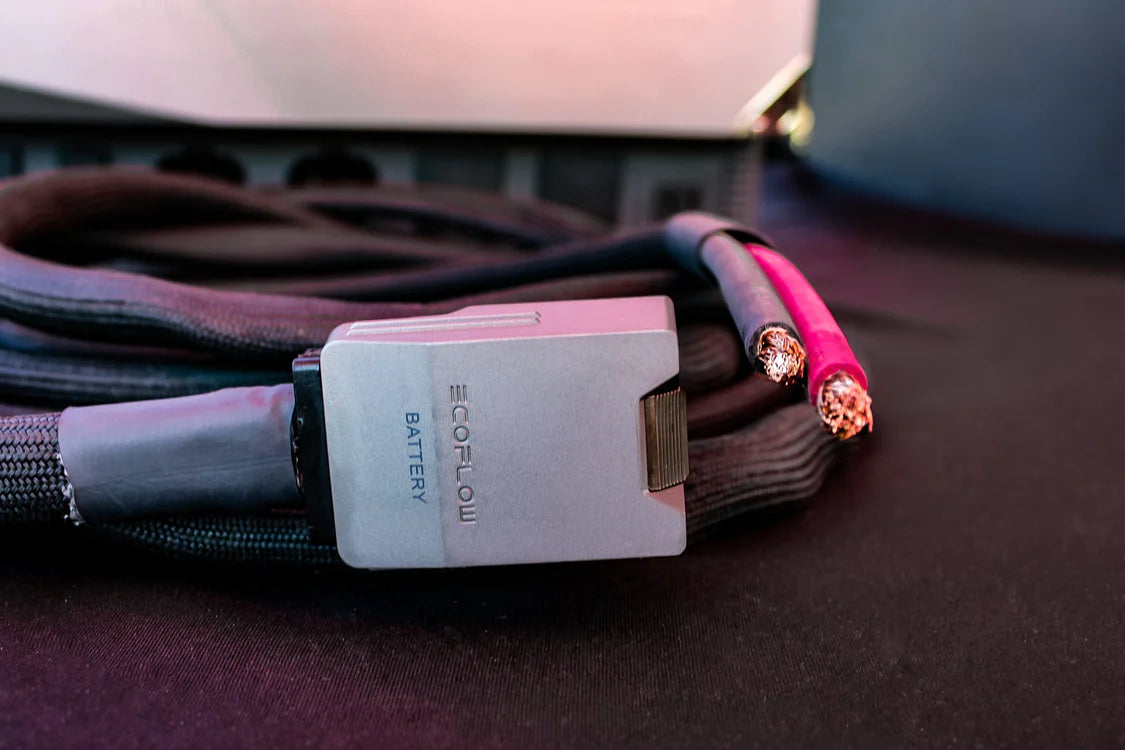

Power your 48-volt air conditioner directly from your EcoFlow Power Kit with this 20-foot 4-post to bare wire cable.

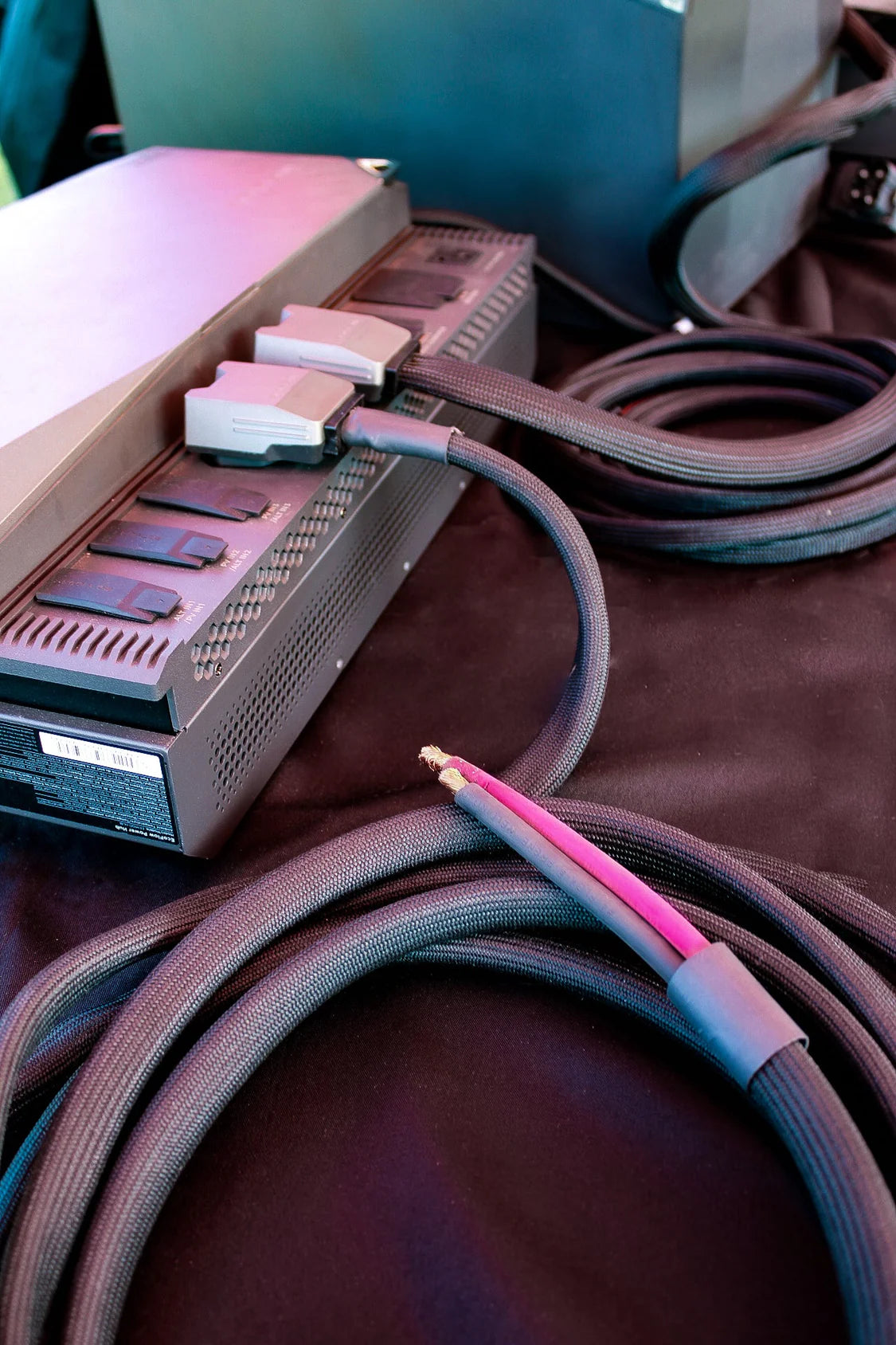

Designed for maximum compatibility and efficiency, this cable connects to the dedicated 48V output on the EcoFlow 5kVA Power Hub or to one of the three battery ports on the 3.6kVA Power Hub, enabling full 100A output (up to 4800W) to run high-performance AC units.

Whether you’re installing a 48V Velit AC, or a Nomadic X2/X3 48V AC, this cable ensures reliable delivery of power with minimal loss over distance. Built tough and ready for mobile applications, it's an essential upgrade for off-grid vanlifers, RV travelers, and marine setups using 48V appliances.

Note: For optimal run time, pair your air conditioner with the EcoFlow 5kVA Power Kit and either the 10kWh or 15kWh battery configuration to ensure sustained comfort and performance.

Key Features

Connects EcoFlow Power Kits to 48V RV air conditioners
Compatible with EcoFlow 5kVA and 3.6kVA Power Hubs
20-foot 4AWG cable provides flexible installation options
Delivers up to 100A at 48V for high-output air conditioners
Ideal for Nomadic, Velit, and other 48V AC units
Durable, tangle-free design built for mobile and marine use
1-year warranty included

What's in the Box

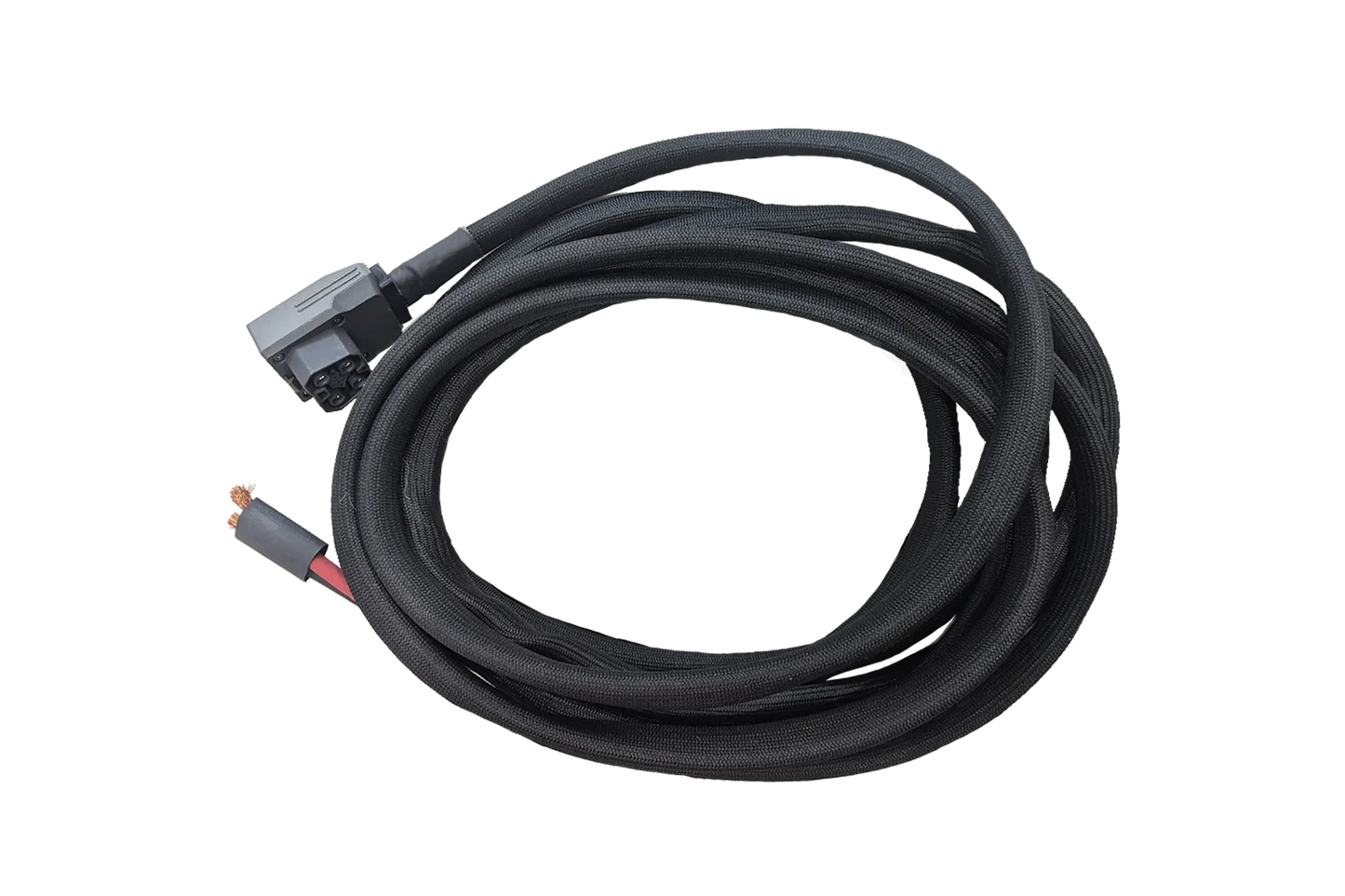

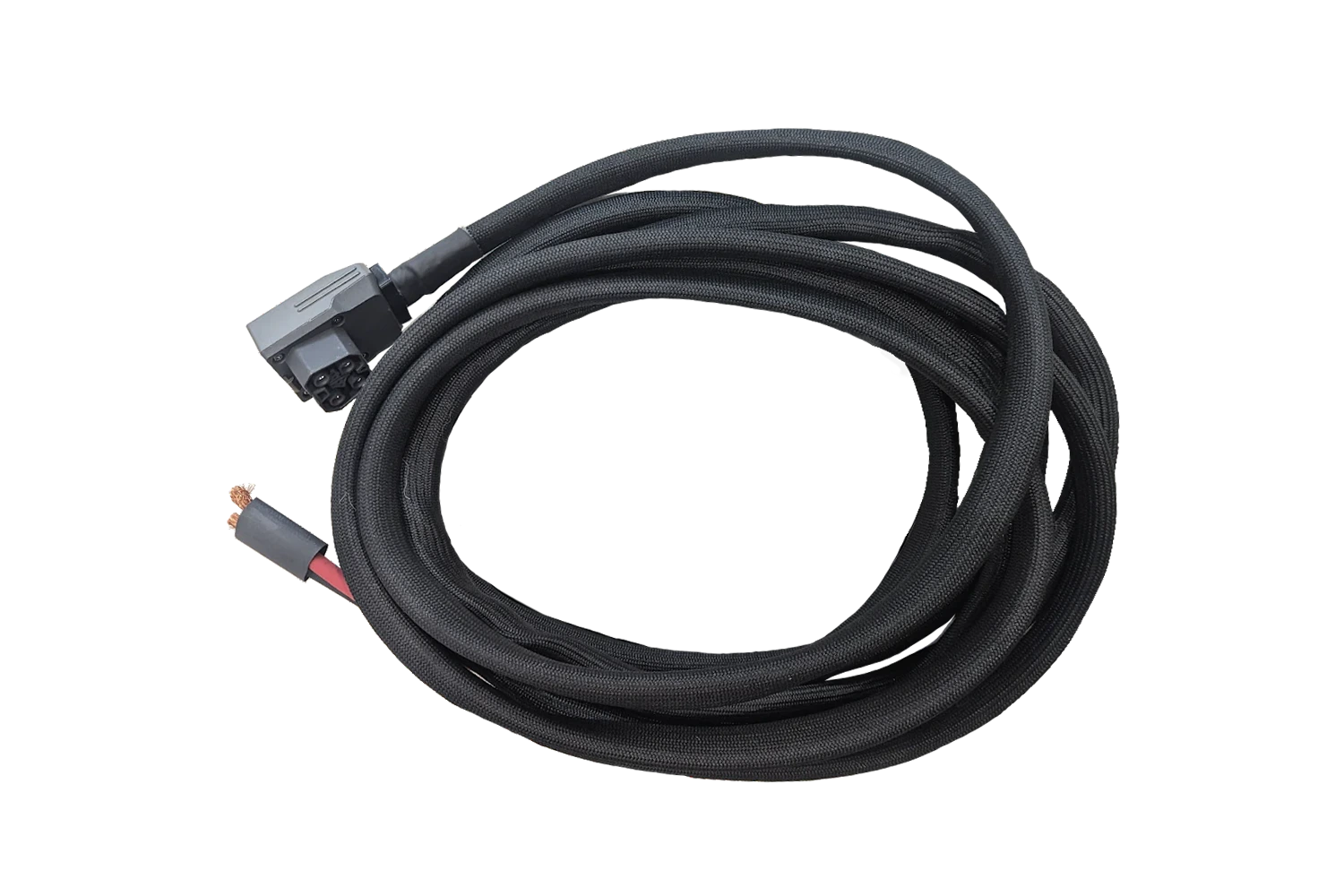

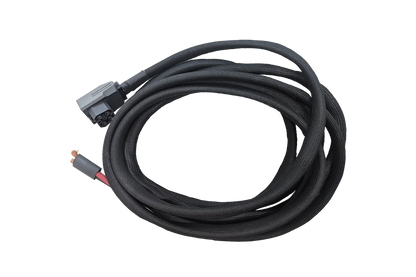

48V Air Conditioner Cable – 20 ft (4-Post to Bare Wire)

FAQ (Frequently Asked Questions) click to expand

1.What does this cable connect to?

This cable connects the EcoFlow 48V output port or battery port to a 48V DC air conditioner using a bare wire termination.

2.Which EcoFlow systems is it compatible with?

It works with both the EcoFlow 5kVA Power Hub (Gen 2) and 3.6kVA Power Hub (Gen 1) systems.

3.Which air conditioners does it support?

This cable is ideal for powering 48V air conditioners such as the Nomadic 48v, Velit 3000R/2000R 48v, and other 48V units.

4.What is the cable length?

The cable is 20 feet long, giving you flexibility when wiring rooftop or interior-mounted AC systems.

5.What is the max power output this cable can handle?

It supports up to 100A at 48V (4800W max) for full-performance 48V air conditioning systems.

6.Do I need special connectors?

No. This cable features a 4-post plug on one end that plugs directly into the Power Hub and bare wires on the other for easy wiring into any 48V DC air conditioner or breaker system. It can be used with a multi-tap connector like a 2-port Polaris lug (not included) to connect wires of dissimilar sizes. Always follow the installation advice of your 48V air conditioner appliance before installing.

7.Is this cable compatible with other 48V appliances?

Yes, as long as the appliance accepts bare wire 48V DC input and draws within 100A. It's ideal for air conditioners but can power other high-demand 48V loads too.

8.Does this cable come with a warranty?

Yes, the 48V air conditioner cable includes a 1-year manufacturer warranty.
