EcoFlow 10kWh Power Kits (Gen 1)

$9,999.00 USD
$12,499.00 USD $9,999.00 USD
SAVE 20% SOLD OUT
Model: Get Set Kit (10kWh)
Need 48V A/C Cable?: No
AC/DC Smart Distribution Panel: Gen 1

Looking for a hassle-free way to build your camper van's electrical system?

Introducing the EcoFlow 10kWh Power Kit, the world's first integrated, plug-and-play off-grid power solution designed especially for camper vans, motor homes, trailers, and RVs of any kind. It also works with any RV air conditioner, but it's especially well-suited for a 48-volt DC air conditioner, as you can plug a 48V DC air conditioner directly into one of the battery ports, leaving the other two battery ports available.

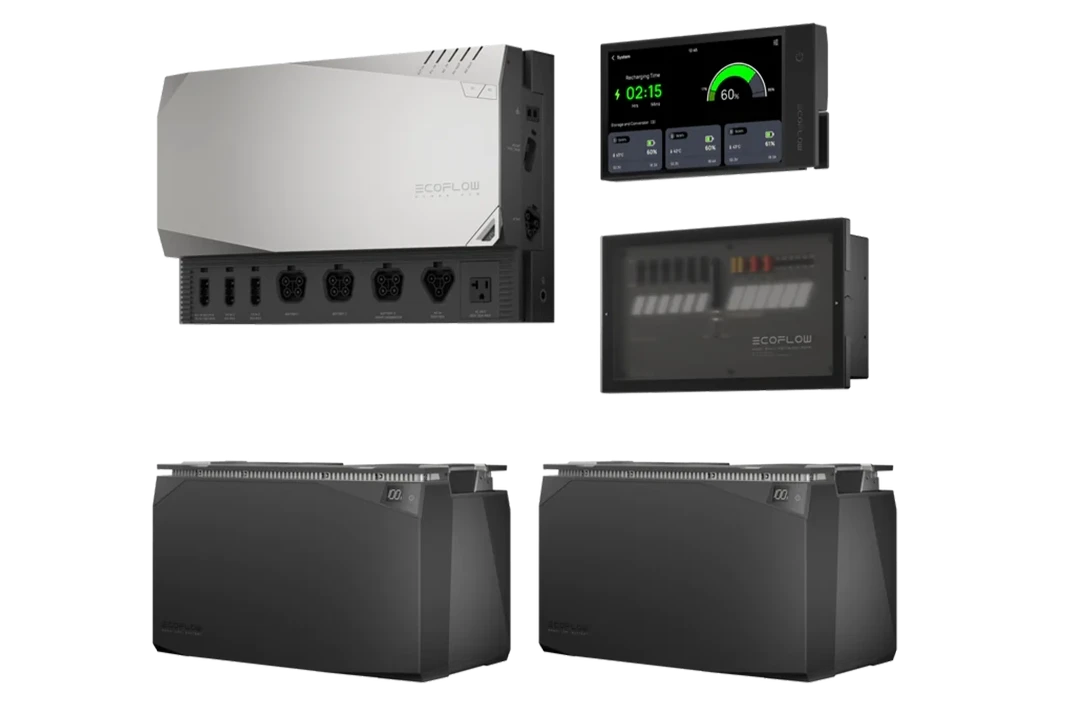

EcoFlow has designed a compact, scalable power system that consists of 4 main components:

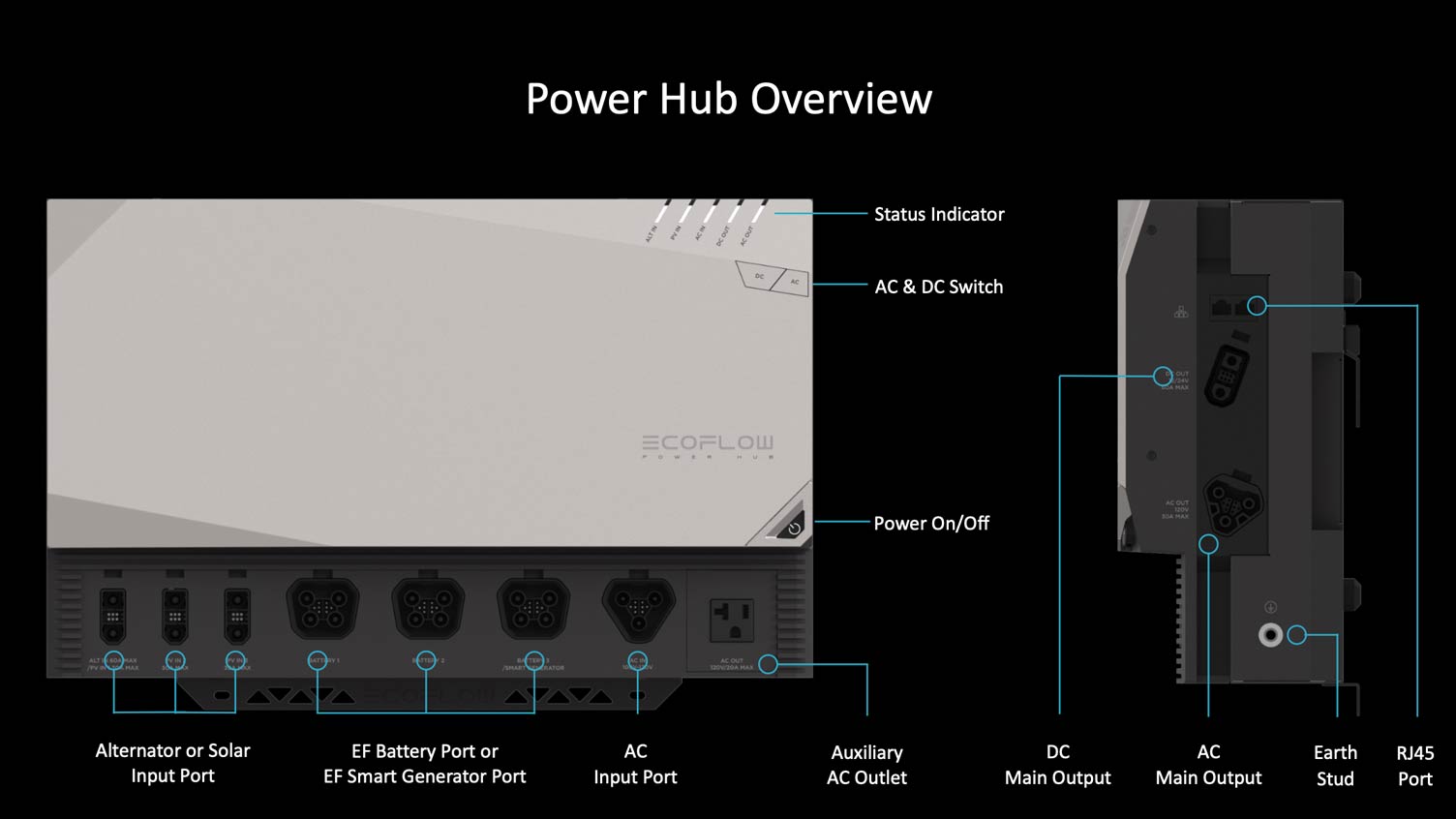

  • EcoFlow Power Hub - including a 3600W pure sine inverter-charger with max AC output of a whopping 7200W, dual MPPT solar charge controllers, a DC/DC converter, DC/DC battery charger, and plug-in input/output ports for solar, alternator, battery and generator charging.
  • EcoFlow Power Kit Console - a 7" full-color LCD touchscreen for control and monitoring of all electrical system inputs and outputs. You can turn DC and AC inputs on and off, and monitor the remaining battery capacity.
  • EcoFlow AC/DC Distribution Panel - The 3-component panel is designed for 6 AC circuits and 12 DC circuits. It has a transparent exterior faceplate, a removable interior face panel, and a deep connection box with knockouts and WAGO-style circuit connectors.
  • EcoFlow Battery - The 48-volt lithium EcoFlow batteries are long-life lithium iron phosphate (LiFePO4) batteries, which have an operating temperature from -4 F to 122 F because of their built-in auto heating. The 10 kWh EcoFlow Power Kit has two 5 kWh batteries.

POWER KIT VARIANTS:

 You can choose between three variants of the EcoFlow 10kWh Power Kit. With each kit, you can choose to add the custom 48V air conditioner cable if desired.

  1. Get Set Kit includes - 1x Power Hub, 2x 5 kWh LFP Batteries, 1x Cable Pack
  2. Prepared Kit includes - 1x Power Hub, 2x 5 kWh LFP Batteries, 1x Cable Pack, 1x AC / DC Smart Distribution Panel, 1x Battery Mounting Strap
  3. Independence Kit includes - 1x Power Hub, 2x 5 kWh LFP Batteries, 1x Cable Pack, 1x AC / DC Smart Distribution Panel, 1x Power Kit Console, 1x Battery Mounting Strap

KEY FEATURES: ECOFLOW 10kWh POWER KIT

  • Can support up to 6000W of charging through a combination of 4 methods: up to 4800W solar, 4800W alternator, 3000W shore power, and 1800W Smart Generator input.
  • Plug-and-play for simple assembly
  • Compact, integrated design, all-in-one Power Hub combines 5 components
  • Save space with stackable batteries
  • 48V system, a safer, smaller power solution
  • Real-time and remote smart controls
  • Optional 48v AC cable
  • Made in USA
  • 5-year system warranty, can purchase an upgrade to 10 years

POWER KIT ADVANTAGES

Many van builders design custom electrical systems with Victron Energy power components. Often these are reliable, excellent systems, but they are very complex and expensive, requiring many hours of research and design. After installation, problems with this kind of camper van electrical system can be difficult to troubleshoot, since every system is unique. In contrast, EcoFlow Power Kits are:

Plug-and-Play - EcoFlow Power Kits offer a standardized, simplified power system that has a very simple installation process, comes with all the necessary cabling between the components and charging sources, and doesn't require extensive design experience or specialized tools. Most builders that we've talked to estimate that an EcoFlow Power Kit reduces their power system build times from 25+ man-hours down to 2-3. It's easy to plug in another battery for increased capacity or plug in more solar panels for faster battery charging.

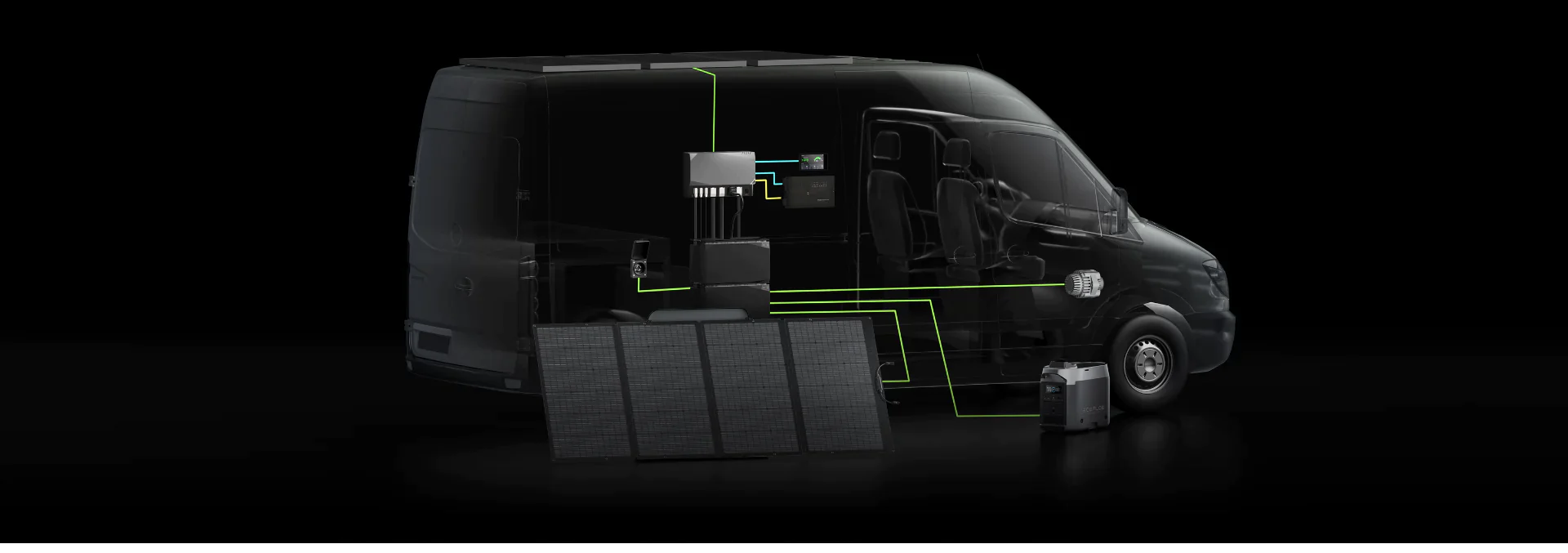

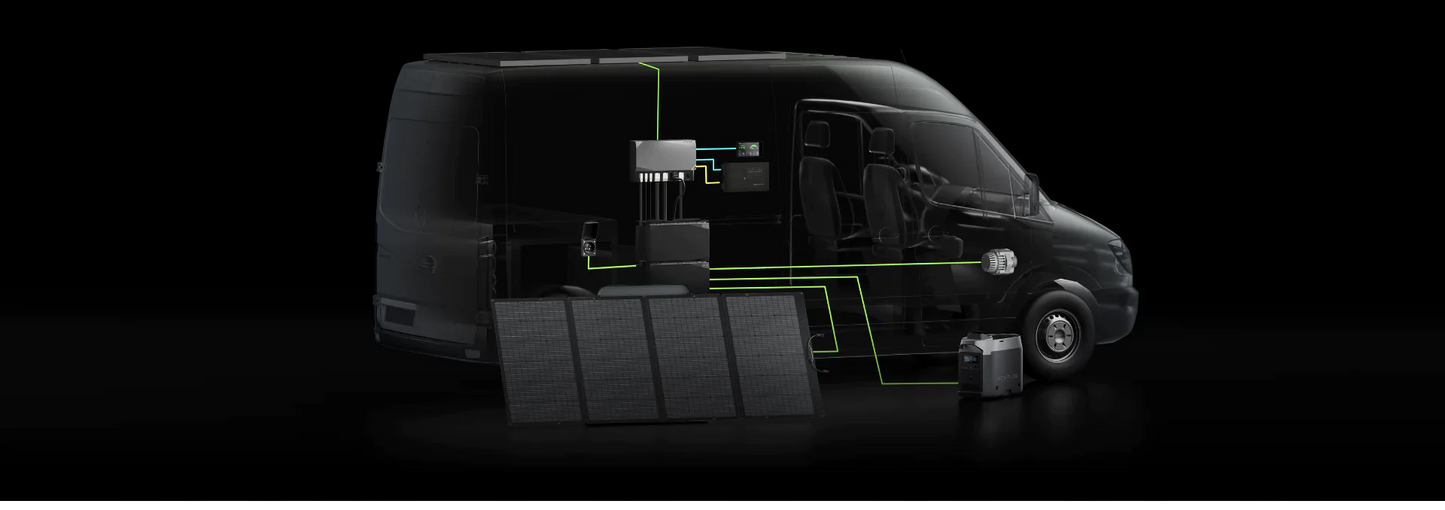

Four Charging Methods, Up to 6000W - An EcoFlow Power Kit enables you to use any combination of the charging methods most useful for a van or RV, including solar, alternators, shore power, and generators.

  • Solar - Three ports allow for up to 1600W of solar charging on each port, up to 4800W total.
  • Alternator - Three ports can also be used for alternator charging, 1600W each, up to 4800W total. Charge the system with single or dual alternators from 12-60V.
  • Generator - Connect an EcoFlow Dual-Fuel Smart Generator (or any other brand of generator) for up to 1800W of charging
  • Shore Power - Connect a 30A shore power source for charging from RV park/campground power.

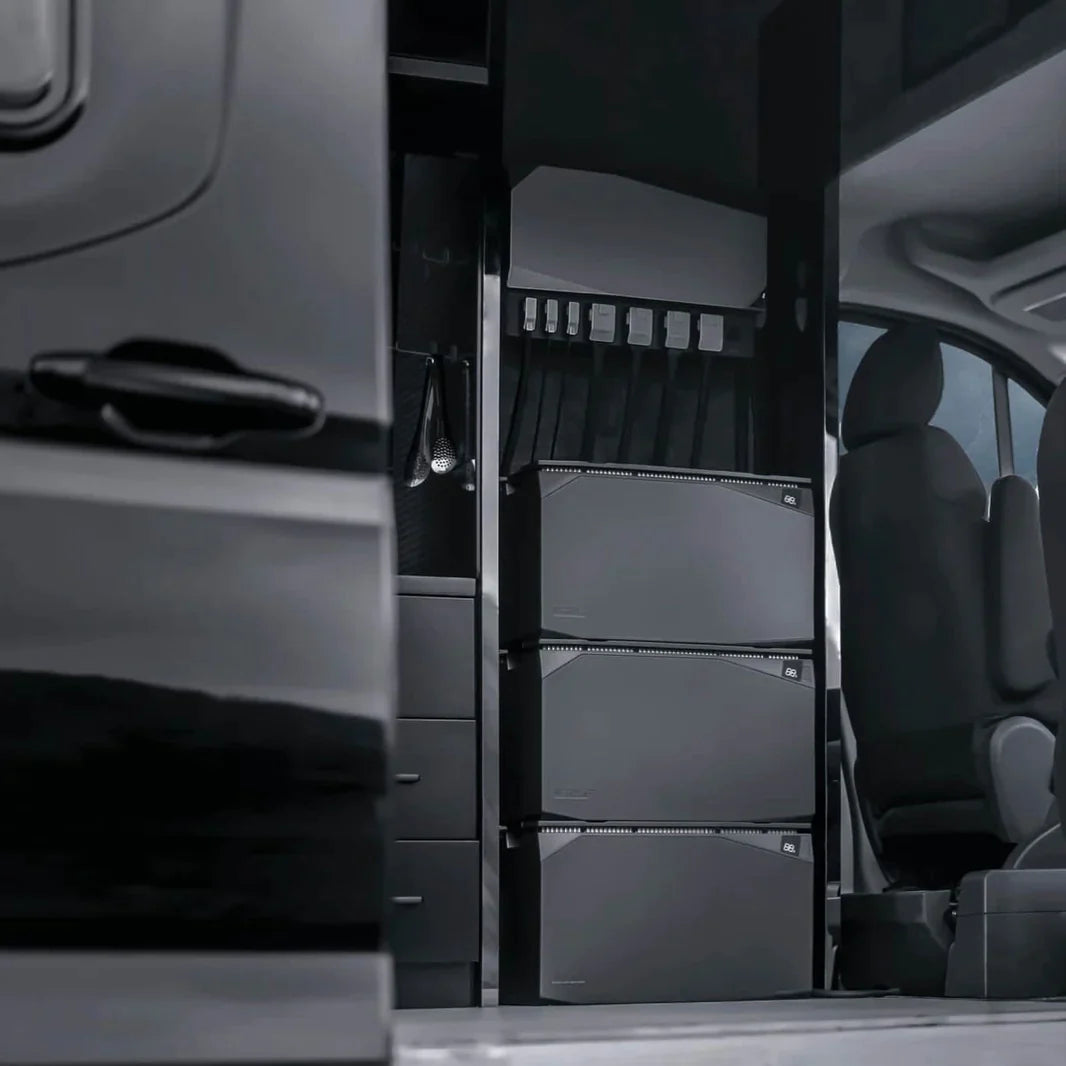

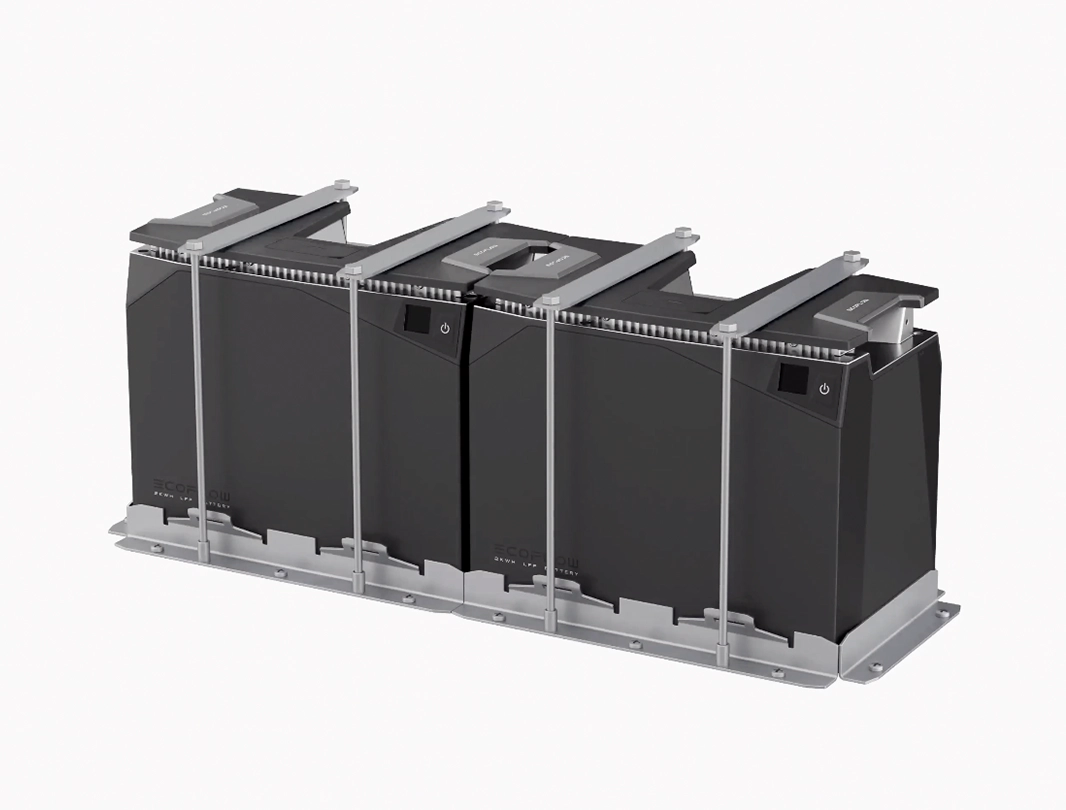

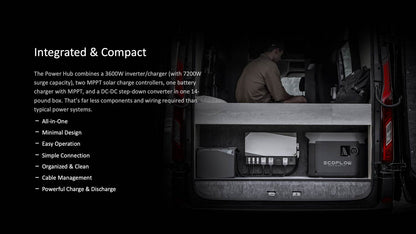

Compact & Integrated Design - Unlike other RV power solutions, Power Kits combine five components into one Power Hub that deals with all your power needs, saving you space, money, and set-up hassle. EcoFlow 5kWh batteries securely stack in threes, giving you an expandable capacity of up to 15kWh. A large battery bank like this (the equivalent of a 1200 Ah 12V bank) would require a lot of large cables and a lot of space for all those batteries with most RV electrical systems, with EcoFlow components, it's only 3 battery cables and 3 batteries that plug into the Power Hub in moments. Cable management is already done for you.

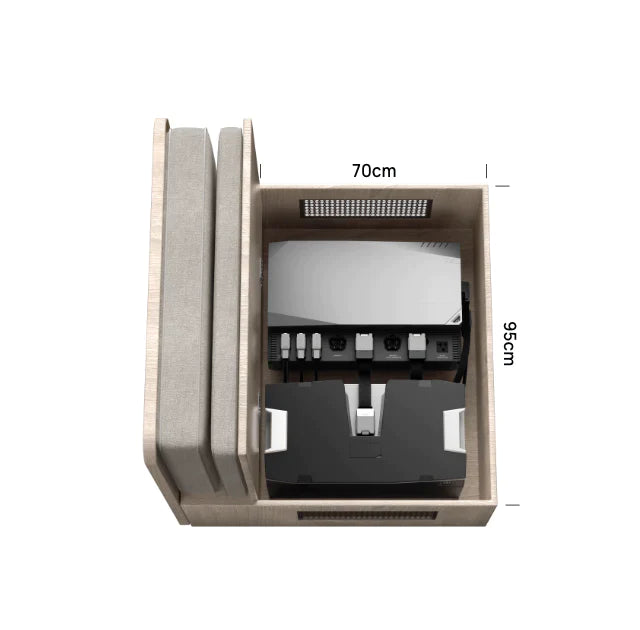

Space-Saving Solutions - To save valuable space, EcoFlow shrank down the traditional power kit, integrating components, using thinner wires, creating a smaller power solution, and a unique stackable battery design with integrated battery cabling. If you choose, you can conveniently conceal the Power Hub, batteries, and other accessories so the entire power system is out of sight, under seats, around the wheel wells, or in a cabinet.

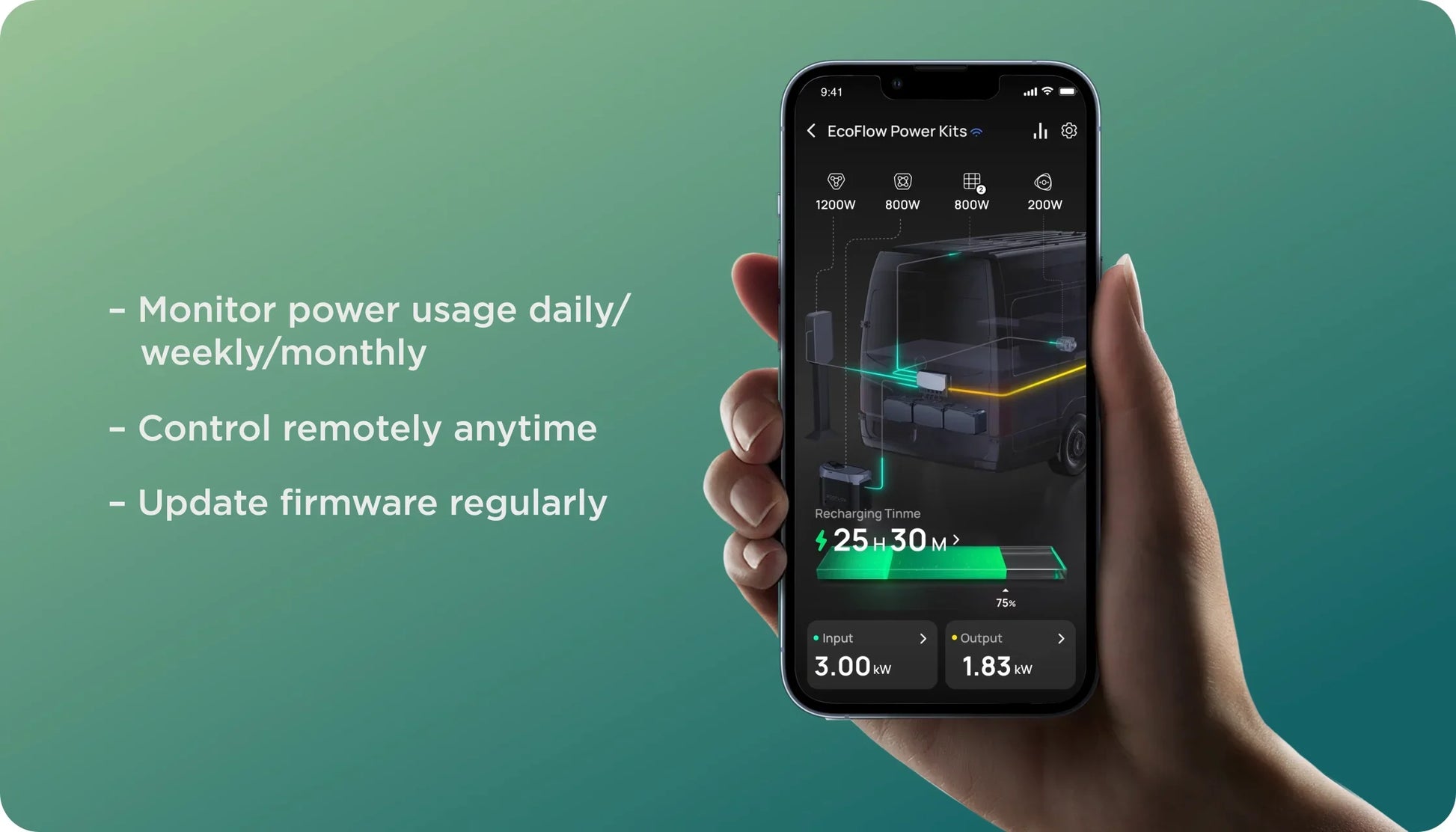

Smart Controls - Keep an eye on your van's power with a whole host of setting options and real-time data tracking accessible from the app and Power Kit Console.

***Important Notes - Most 12V air conditioners will only work on eco mode with any Ecoflow Power Kit. If you want an AC we highly recommend getting a 48V AC.

SPECIFICATIONS: ECOFLOW 10kWh POWER KIT

Battery Capacity 5120 Wh (100 Ah) Per 5kWh Battery
Battery Type Lithium Iron Phosphate
Nominal Voltage 51.2V
Configuration 16S1P
Charging Cut-off Voltage 57.6V
Discharging Cut-off Voltage 40V
Max Continued Charging Current 80A
Max Continued Discharge current 100A
Battery Cycle Life 3,500 cycles to 80% capacity
Battery Dimensions 19.7 x 10.2 x 11.8 in
Weight Approx. 89.5 lbs


DOCUMENTS: ECOFLOW 10kWh POWER KIT

INSTALLATION OVERVIEW

FAQs

1. What is the EcoFlow 10kWh Power Kit?

It is an integrated, plug-and-play power solution designed for camper vans, motor homes, trailers, and RVs. It includes components to provide a complete electrical system that is easy to install and use. It replaces several key components of a standard power system, streamlining the setup and enhancing efficiency.

2. What components are included in the EcoFlow 10kWh Power Kit?

The kit includes:

  • EcoFlow Power Hub
  • EcoFlow Power Kit Console (for the Independence Kit)
  • EcoFlow AC/DC Distribution Panel
  • Two 5kWh lithium iron phosphate (LiFePO4) batteries
  • All necessary cables for connection and charging
3. What variants of the EcoFlow 10kWh Power Kit are available?

There are three variants:

  • Get Set Kit: Includes 1x Power Hub, 2x 5kWh LFP Batteries, and 1x Cable Pack.
  • Prepared Kit: Includes 1x Power Hub, 2x 5kWh LFP Batteries, 1x Cable Pack, 1x AC/DC Smart Distribution Panel, and 1x Battery Mounting Strap.
  • Independence Kit: Includes 1x Power Hub, 2x 5kWh LFP Batteries, 1x Cable Pack, 1x AC/DC Smart Distribution Panel, 1x Power Kit Console, and 1x Battery Mounting Strap.
4. How does the optional 48V A/C cable work, and how can I order it?

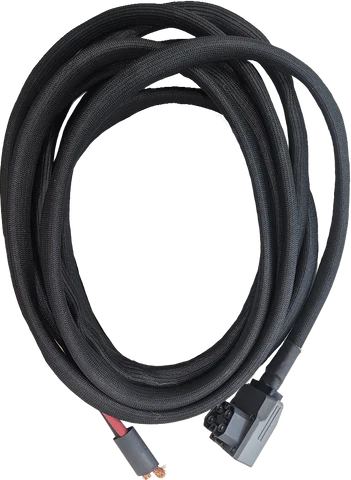

The optional 48V A/C cable allows you to connect a 48-volt air conditioner directly to the power kit via a battery port.

5. How is the EcoFlow 10kWh Power Kit installed?

The kit is designed for plug-and-play installation. It comes with all necessary cables, and most installations can be completed in 2-3 hours.

6. What are the charging options for the EcoFlow 10kWh Power Kit?

The kit supports up to 6000W of charging through four methods:

  • Solar: Up to 4800W using three ports with 1600W each.
  • Alternator: Up to 4800W using three ports with 1600W each.
  • Generator: Up to 1800W using a compatible generator.
  • Shore Power: Up to 3000W from a 30A shore power source.
7. What is the maximum power output of the EcoFlow Power Hub?

The Power Hub includes a 3600W pure sine inverter-charger with a maximum AC output of 7200W.

8. What type of batteries are included in the kit?

The kit includes 48-volt lithium iron phosphate (LiFePO4) batteries, each with a capacity of 5kWh.

9. Can I use the EcoFlow 10kWh Power Kit with my existing air conditioner?

Yes, the power kit works with most high-voltage RV air conditioners, especially well with 48-volt DC air conditioners. For optimal performance, we recommend using a 48V AC like the Nomadic X2 or X3 Helix.

10. What are the dimensions and weight of the batteries?

Each battery measures 19.7 x 10.2 x 11.8 inches and weighs approximately 89.5 pounds.

11. Is free shipping available?

Yes, free shipping is available for this item anywhere in the lower 48 US states.

12. What type of support do I get from ordering through Orion Van Gear?

You get access to our dedicated USA-based EcoFlow tech support, who will assist you via phone and email.

Get a CAD-Verified Roof Layout

We understand that every van setup is unique. That's why we offer CAD-verified roof layouts for customers who have purchased or plan to purchase an Orion roof rack - so you can maximize space and fit exactly what you need, where you need it. Request a layout here ›

Shipping & Returns

We offer free shipping to the lower 48 states on all products. Orders shipping to Alaska, Hawaii, Canada, or international destinations may have additional shipping charges calculated at checkout or quoted separately. Local pickup is also available at our McMinnville, Oregon warehouse by appointment.

Most purchases can be returned within 30 days of purchase if they are in new, resalable condition with original packaging. A 20% restocking fee applies; return shipping is the customer’s responsibility, and some items are final sale or not eligible for return. For full details, please see our Shipping Policy and Return Policy.

View full details
Some of the reviews shown are from related products the merchant grouped with this one.
A
Ahmed J. (Glendale, CA, US)

Setup was super easy. The ECOFLOW Gen 2 is basically plug-and-play, everything is clearly labeled. Also ORION has been super helpful with any questions along the way!

User picture

Thanks, AJ! Easy setup, clear labels, real support. Enjoy the system and the extra off-grid time.

D
David R. (Albany, NY, US)
Independence Kit (5kWh) / YES
The future of van power systems

My original build plan was to build a conventional Victron system from the ground up, but having little electrical experience I was super anxious about risks involved. Orion turned me on to EcoFlow and it was a game changer. Truly a plug and play system, simplifying getting power in the van enormously. After a year of use with only a couple of minor start up issues (which helped me solve) it’s been exactly as advertised. My 10kwh system is configured 12v on the output side but 48v on the input side and with three input ports that means I can use 2 for the 5kwh batteries and the third port for my Nomadic X2 48v air con unit which generates close to 13,000 btus- perfect combo. The UI is super simple, elegant and easy to use both on the van mounted console and the smart phone app. With simple hook ups for solar, alternator charging and shore power the system has been powerful and reliable. I see and hear about more and more pro upfitters installing EcoFlow systems rather than conventional systems - there’s a reason for that. Great system - highly recommended.

User picture

We are thrilled to hear that our system has simplified the process of getting power in your van and has been reliable for you. We are also glad that the UI has been easy to use and that you have been able to integrate our system with your Nomadic X2 air con unit. Thank you for recommending our product and for choosing EcoFlow. We appreciate your support and are always here to assist you with any questions or concerns. Happy travels!

J
Johnny

Have the power kits had a fix to allow them to power a 12 or 24 volt RV Air conditioner?

Orion Van Gear

You can use a 12v, 24v, or 48c AC with the Ecoflow Power Kits. We recommend 48V AC with the Power Kit over a 12V/24V AC for the following reasons (from most important to least): 1) no subtraction of DC power from overall DC output, still have full 1000W@12V or 1600W@24V. 2) Can provide higher-output cooling. 3) Less complex wiring (no need for bus bars), more compact. 4) Less heat in the system with lower current.
Note: the 48v cable only works on the 5kwh and 10kwh systems at the moment as it does require a special 48v cable from the AC to the 3rd battery port on the power kit. They are working on a splitter cable for the 15kwh systems but it is not released yet.
Please contact us for further explanation.
