EcoFlow 5kWh Power Kits

$6,499.00 $7,999.00
local_offer Save $1,500.00 local_offer Save $1,500.00 local_offer Save $1,460.00
NEW
Unit price  per

FREE SHIPPING on this item anywhere in the lower 48 US states.

NOW AVAILABLE WITH 48V A/C CABLE: Get the great cooling output & low power draw of a 48-volt air conditioner with your Power Kit,Ā while still having the choice of 12-volt or 24-volt DC output for your DC circuits!

Looking for a hassle-free way to build your camper van's electrical system? Introducing theĀ EcoFlow 5kWh Power Kit Ā - the world's first integrated, plug-and-play off-grid power solution designed especially for camper vans, motor homes, trailers, and RVs of any kind.Ā It also works with any RV air conditioner, but it's especially well-suited for aĀ 48-volt DC air conditioner,Ā as now you can plug a 48VDC air conditioner directly into one of the battery ports, leaving the other two battery ports available.

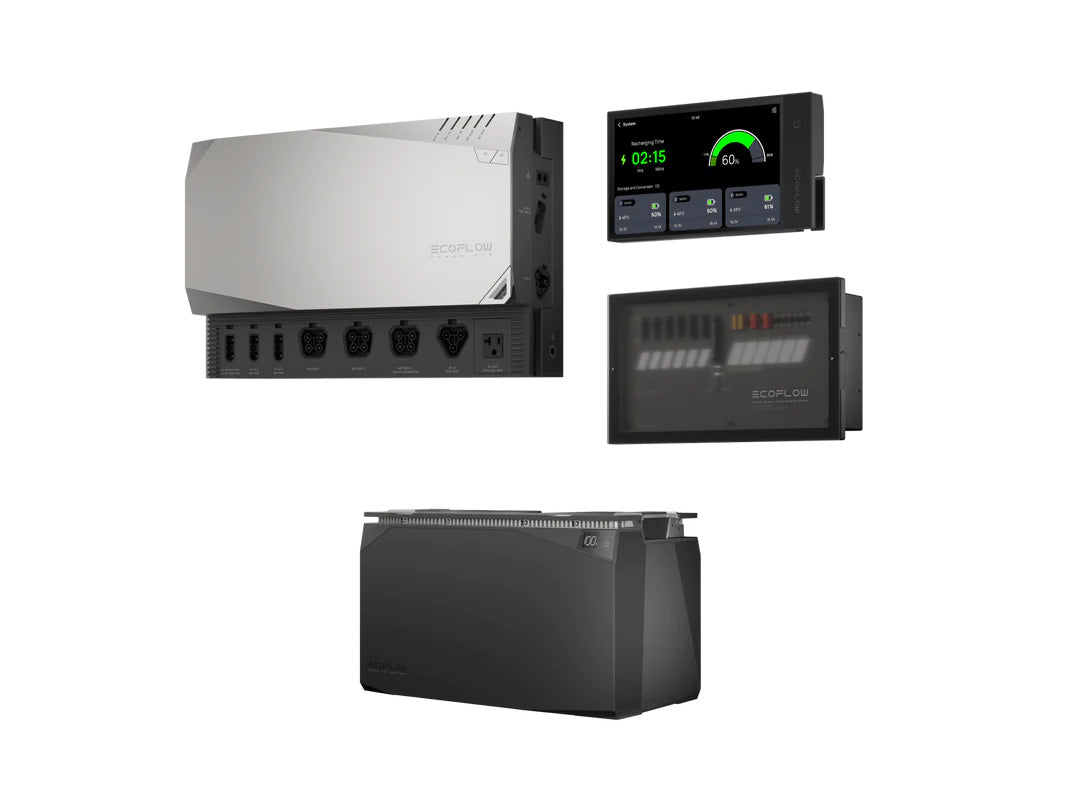

EcoFlow has designed a compact, scalable power system that consists of 4 components:

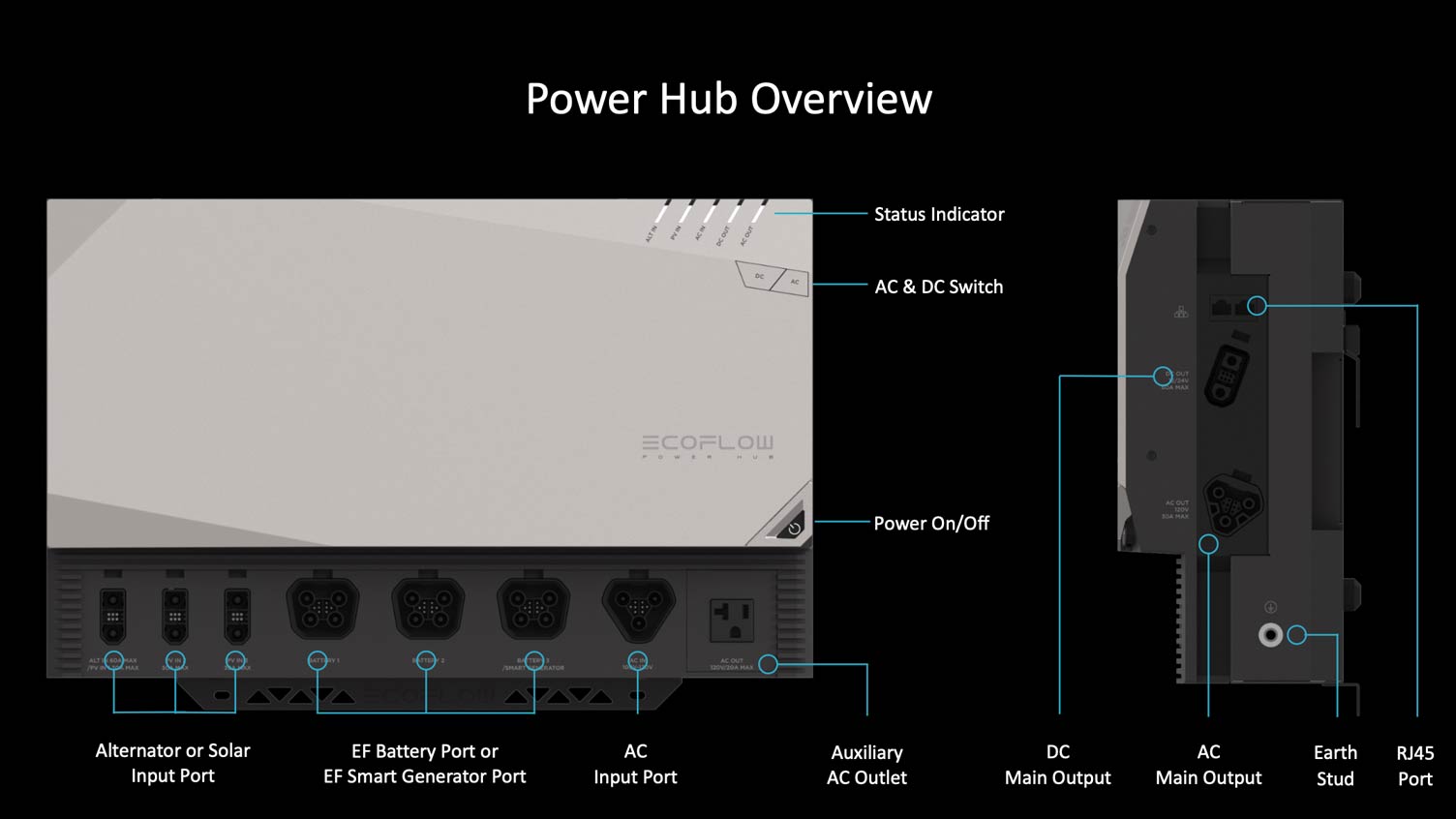

  • EcoFlow Power HubĀ - including a 3600W pure sine inverter-charger with max AC output of a whopping 7200W, dual MPPT solar charge controllers, a DC/DC converter, DC/DC battery charger, and plug-in input/output ports for solar, alternator, battery and generator charging.

  • EcoFlow Power Kit ConsoleĀ - a 7" full-color LCD touchscreen for control and monitoring of all electrical system inputs and outputs. You can turn DC and AC inputs on and off, and monitor the remaining battery capacity.

  • EcoFlow AC/DC Distribution PanelĀ - The 3-component panel is designed for 6 AC circuits and 12 DC circuits. It has a transparent exterior faceplate, a removable interior face panel, and a deep connection box with knockouts and WAGO-style circuit connectors.

  • EcoFlow BatteryĀ - The 48-volt lithium EcoFlow batteries are available in 2 kWh or 5 kWh sizes. These are long-life lithium iron phosphate (LiFePO4) batteries, which have an operating temperature from -4 F to 122 F because of their built-in auto heating. A 5 kWh EcoFlow Power Kit has one 5 kWh battery. Note that you can use either one, two, or three 2 kWh or 5 kWh batteries in your power system, but you cannot mix and match the two sizes.

An EcoFlow Power Kit is also a plug-and-play off-grid power solution, it comes with all the cables you'll need to connect these components and your charging sources. Most of the cables are 15 feet long, solar and alternator charging cables are 20 feet long, and battery cables are typically 5 or 8 feet long.

POWER KIT VARIANTS:

Ā You can choose between three variants of theĀ EcoFlow 5kWh Power Kit

  1. Get Set KitĀ includes - 1x Power Hub, 1x 5 kWh LFP Battery, 1x Cable Pack, 1x 48VDC Air Conditioner Cable (20-foot)Ā
  2. Prepared KitĀ includes - 1x Power Hub, 1x 5k Wh LFP Battery, 1x Cable Pack, 1x AC / DC Smart Distribution Panel, 1x Battery Mounting Strap,Ā  1x 48VDC Air Conditioner Cable (20-foot)
  3. Independence KitĀ includes - 1x Power Hub, 1x 5 kWh LFP Battery, 1x Cable Pack, 1x AC / DC Smart Distribution Panel, 1x Power Kit Console, 1x Battery Mounting Strap,Ā  1x 20 foot 48VDC Air Conditioner CableĀ (our recommendation)

KEY FEATURES: ECOFLOW 5kWh POWER KITĀ

  • Can support up to 6000W of charging through a combination of 4 methods: up to 4800W solar, 4800W alternator, 3000W shore power, and 1800W Smart Generator input.
  • Plug-and-play for simple assembly
  • Compact, integrated design, all-in-oneĀ Power Hub combines 5 components
  • Save space with stackable batteries

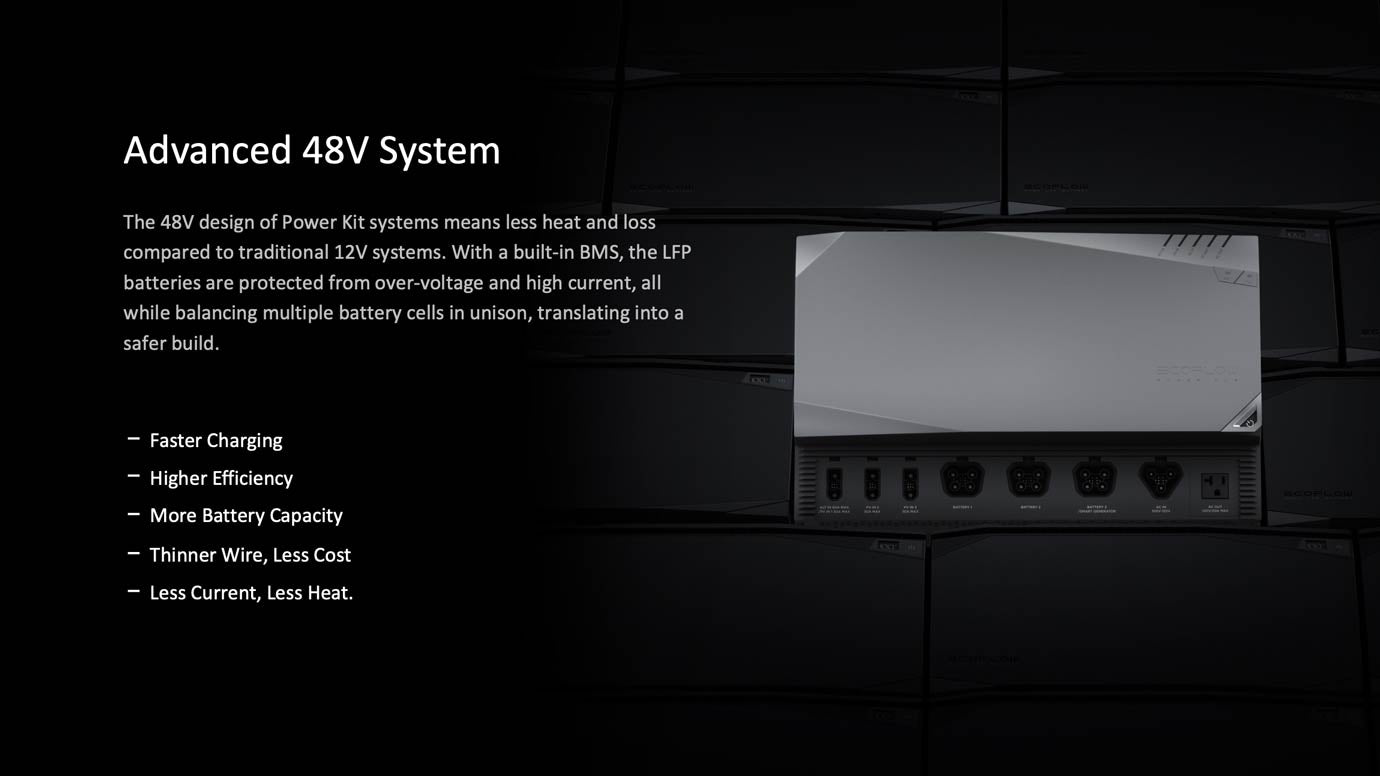

  • 48V system, a safer, smaller power solution
  • Real-time and remote smart controls
  • Made in USA
  • 5-year system warranty, can purchase an upgrade to 10 years

POWER KIT ADVANTAGES

Many van builders design custom electrical systems with Victron Energy power components. Often these are reliable, excellent systems, but they are very complex and expensive, requiring many hours of research and design. After installation, problems with this kind of camper van electrical system can be difficult to troubleshoot, since every system is unique. In contrast, EcoFlow Power Kits offer:

Plug-and-PlayĀ - EcoFlow Power Kits offer a standardized, simplified power system that has a very simple installation process, comes with all the necessary cabling between the components and charging sources, and doesn't require extensive design experience or specialized tools. Most builders that we've talked to estimate that an EcoFlow Power Kit reduces their power system build times from 10-25+ man-hours down to 2-3 man-hours. It's easy to plug in another battery for increased capacity or plug in more solar panels for faster battery charging.

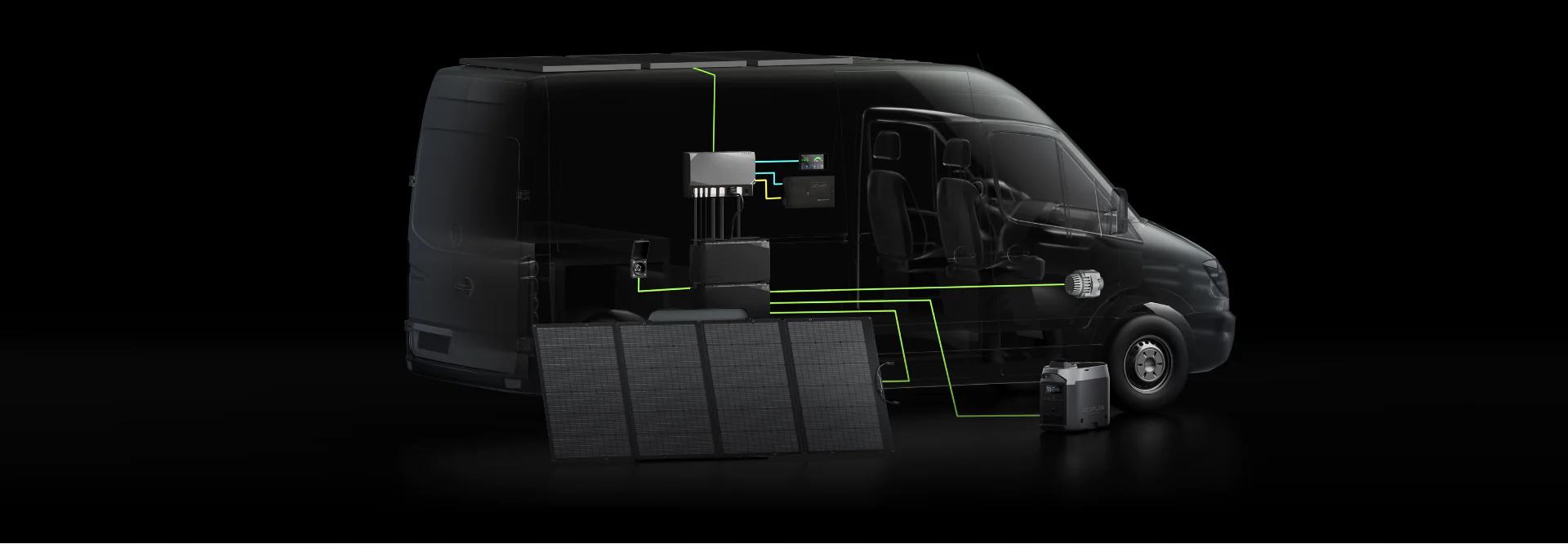

Four Charging Methods, Up to 6000W -Ā An EcoFlow Power Kit enables you to use any combination of the charging methods most useful for an RV, including solar, alternators, shore power, and generators.

  • SolarĀ - Power kits allow as much solar power as you can fit on your roof! Three ports can allow for up to 1600W of solar charging on each port, up to 4800W total. EcoFlow offers 100W and 400W rigid solar panels that can be mounted on the roof of your van, and you can even supplement these with portable panels.

  • AlternatorĀ - Three ports can also be used for alternator charging, 1600W each, up to 4800W total. Charge the system with single or dual alternators from 12-60V.

  • GeneratorĀ - Connect an EcoFlow Dual-Fuel Smart Generator (or any other brand of generator) for up to 1800W of charging

  • Shore PowerĀ - Connect a 30A shore power source for charging from RV park/campground power.

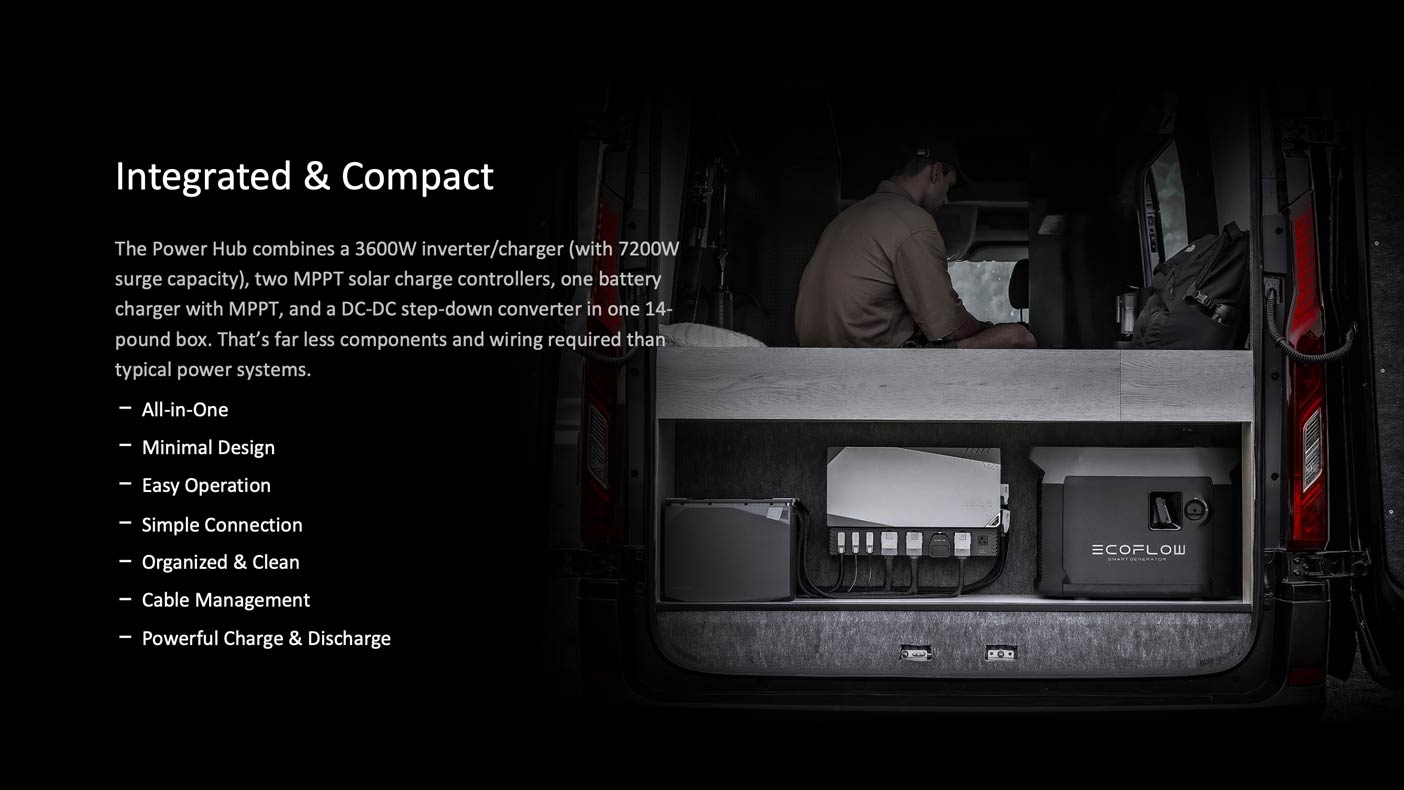

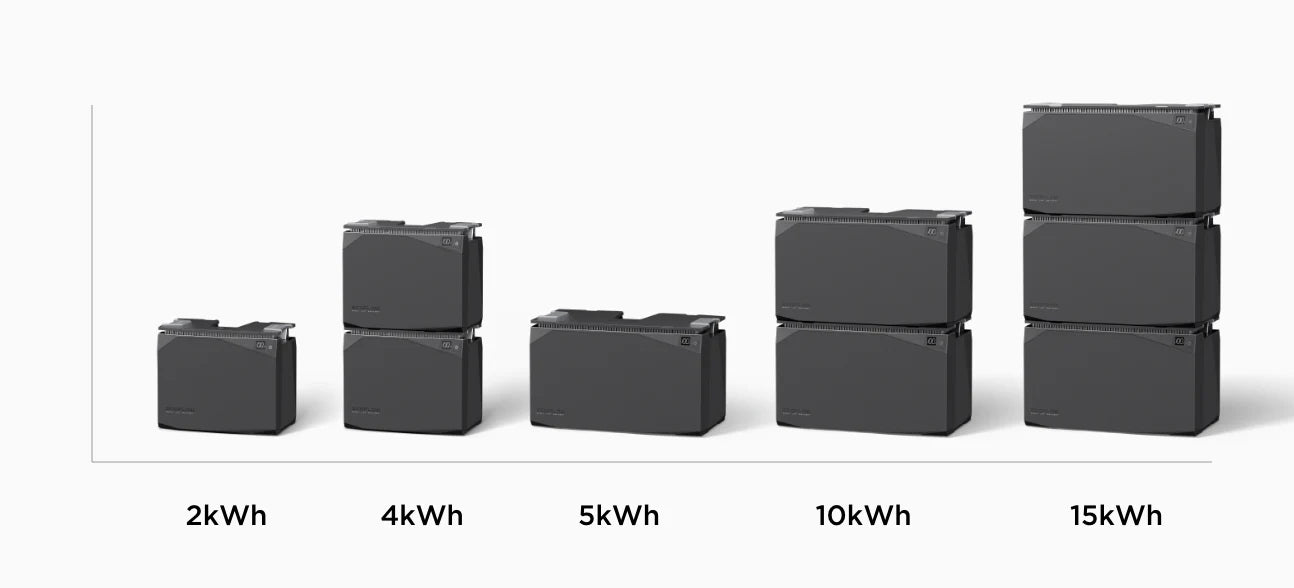

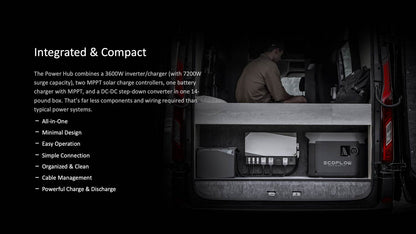

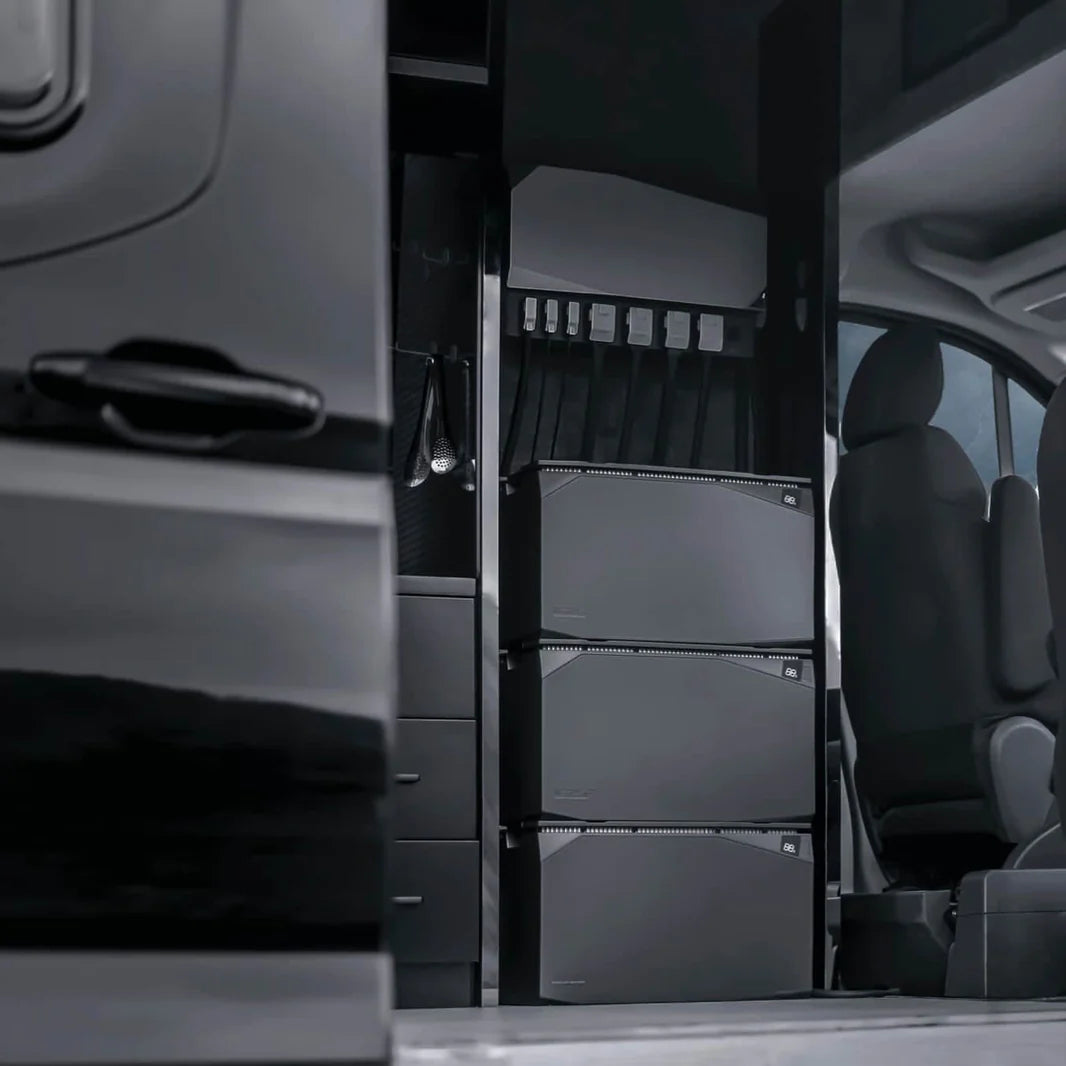

Compact & Integrated Design -Ā Unlike other RV power solutions, Power Kits combine five components into one Power Hub that deals with all your power needs, saving you space, money, and set-up hassle. EcoFlow 2 and 5kWh batteries securely stack in threes, giving you an expandable capacity of up to 15kWh. A large battery bank like this (the equivalent of a 1200 Ah 12V bank) would require a lot of large cables and a lot of space for all those batteries with most RV electrical systems, with EcoFlow components, it's only 3 battery cables and 3 batteries that plug into the Power Hub in moments. Cable management is already done for you.

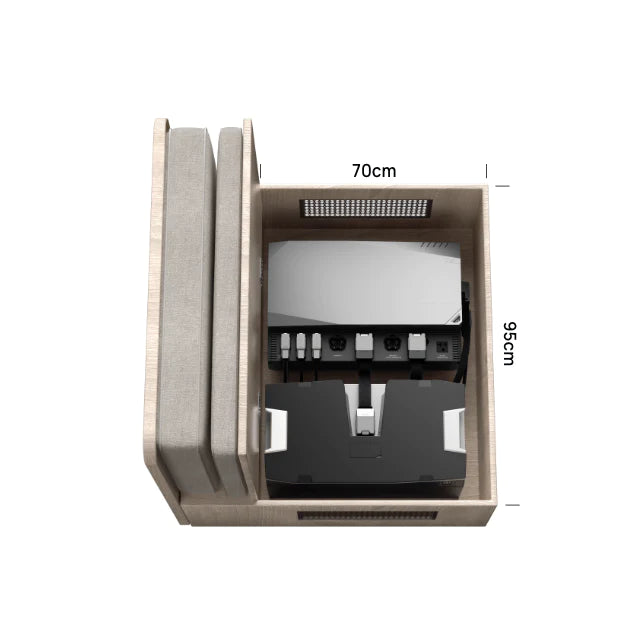

Space-Saving Solutions -Ā To save valuable space, EcoFlow shrank down the traditional power kit, integrating components, using thinner wires, creating a smaller power solution, and a unique stackable battery design with integrated battery cabling. If you choose, you can conveniently conceal the Power Hub, batteries, and other accessories so the entire power system is out of sight, under seats, around the wheel wells, or in a cabinet.

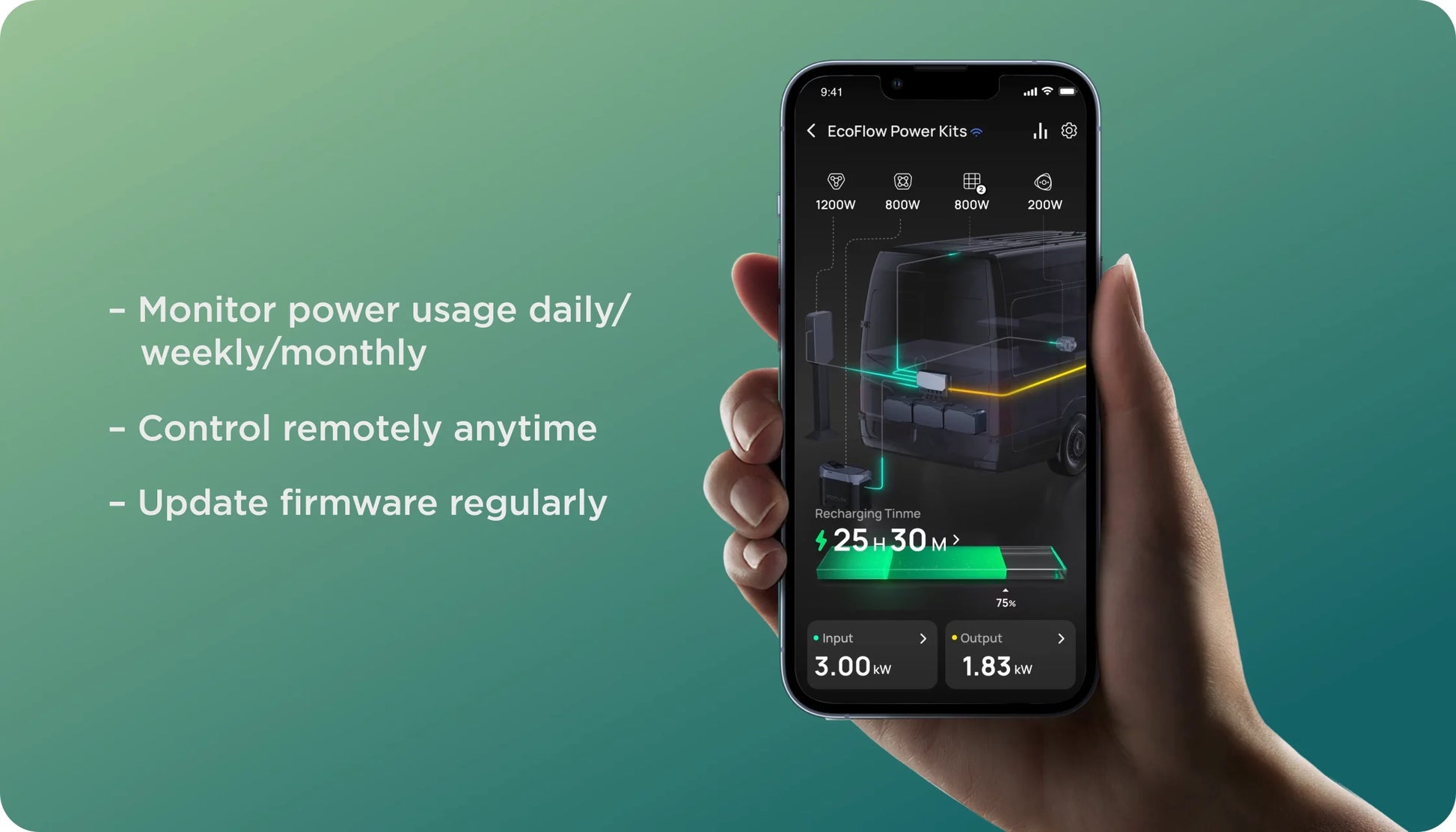

Smart Controls -Ā Keep an eye on your van's power with a whole host of setting options and real-time data tracking accessible from the app and Power Kit Console.

SPECIFICATIONS: ECOFLOW 5kWh POWER KIT

Battery Capacity 5120 Wh (100 Ah)
Battery Type Lithium iron phosphate
Nominal Voltage 51.2V
Configuration 16S1P
Charging Cut-off Voltage 57.6V
Discharging Cut-off Voltage 40V
Max Continued Charging Current 80A
Max Continued Discharge current 100A
Battery Cycle Life 3,500 cycles to 80% capacity
Battery Dimensions 19.7 x 10.2 x 11.8 in
Weight Approx. 89.5 lbs


DOCUMENTS: ECOFLOW 5kWh POWER KITĀ

ECOFLOW 5kWh POWER KIT INSTALLATION OVERVIEW
