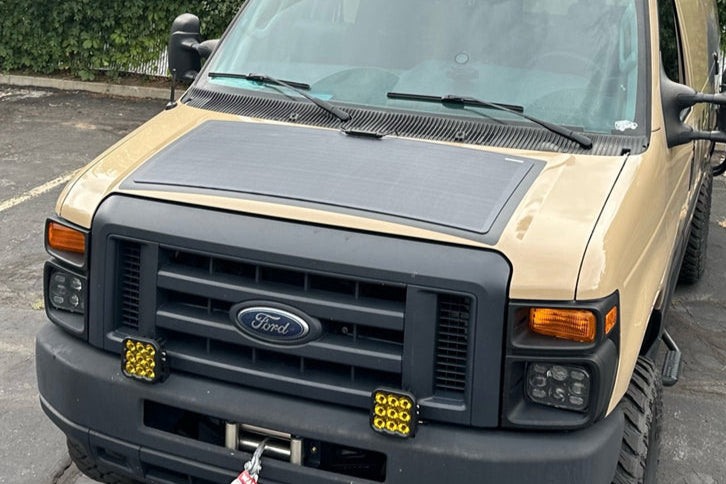

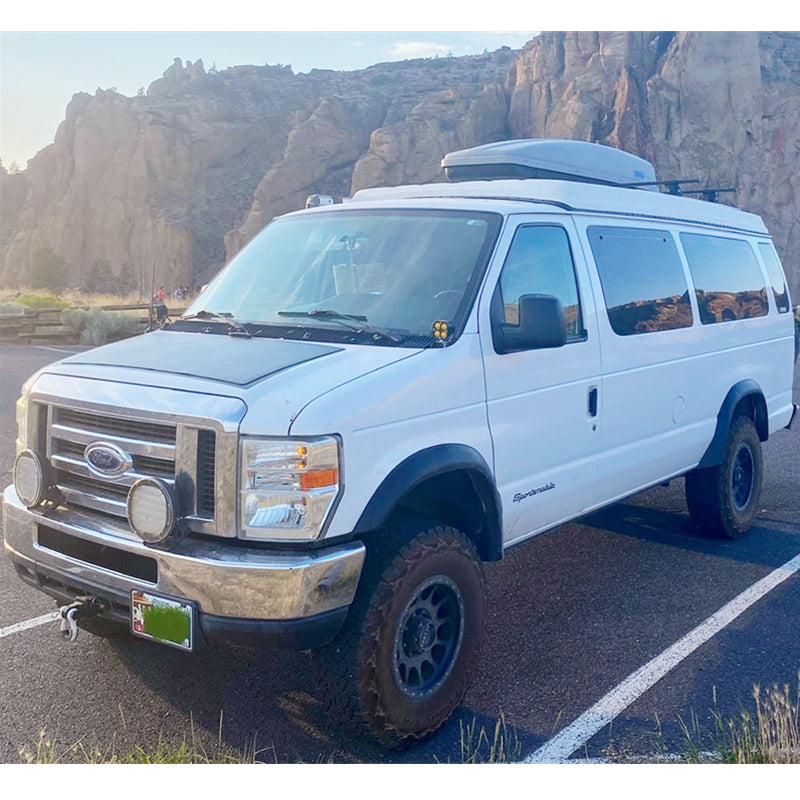

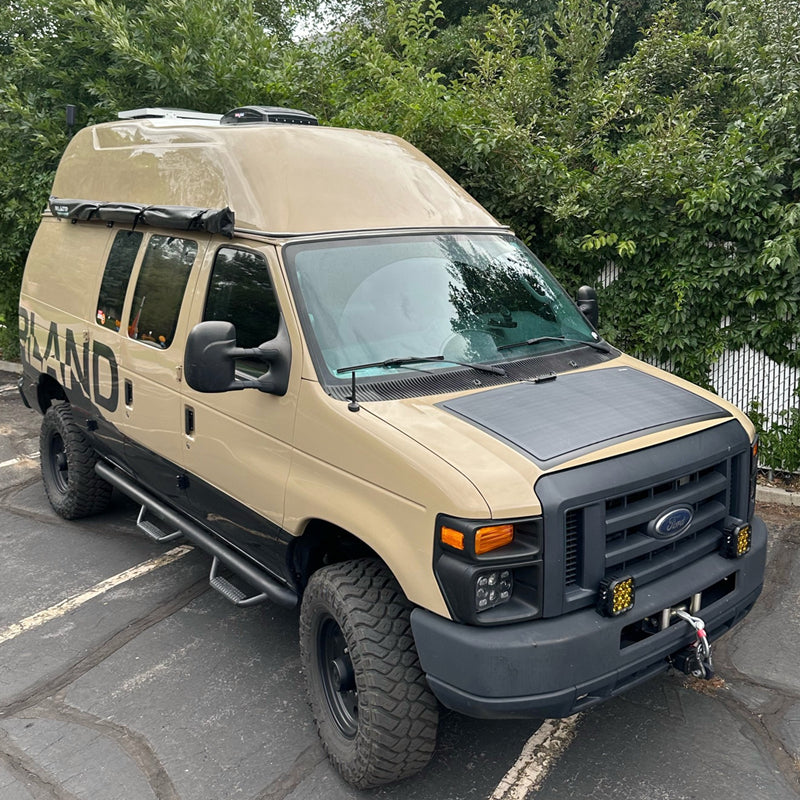

105W Hood Solar Panel for Ford Cargo Van (2018-Present E250 E350 E450)

105W Hood Solar Panel for Ford Cargo Vans (2008–Present: E250, E350, E450)

Take your off-grid adventures to the next level with this hood-mounted, flexible solar panel designed specifically for Ford E250, E350, and E450 vans (2008–present). By harnessing sunlight during the day, it keeps your vehicle battery, leisure battery, or portable power station (Jackery, Goal Zero, etc.) reliably charged—so you never have to worry about a dead battery or running your engine just to power essentials like fridges, dash cams, and lighting.

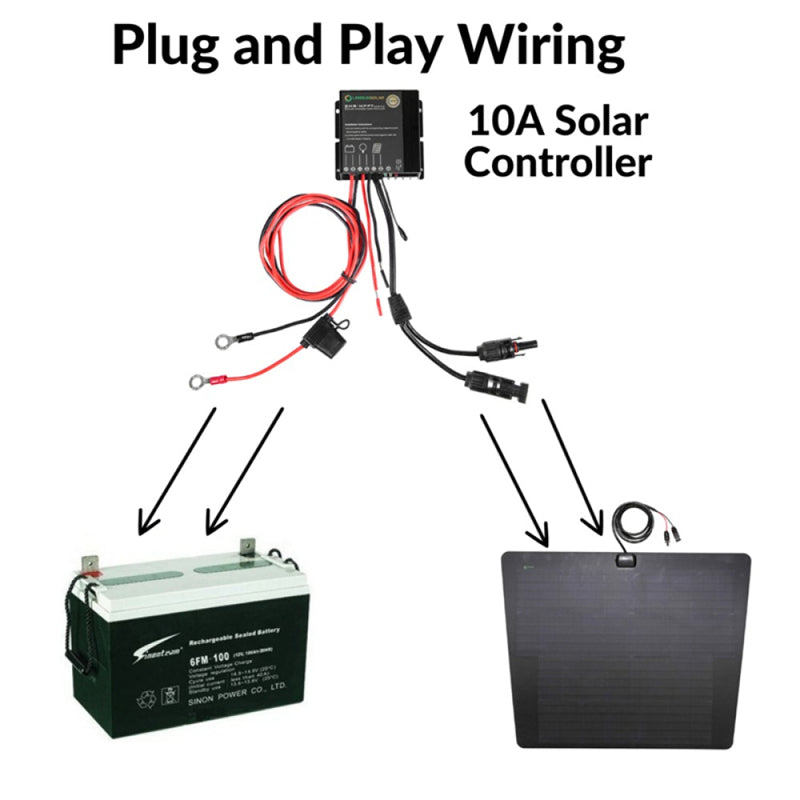

Crafted using cutting-edge technology and special materials, the panel is built to withstand harsh weather conditions—including high winds, heavy snow, and hail—while remaining virtually maintenance-free. Its form-fitting design makes installation a breeze with simple plug-and-play wiring. Plus, every panel is backed by a 24-month workmanship warranty, giving you peace of mind on all your journeys.

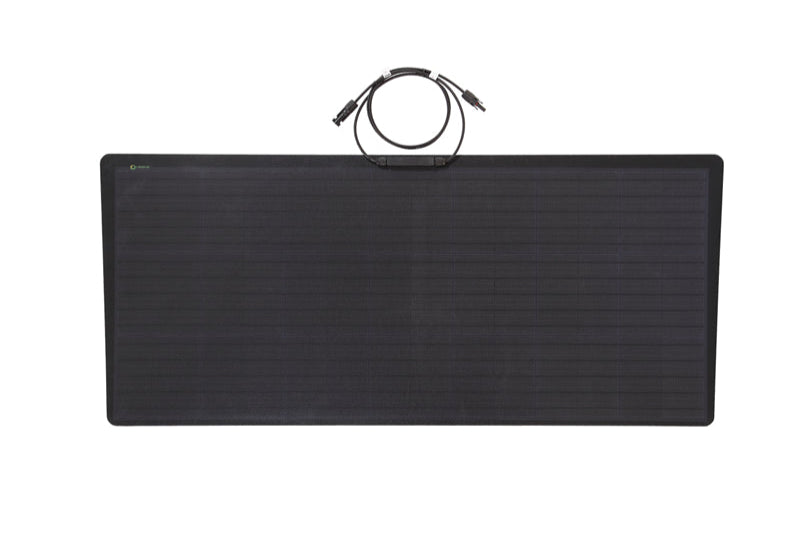

Solar Panel Specs:

Peak power: 105W
Solar cell efficiency: 23.5%
Maximum power voltage: 21V
Maximum power current: 5A
Open circuit voltage: 24.78V
Short circuit current: 5.5A
Power allowance range: +/-3%
Maximum system voltage: 500V
Net Weight: 2.5kg/5.5 lbs
J-Box: IP 68 rated with 1.5m/5ft cables

MPPT Specs:

Battery Type: Gel, AGM, Liquid, Lithium, Flooded
System Voltage: 12V
Max Charging Current: 10A
Max Input Solar Panel: 130W
Max Volt on Bat. Terminal: 25V
Max volt on PV Terminal: 45V
Communication: Bluetooth
Max Tracking Efficiency: 99.9%
Max Charging Conversion: 96.5%
Self Consumption: 6mA
Charging Voltage Target: 10-17V(Programmable, Lithuim)
Charging Voltage Recovery: 9.2-16.8V(Programmable, Lithuim)
Low Voltage Disconnect: 10.8-11.8V; SOC1-5(Programmable, Liquid/GEL/AGM) 9-15V(Programmable, Lithuim)
Low Voltage Reconnect: 11.4-12.8V (Programmable, Liquid/GEL/AGM) 9.6-16V(Programmable, Lithuim)
Dimensions: 3.4x3.2x0.9inch/86x81x23mm
Weight: 350g/0.8lbs
Maximum Terminals Wire Size: 10AWG(4mm²)
Wire Lengths: The length of the cable connecting the solar panel is 15.7 inches, the cable connecting the vehicle battery is 59 inches.

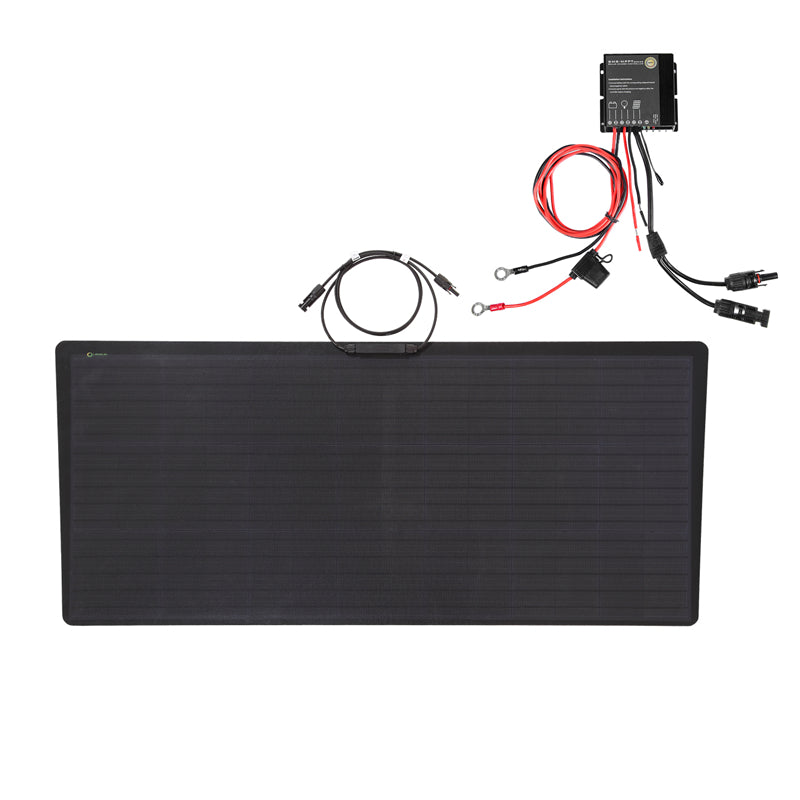

Includes:

1 x 105w hood solar panel

Optional:

1 x vinyl decal
1 x 10A waterproof mppt solar controller

FAQ

1. How does the 105W Flexible Solar Panel attach to the hood?
The panel mounts directly to your vehicle’s hood using adhesive or an optional custom-fitted vinyl decal for added protection. This design eliminates the need for a roof rack or specialized hardware, making installation quick and hassle-free.

2. Can this solar panel charge both the main vehicle battery and a separate power station?
Yes. You can connect the panel to your van’s primary battery or to a portable power station (like Jackery, Goal Zero, etc.). Standard connectors are included, and you can purchase separate adapters to fit specific power stations.

3. Is a vinyl decal necessary for installation?
A vinyl decal isn’t required, but it’s highly recommended. It protects your vehicle’s paint from potential wear over time, provides a reliable surface for the adhesive, and makes any future removal simpler.

4. Will I have to pay import duties when ordering internationally?
In most cases, no. These panels ship free from the US, UK, or Germany, depending on your location, so you generally won’t be charged import duties.

5. Does the panel work well in extreme weather conditions?
Absolutely. The panel is built with durable materials that withstand high winds, heavy snow, hail, and off-road debris, ensuring long-lasting performance in diverse climates.

6. Can I use the 10A MPPT Solar Controller with different battery types?
Yes. The optional MPPT controller supports Gel, AGM, Flooded, Lithium, and more. It maximizes charging efficiency and safeguards your battery against reverse polarity, overcharging, and other potential issues.

7. Will this solar panel reduce glare while driving?
Yes. The top-tier ETFE surface is designed to minimize reflections, helping reduce glare on your hood and improving your on-road visibility.

8. How does it improve battery life and reliability?
By continuously topping up your battery, the solar panel reduces the risk of deep discharges—extending battery life and lowering the chance of encountering a dead battery when camping or parked for extended periods.

9. Does the panel come with a warranty?
Yes. The 105W Flexible Solar Panel includes a 24-month warranty, giving you peace of mind and ensuring that any potential manufacturing defects are covered during that period.
